Plan No.581230

Compact Design with Full Sized Amenities

This plan features a spacious kitchen with ample storage and a large 9-1/2 foot long center island which comfortably seats up to four. The kitchen has direct access to both the walk-in pantry and rear dining porch which can be screened in or left open. The optional vaulted ceiling in the living room and kitchen rises to 13-1/2 feet at the center. The barn doors leading into the master suite and guest room can either be closed for privacy or left open to provide great sightlines through the large 5' wide opening. The modern walk-in shower in the master bathroom provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master bathroom also includes a dual sink vanity and direct backyard access. The master suite includes both a standard closet and a walk-in closet. This design also features a covered front porch, mudroom/laundry room, linen and coat closets, large mechanical closet and a full bath for guests. The guest room flex space can also be used for a home office or formal dining parties. The oversized double garage features two 9' wide x 8' tall single garage doors.

Specifications

Total 1232 sq ft

  • Main: 1232
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 576

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'-0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'-4

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 68'-0
  • Depth: 44'-0

Roof

  • Max Ridge Height: 20'-1
  • Comments: (From Grade)
  • Primary Pitch: 8/12
  • Secondary Pitch: 8/12

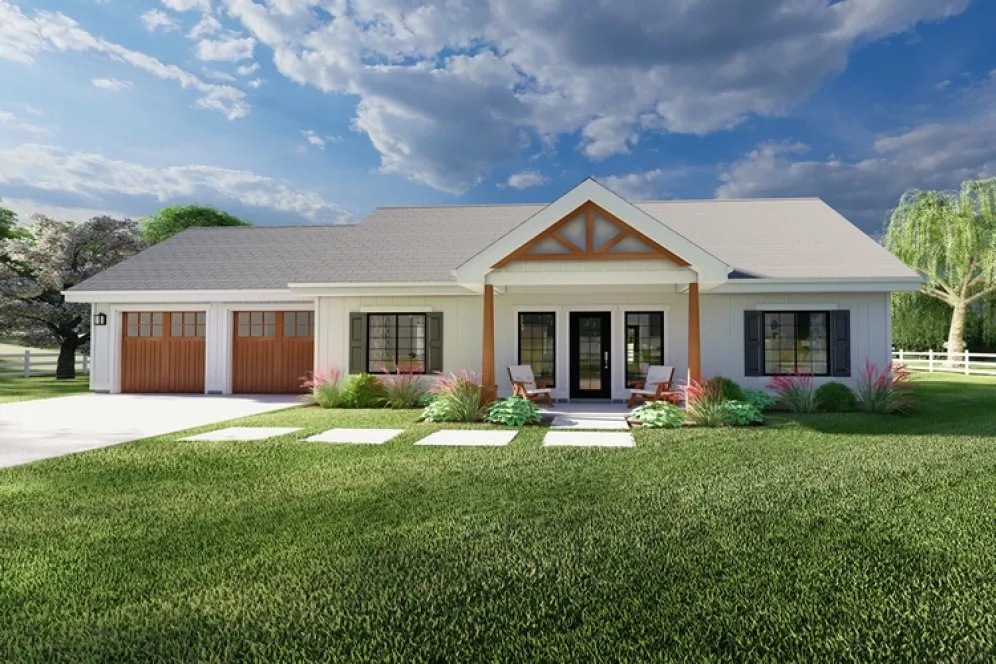

Full Rendering – westhomeplanners.com

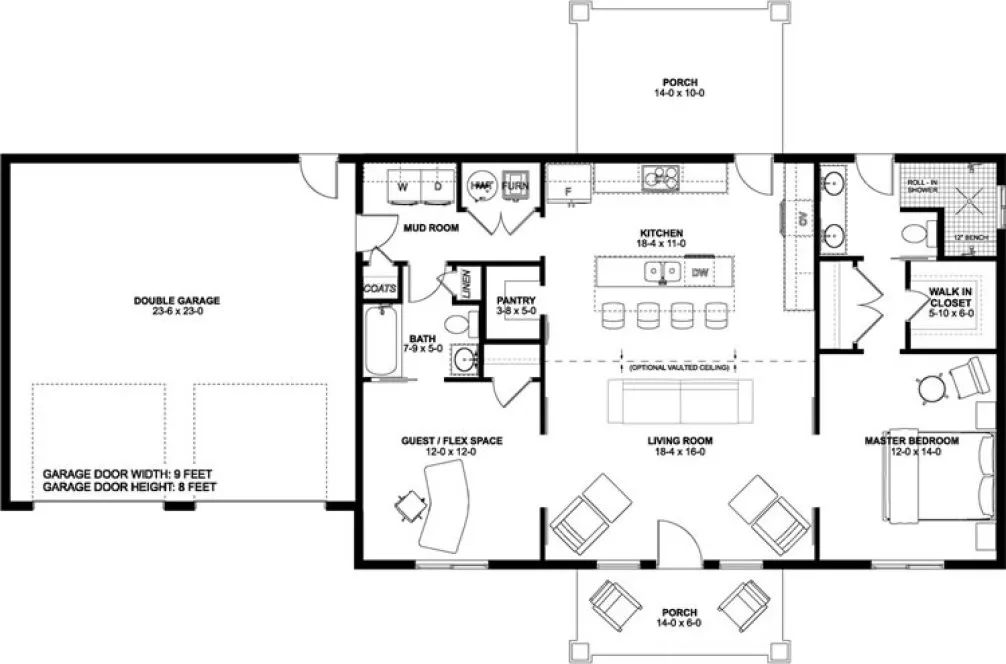

MAIN Plan – westhomeplanners.com

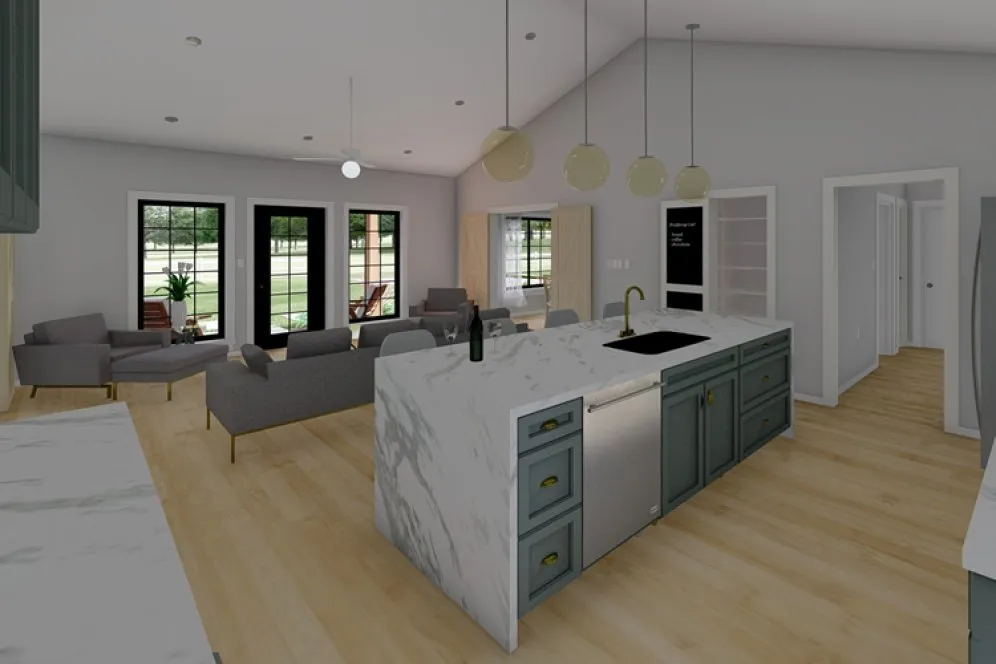

Kitchen to Living Room – westhomeplanners.com

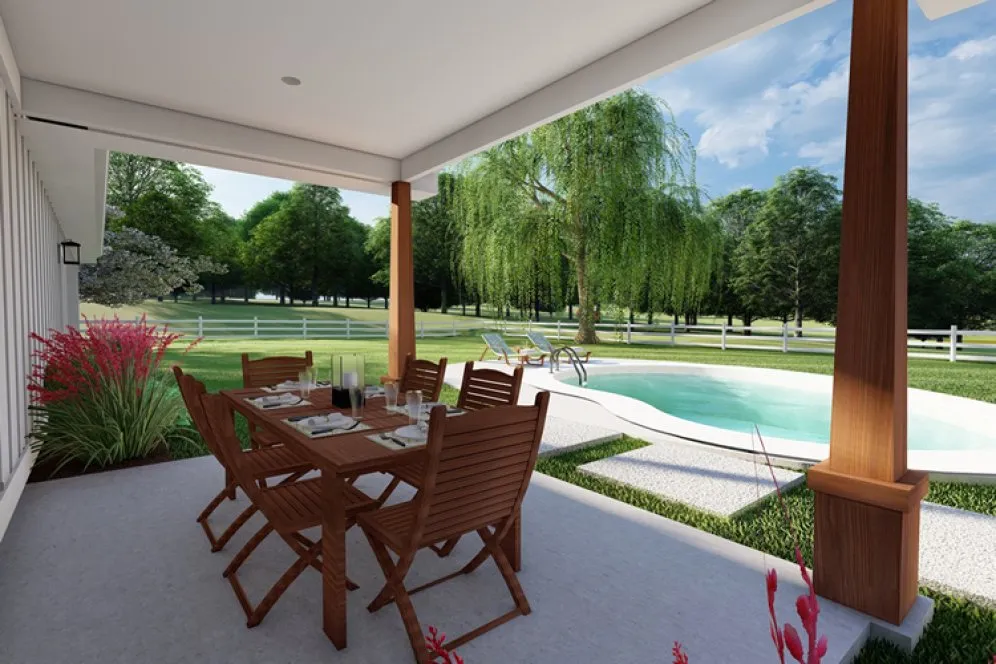

Rear Porch – westhomeplanners.com

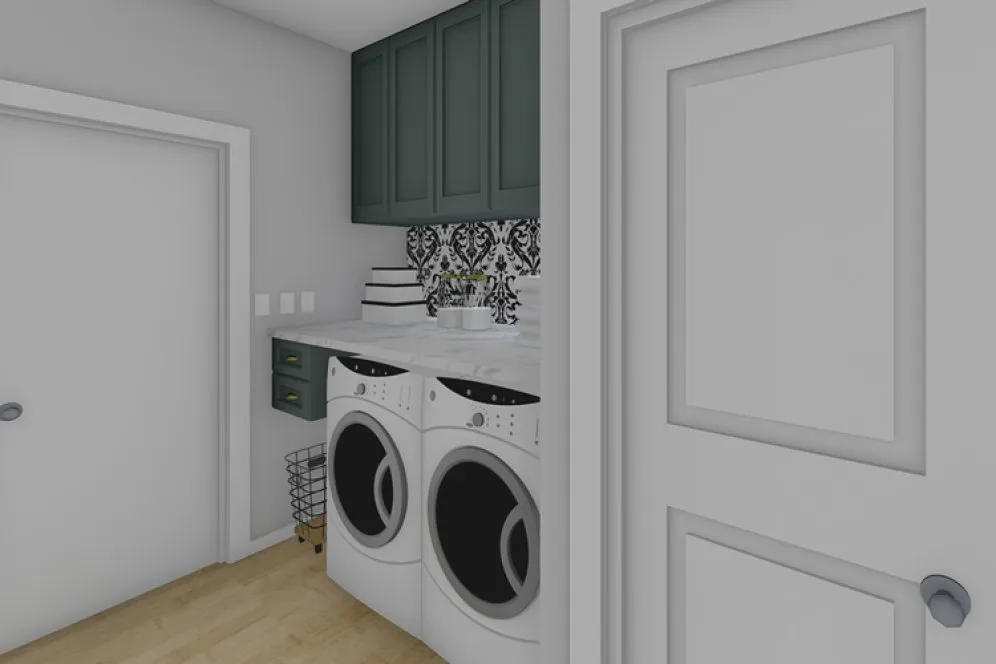

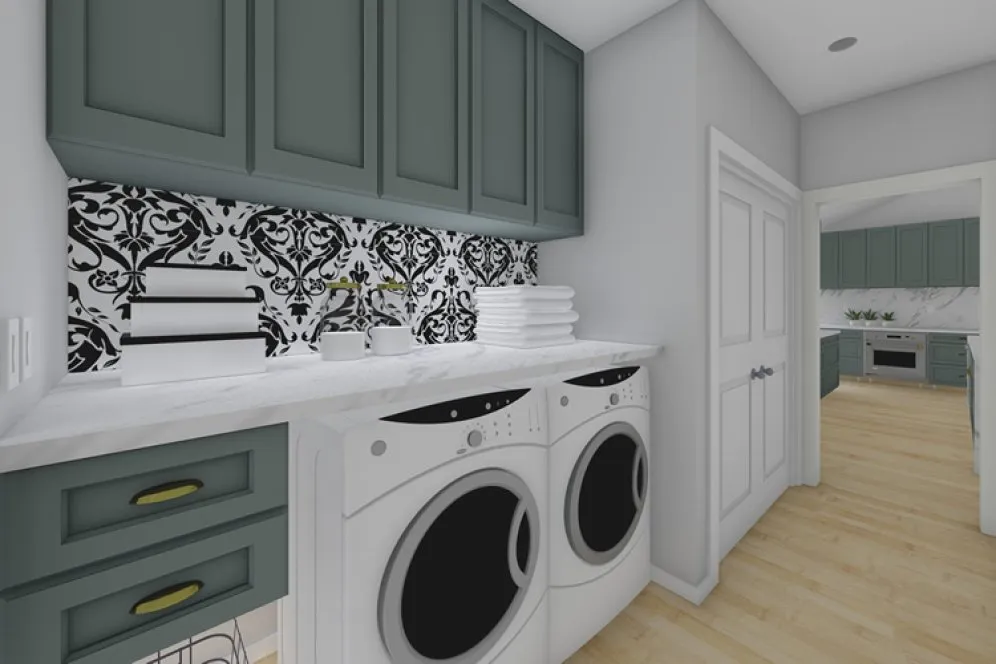

Mudroom / Laundry – westhomeplanners.com
Mudroom / Laundry – westhomeplanners.com

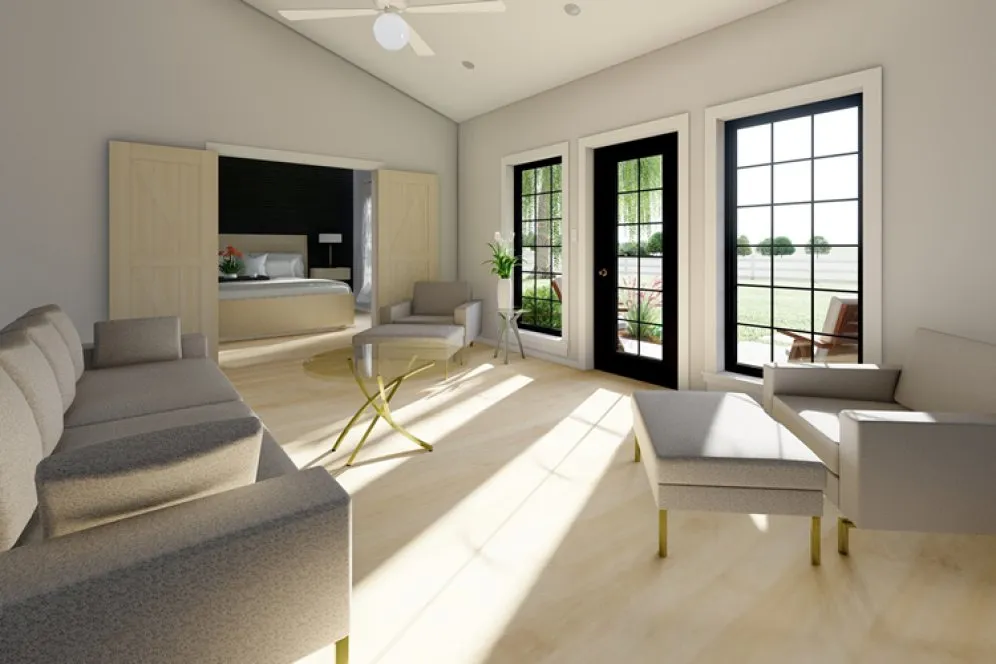

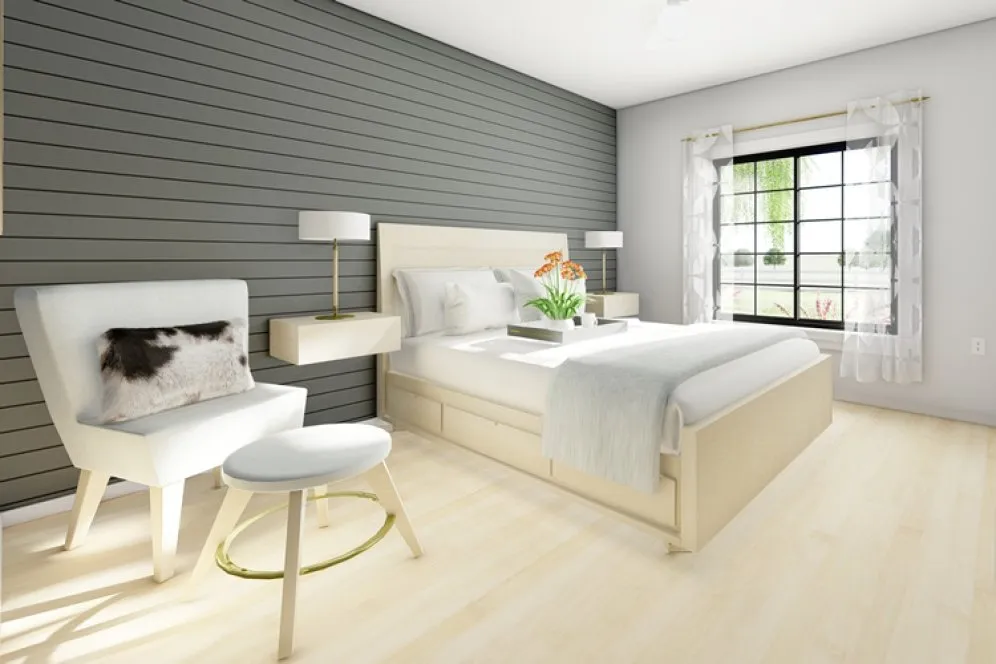

Master Sitting Area – westhomeplanners.com

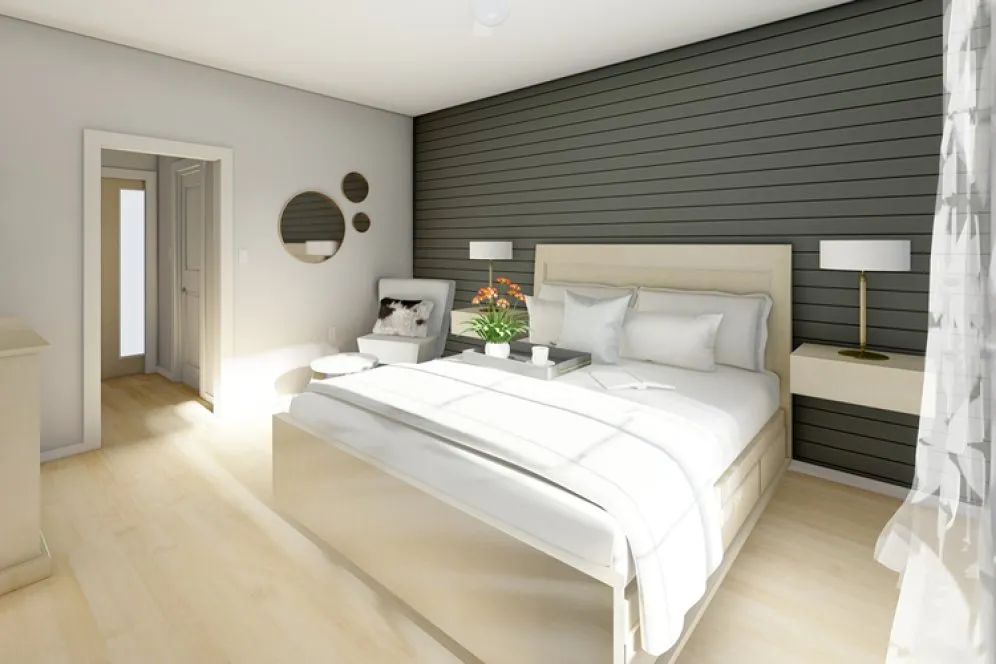

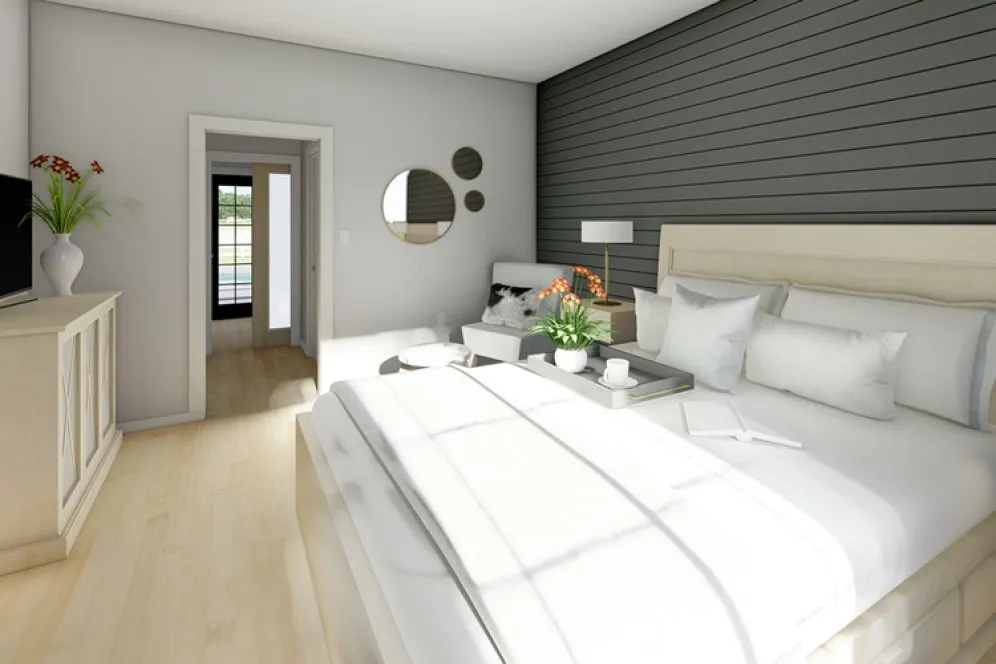

Master Bedroom – westhomeplanners.com
Master Bedroom – westhomeplanners.com

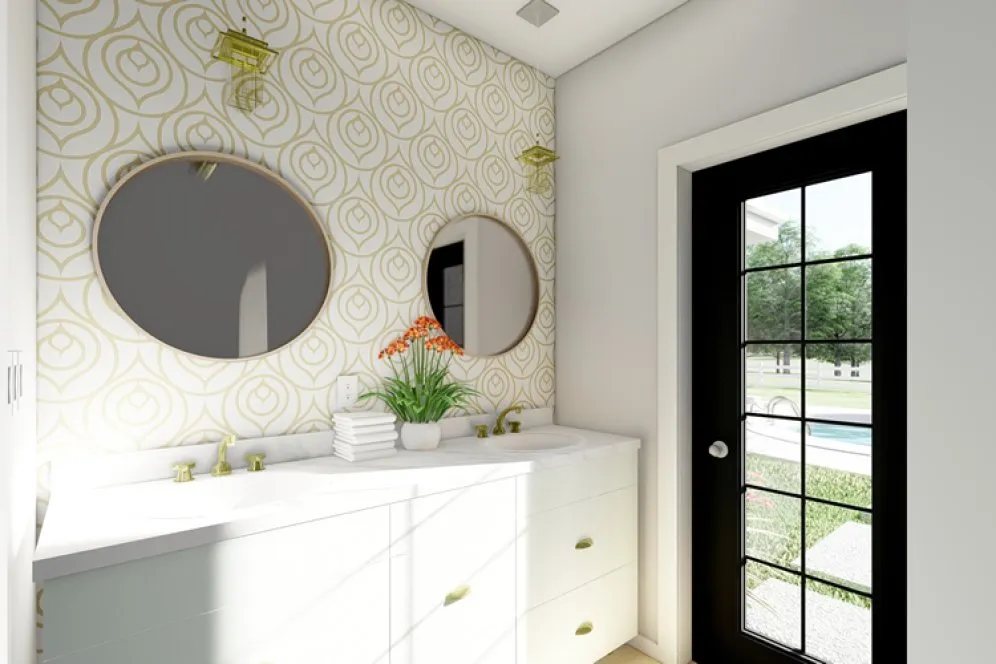

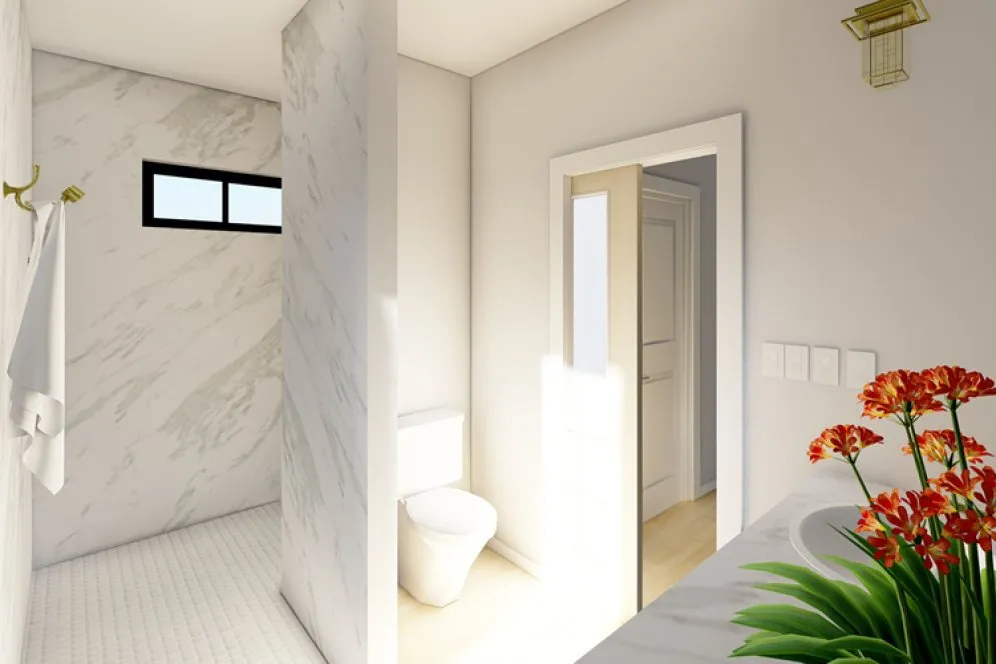

Master Bathroom – westhomeplanners.com
Living Room to Office – westhomeplanners.com

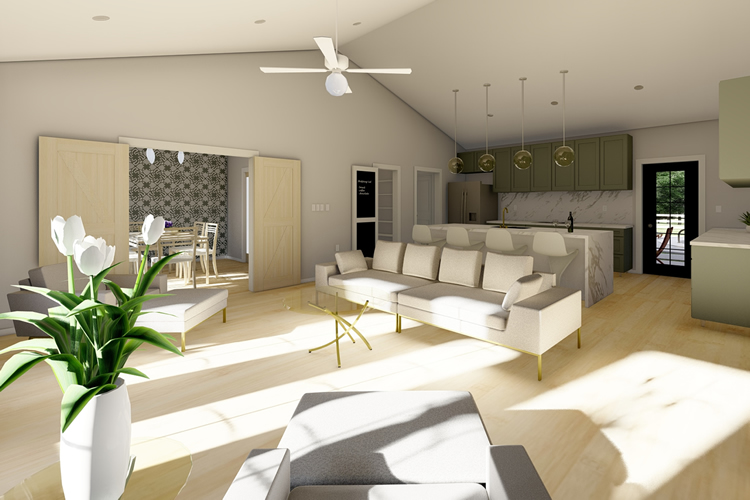

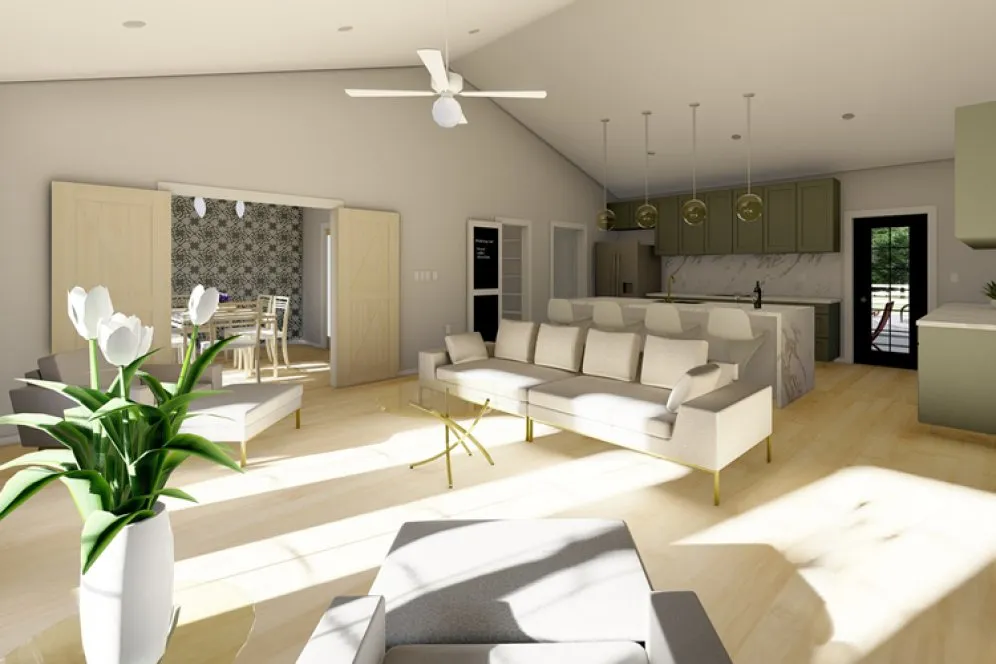

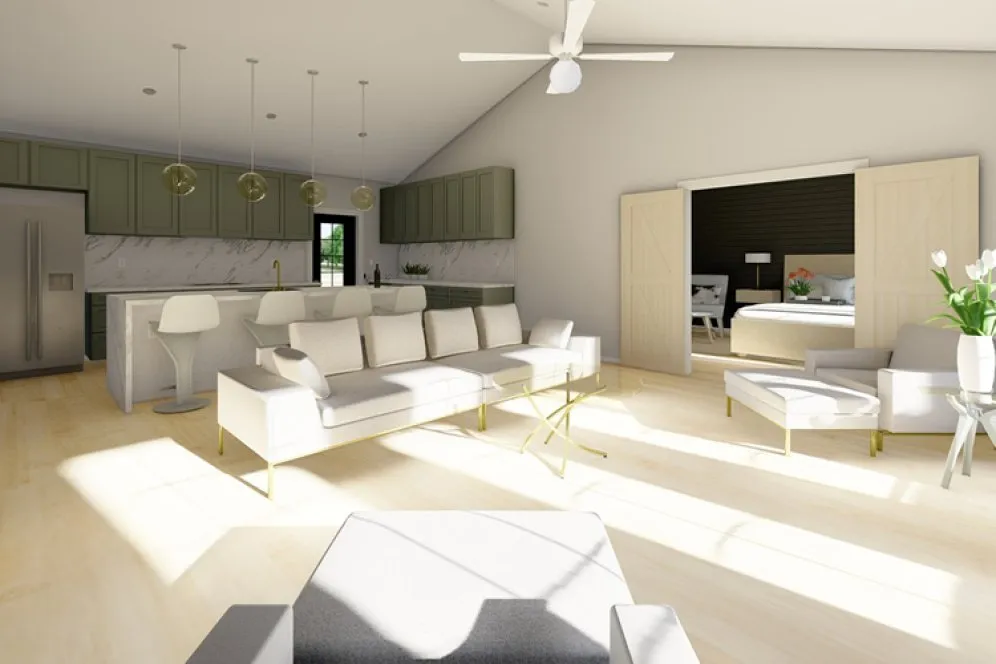

Living Room to Bedroom – westhomeplanners.com

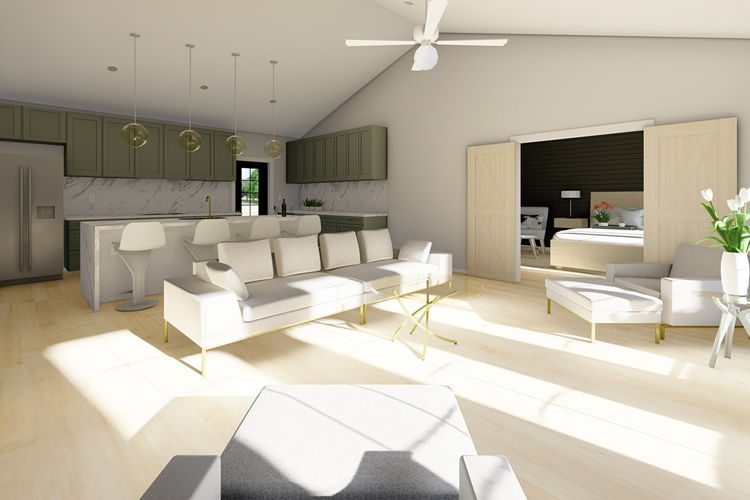

Living Room to Kitchen – westhomeplanners.com

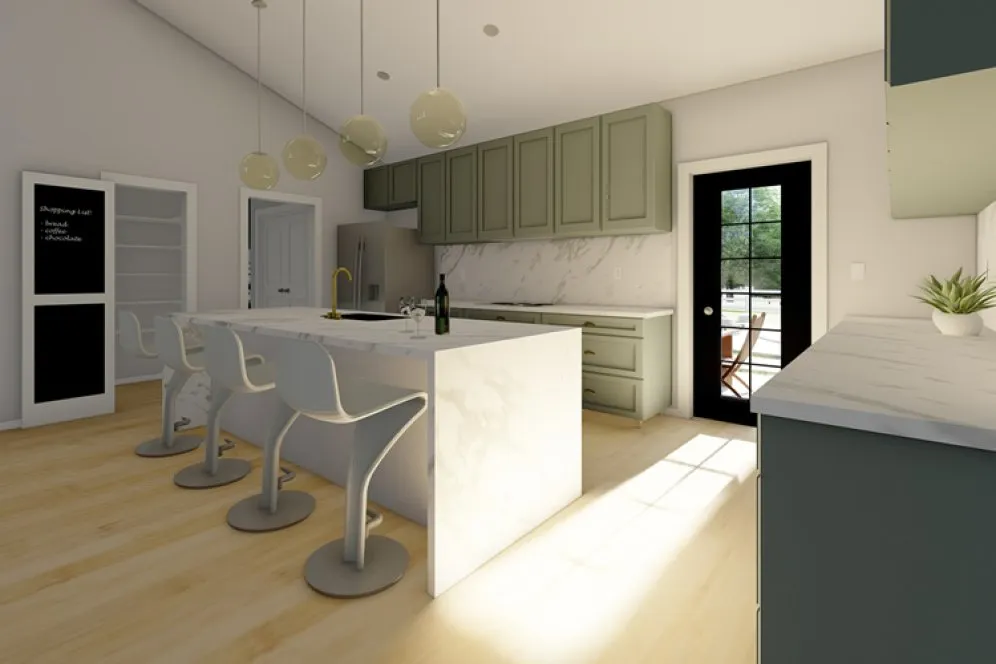

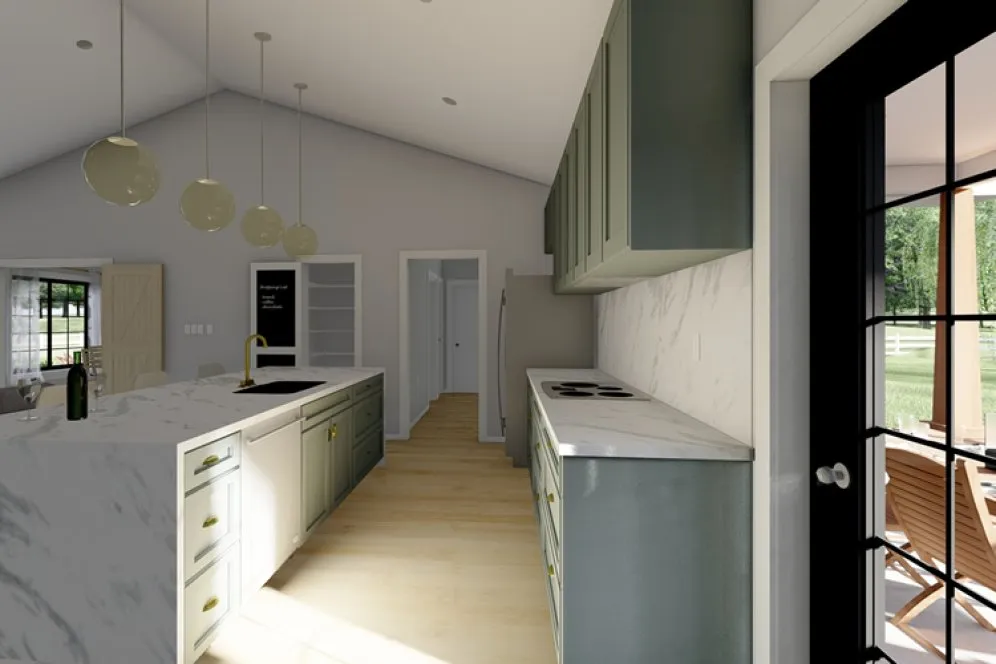

Kitchen – westhomeplanners.com
Kitchen to Pantry – westhomeplanners.com

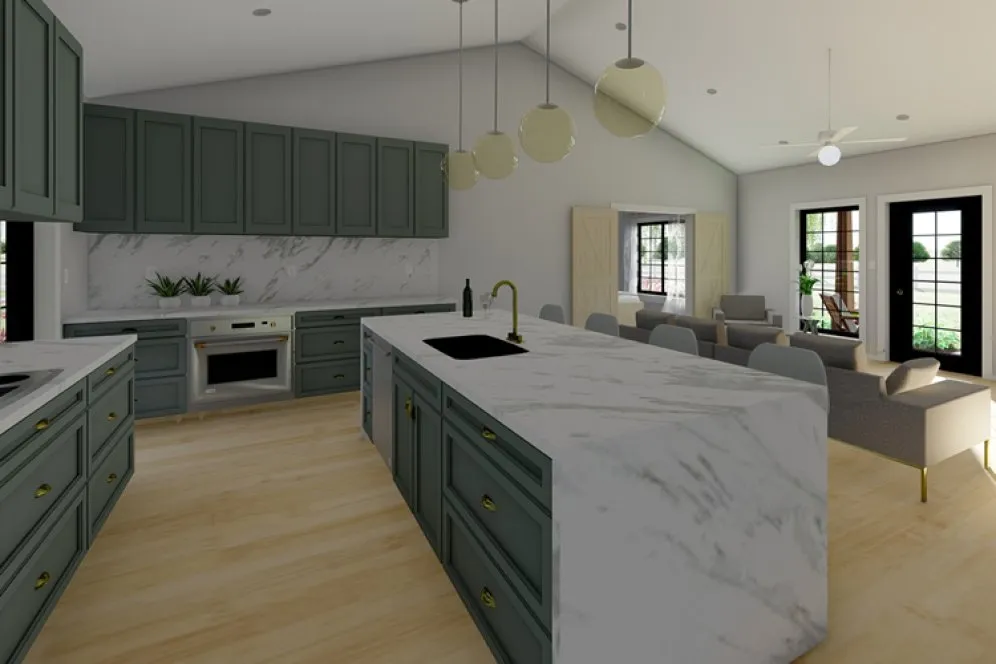

Kitchen to Living Room – westhomeplanners.com

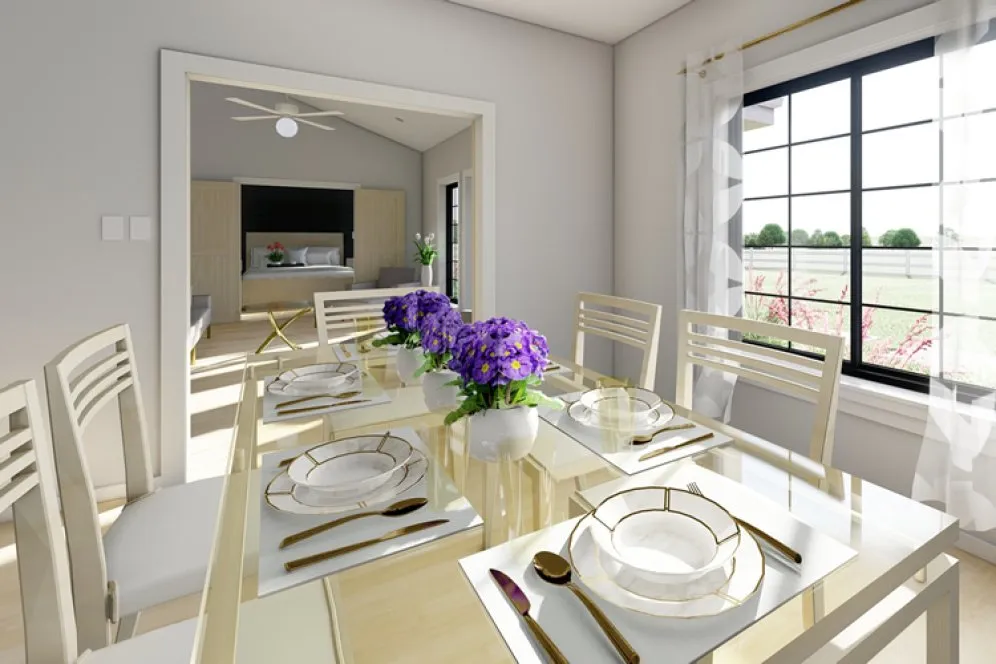

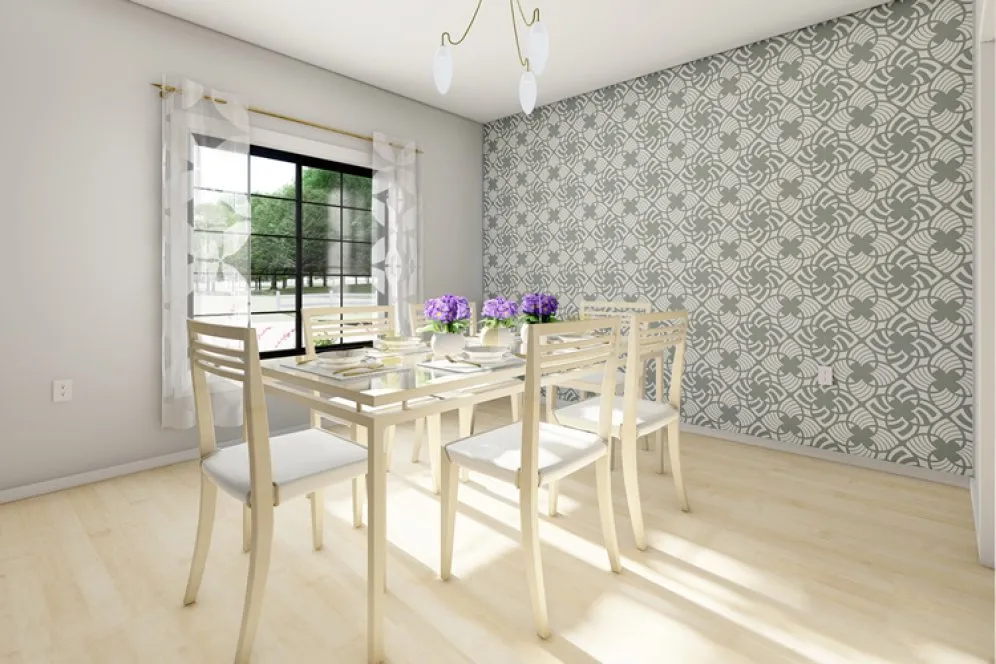

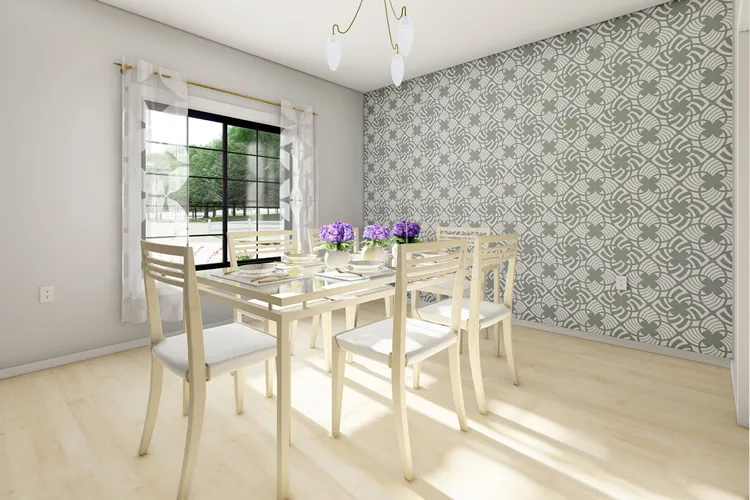

Guest Room / Flex Space – westhomeplanners.com
Guest Room / Flex Space – westhomeplanners.com

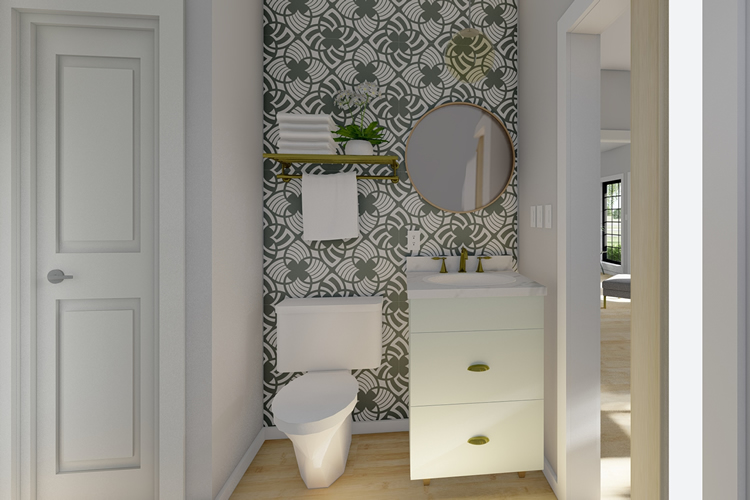

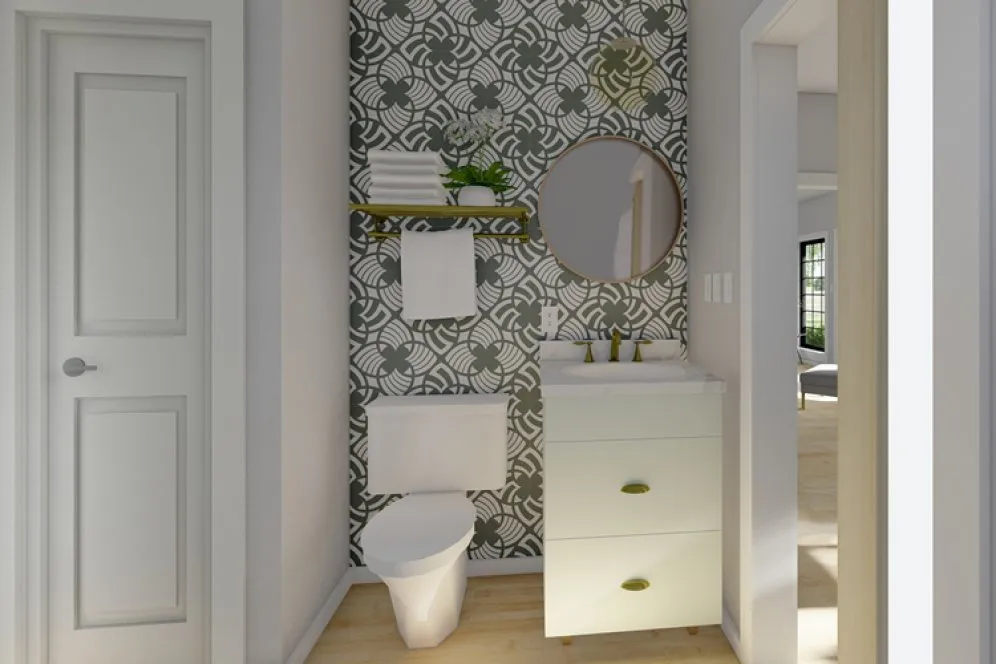

Guest Bathroom – westhomeplanners.com
Master Bathroom Shower – westhomeplanners.com

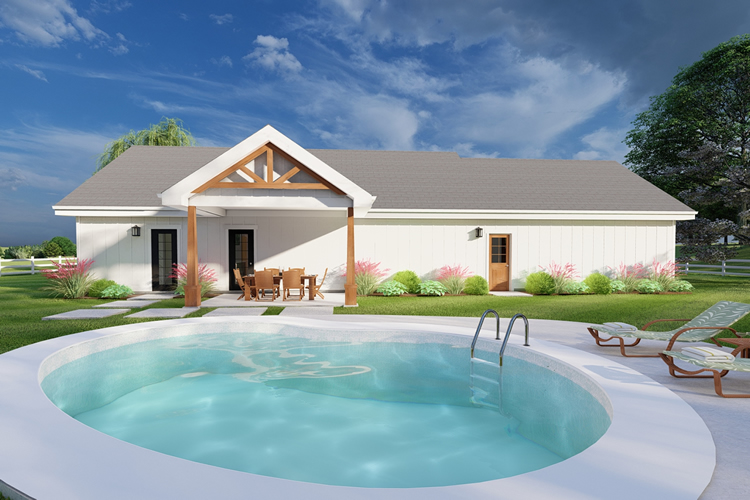

REAR Elevation – westhomeplanners.com
