Plan No.344403

A classic brick facade graces the front of this traditional garage plan. The floor plan provides the space to store up to 6 cars if parked in tandem. Garage doors on the left side aligne giving the ability to drive through. Three of the garage doors are 12' wide x 9' tall with the center door at 12' wide x 13' tall allowing for RV storage. The first floor also offers a full bathroom. The second floor is filled with a bonus room which could be used for storage, a craft or hobby room, or whatever else suites the homeowners' needs.

Specifications

Total 3044 sq ft

  • Main: 2024
  • Second: 1020
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds:
  • Baths:
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 14'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 44'0
  • Depth: 46'0

Roof

  • Max Ridge Height: 26'8
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

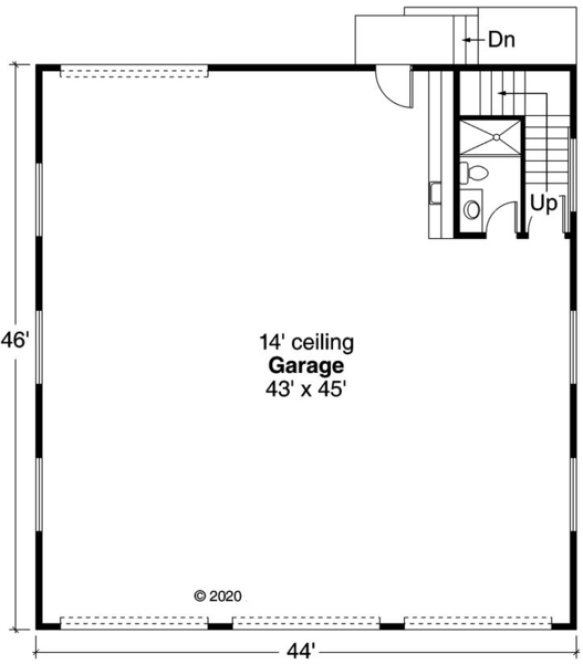

MAIN Plan – westhomeplanners.com

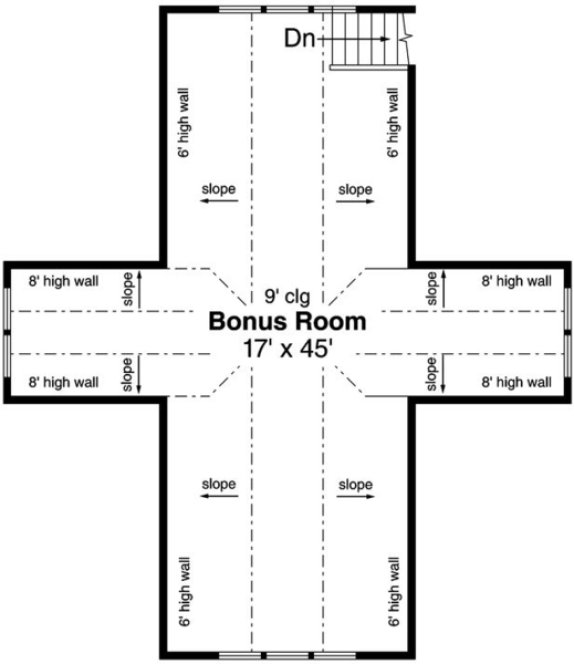

SECOND Plan – westhomeplanners.com

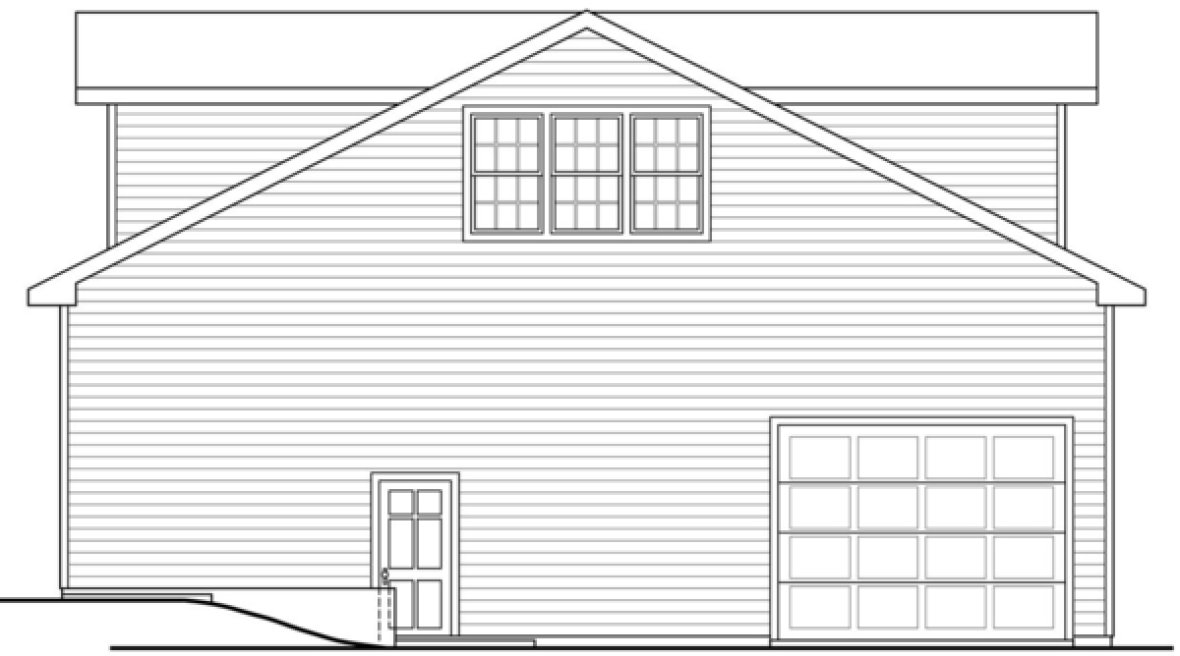

REAR Elevation – westhomeplanners.com

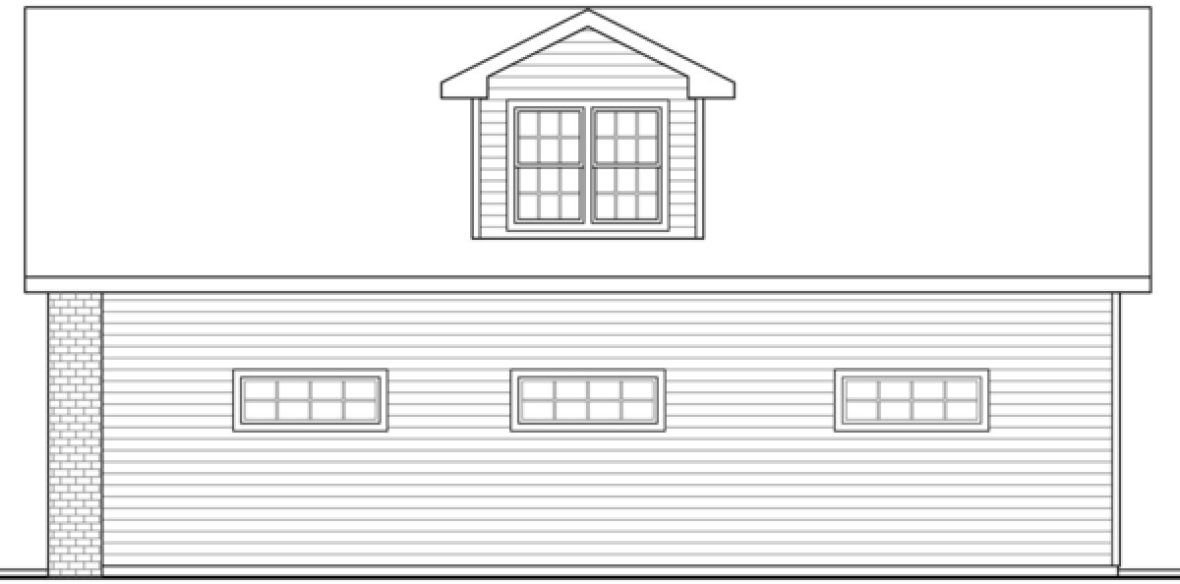

LEFT Elevation – westhomeplanners.com

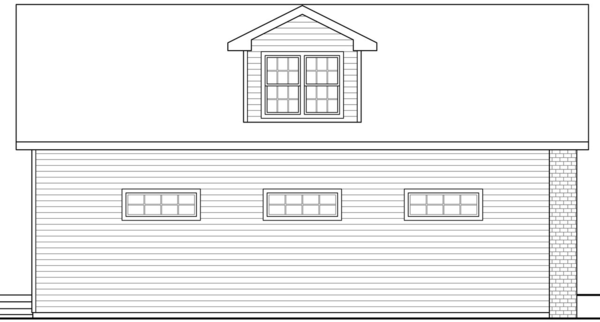

RIGHT Elevation – westhomeplanners.com
