Plan No.346621

Simple Yet Sizable Family Home

This is a simple yet sizeable family home. The traditional ranch-style house plan includes the basics every family would need, from closets in every room to an extended eating bar for meal-time together. The master bedroom is directly across from the other two bedrooms, ensuring taking care of small child is an easy commute. The bedrooms are on the opposite side of the house from the garage, reducing noise and interruptions from vehicles. The shared living areas that include the dining, living room and kitchen all have vaulted ceilings that add to the space.

Specifications

Total 1266 sq ft

  • Main: 1266
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 463

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 48'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 15'8
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 5.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

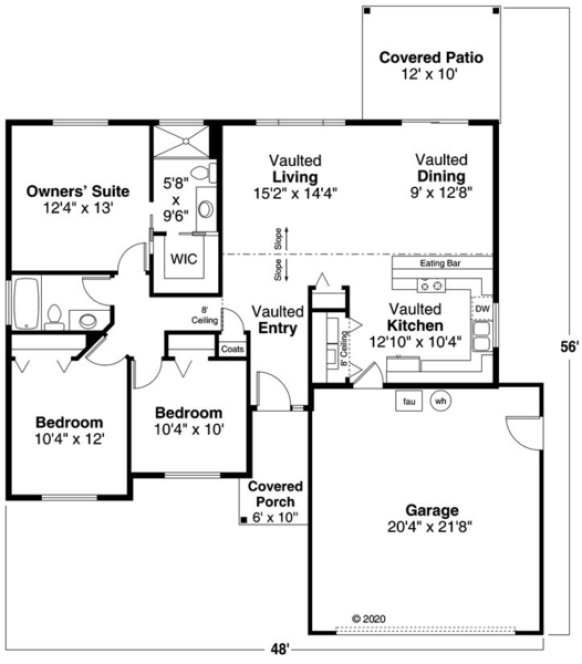

MAIN Plan – westhomeplanners.com

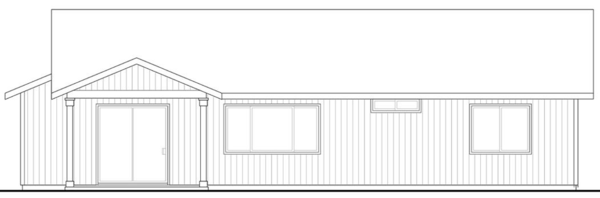

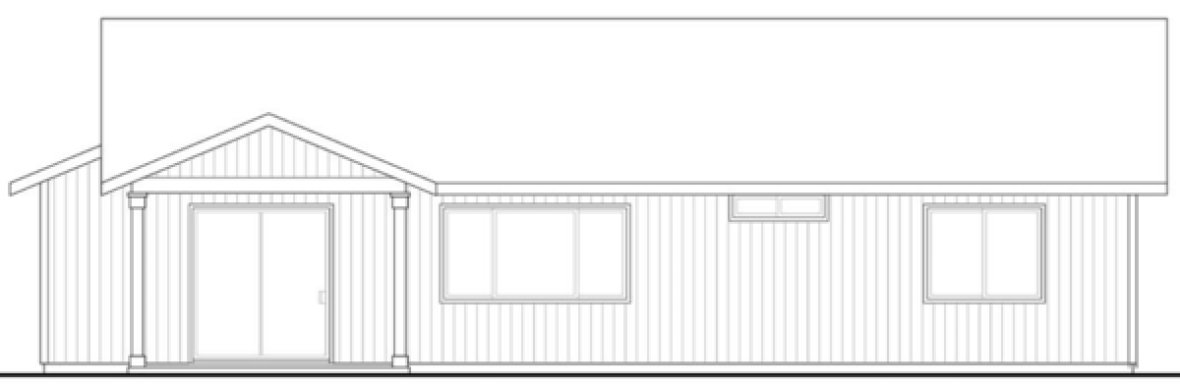

REAR Elevation – westhomeplanners.com

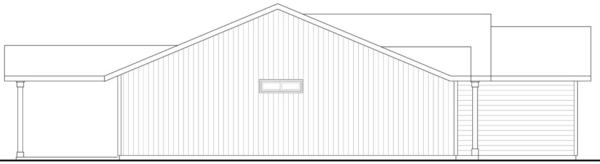

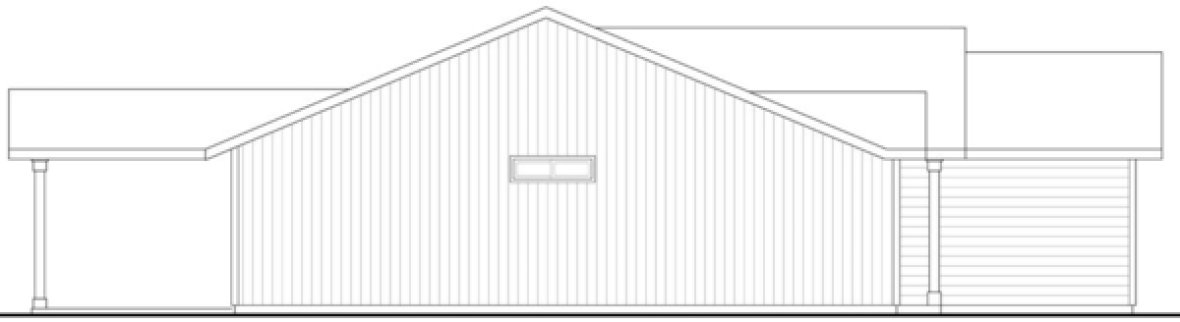

LEFT Elevation – westhomeplanners.com

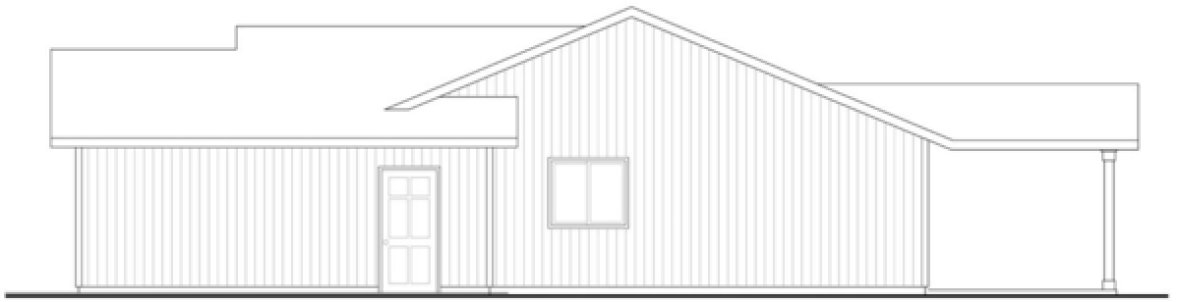

RIGHT Elevation – westhomeplanners.com
