Plan No.157711

Captivating Economical Home

Proving that even modest homes can be captivating, this design takes advantage of bracketed shed roofs over the garage and bedroom three’s window as well as vertical board and batten siding for distinctive appeal. Work from home? Perhaps the front bedroom becomes your home office. Enjoy entertaining? The design is open, with kitchen island that can double as overflow seating or buffet servery. And to avoid door swing interruption – a pocket door access into the owner’s bath.

Specifications

Total 1176 sq ft

  • Main: 1176
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 501

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 9'0
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 50'0

Roof

  • Max Ridge Height: 21'1
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7.00/12
  • Secondary Pitch: 7.00/12
Full Rendering – westhomeplanners.com

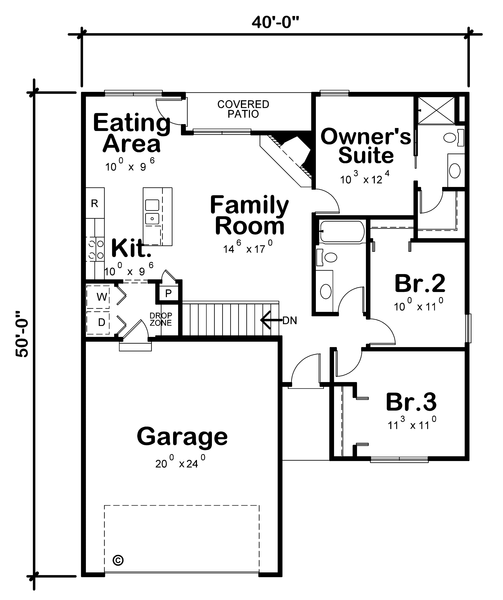

MAIN Plan – westhomeplanners.com

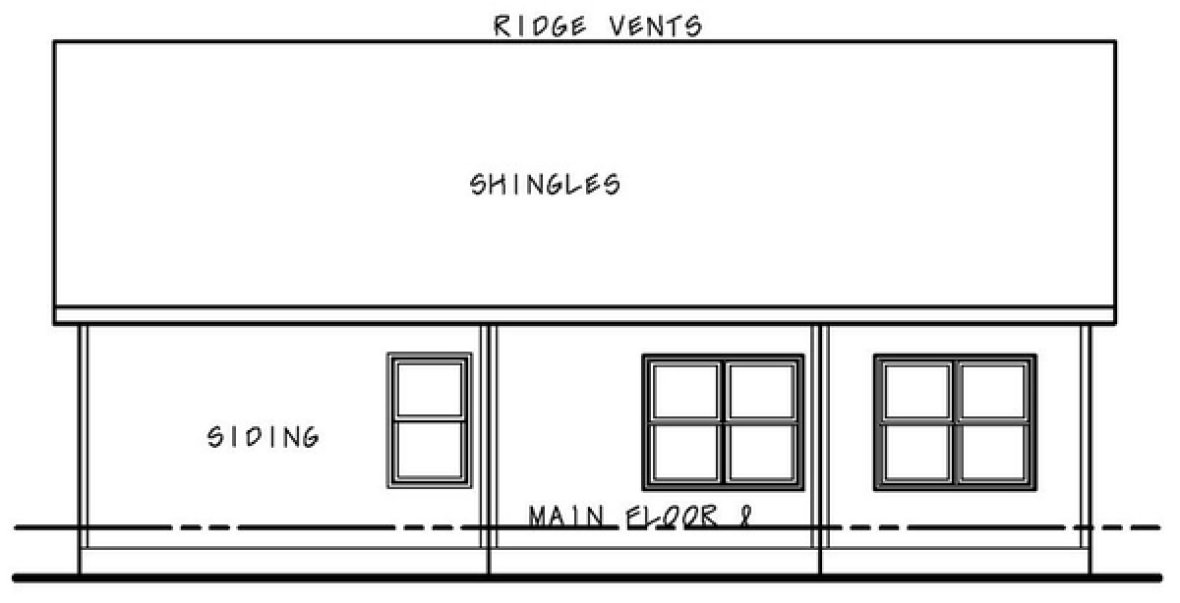

REAR Elevation – westhomeplanners.com

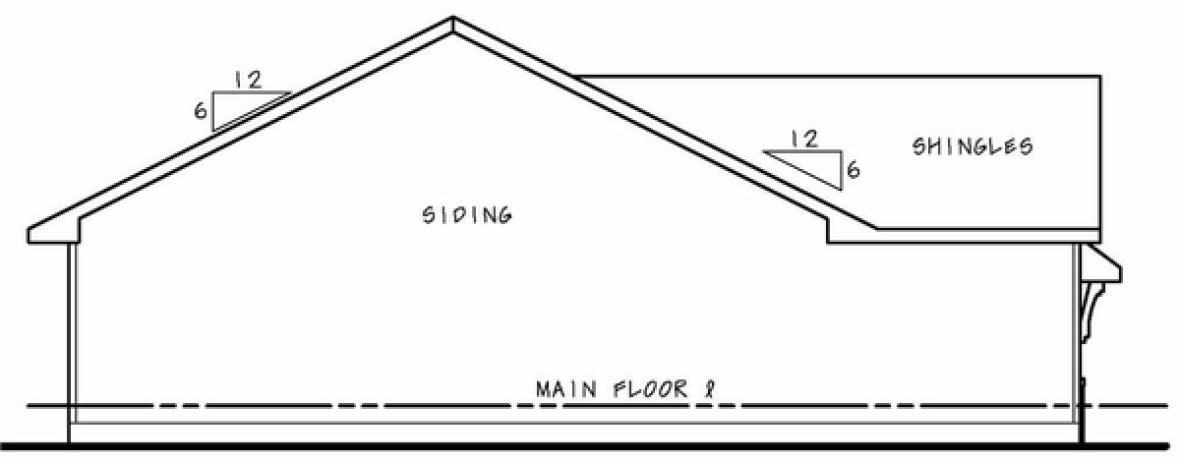

LEFT Elevation – westhomeplanners.com

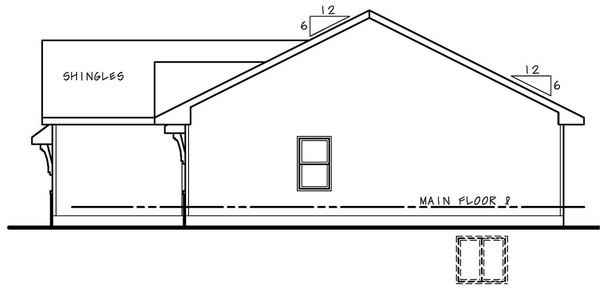

RIGHT Elevation – westhomeplanners.com
