Plan No.320602

ADDITIONAL NOTES: Unlimited Build License issued on CAD File orders. Total Living Area may increase with Basement Foundation option. Regarding PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order. Please note, the Bonus Room area is not included in the total square footage.

Specifications

Total 2060 sq ft

  • Main: 2060
  • Second: 0
  • Third: 0
  • Loft/Bonus: 293
  • Basement: 0
  • Garage: 567

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0+
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 78'0
  • Depth: 64'0

Roof

  • Max Ridge Height: 22'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

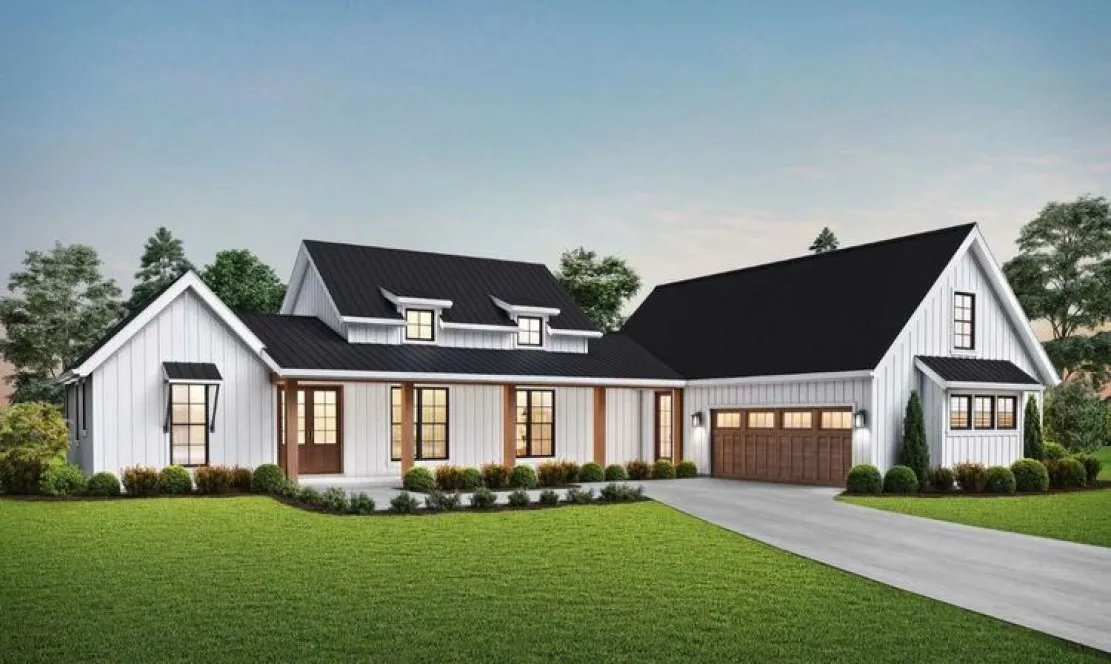

Full Rendering for House Plan #320602
 – westhomeplanners.com

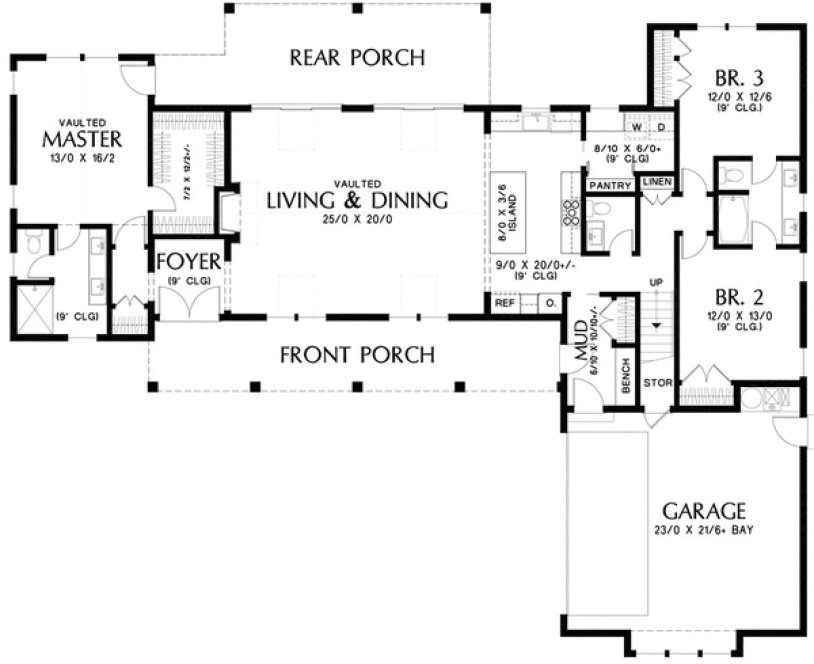

Main Floor Plan for House Plan #320602
 – westhomeplanners.com

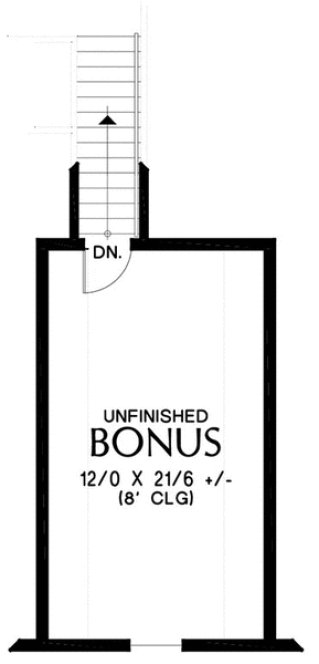

Attic Plan for House Plan #320602

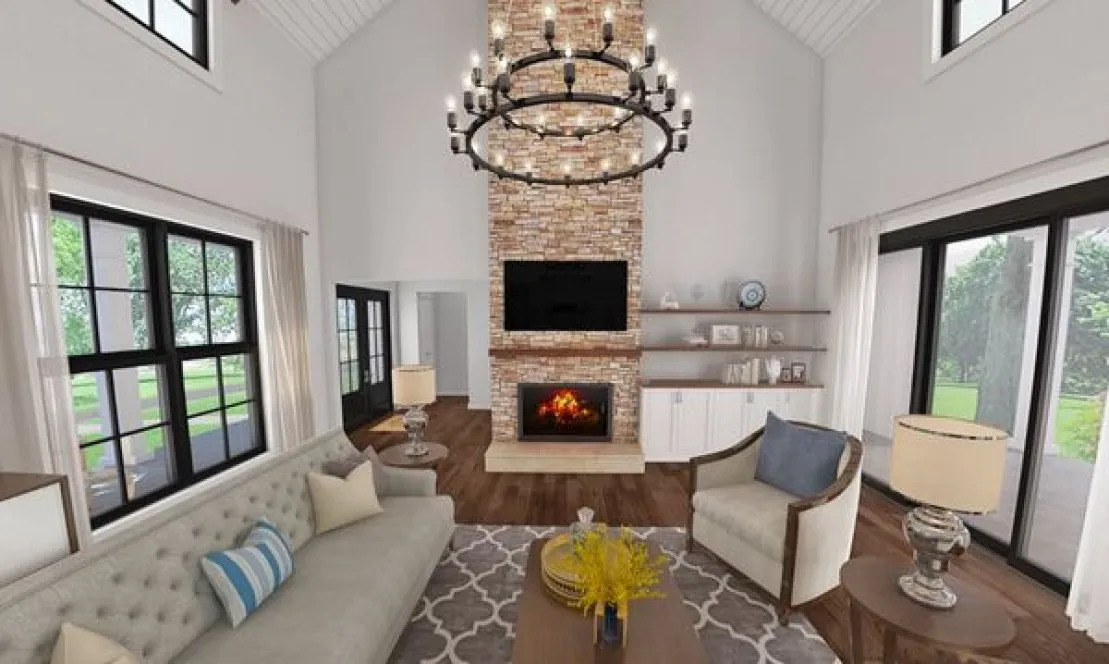

Great Room – westhomeplanners.com
InteriorPhoto for House Plan #320602

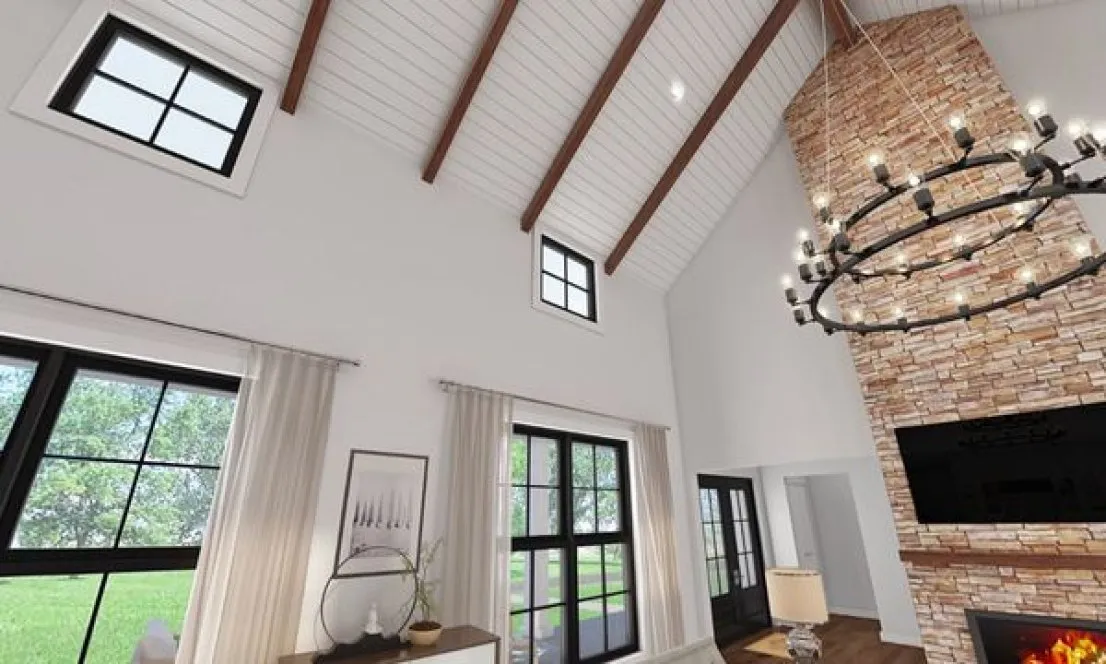

Great Room Vaulted Clg. – westhomeplanners.com
InteriorPhoto for House Plan #320602

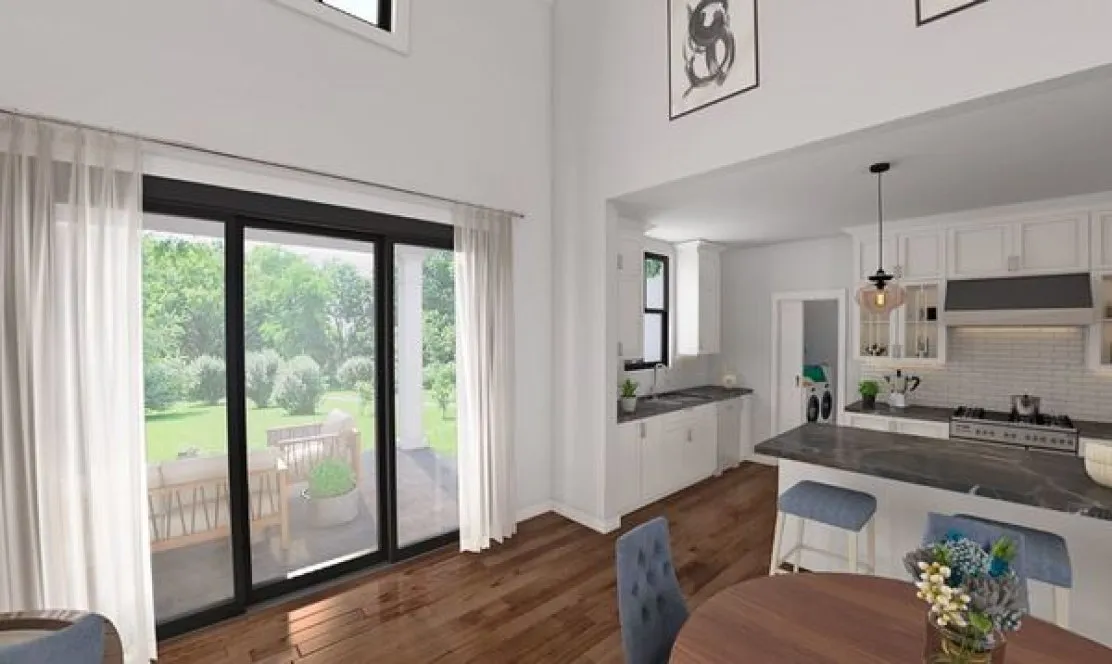

Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #320602
Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #320602

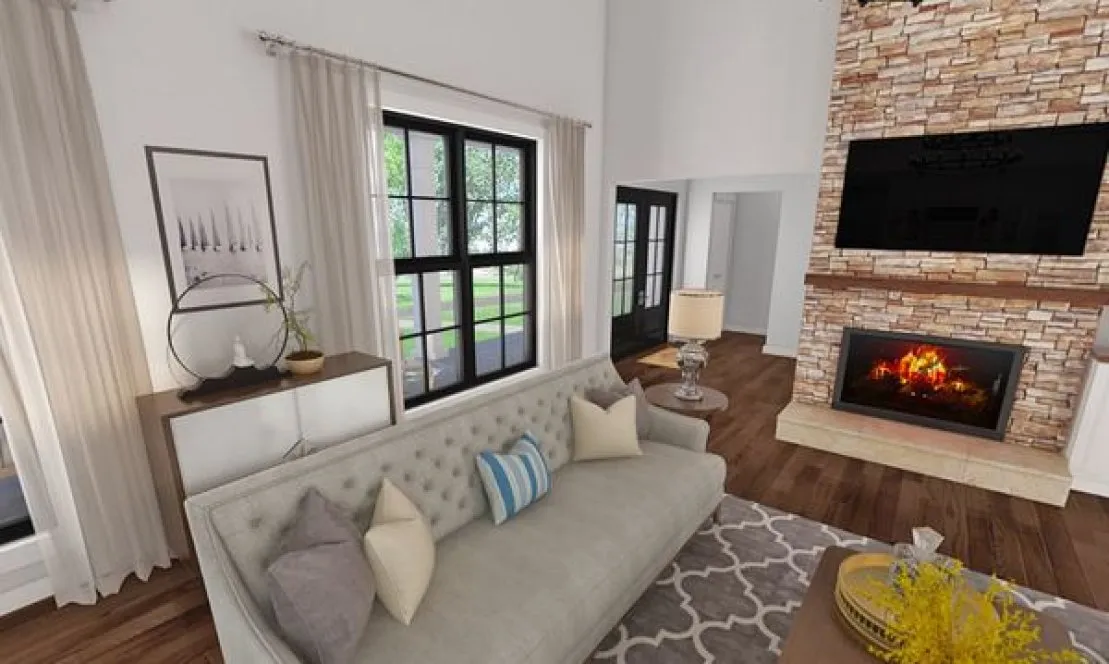

Great Room – westhomeplanners.com
InteriorPhoto for House Plan #320602
 – westhomeplanners.com

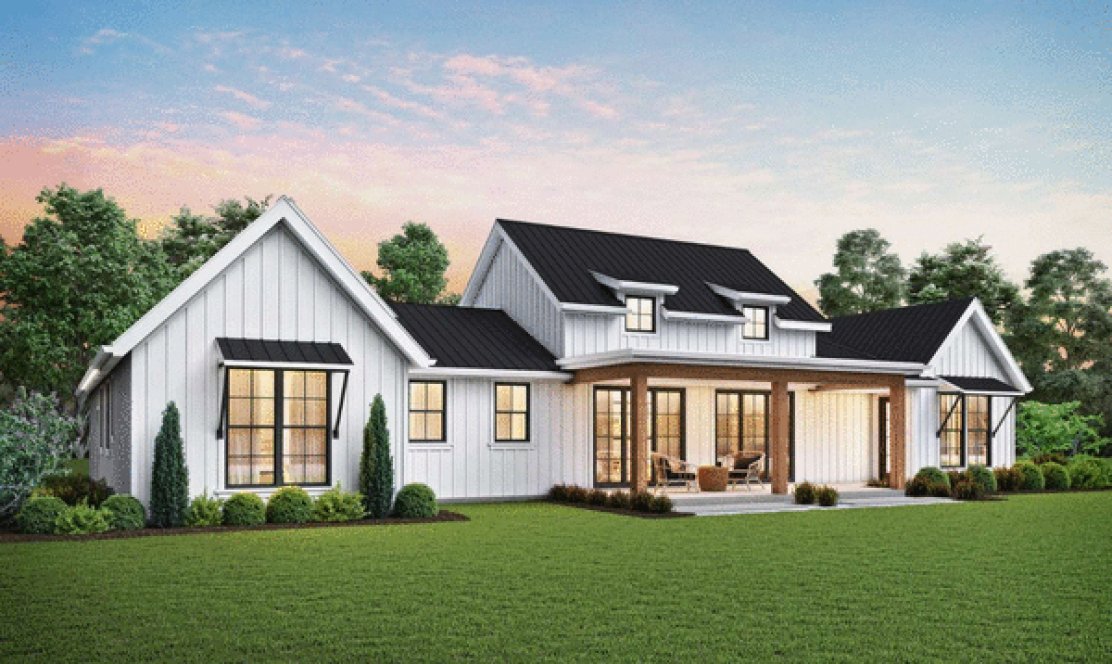

Rear Elevation for House Plan #320602
