Plan No.696371

See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.

Specifications

Total 1736 sq ft

  • Main: 1280
  • Second: 456
  • Third:
  • Loft/Bonus:
  • Basement: 1280
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 10'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: none
  • Width: 40'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 26'10
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

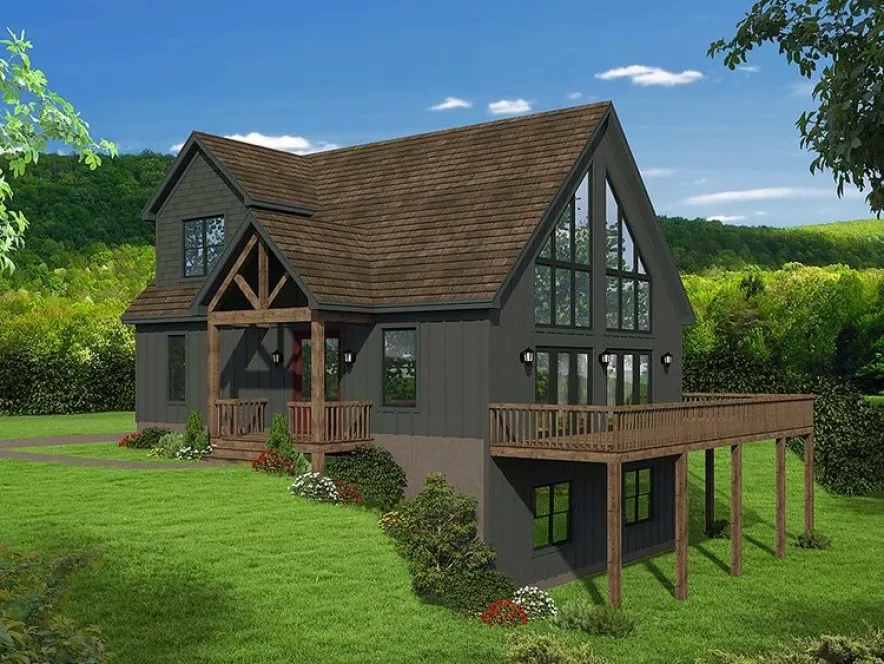

Full Rendering – westhomeplanners.com

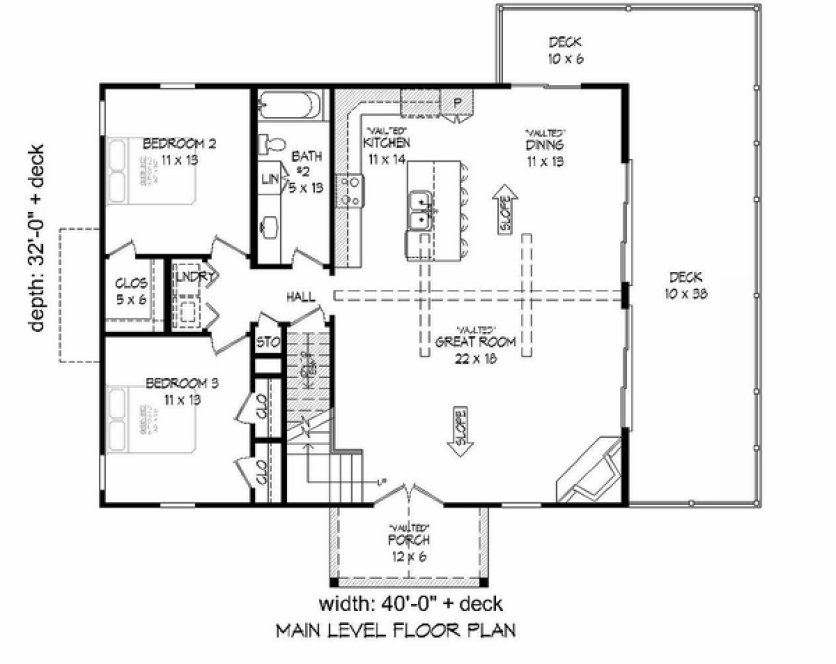

MAIN Plan – westhomeplanners.com

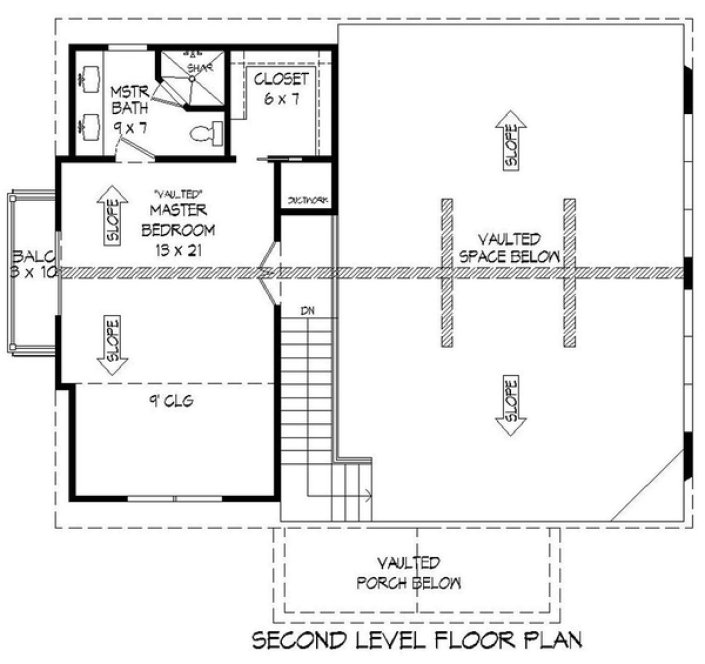

SECOND Plan – westhomeplanners.com

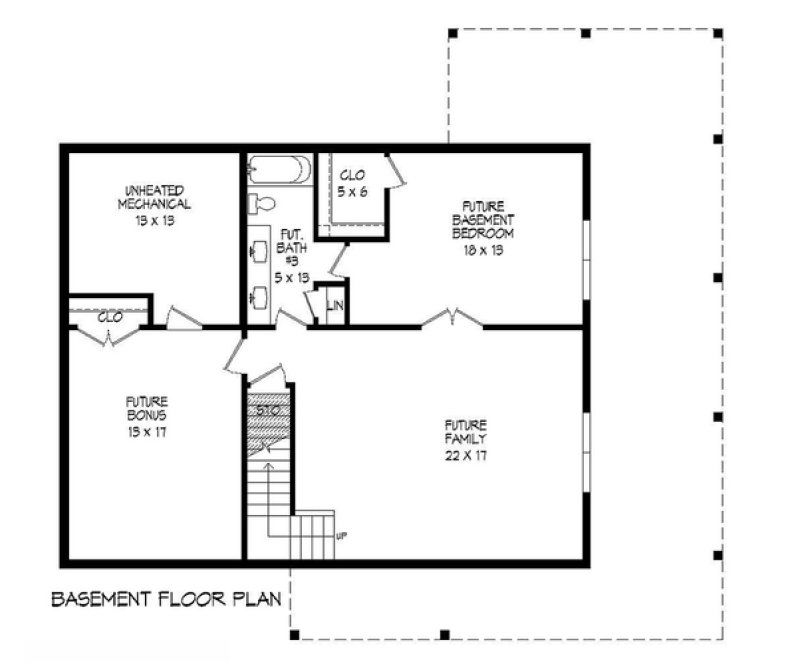

BASEMENT Plan – westhomeplanners.com

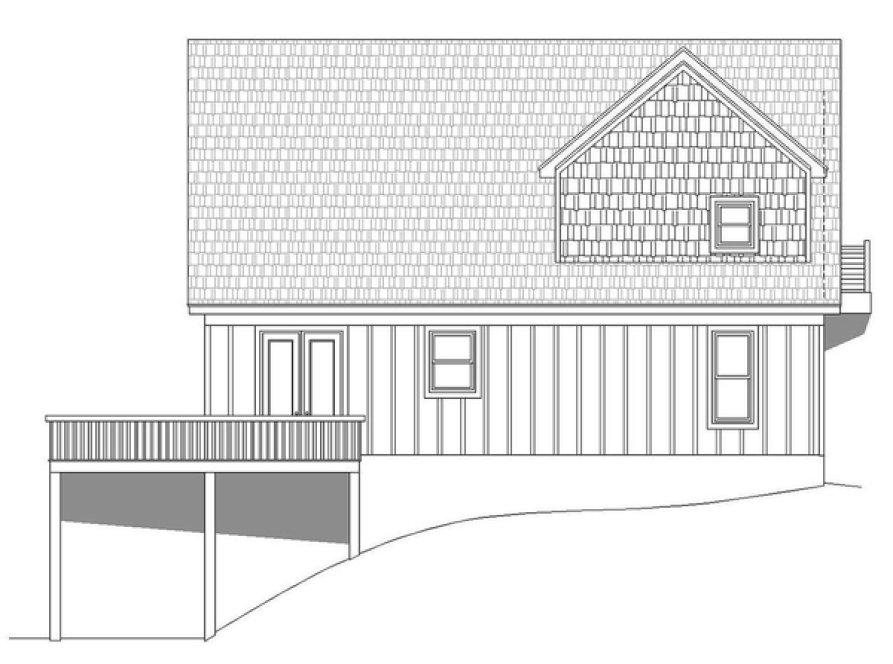

REAR Elevation – westhomeplanners.com

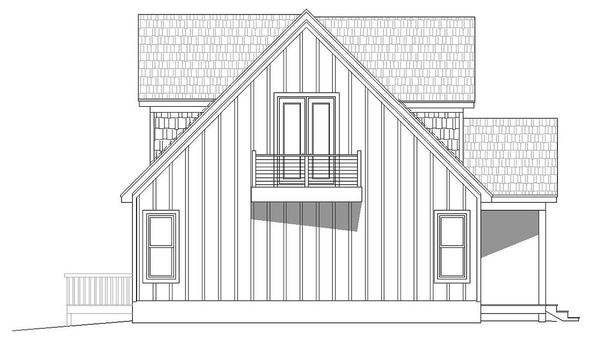

LEFT Elevation – westhomeplanners.com

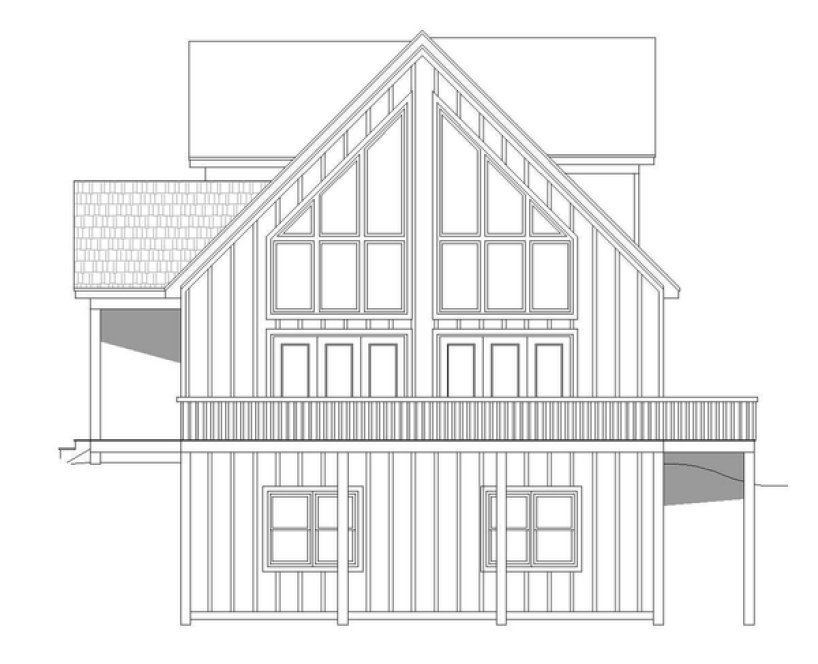

RIGHT Elevation – westhomeplanners.com

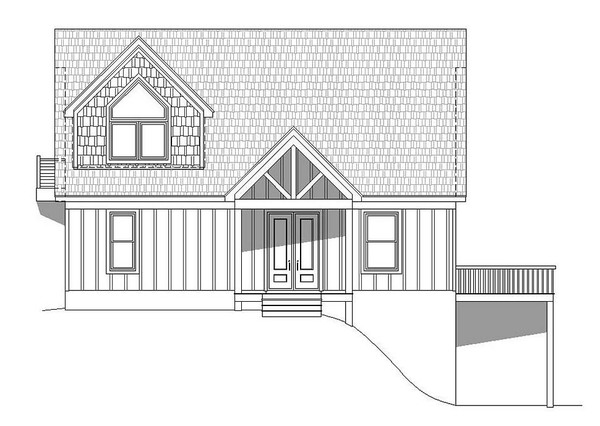

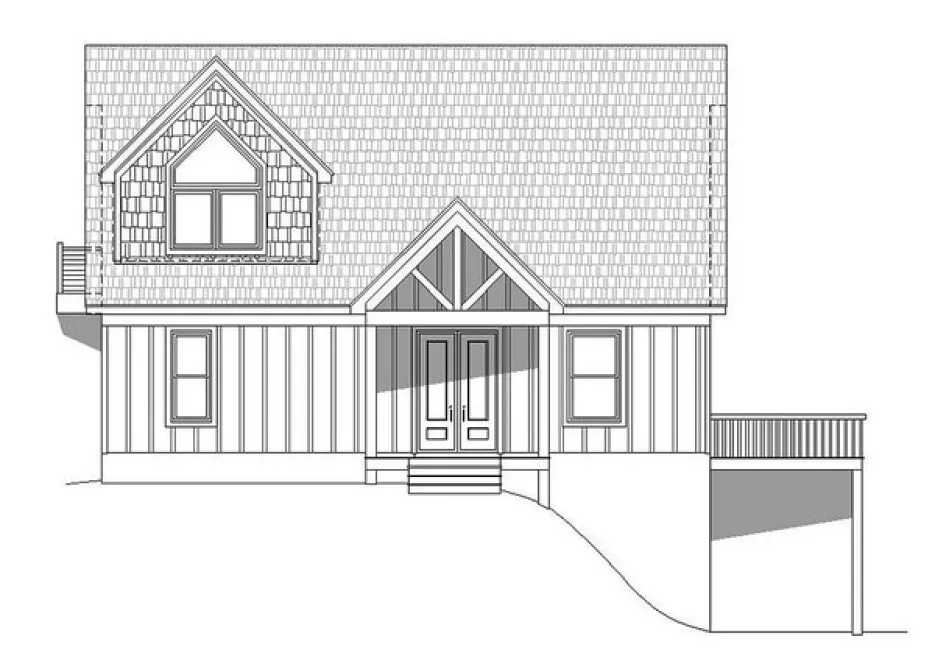

FRONT Elevation – westhomeplanners.com
