Plan No.905342

Well Thought-out Floor Plan

This modern farmhouse plan delivers an attractive, symmetrical exterior and well-thought-out floor plan for today’s modern family. French doors open to the foyer with barn doors on your left giving you access to an office/playroom. Ahead, the living room takes center stage with a fireplace, views and access to the 12′-deep rear porch and an exposed beam separating it from the kitchen. A large island provides seating for casual meals, while the adjoining dining room provides additional seating. A spacious rear porch includes an outdoor kitchen for grilling and dining. Retreat to the master bedroom, privately located on the left side of the home, which features a 5-fixture bathroom and a pass-through closet with access to the laundry room. Two bedrooms on the opposite side of the home share a full bath with double sinks. The 2-car garage includes a storage bay for lawn equipment and an optional bonus room above features a full bath. Please note, the Bonus Room area is not included in the total square footage.


Total 2435 sq ft

  • Main: 2435
  • Second: 0
  • Third: 0
  • Loft/Bonus: 474
  • Basement: 0
  • Garage: 833


  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 80'9
  • Depth: 78'9


  • Max Ridge Height: 28'11
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 0/12

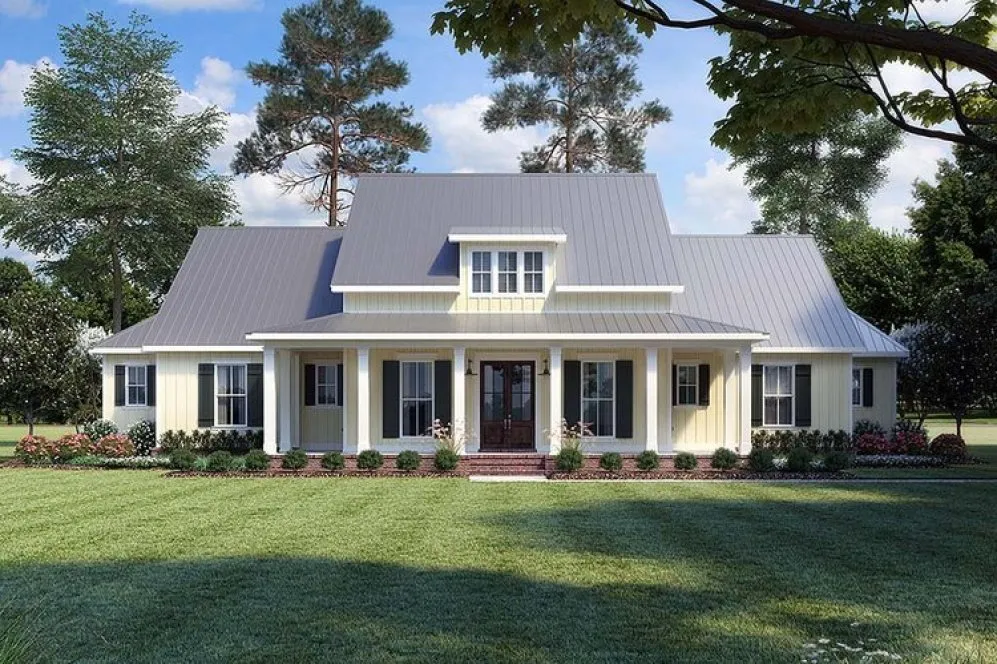

Full Rendering –

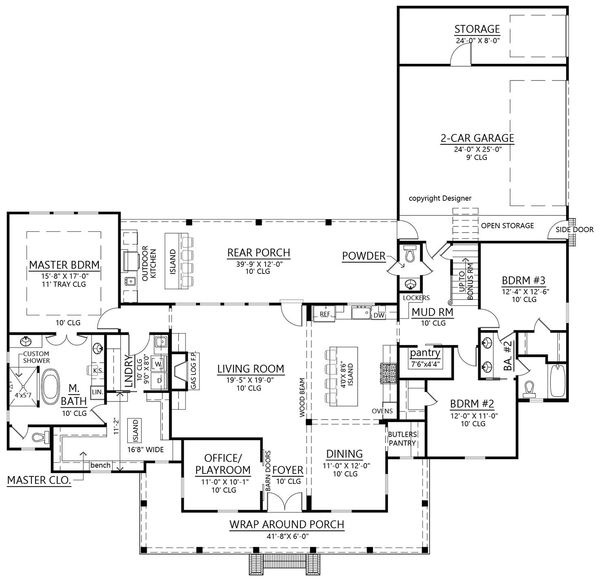

MAIN Plan –

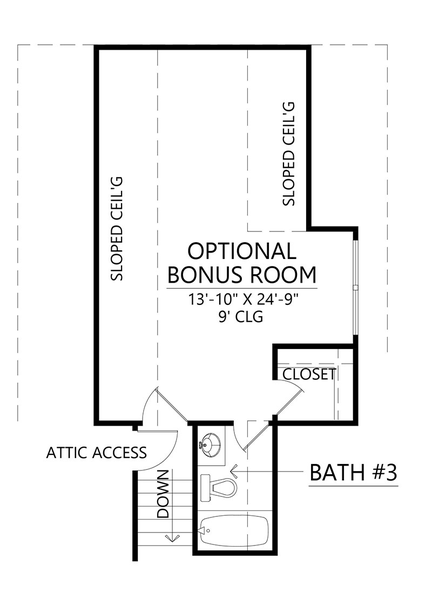

ATTIC Plan –

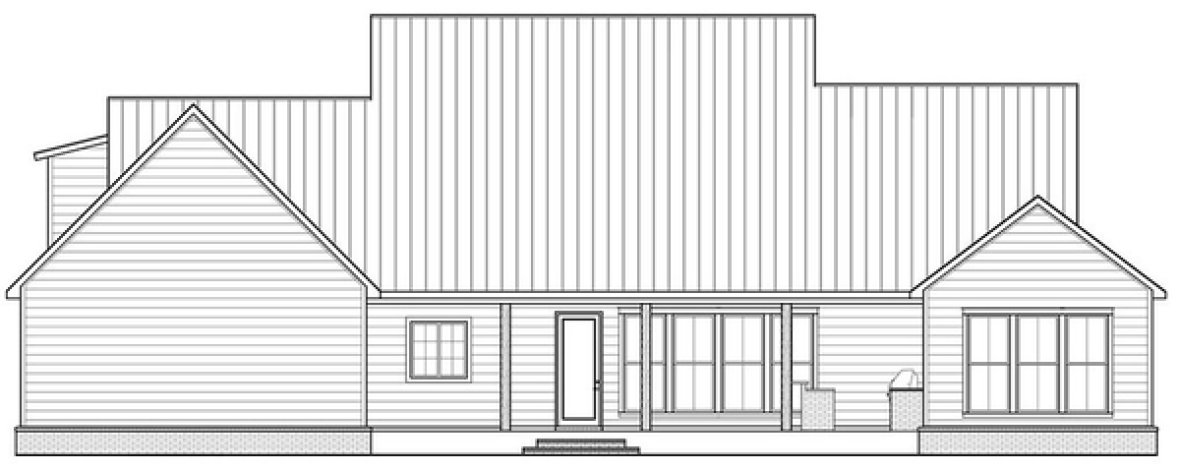

REAR Elevation –
