Plan No.325502

Please note, the Bonus Room area is not included in the total square footage.

Specifications

Total 2055 sq ft

  • Main: 1176
  • Second: 879
  • Third:
  • Loft/Bonus: 321
  • Basement:
  • Garage: 520

Rooms

  • Beds: 4
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 2

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 26'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

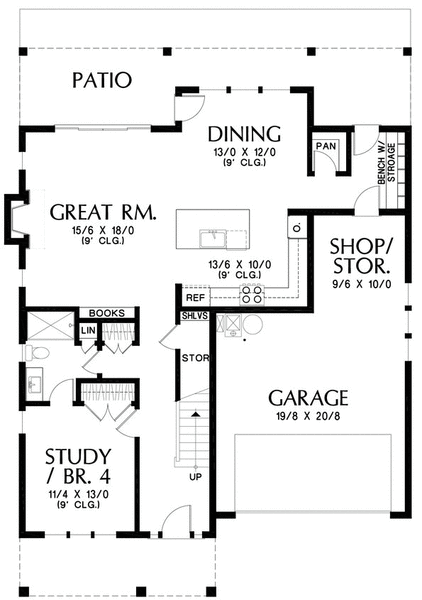

MAIN Plan – westhomeplanners.com

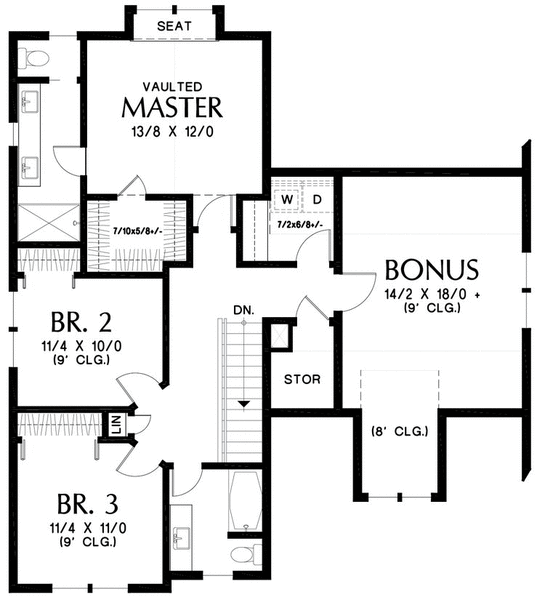

SECOND Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
