Plan No.306141

Please Note: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included. Total Living Area may increase with Basement Foundation option. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 1416 sq ft

  • Main: 1416
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 519

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 51'0
  • Depth: 47'0

Roof

  • Max Ridge Height: 21'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

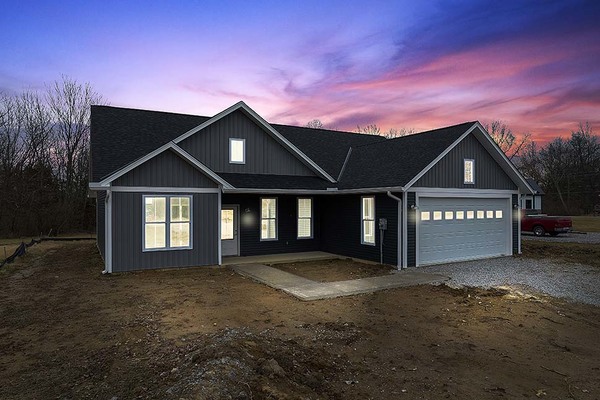

Full Rendering – westhomeplanners.com

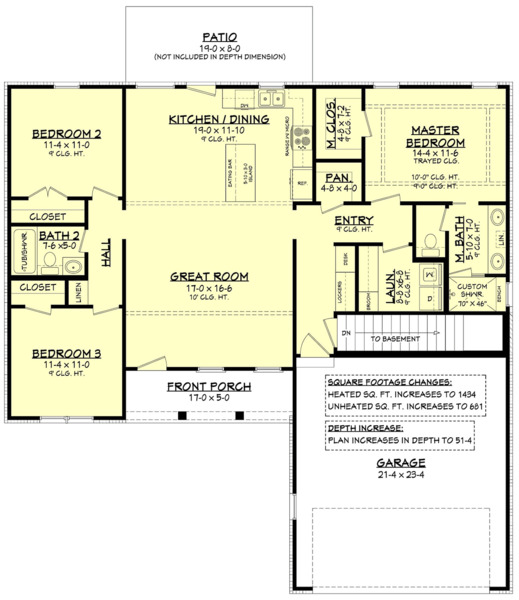

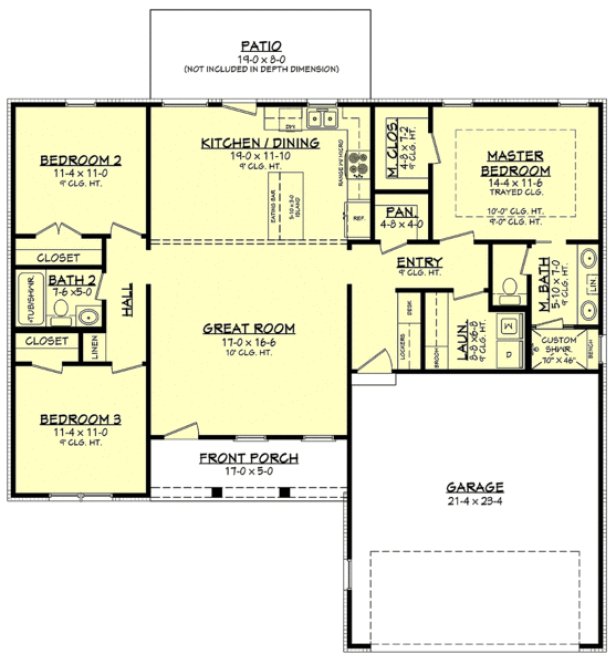

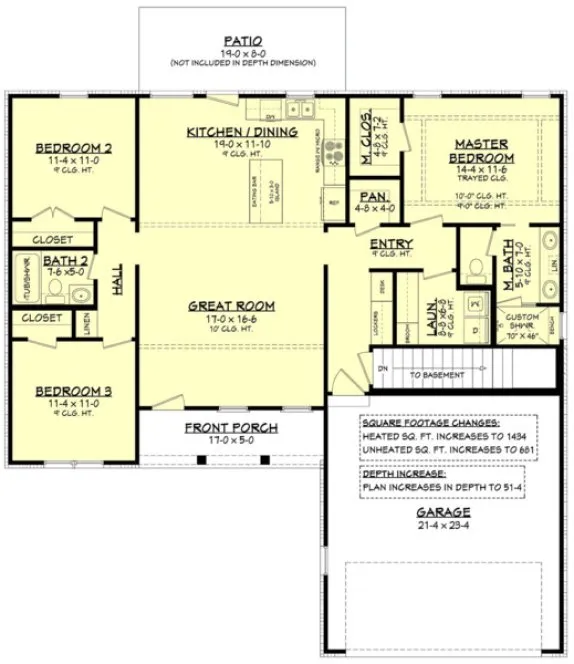

MAIN Plan – westhomeplanners.com

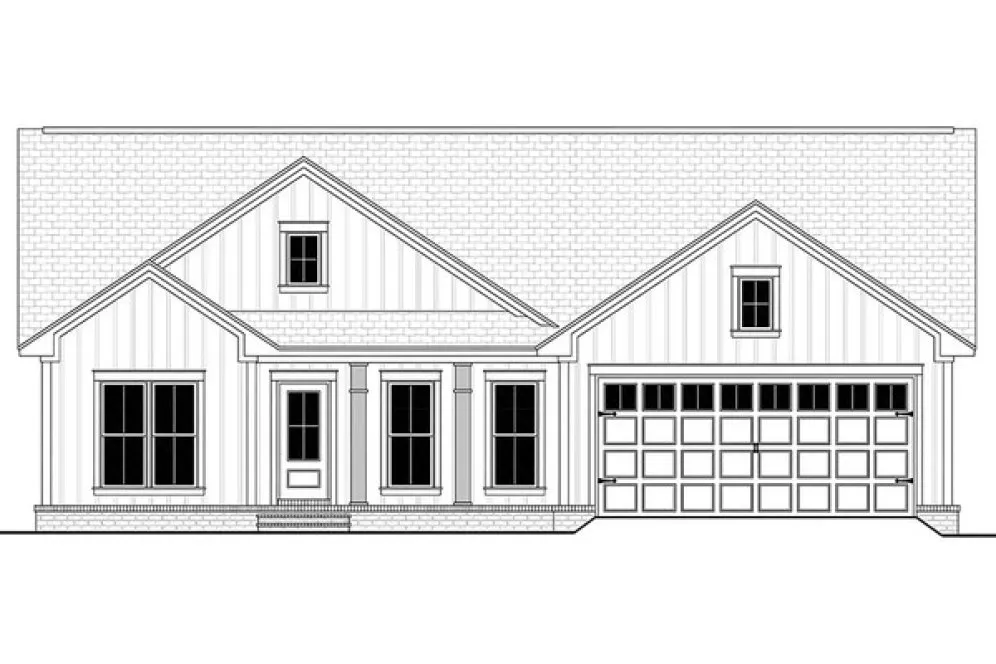

FRONT Elevation – westhomeplanners.com

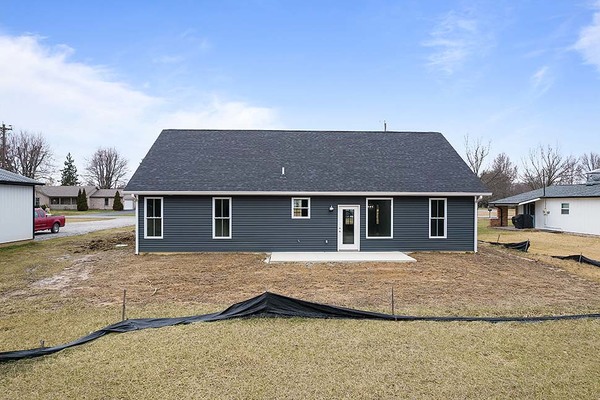

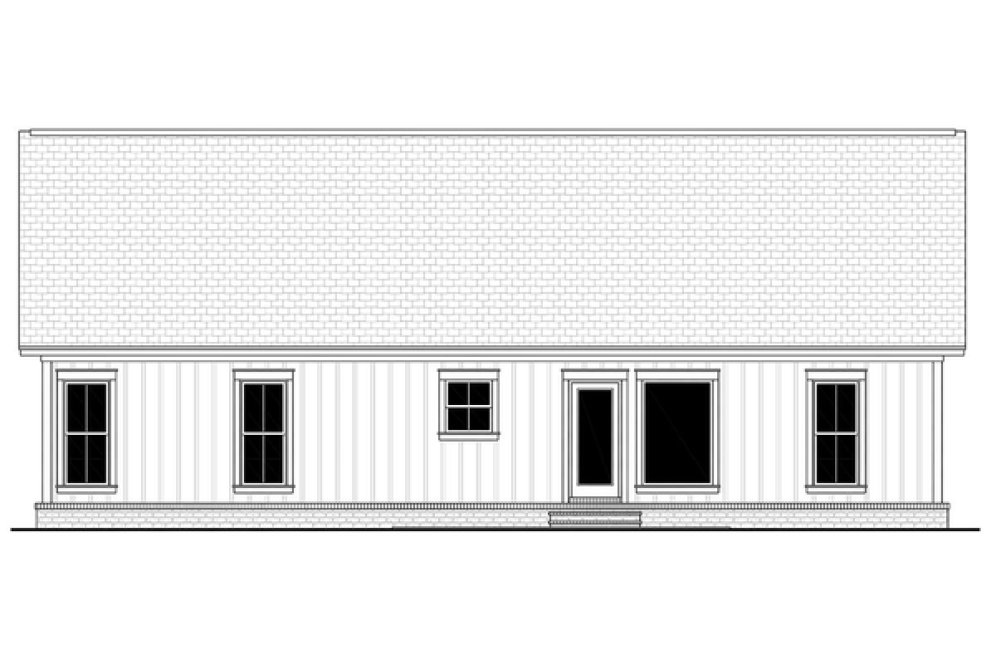

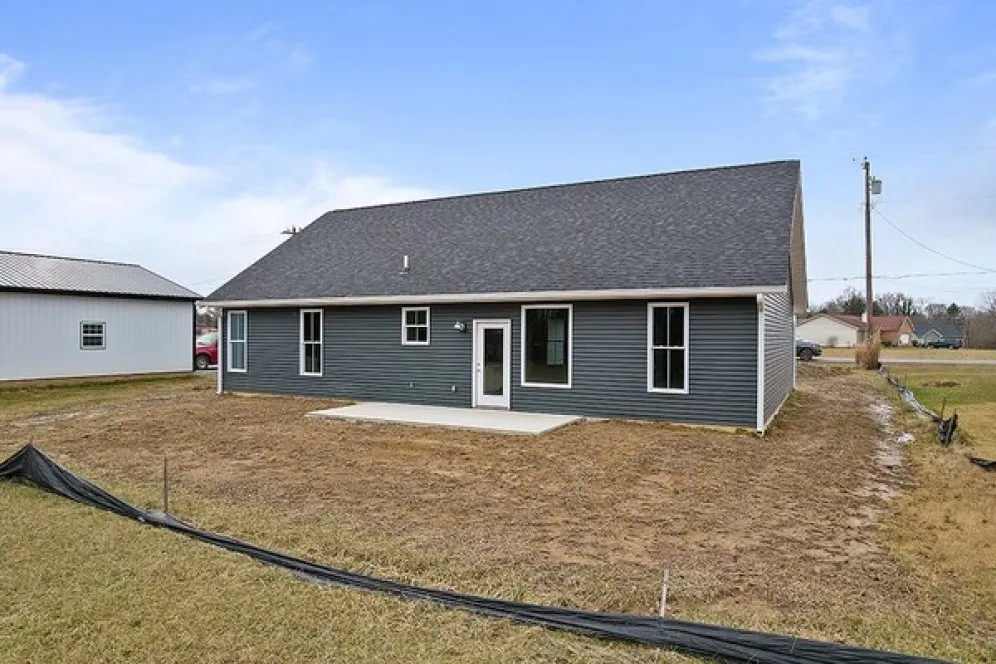

REAR Elevation – westhomeplanners.com

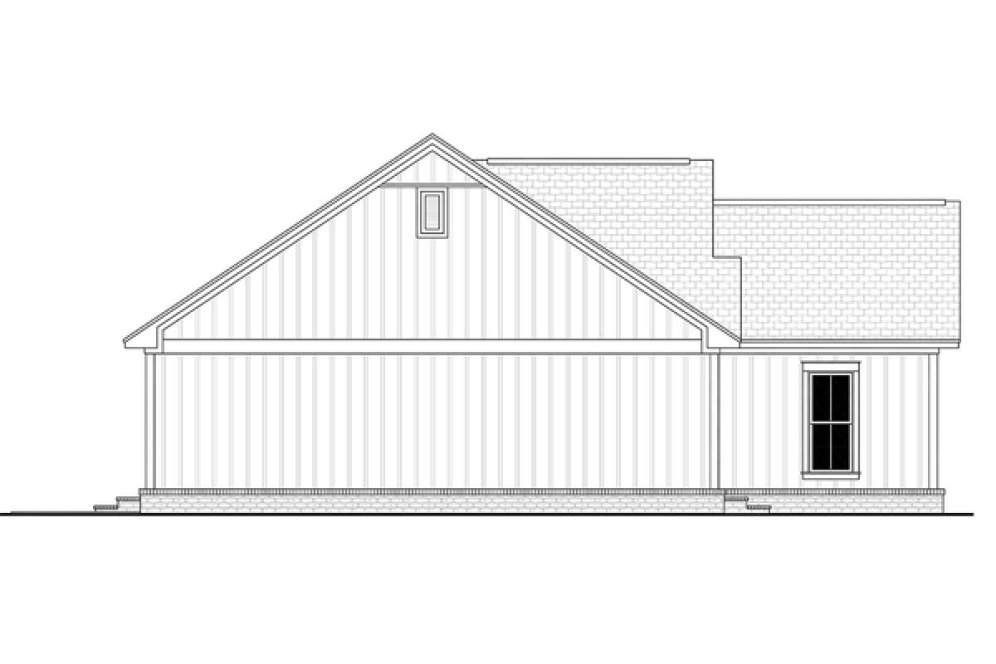

LEFT Elevation – westhomeplanners.com

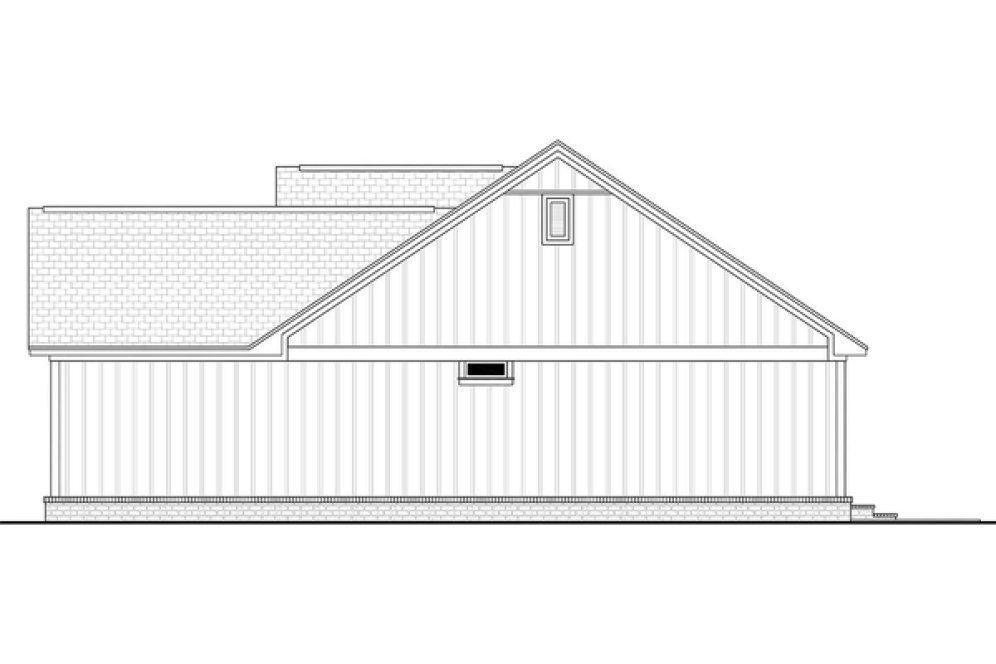

RIGHT Elevation – westhomeplanners.com
Opt. Basement Staircase – westhomeplanners.com
