Plan No.491581

Please note, the Bonus or Future Space areas are not included in the total floor area.

Specifications

Total 1851 sq ft

  • Main: 1520
  • Second: 331
  • Third:
  • Loft/Bonus: 412
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 48'0
  • Depth: 48'0

Roof

  • Max Ridge Height: 34'0
  • Primary Pitch: 15.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

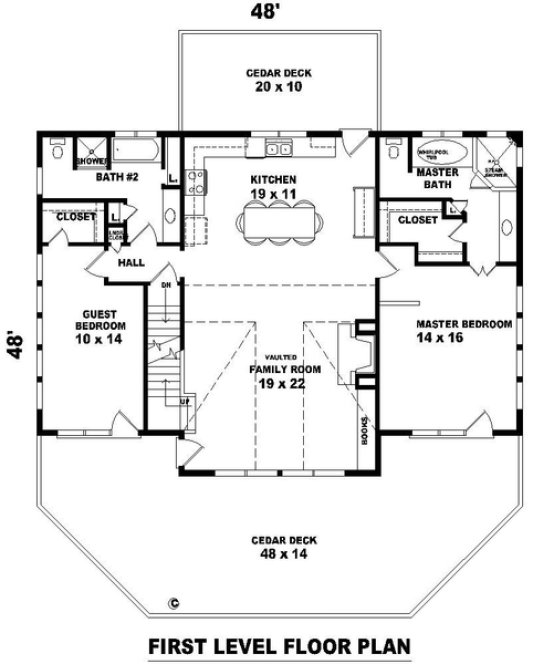

MAIN Plan – westhomeplanners.com

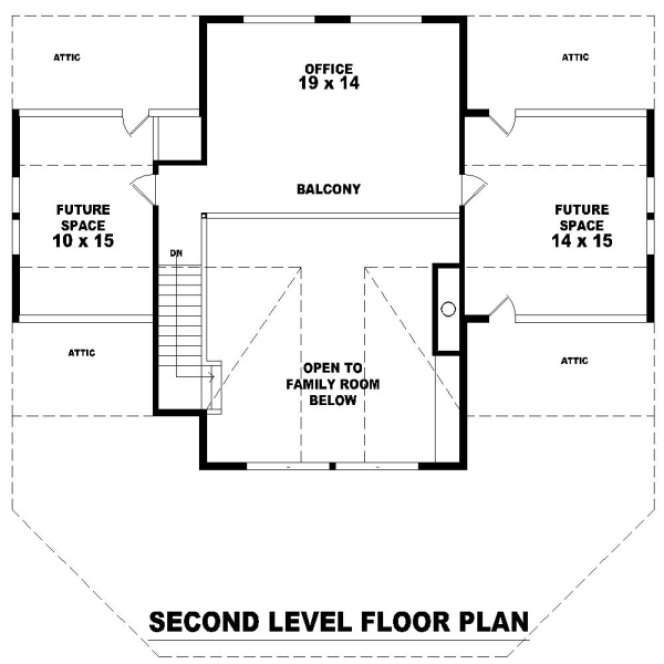

SECOND Plan – westhomeplanners.com

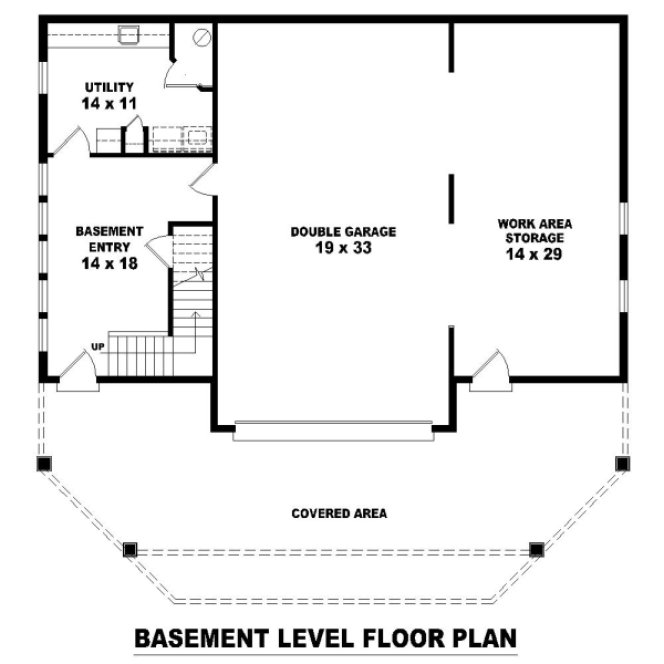

BASEMENT Plan – westhomeplanners.com

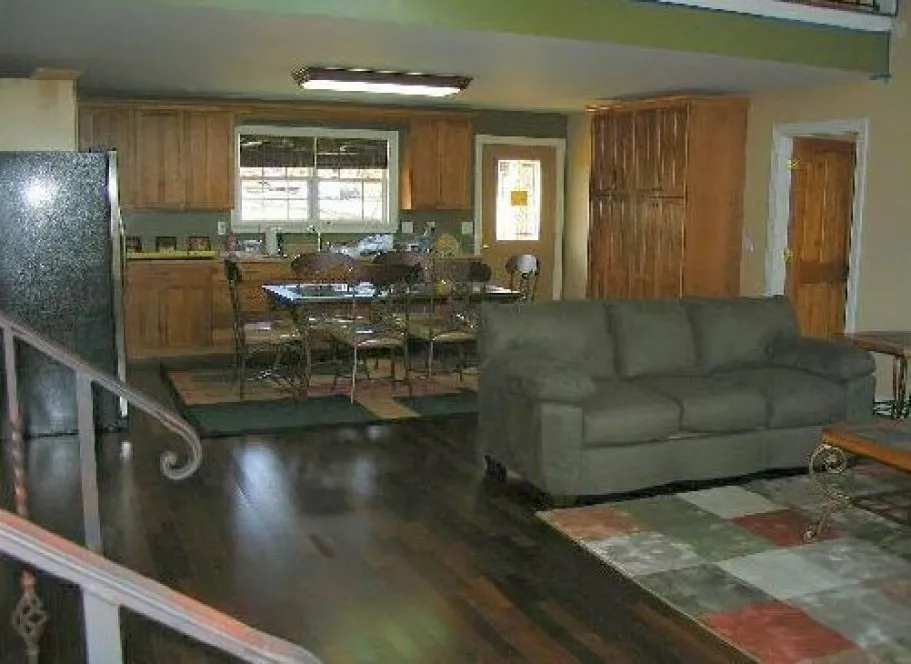

Family Room to Kitchen – westhomeplanners.com

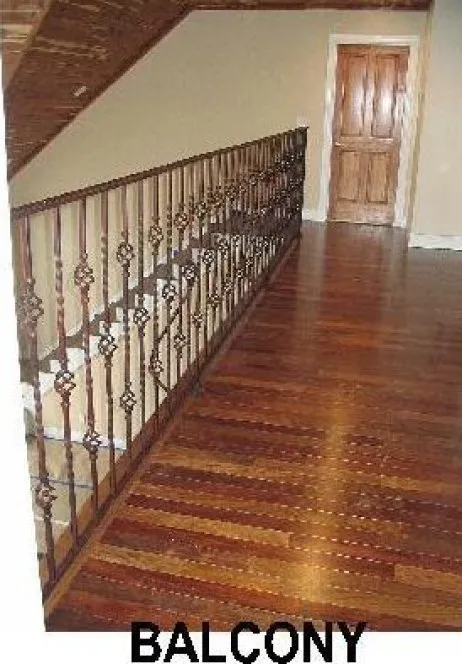

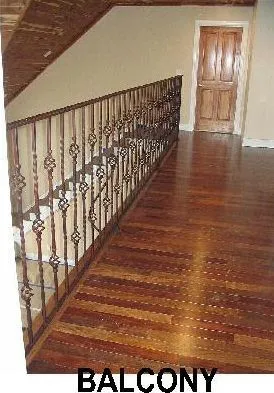

Upstairs Balcony – westhomeplanners.com

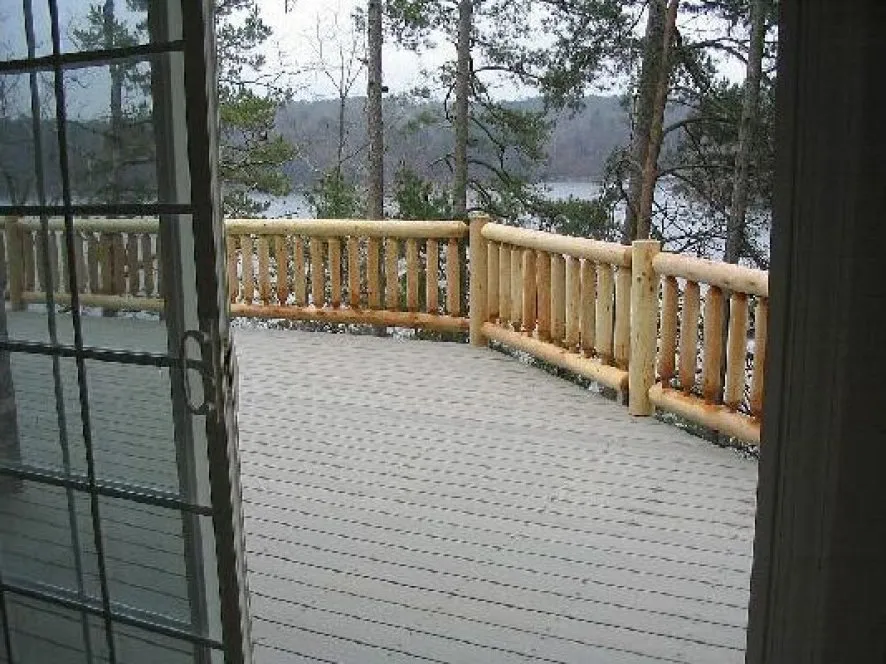

Sundeck – westhomeplanners.com

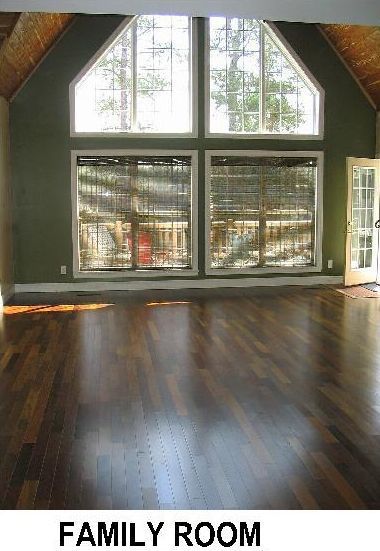

Family Room – westhomeplanners.com

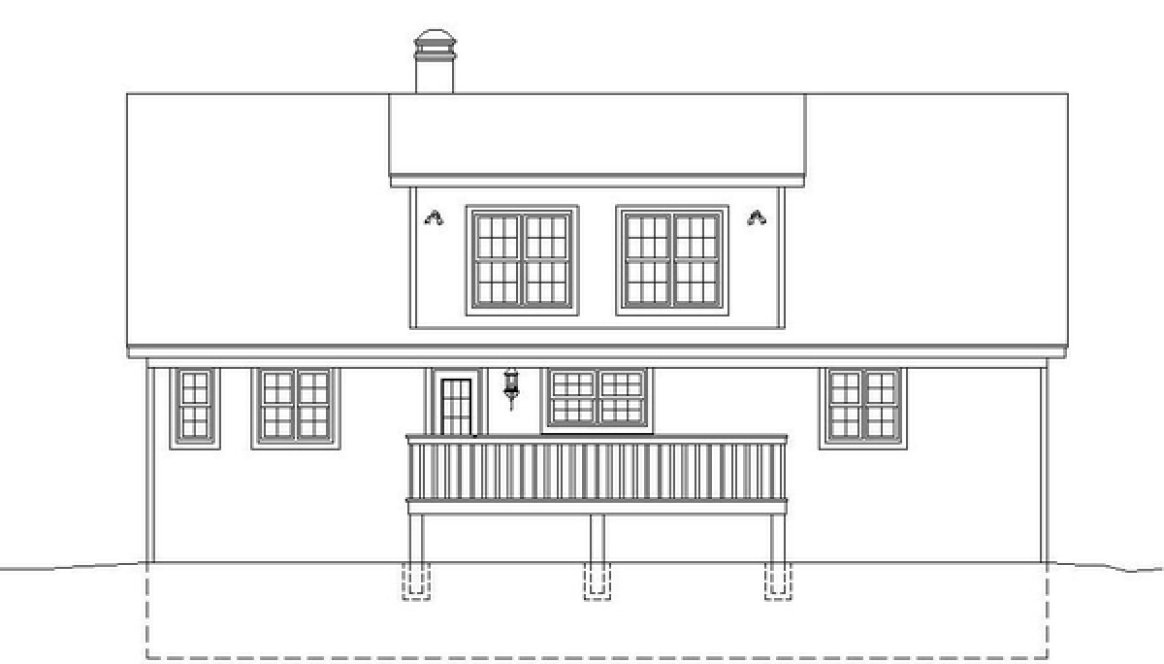

REAR Elevation – westhomeplanners.com

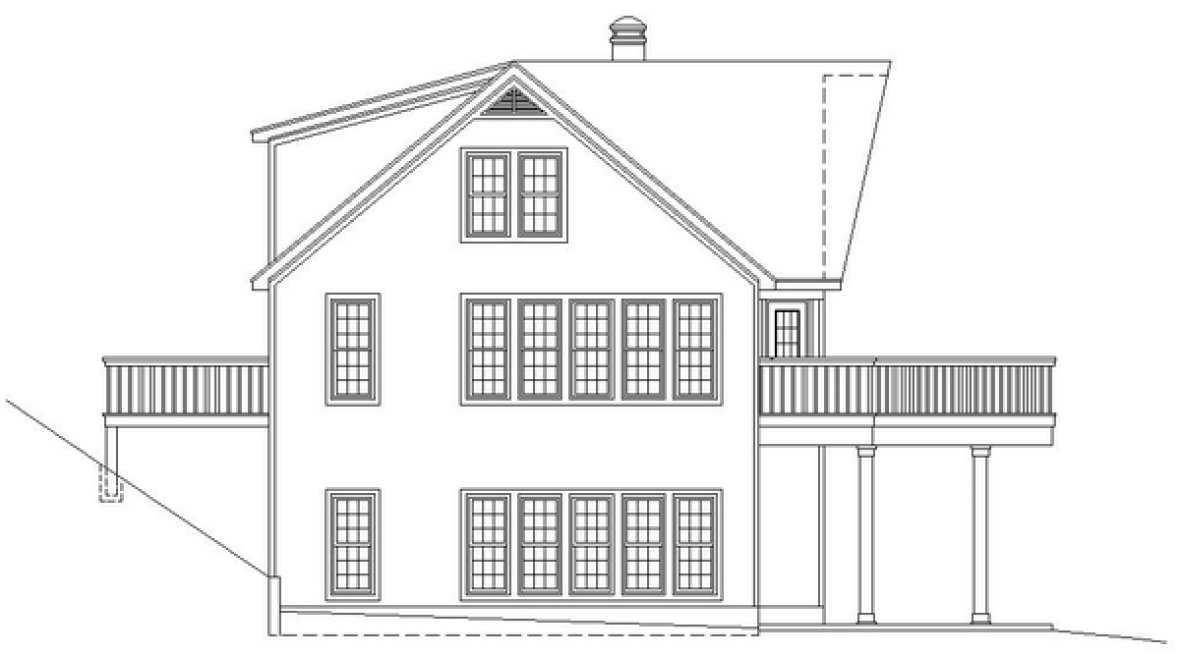

LEFT Elevation – westhomeplanners.com

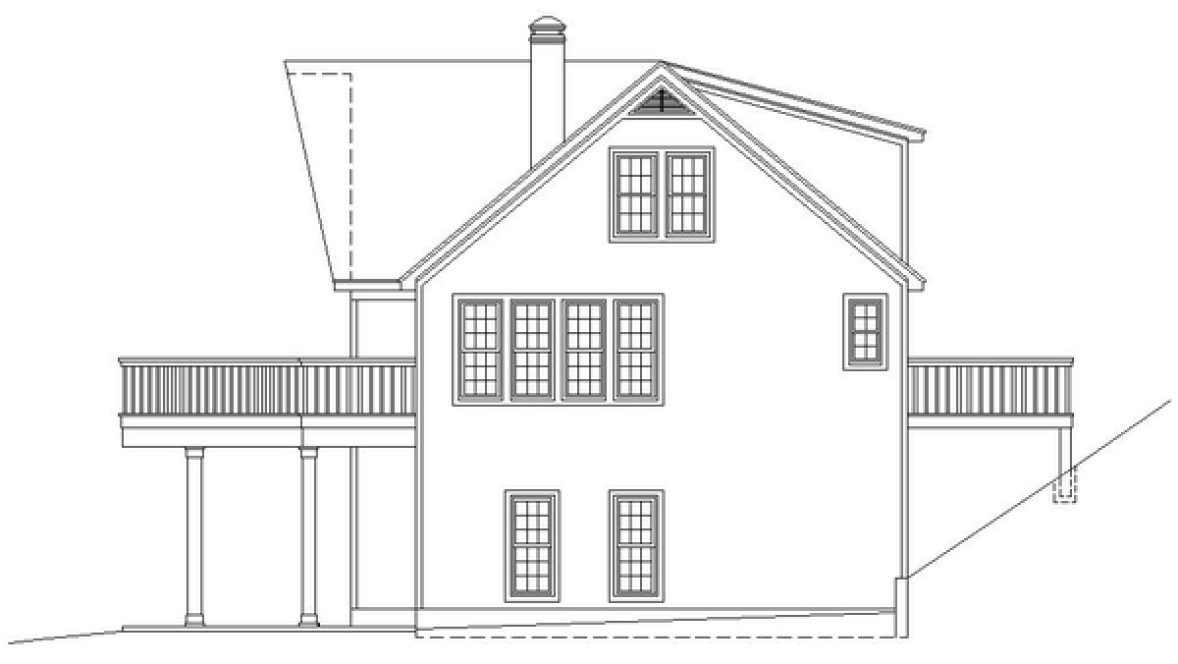

RIGHT Elevation – westhomeplanners.com
