Plan No.599002

Charming Alpine Garage Apartment Plan with Loft

This charming alpine style garage apartment plan features a 1 bedroom, 1 bathroom loft above with a convenient ground level foyer ( total 393 SF finished ). With 15’-7” height from finished grade to the midpoint of the main roof and energy efficiency in mind, this garage apartment plan should fit most zoning bylaws ( purchaser to confirm ). Build this plan and start generating a dependable mortgage helping income or as a charming guest cabin!

Specifications

Total 704 sq ft

  • Main: 420
  • Second: 284
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 14'0
  • Depth: 30'0

Roof

  • Max Ridge Height: 22'3
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 21.00/12
  • Secondary Pitch: 5.00/12

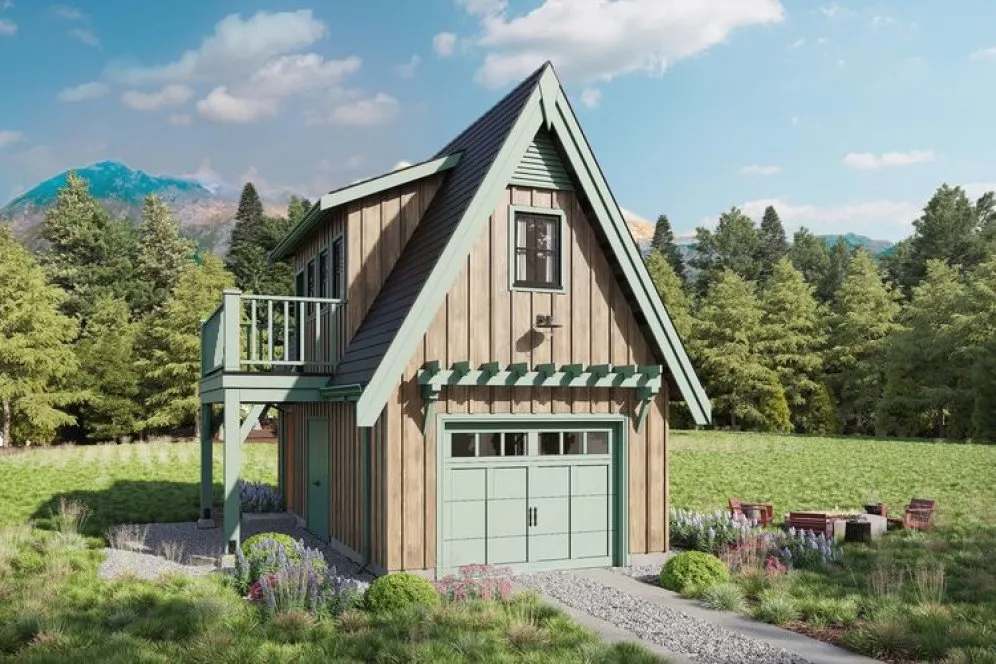

Full Rendering – westhomeplanners.com

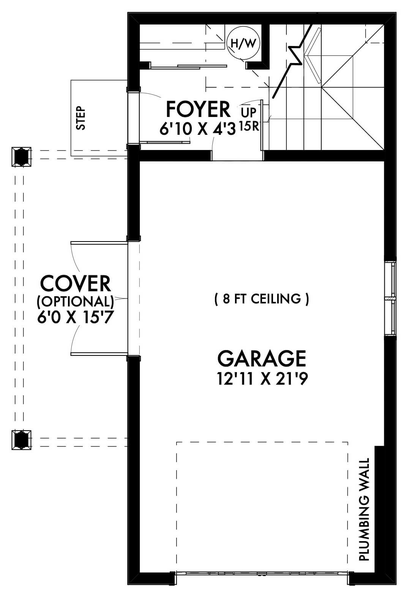

MAIN Plan – westhomeplanners.com

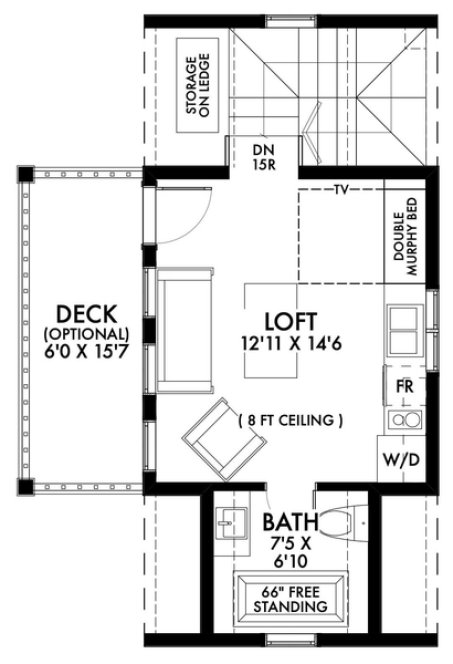

SECOND Plan – westhomeplanners.com

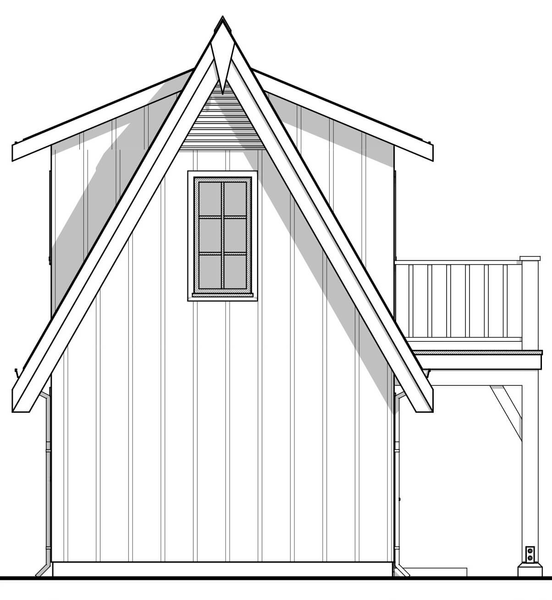

REAR Elevation – westhomeplanners.com
