Plan No.593005

Modern Farmhouse with Open Floor Plan

This skillfully designed modern farmhouse with open floor plan is a home to be admired. Featuring 3 comfortable bedrooms plus den, 3 baths, open concept living room with raised 11’-8” ceiling, double garage, generous covered patios, large storage and rec. room, low maintenance siding and current energy efficiency standards. Choose this plan and come home to this masterfully designed modern farmhouse! BUILDING RESTRICTION: This home cannot be built in the Province of British Columbia, Canada.

Specifications

Total 2612 sq ft

  • Main: 1573
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 1039
  • Garage: 617

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0-11'8
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'9
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 72'0

Roof

  • Max Ridge Height: 17'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 3.00/12
  • Secondary Pitch: 9.00/12
Full Rendering – westhomeplanners.com

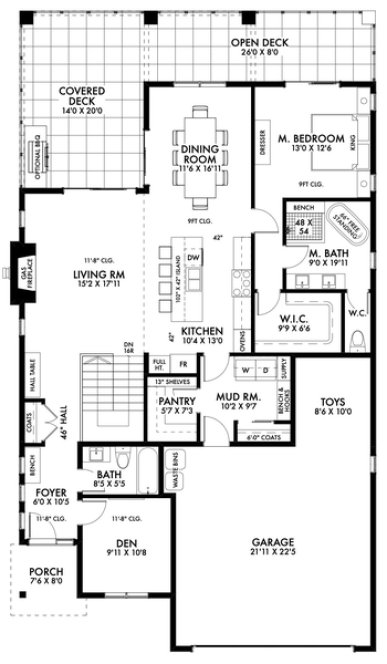

MAIN Plan – westhomeplanners.com

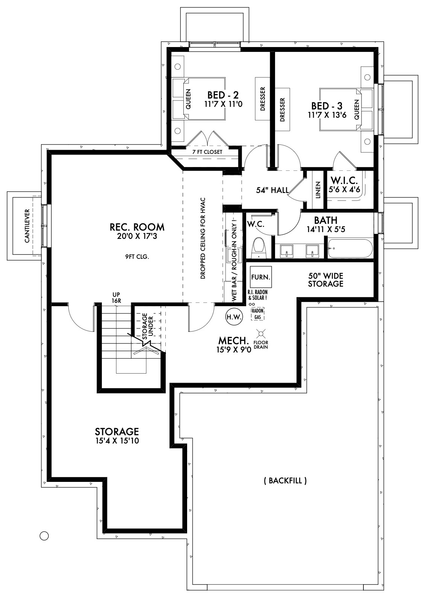

BASEMENT Plan – westhomeplanners.com

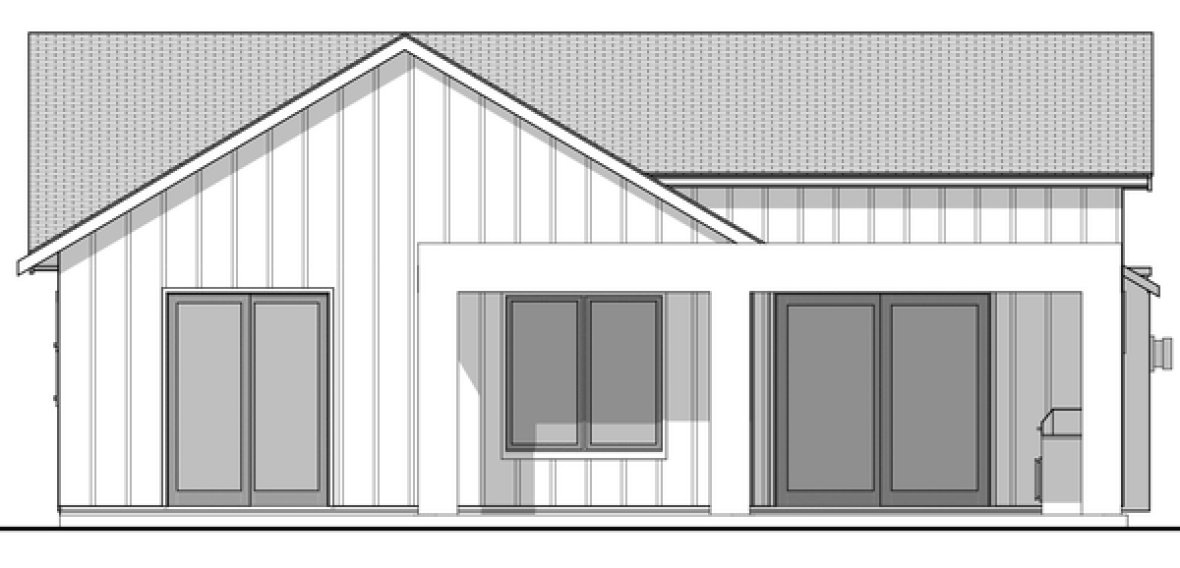

REAR Elevation – westhomeplanners.com

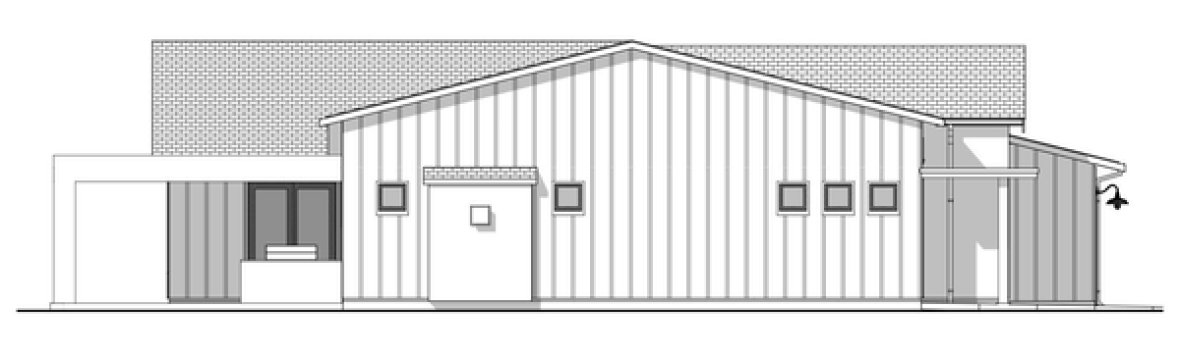

LEFT Elevation – westhomeplanners.com

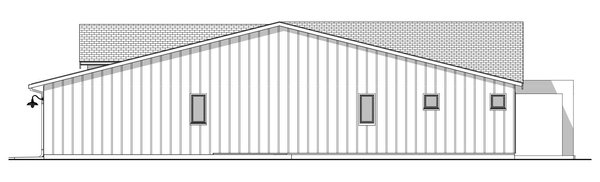

RIGHT Elevation – westhomeplanners.com

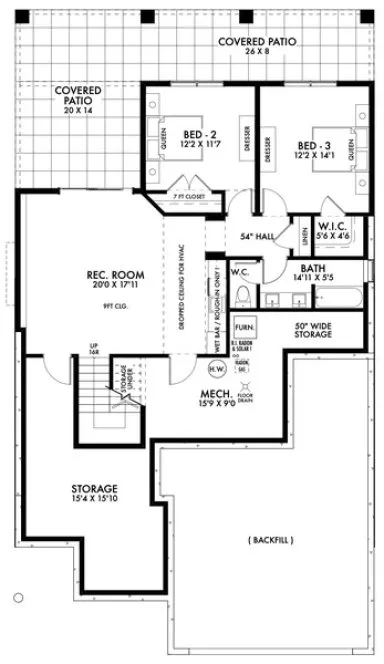

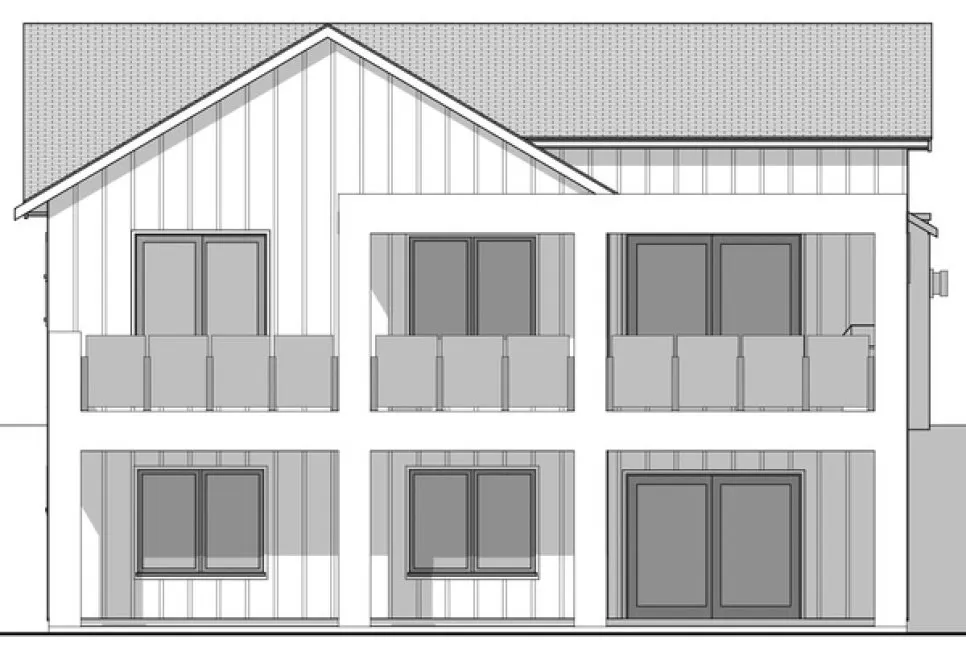

Optional Walkout Basement – westhomeplanners.com
Optional Walkout Basement – westhomeplanners.com
