Plan No.203053

Timber Frame Accents

The variety of gables with truss accents add interest to the cottage roof are one attractive aspect of this design's exterior. An open floorplan is shared by the sunken livingroom, dining and kitchen areas. An open staircase leads to the unfinished basement which will provide ample room for future bedrooms, bathroom, and laundry facilities. To the right of the plan are three good-sized bedrooms with lots of closet space...the master suite has a big walk-in closet and its own bath featuring a double shower.

Specifications

Total 1678 sq ft

  • Main: 1678
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 576

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 52'0
  • Depth: 63'0

Roof

  • Max Ridge Height: 24'5
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 8.00/12
Full Rendering – westhomeplanners.com

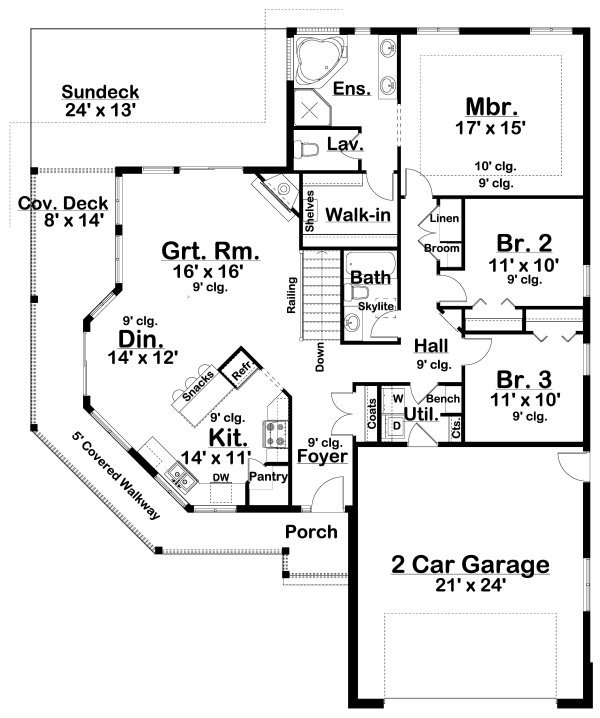

MAIN Plan – westhomeplanners.com
Master Bedroom – westhomeplanners.com
Breakfast & Kitchen – westhomeplanners.com
Foyer – westhomeplanners.com
Great Room – westhomeplanners.com
Ensuite Bath – westhomeplanners.com

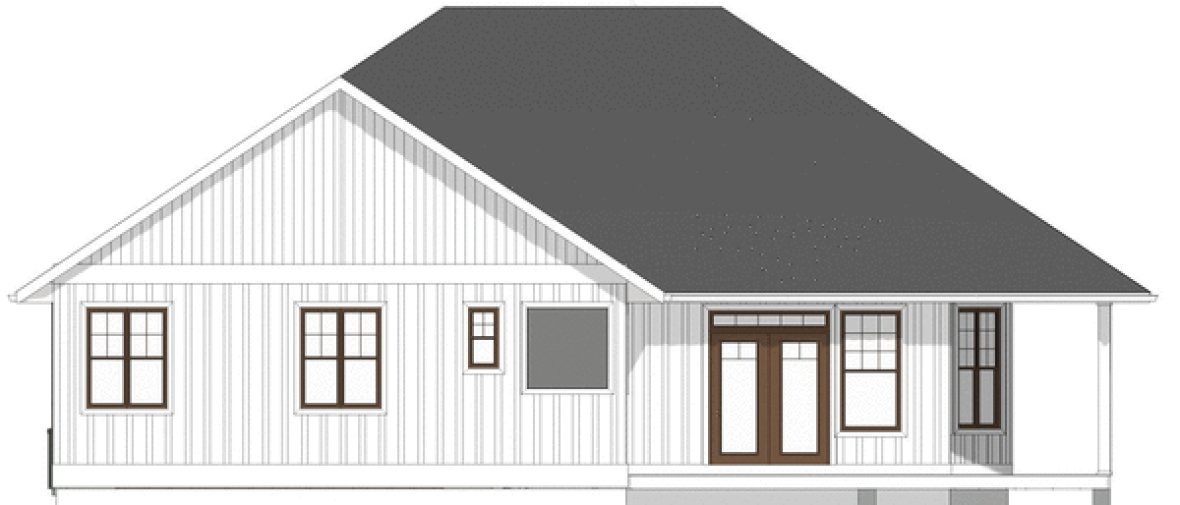

REAR Elevation – westhomeplanners.com

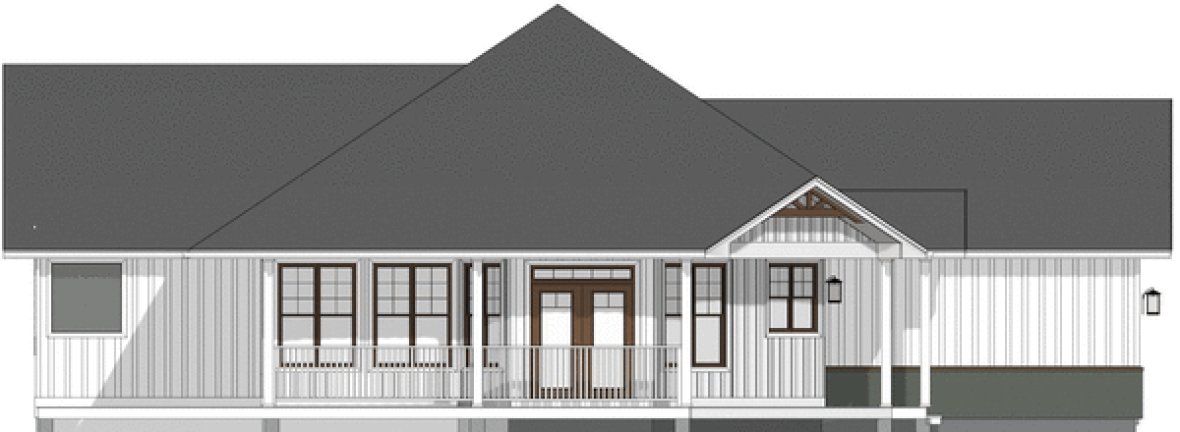

LEFT Elevation – westhomeplanners.com

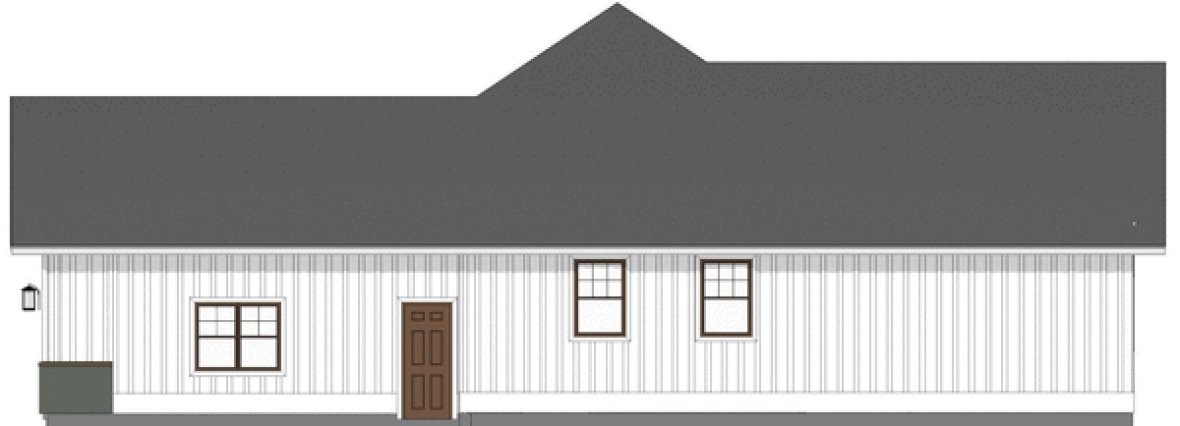

RIGHT Elevation – westhomeplanners.com

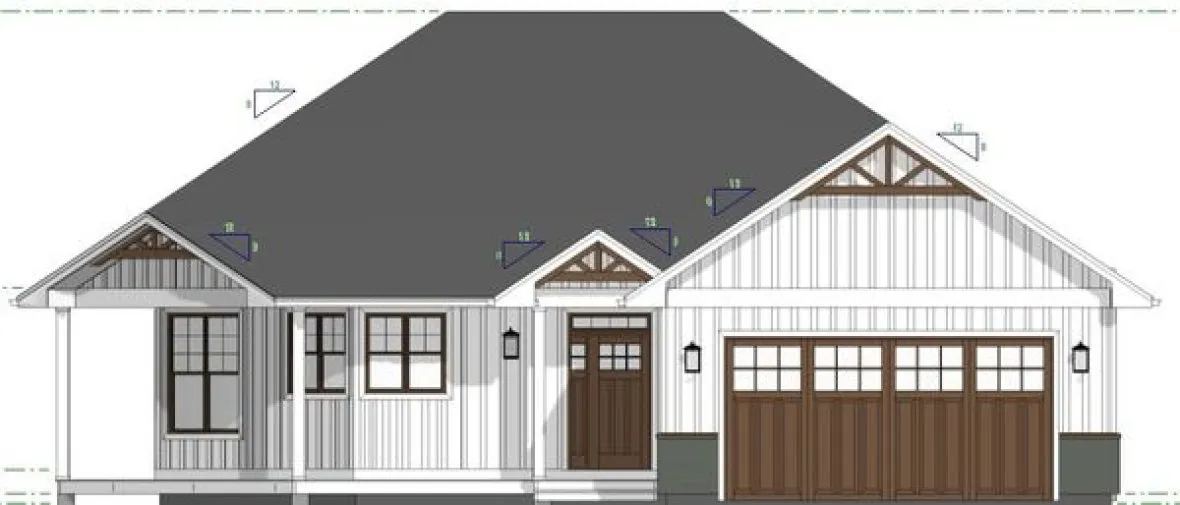

FRONT Elevation – westhomeplanners.com
