Plan No.346882

Large Media Room

This design has a charming, modern prairie exterior with an abundance of windows and beautiful stone columns. The split-level entrance welcomes people to choose to go up into the more formal living space, or down to a casual family room. In the main living area upstairs, there are tall ceilings and plenty of windows to let in a warm, natural lighting. The open living floor plan lends to the welcoming feel and allows for easy entertaining. The kitchen has a breakfast nook as well as space for a formal dining area. The pass-through utility room gives easy access from the bedrooms or the kitchen. The bedrooms are on the same side of the house as the owners’ suite, but have a separate hallway to their entrances, allowing for close proximity and privacy. The owners’ suite has a stylish L-shaped bathroom with private bath and walk-in closet. Next to the owners’ suite is a den, great for a home office or guest room. Downstairs, there is also an extra deep garage with two bays and 4 car capacity. Just off the garage is an unfinished media room. Left unfinished, it would make excellent storage for tools, but if finished, the lack of windows makes for the perfect, immersive movie experience.


Total 2886 sq ft

  • Main: 2410
  • Second:
  • Third:
  • Loft/Bonus:

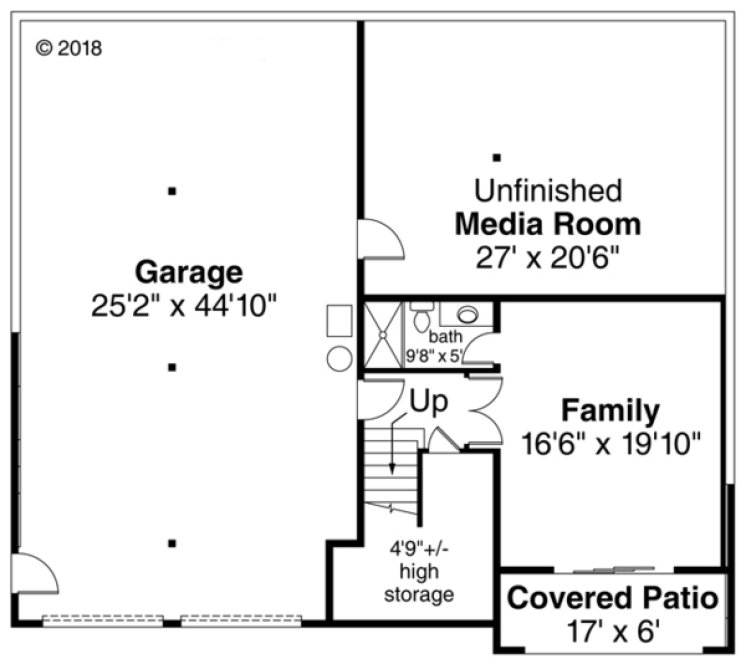

  • Basement: 1040
  • Garage: 1134


  • Beds:
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0-11'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 56'8
  • Depth: 69'10


  • Max Ridge Height: 27'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 4.00/12
  • Secondary Pitch: /12
Full Rendering –

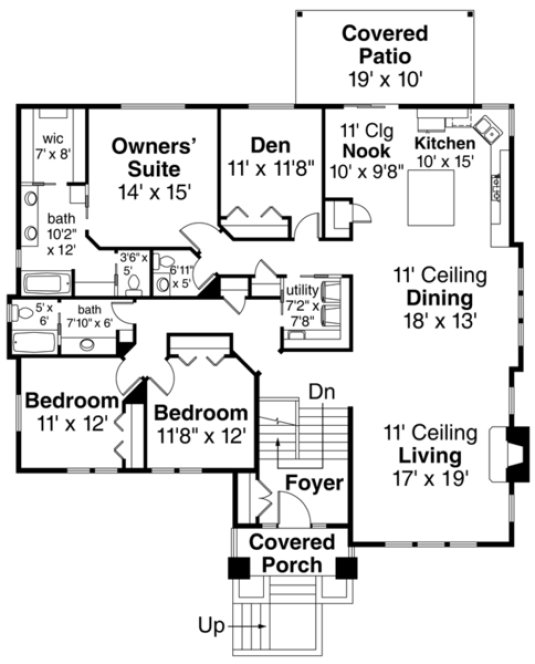

MAIN Plan –

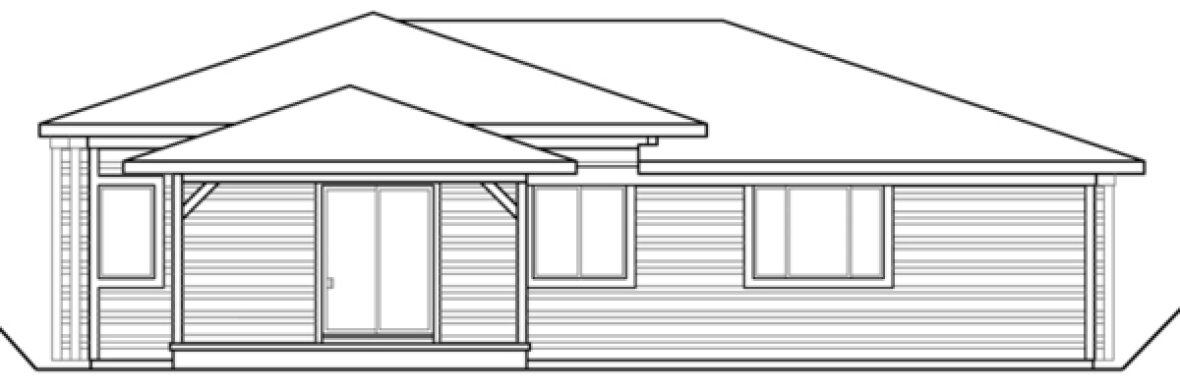

REAR Elevation –

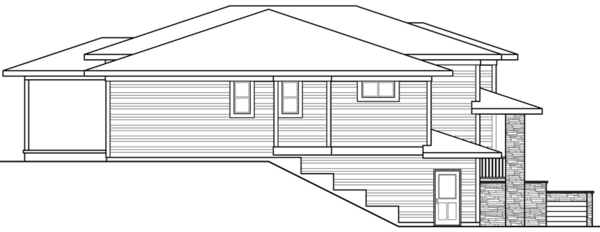

LEFT Elevation –

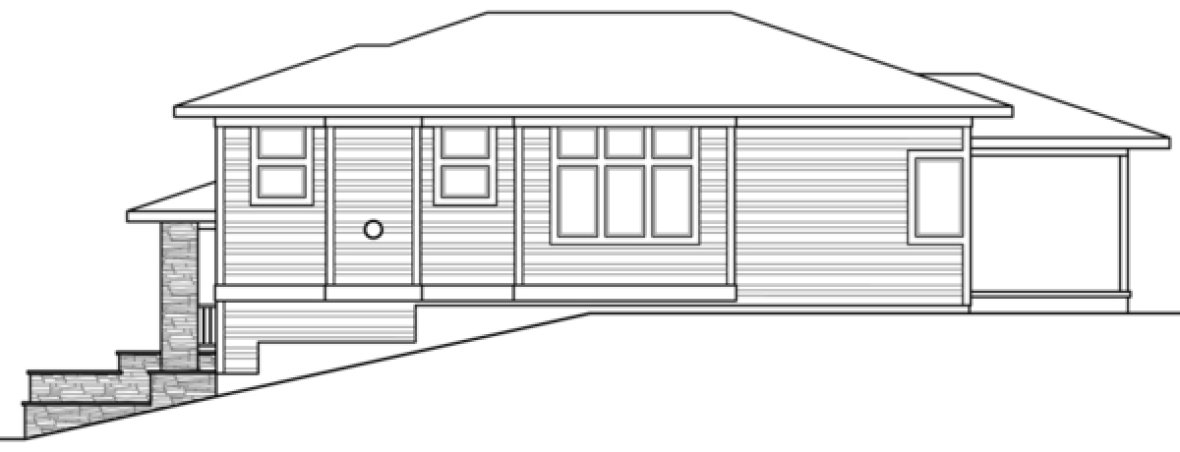

RIGHT Elevation –
