Plan No.305932

Bonus Area not included in Total Living Area Square Footage. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 2395 sq ft

  • Main: 2395
  • Second:
  • Third:
  • Loft/Bonus: 546
  • Basement:
  • Garage: 662

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 82'0
  • Depth: 68'0

Roof

  • Max Ridge Height: 28'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10.00/12
  • Secondary Pitch: 12.00/12

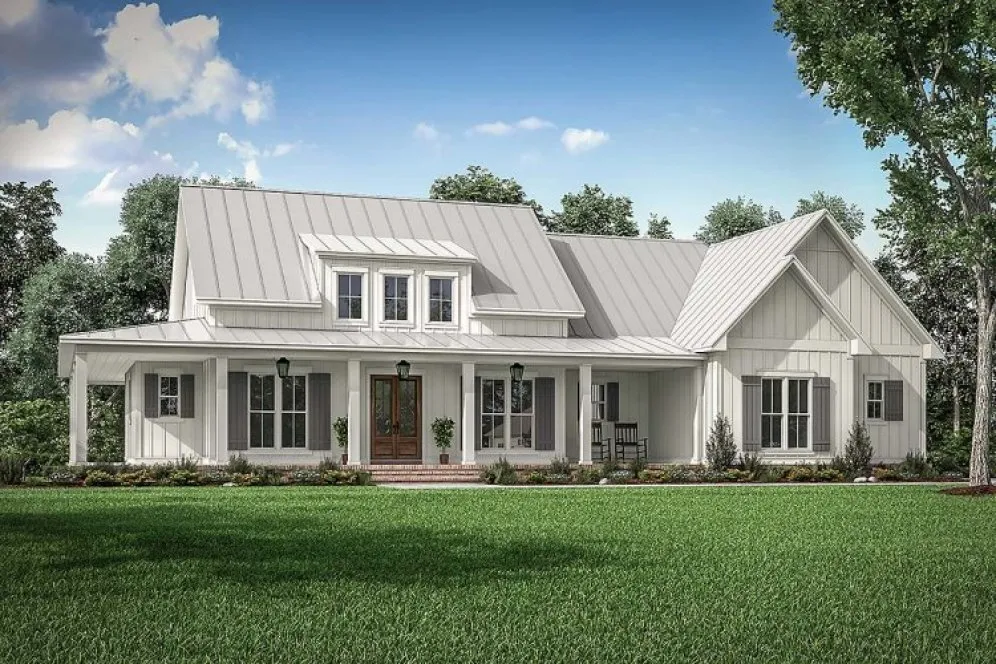

Full Rendering – westhomeplanners.com

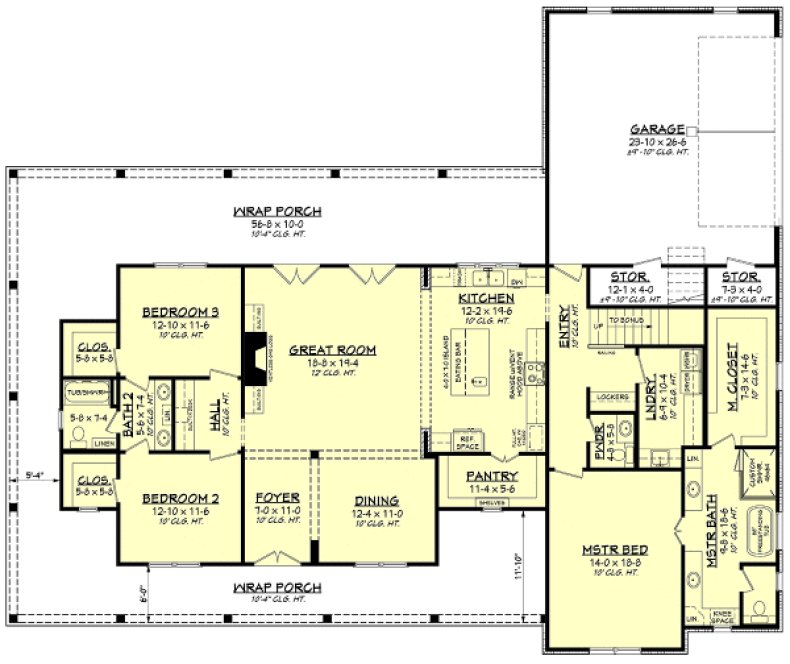

MAIN Plan – westhomeplanners.com

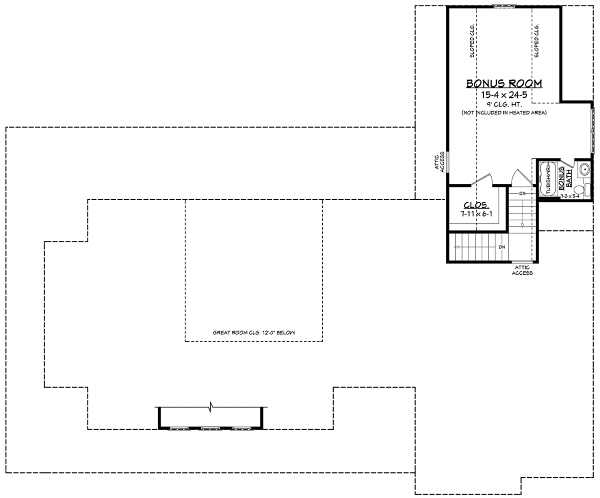

ATTIC Plan – westhomeplanners.com

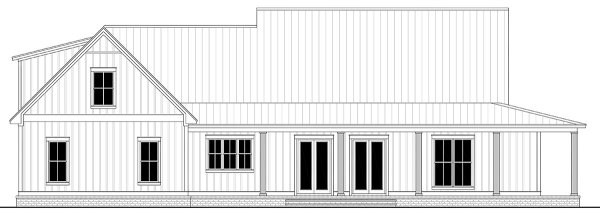

REAR Elevation – westhomeplanners.com

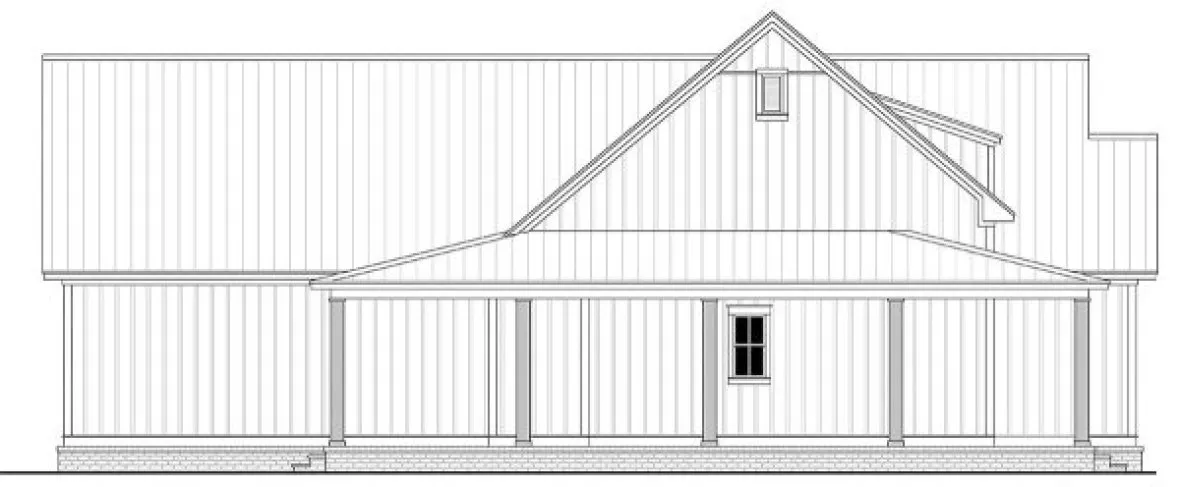

LEFT Elevation – westhomeplanners.com

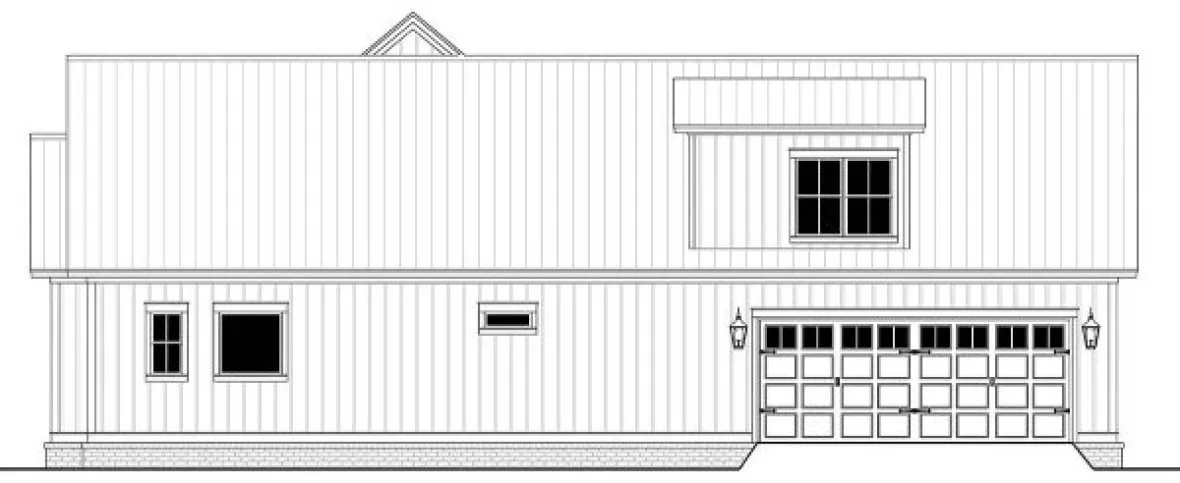

RIGHT Elevation – westhomeplanners.com
