Plan No.301251

Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 1521 sq ft

  • Main: 1521
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 558

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 53'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 24'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 9.00/12

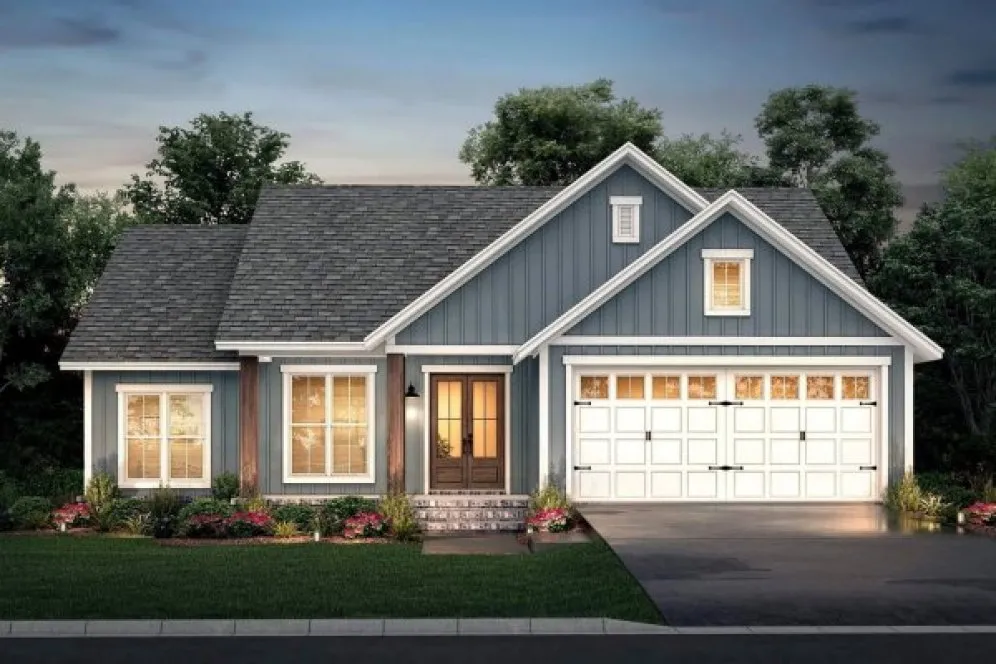

Full Rendering – westhomeplanners.com

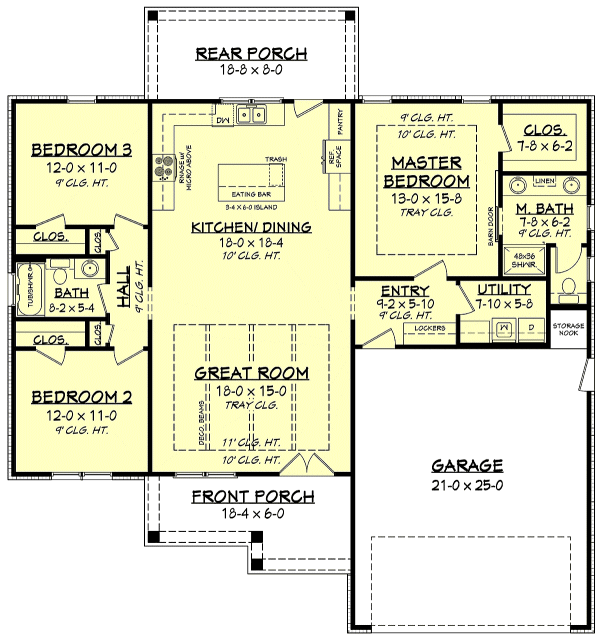

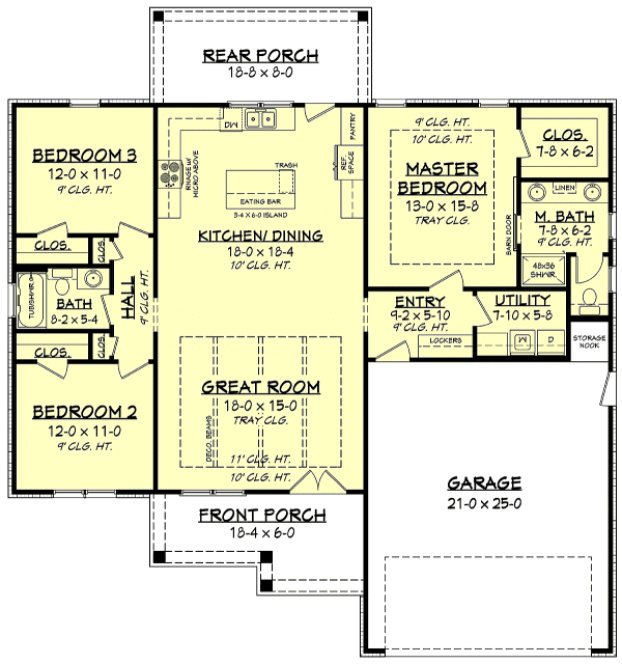

MAIN Plan – westhomeplanners.com
Nite Rendering – westhomeplanners.com

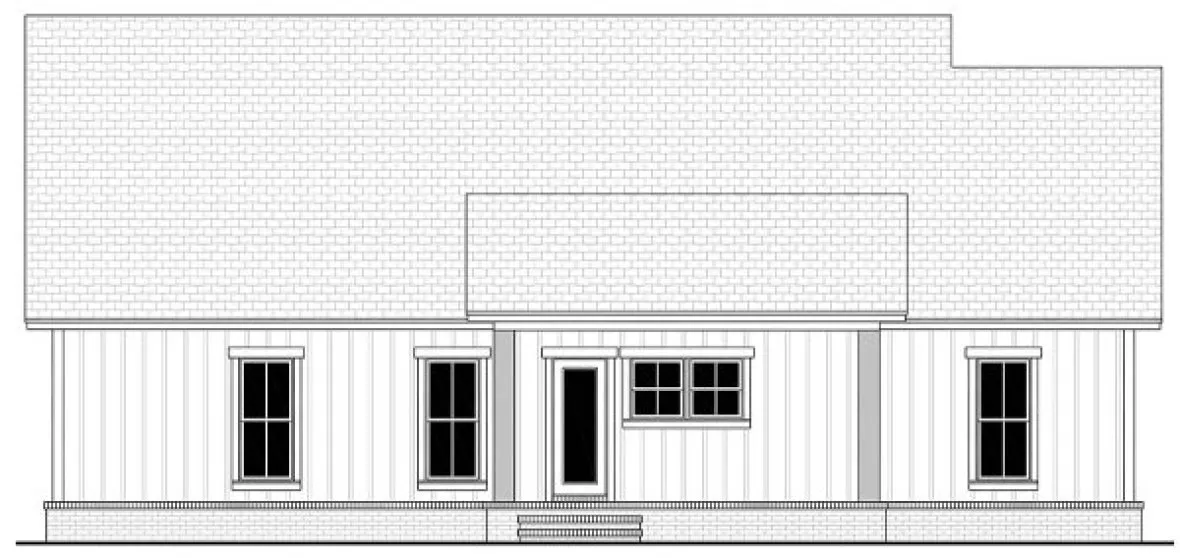

REAR Elevation – westhomeplanners.com

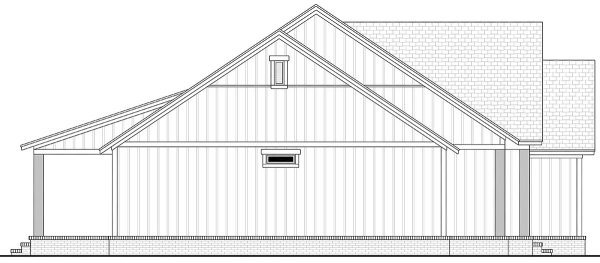

LEFT Elevation – westhomeplanners.com

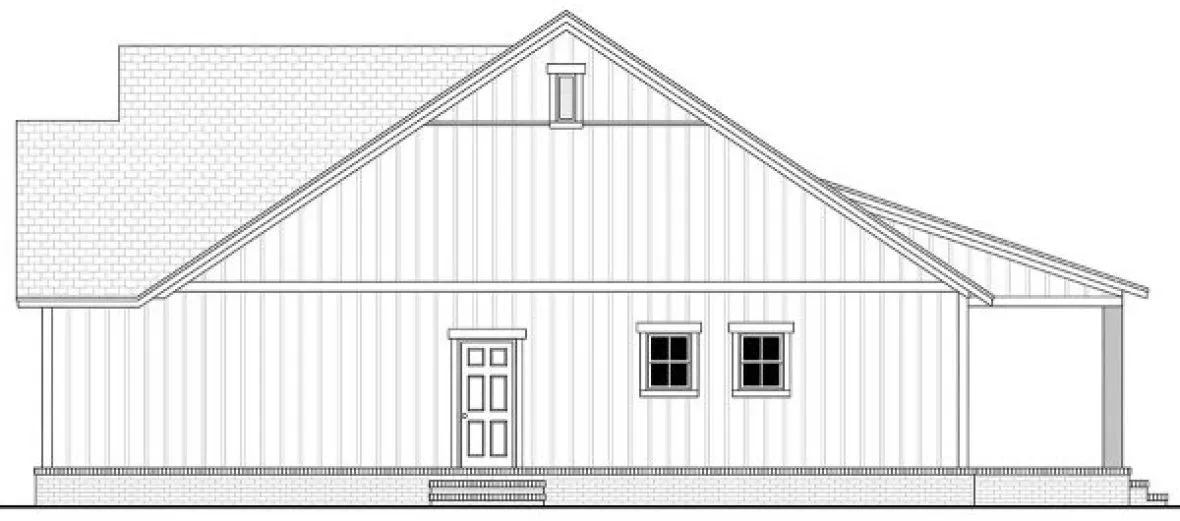

RIGHT Elevation – westhomeplanners.com
