Plan No.590912

Narrow Lot House Plan with Future In-Law Suite

This narrow lot house plan combines all the spaces that you expect in a 25 foot wide footprint. 3 comfortable bedrooms, 2 full baths, future 571 sq. ft. in-law suite and front facing double garage! This home has been skillfully designed by an award winning North American design firm to be energy efficient in both hot and cold climates as well as to minimize material waste during construction.

Specifications

Total 2159 sq ft

  • Main: 1294
  • Second: 0
  • Third: 0
  • Loft/Bonus: 571
  • Basement: 294
  • Garage: 504

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement: 9'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 25'0
  • Depth: 66'0

Roof

  • Max Ridge Height: 25'1
  • Comments: (From Basement Floor)
  • Primary Pitch: 5/12
  • Secondary Pitch: 4/12
Full Rendering – westhomeplanners.com

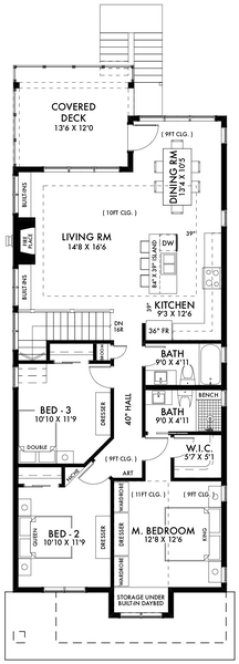

MAIN Plan – westhomeplanners.com

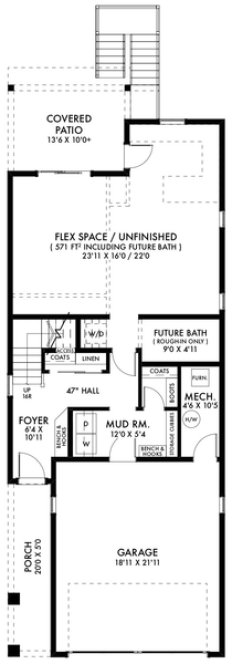

BASEMENT Plan – westhomeplanners.com

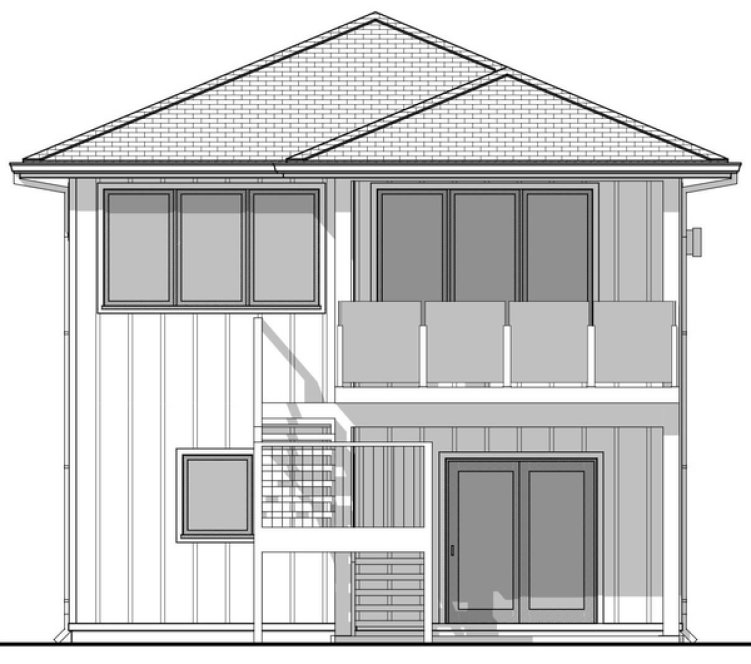

REAR Elevation – westhomeplanners.com

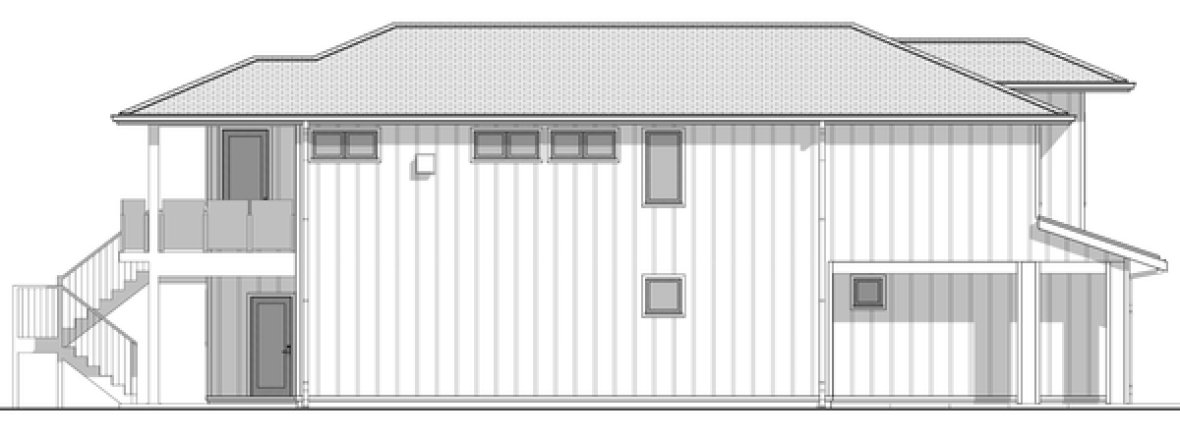

LEFT Elevation – westhomeplanners.com

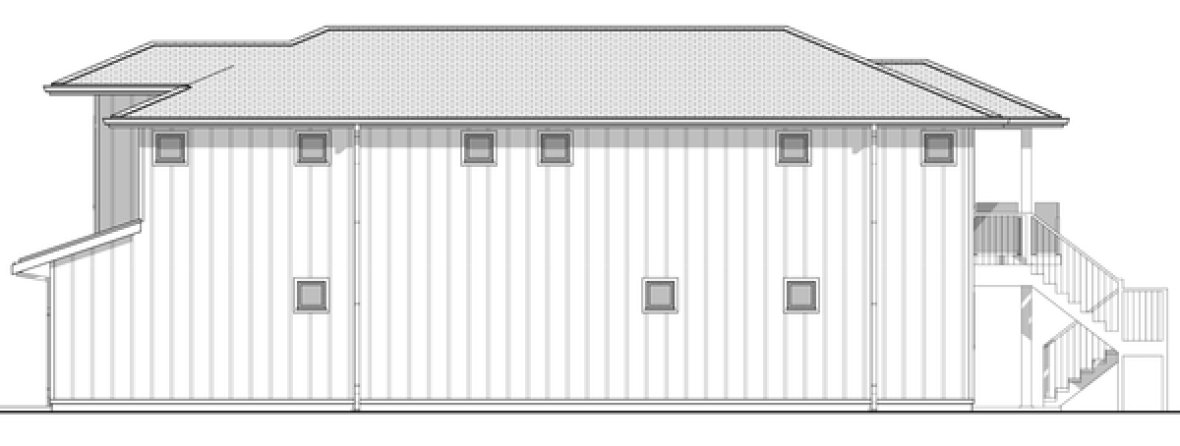

RIGHT Elevation – westhomeplanners.com

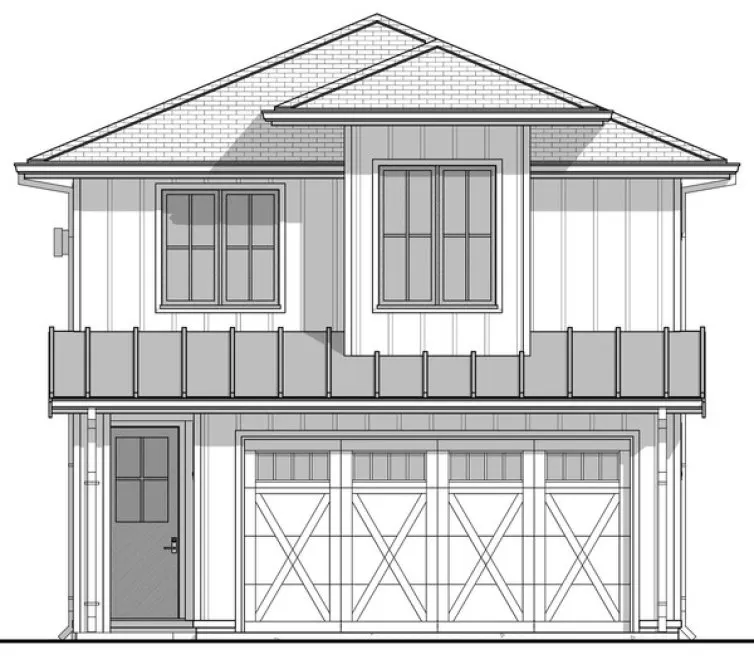

FRONT Elevation – westhomeplanners.com
