Plan No.260061

Dormered Bath

Traditional shingle wall exterior capped with sleek metal roofing ensures that this detached garage with workshop will blend into and compliment any building site location. The double car garage has a nine-foot ceiling with two nine-foot wide by eight-foot high overhead garage doors. The workshop portion of this open floor plan boasts ample counters and storage. The unfinished second level with vaulted ceilings is intentionally left undeveloped to allow your personalization of this space. A dormered three-piece bath with large shower and window add to the liveability of the loft.

Specifications

Total 1600 sq ft

  • Main: 864
  • Second: 736
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds:
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 10'0-8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6 Steel Studs
  • Garage Type:
  • Width: 24'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 24'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: 5.00/12
Full Rendering – westhomeplanners.com

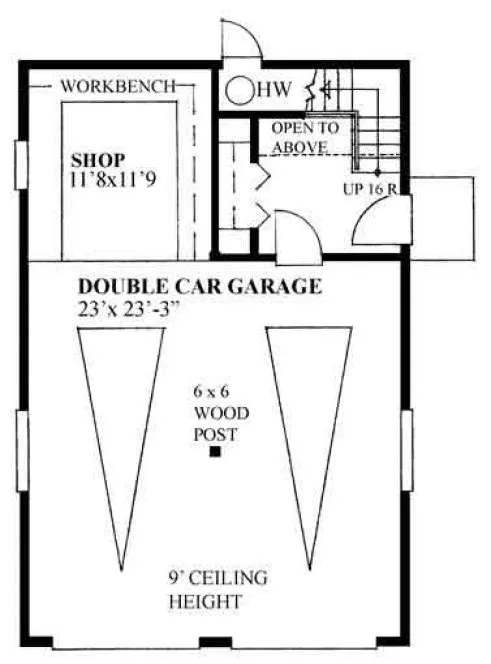

MAIN Plan – westhomeplanners.com

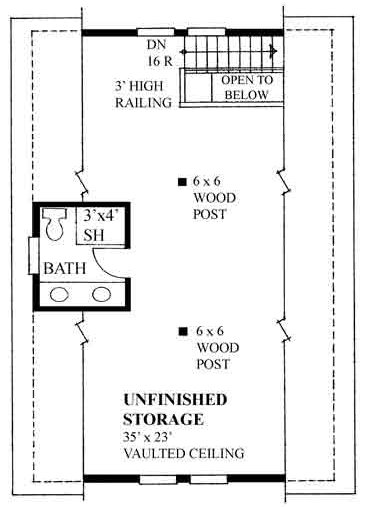

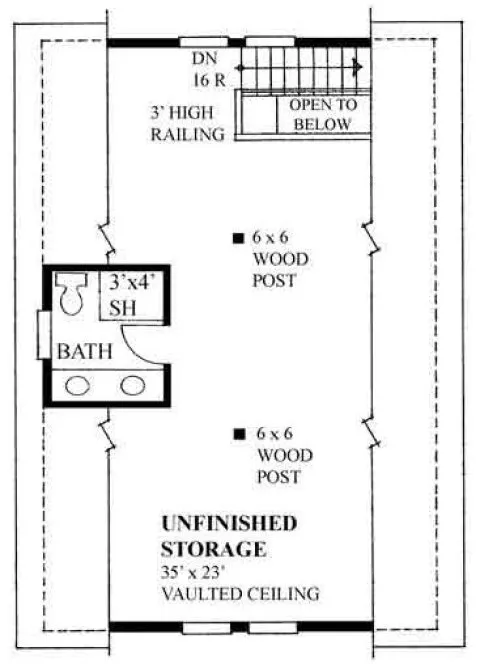

SECOND Plan – westhomeplanners.com
