Plan No.269831

Special Retreat

This compact floor plan has all the required amenities for those special retreat getaways. The kitchen and the partially vaulted great room are flooded with natural light due to the numerous window locations and rear sundeck facing French Doors. The second level is vaulted terminating at a ten foot flat ceiling, except the bathroom which has an eight foot ceiling height. This allows for a plant ledge located above the bathroom open to the stair hallway. The upstairs Master Bedroom has two interior functionally opening windows that overlook the Great Room below creating a unique look and feel to this suite. Two skylights aligned with these windows flood this area with natural warming light. A private secluded personal balcony is accessed via triple French doors for those quiet reflective moments or sunset salutes.

Specifications

Total 1389 sq ft

  • Main: 814
  • Second: 575
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 7'0-18'0
  • Second: 6'0-10'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 36'0
  • Depth: 46'6

Roof

  • Max Ridge Height: 29'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

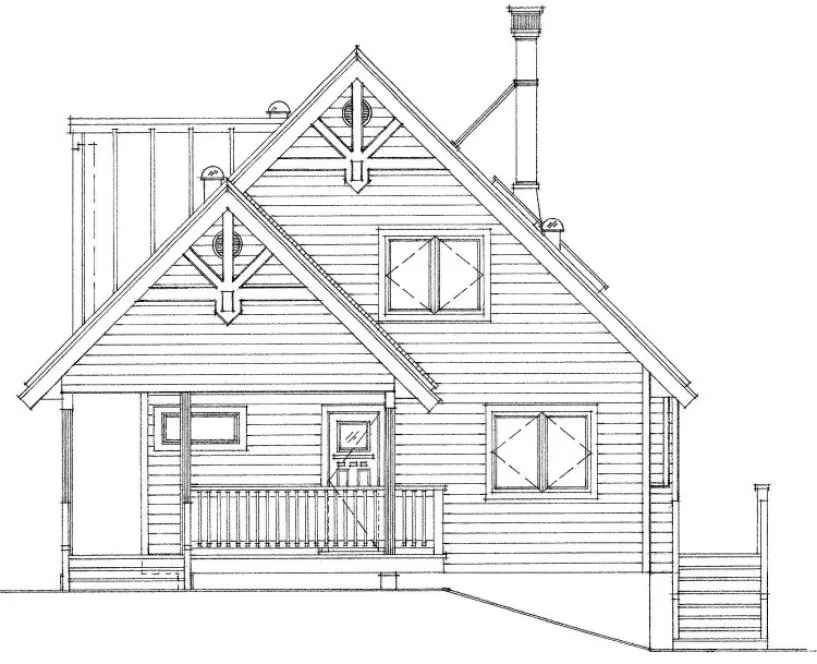

Full Rendering – westhomeplanners.com

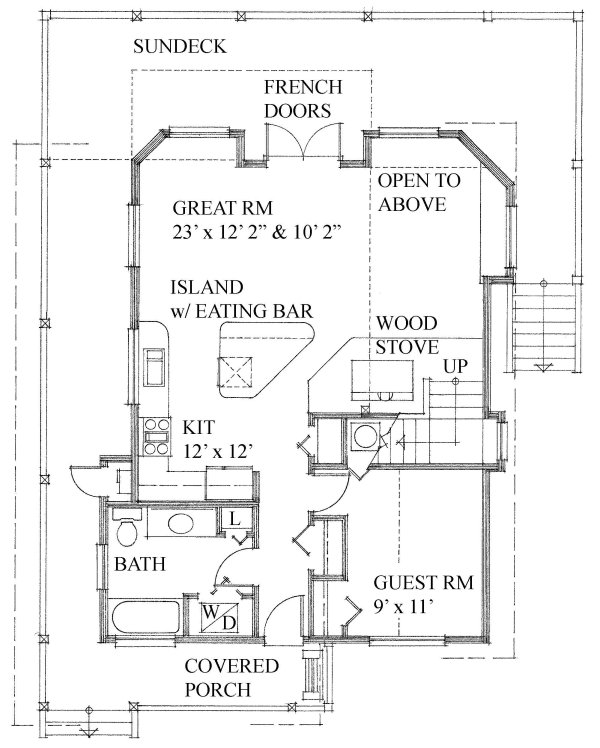

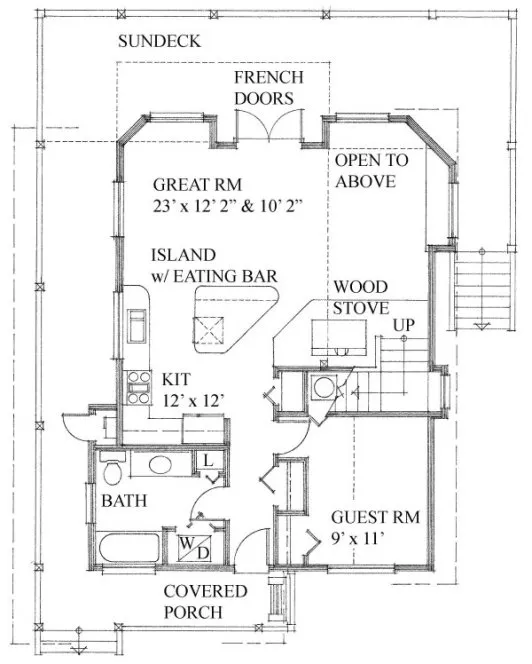

MAIN Plan – westhomeplanners.com

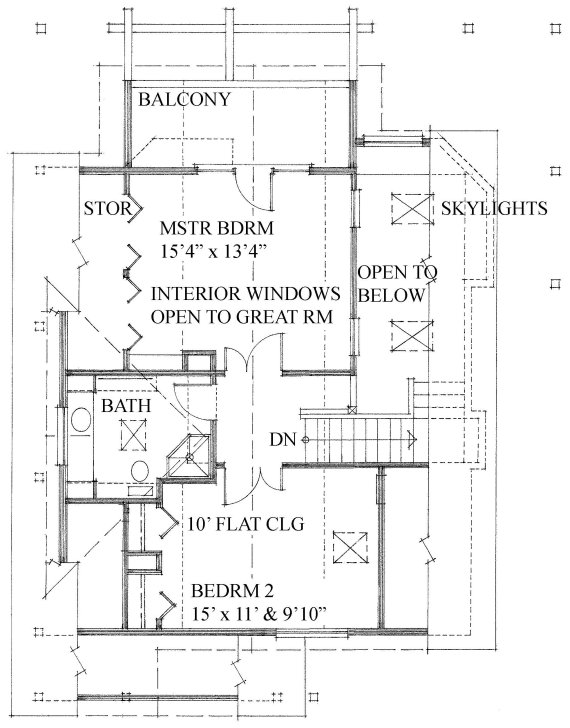

SECOND Plan – westhomeplanners.com
