Plan No.268260

RV Garage with Workshop

This RV Garage with Workshop plan provides two distinct and specific work and storage spaces. The RV garage portion boasts a twelve-foot ceiling sloping to fifteen feet with a 12’ wide by 12’ high overhead garage door. Extra natural light is provided by a large skylight. Plans could be modified to accommodate a rear overhead garage door for drive through ease if required. The workshop portion of this plan has an eight-foot ceiling height with ample work bench space including a wash up sink location. A wood stove makes this space a year-round functioning space. Or eliminate the stove to add additional work bench and storage.


Total 628 sq ft

  • Main: 628
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Beds:
  • Baths:
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 32'0
  • Depth: 24'0


  • Max Ridge Height: 23'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

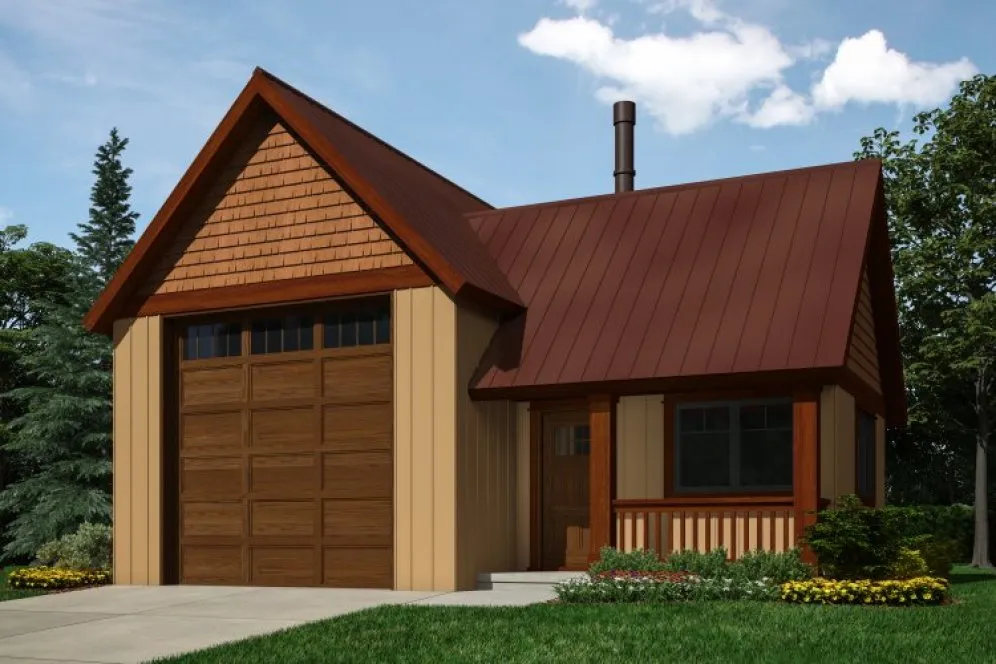

Full Rendering –

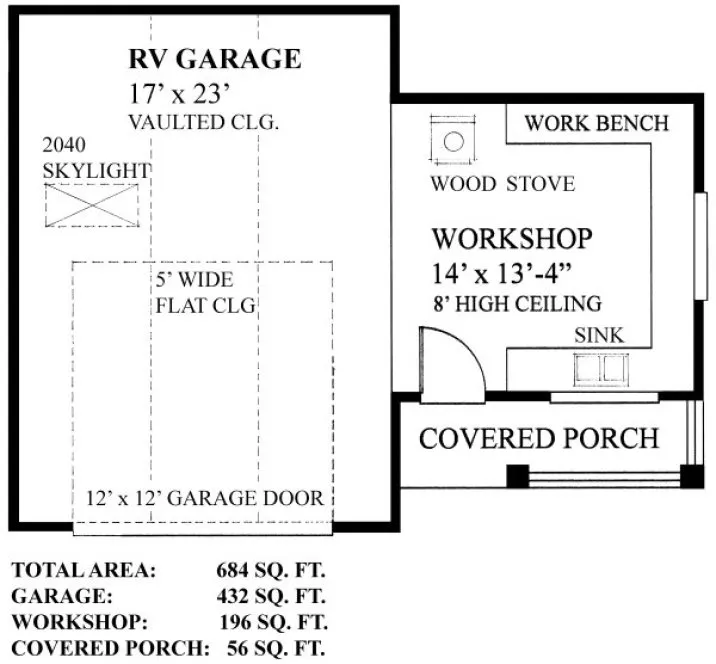

MAIN Plan –
