Plan No.345671

Understated but Welcoming

Understated but welcoming, the cottage style is a great fit for a narrow urban lot or open rural property. Walking in the front door the foyer opens up with 10' ceilings. To the left is an opening that leads to a guest bathroom and two bedrooms. At the end of the foyer hall a cased opening transitions into the dining room and great room. The open c-shaped kitchens allows whoever is working to not feel cut off from the activities in the heart of the living area. A sliding glass door at the back of the dining rooms opens to a covered patio which could be screened in if needed. Off the great room is a mud hall with built in drop zone and additional storage. One door off the mud hall leads to the garage or while the other leads to the utility room. The owners' suite fills the right side of the house and features a roomy walk-in closet, dual vanity and flush curb shower.


Total 1765 sq ft

  • Main: 1765
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 552


  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 48'0
  • Depth: 62'0


  • Max Ridge Height: 18'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 4.00/12
  • Secondary Pitch: /12

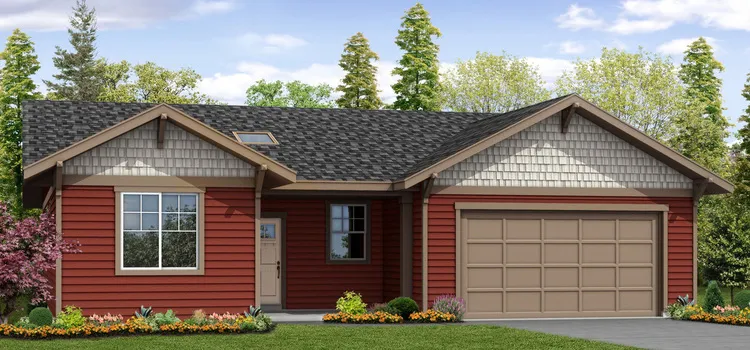

Full Rendering –

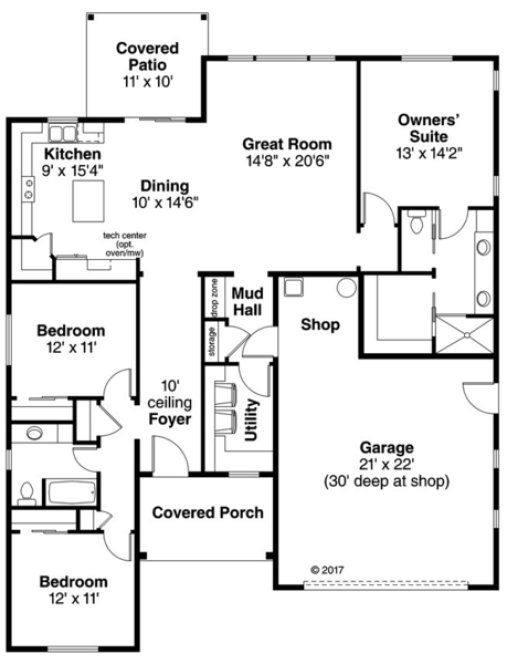

MAIN Plan –

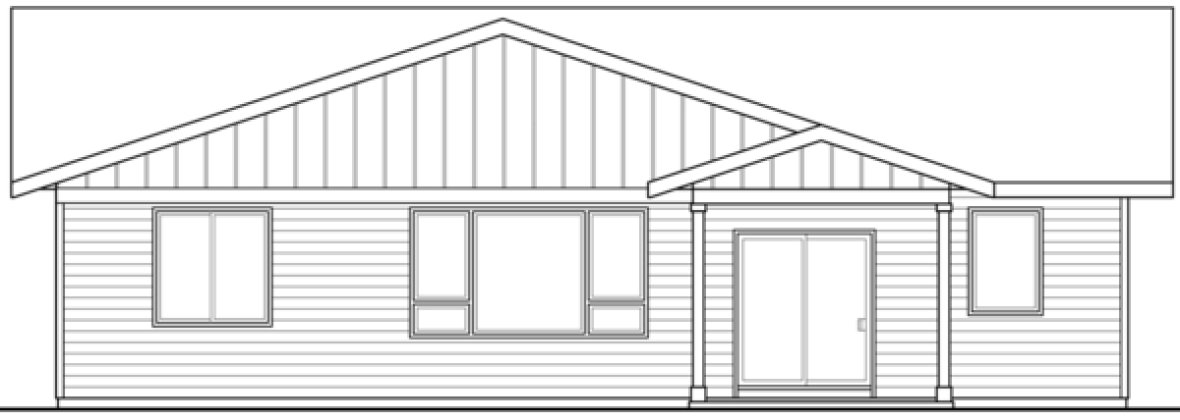

REAR Elevation –

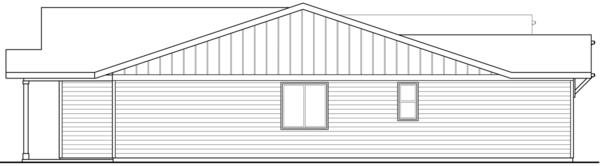

LEFT Elevation –

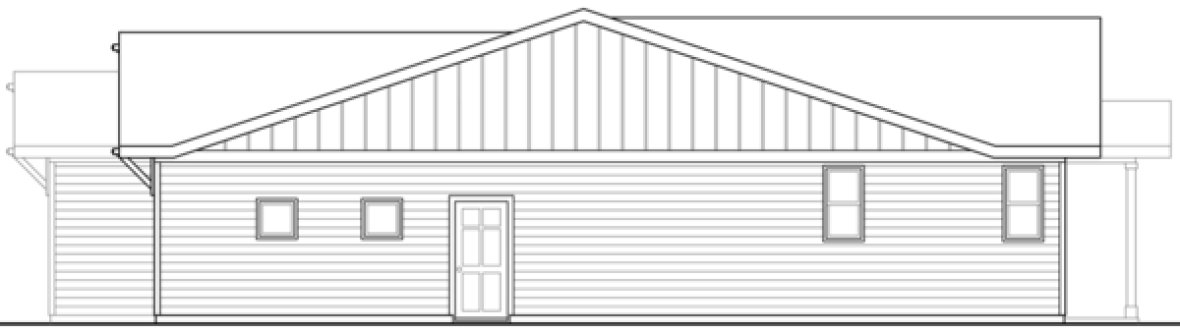

RIGHT Elevation –
