Plan No.307561

Charming Craftsman Cottage

This charming craftsman cottage features 3 bedrooms and open-concept living. A large great room with trayed ceiling is open to the well-equipped kitchen which includes a large island and eating bar. The entry area includes several great features such as a computer desk, lockers, and a large walk-in pantry. The bedrooms are all well-sized and the master suite includes dual vanities, large shower, and walk-in closet. An optional outdoor kitchen is also provided on the rear porch and is perfect for entertaining. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 1657 sq ft

  • Main: 1657
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 481

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0-11'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 55'0
  • Depth: 51'2

Roof

  • Max Ridge Height: 24'5
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 4.00/12

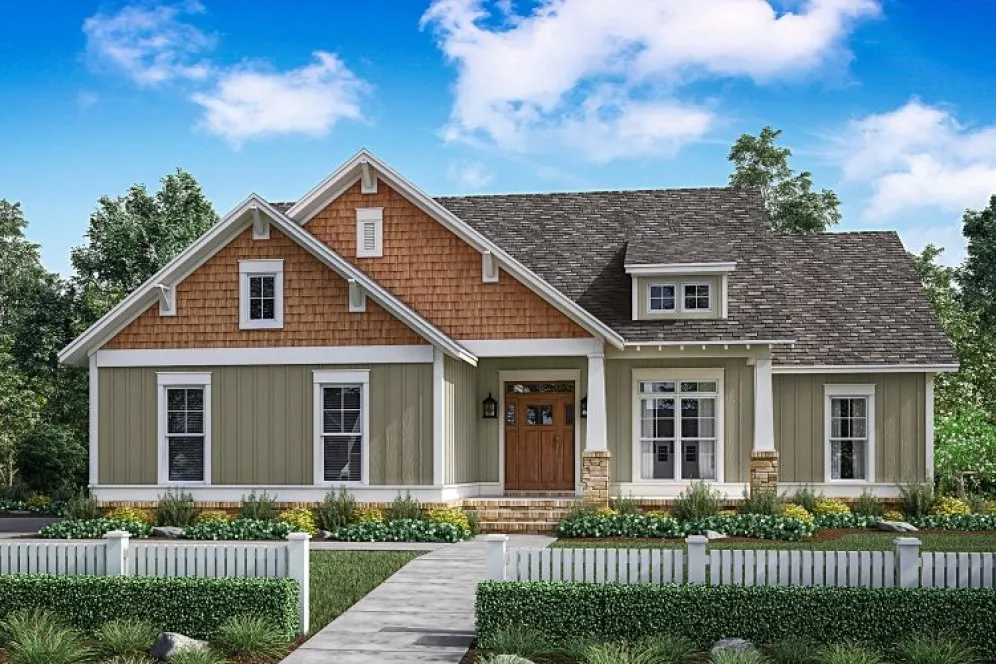

Full Rendering – westhomeplanners.com

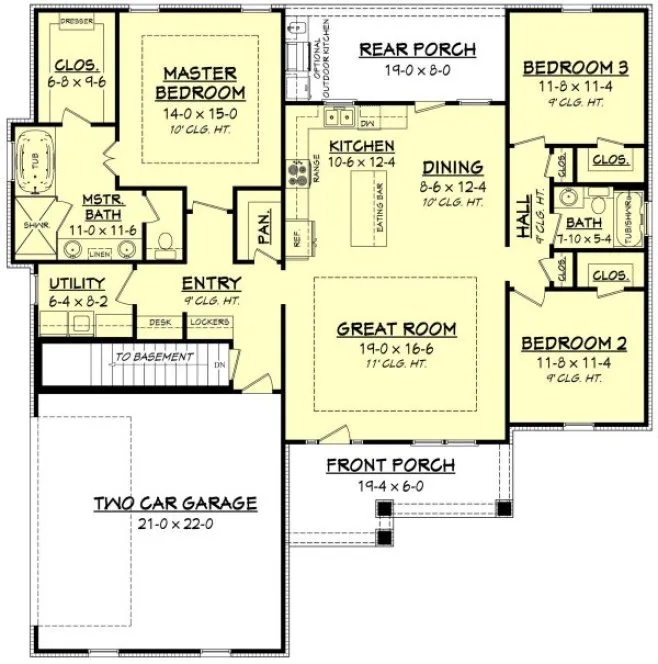

Optional Basement Stairs – westhomeplanners.com

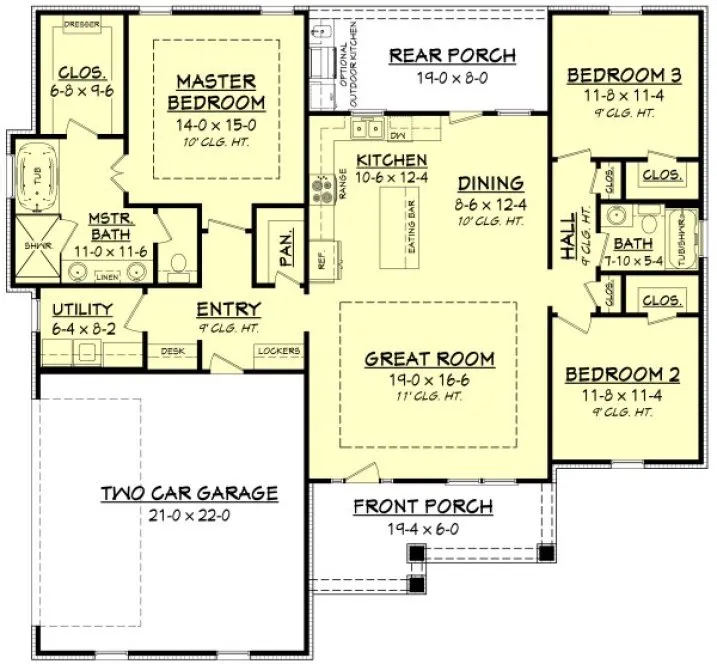

MAIN Plan – westhomeplanners.com

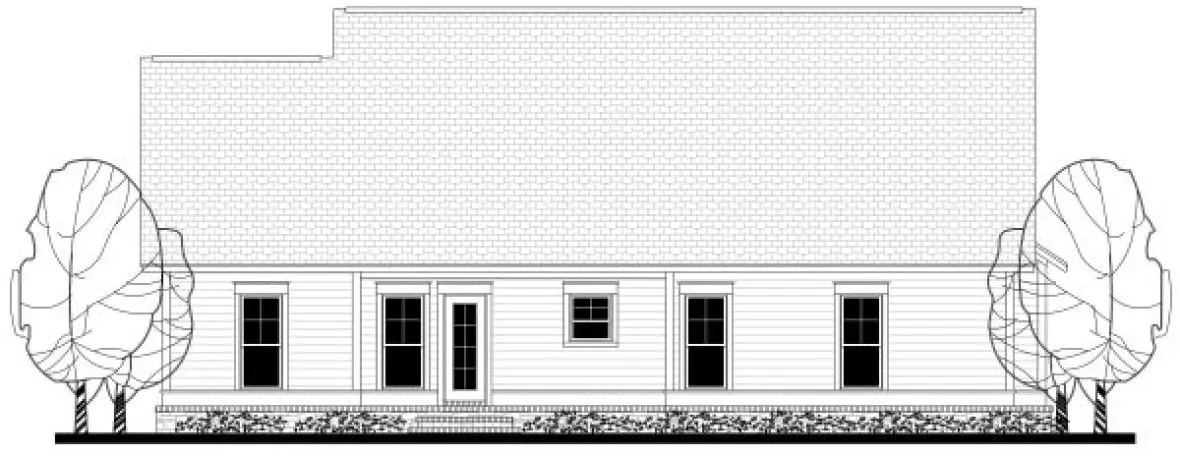

REAR Elevation – westhomeplanners.com
