Plan No.300061

Everything for a Family

This great open floor plan has much to offer. The beautiful trayed ceiling and cozy gas logs make the great room a real favorite. The kitchen offers a raised bar and island peninsula for entertaining. The master suite offers all the amenities that one would want, including a large whirlpool tub, separate shower, enclosed toilet, dual sinks, and a large walk in closet. The second bath is oversized and has dual sinks. This plan has everything a family could ask for. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 1600 sq ft

  • Main: 1600
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 489

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0-10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 68'0
  • Depth: 39'8

Roof

  • Max Ridge Height: 22'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10.00/12
  • Secondary Pitch: 12.00/12

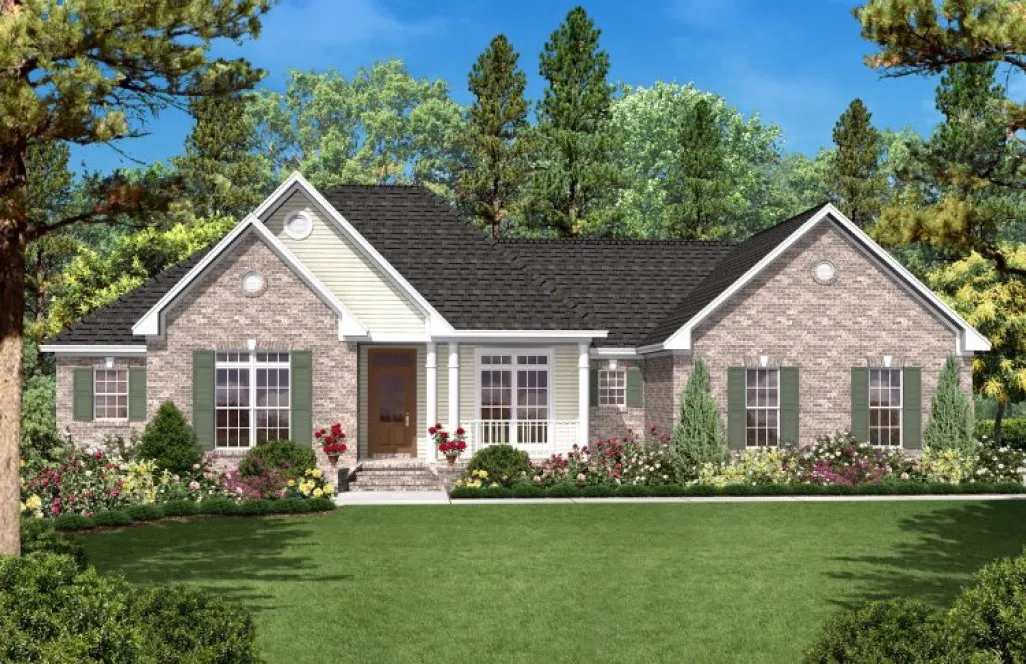

Full Rendering – westhomeplanners.com

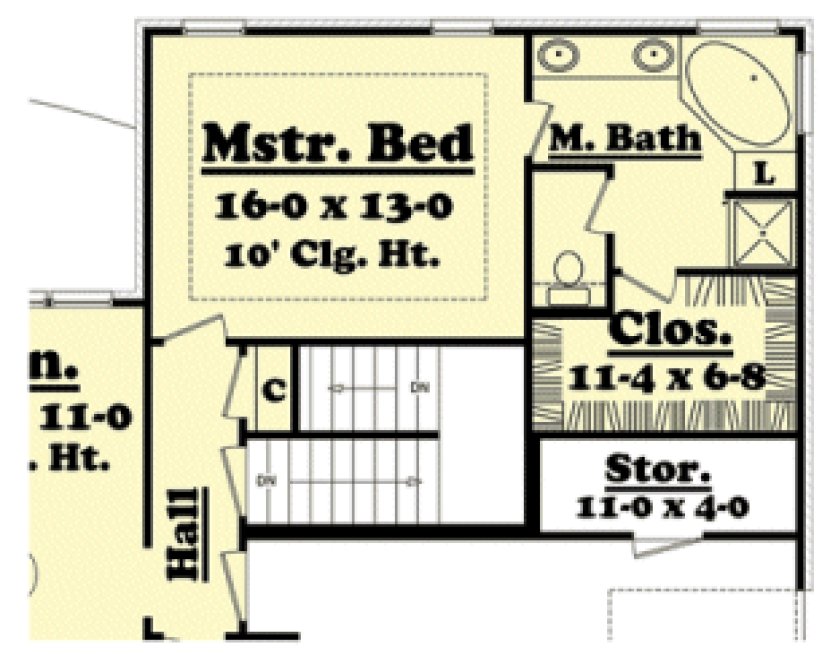

Opt. Basement Stairs – westhomeplanners.com

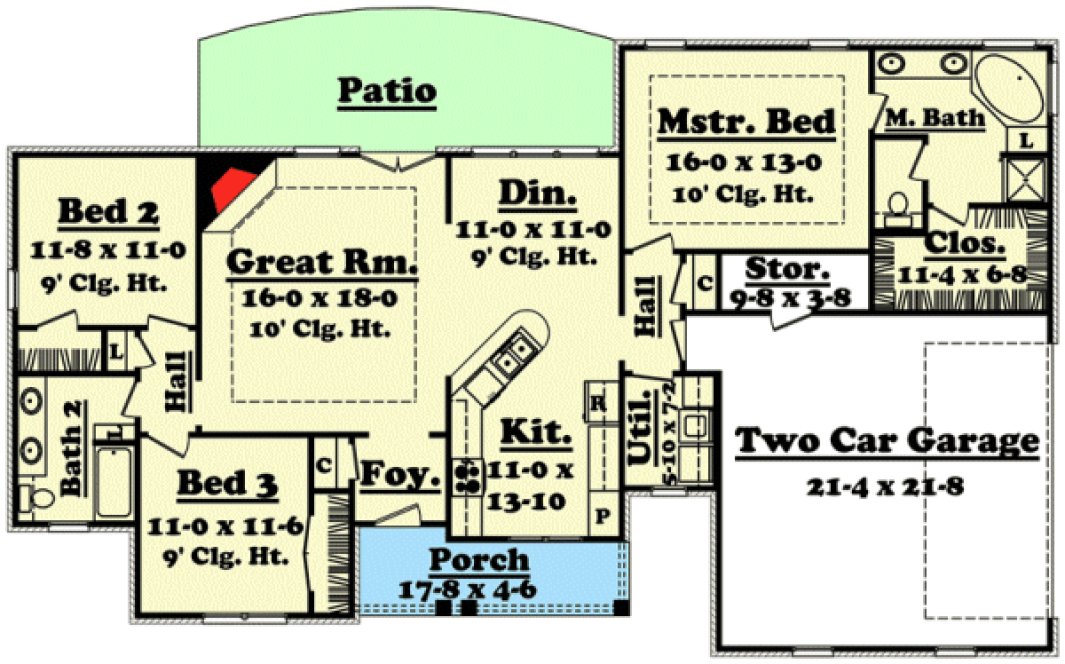

MAIN Plan – westhomeplanners.com

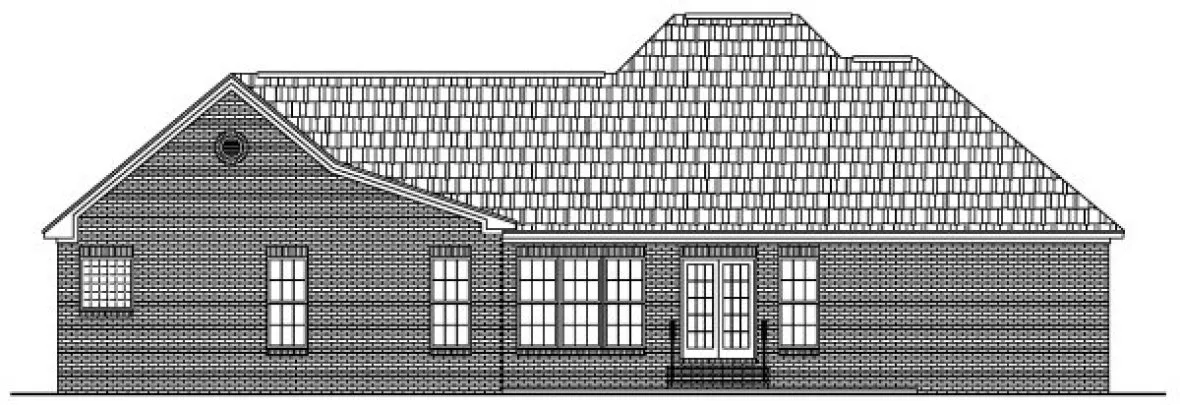

REAR Elevation – westhomeplanners.com
