Plan No.701071

Elegant Modern Elements

This house plan is a Modern Cottage Ranch with a functional floor plan and unique exterior. It combines the eclectic use of materials, not too unlike the craftsman style, with elegant modern elements - standing seam metal over the porch, shed dormer and garage roofs, an uncluttered look and feel. Doesn't it look great? It features an open floor plan that feels huge! It's got a deep walk-in pantry, hidden by cabinet-faced doors, and tons of space in the mud room to keep your life, and this beautiful home, organized. The Master Suite is generously sized with a shower and spa tub and spacious walk-in closet.

Specifications

Total 1701 sq ft

  • Main: 1701
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 747

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 9'0
  • Garage:

Details

  • Exterior Walls: 2x4 Steel Studs
  • Garage Type: tripleGarage
  • Width: 55'0
  • Depth: 55'0

Roof

  • Max Ridge Height: 23'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 3.00/12

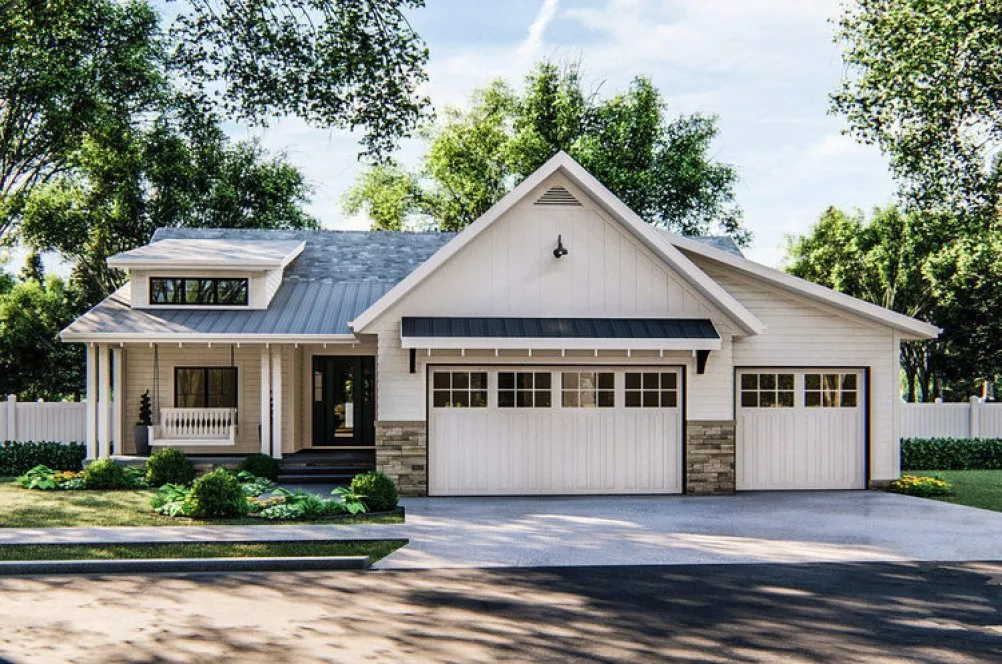

Full Rendering – westhomeplanners.com

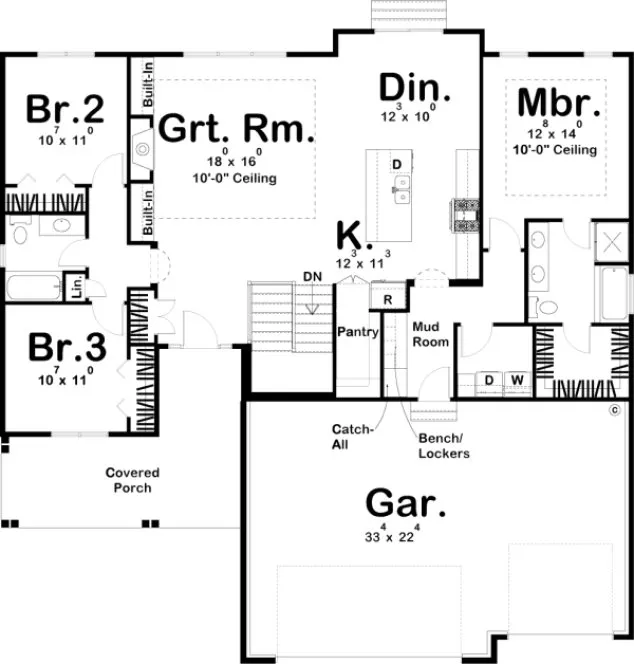

MAIN Plan – westhomeplanners.com

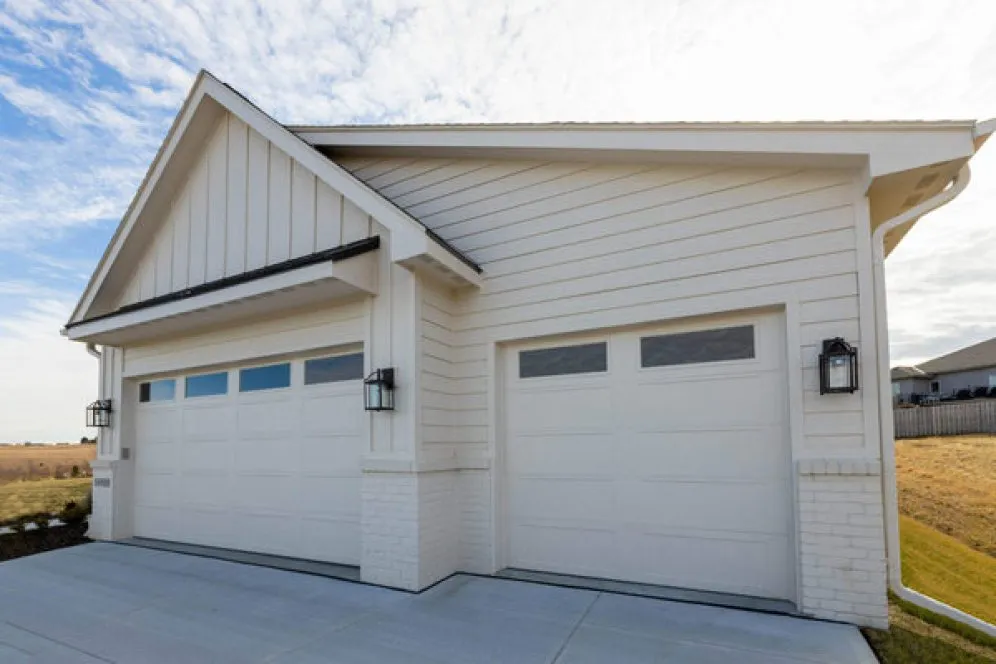

3 Car Garage – westhomeplanners.com
Rear Photo – westhomeplanners.com

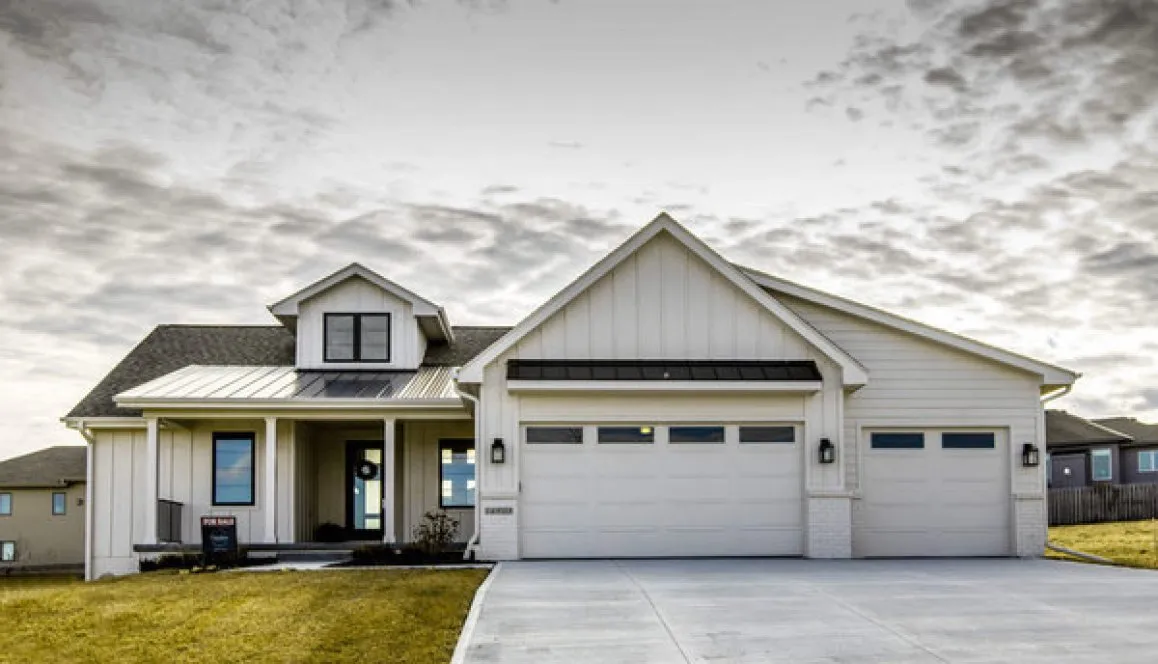

Front Photo – westhomeplanners.com

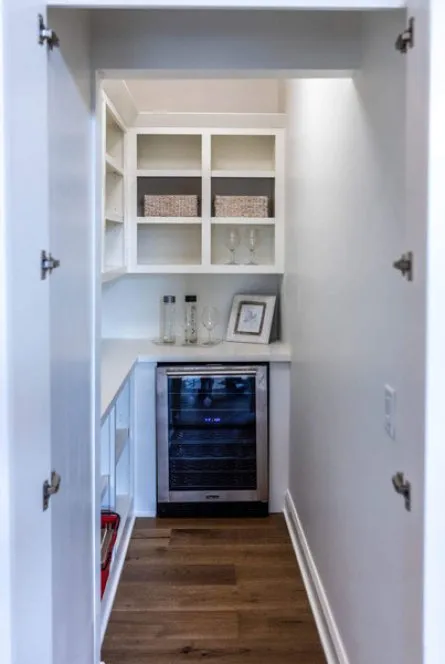

Pantry – westhomeplanners.com

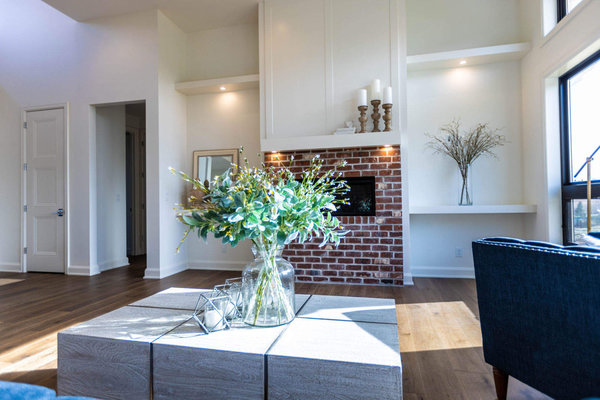

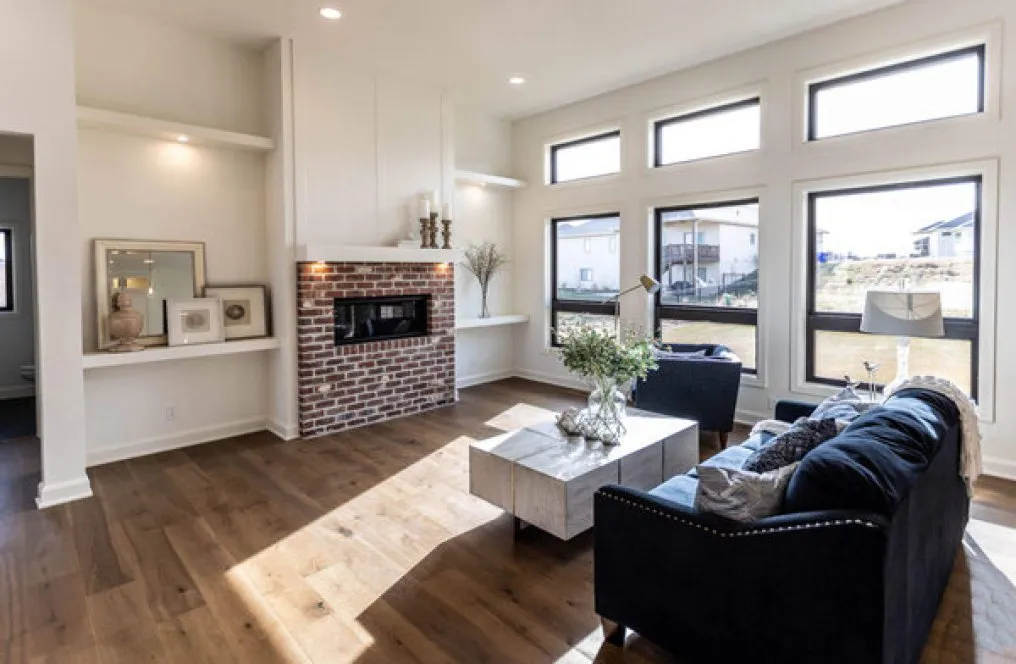

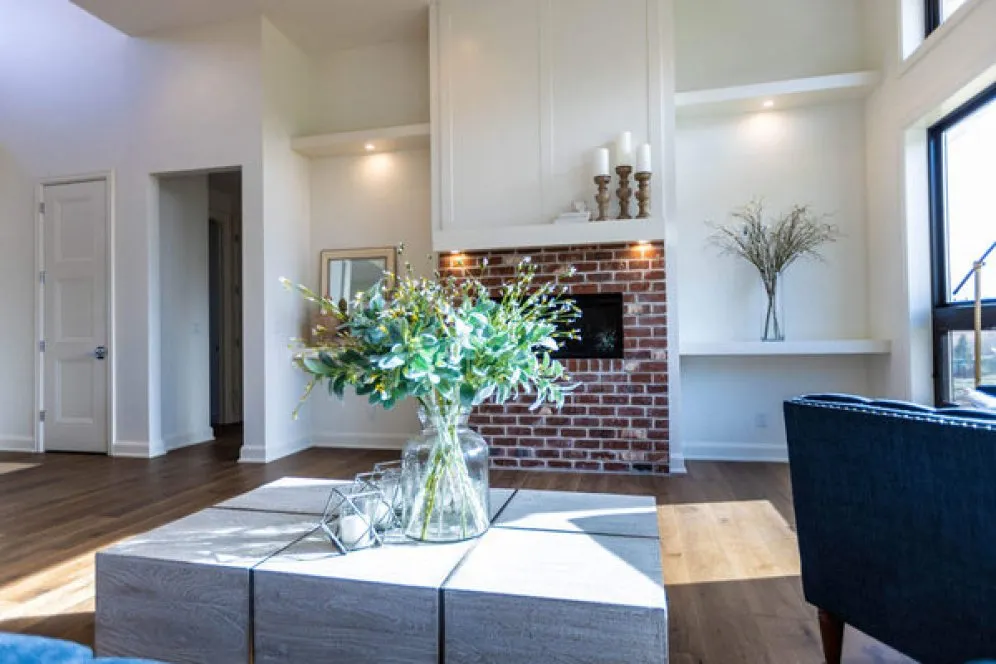

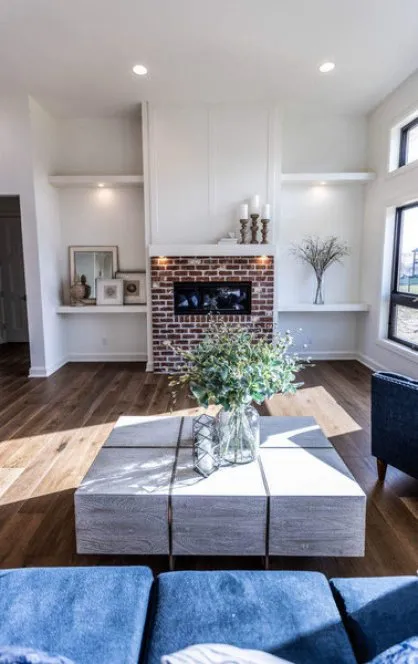

Great Room - Bldr. Mods – westhomeplanners.com

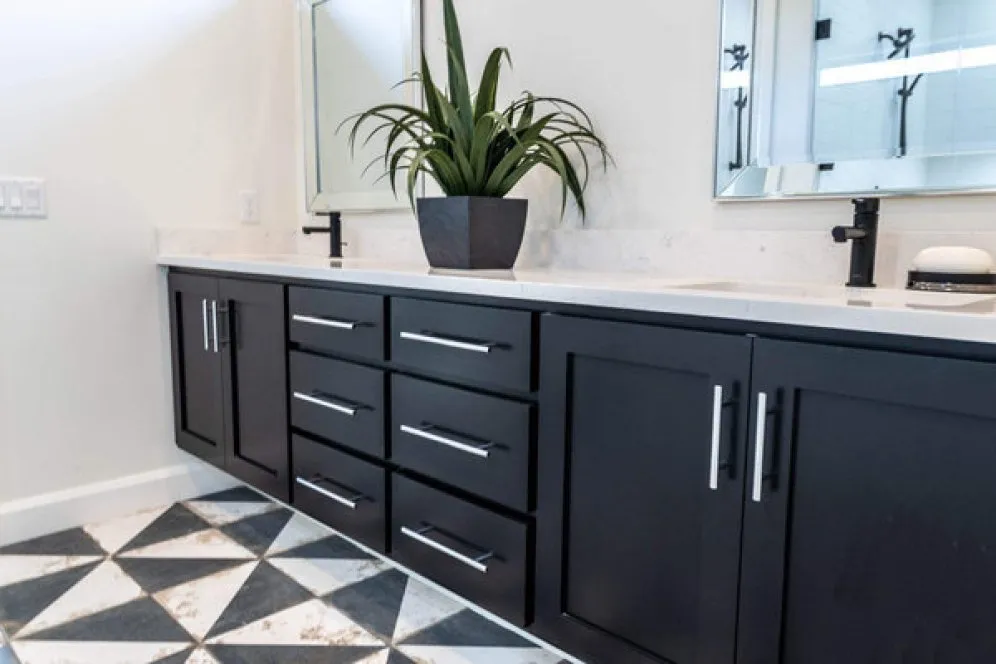

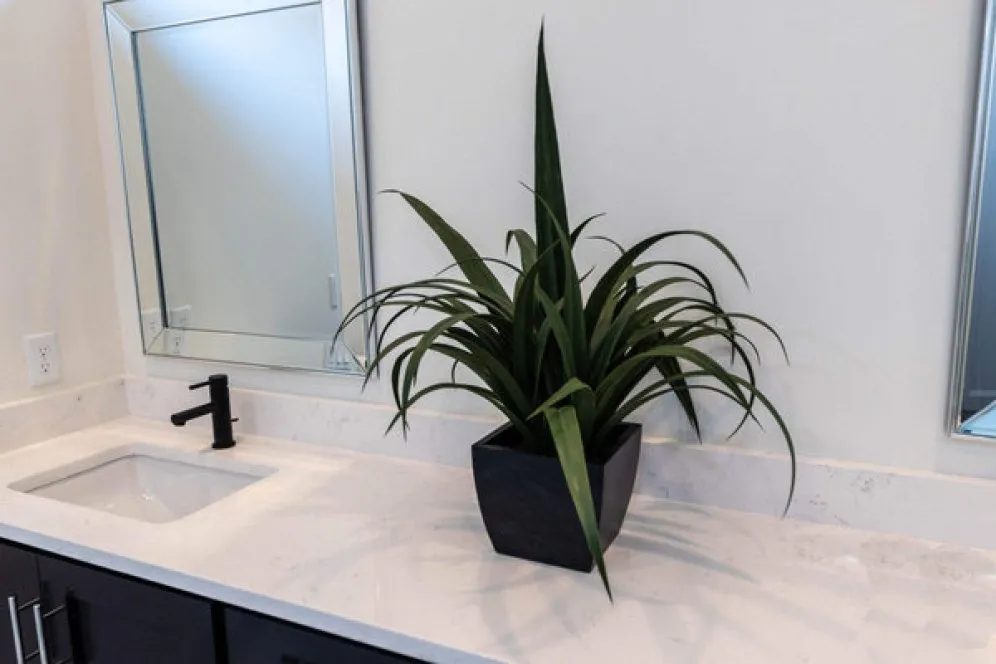

Master Bath – westhomeplanners.com
Kitchen – westhomeplanners.com

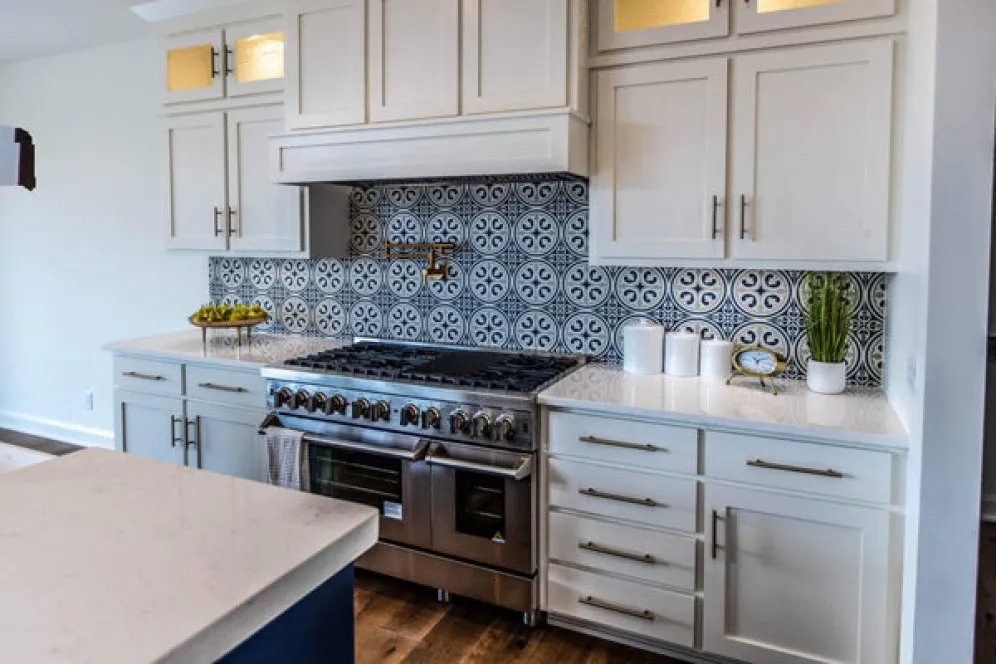

Kitchen Range – westhomeplanners.com
Great Room - Bldr. Mods – westhomeplanners.com

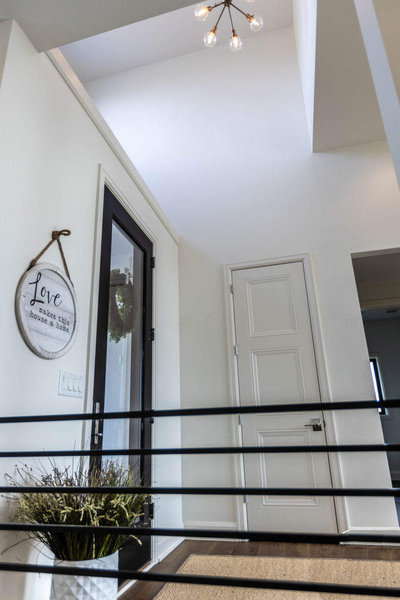

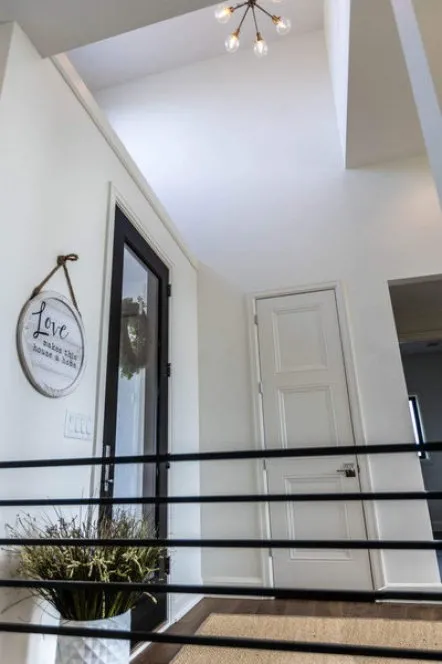

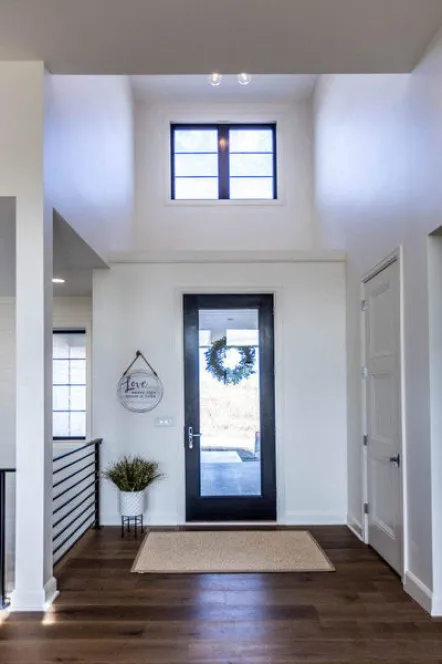

Entry – westhomeplanners.com
Master Bath – westhomeplanners.com
Kitchen – westhomeplanners.com

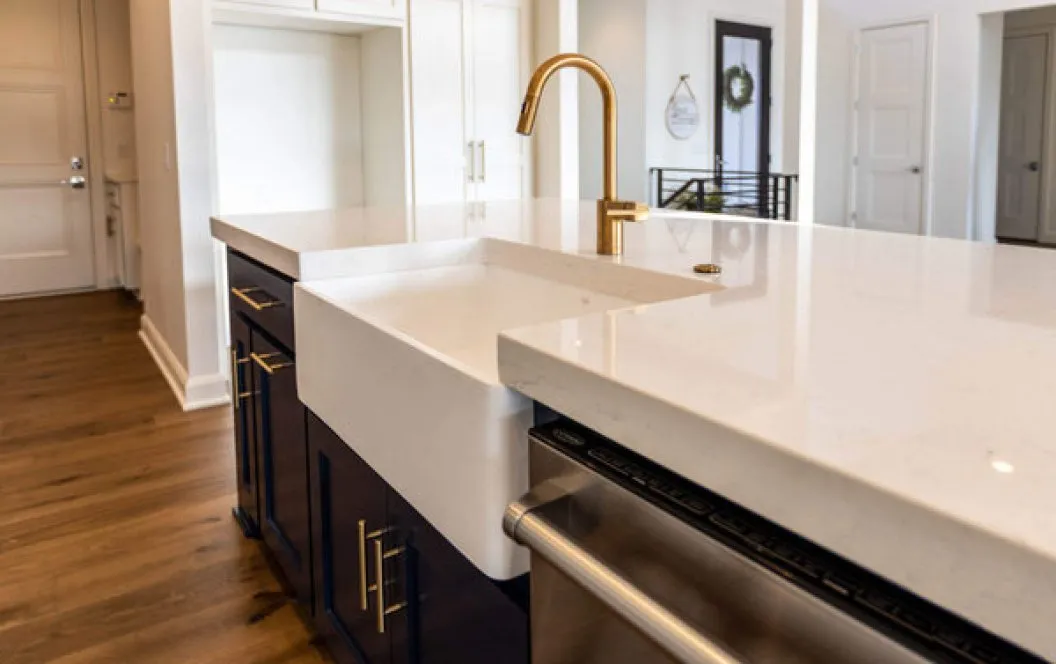

Kitchen Sink – westhomeplanners.com
Great Room - Bldr. Mods – westhomeplanners.com
Entry – westhomeplanners.com

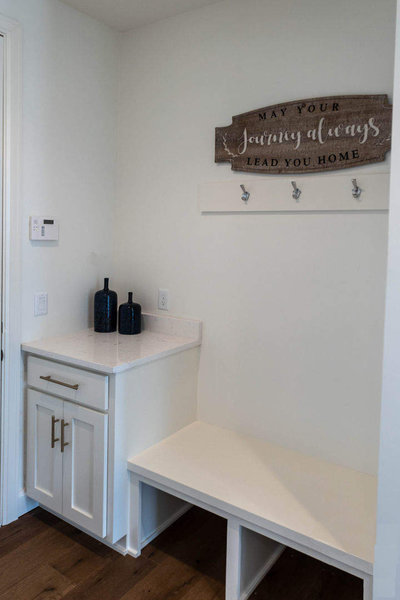

Mud Room – westhomeplanners.com
Kitchen – westhomeplanners.com
Master Bath – westhomeplanners.com
Entry – westhomeplanners.com

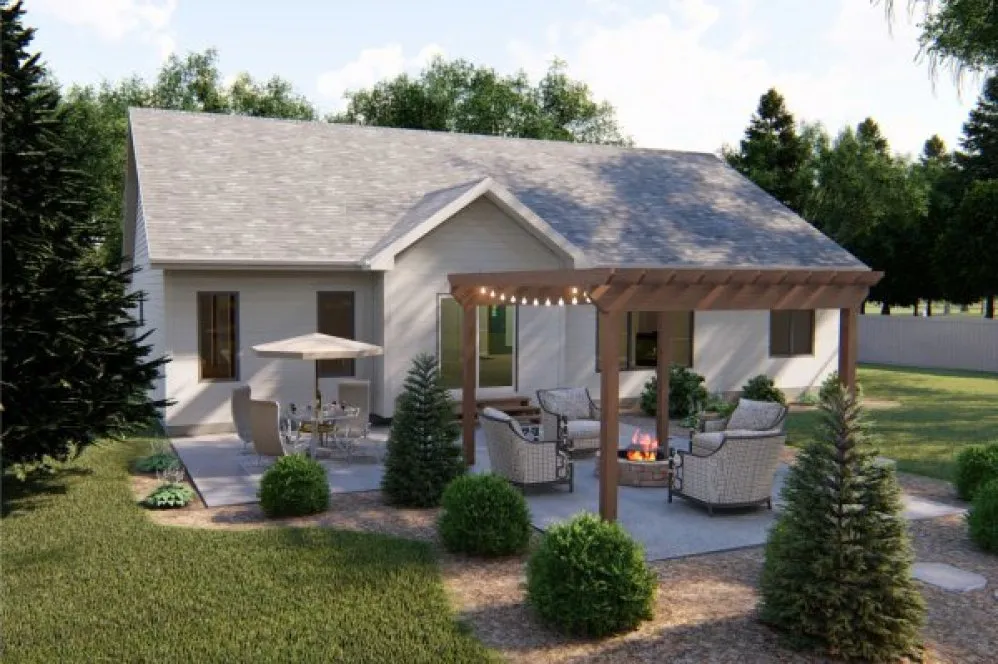

REAR Elevation – westhomeplanners.com

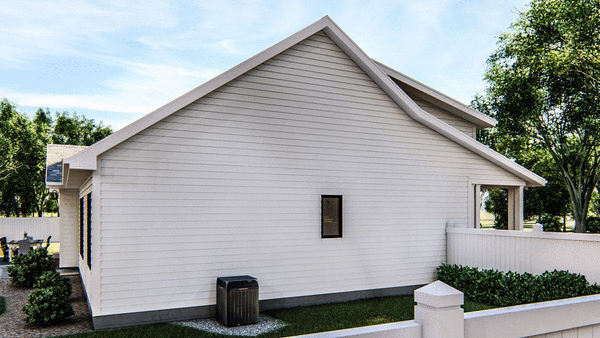

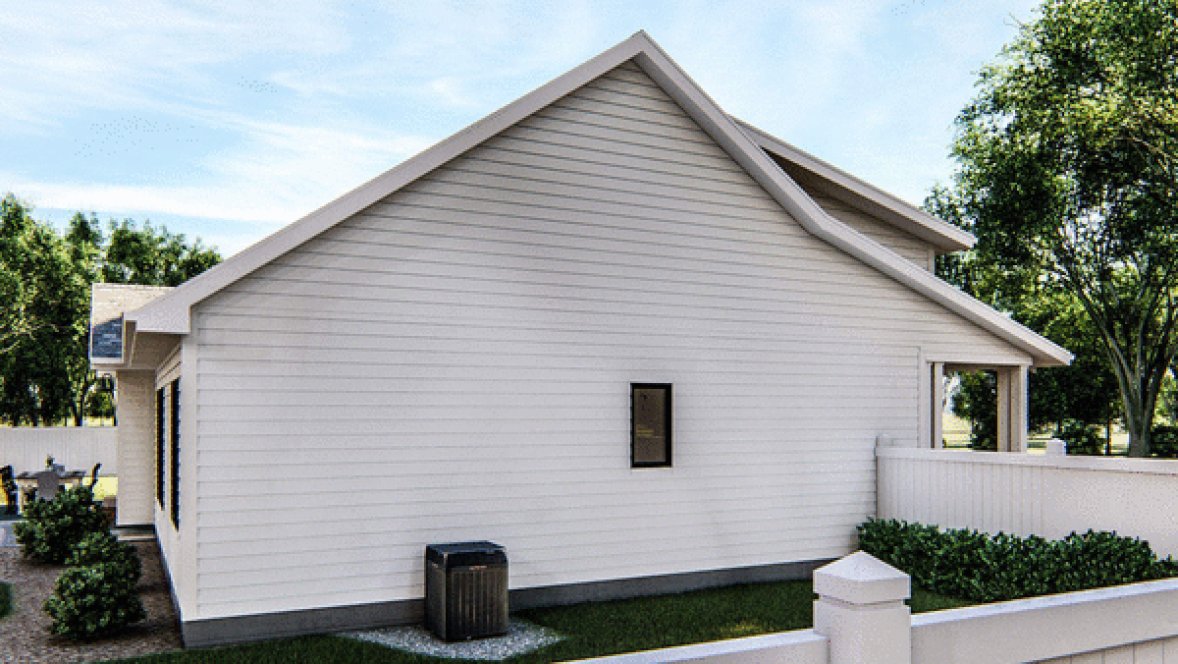

LEFT Elevation – westhomeplanners.com

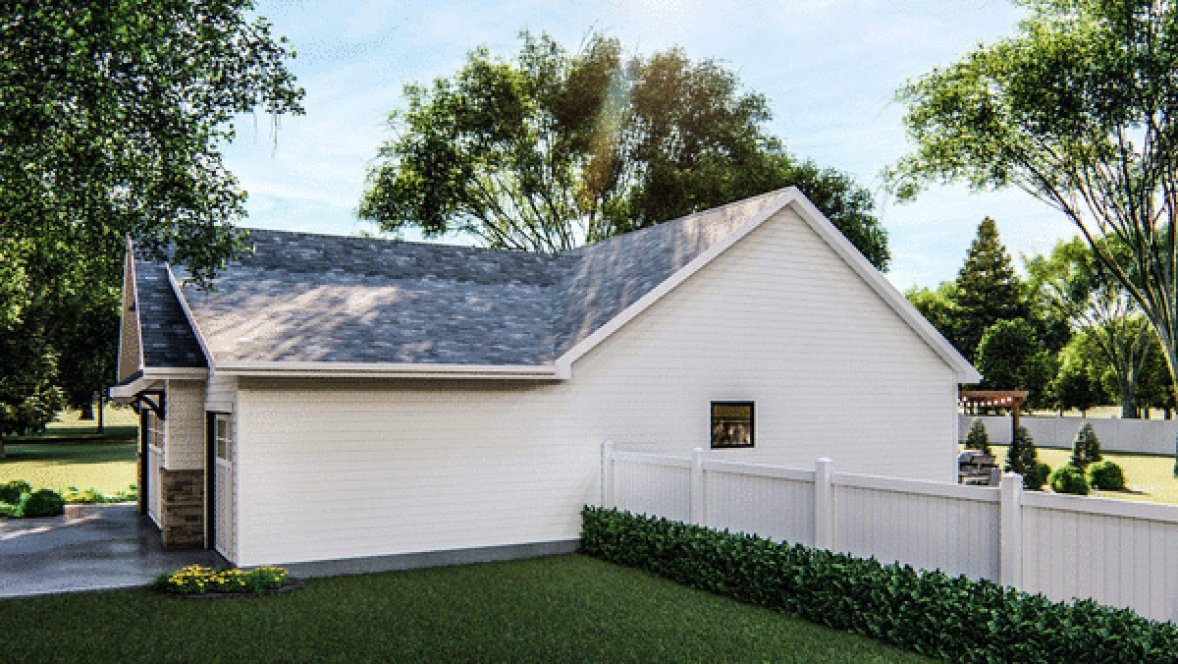

RIGHT Elevation – westhomeplanners.com

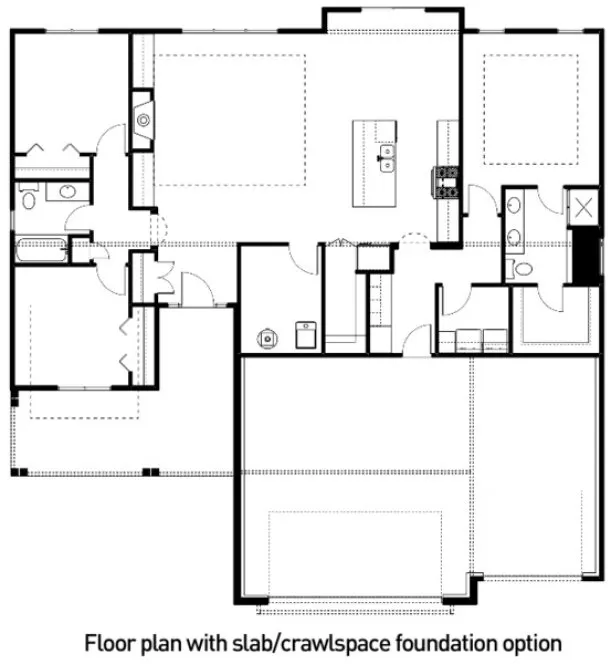

Non-Basement Option – westhomeplanners.com
