Plan No.635571

Apartment Garage Enjoys Outdoor Balcony

This Apartment Garage has 1 bedroom and 1 full bath. The oversized garage includes an extra wide 18' door and spacious entry with storage area. A large side covered porch invites you into the entry hall featuring a coat closet, room for an office or shop, a mechanical room and stair to living area above. The second floor living room, with 9' sliding door to covered outdoor balcony, is open to a U-shaped kitchen with dining bay, built-in pantry and snack counter. A compartmented bath with walk-in closet adjoins the bedroom which features double entry doors. The Main Floor totals 1021 sq. ft., 584 sq. ft. 2-car garage, 80 sq. ft. storage and 357 sq. ft. for the ground floor of the apartment. The Second Floor of the apartment is 734 sq. ft. The Apartment totals 1091 sq. ft.

Specifications

Total 1755 sq ft

  • Main: 1021
  • Second: 734
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 30'8
  • Depth: 36'0

Roof

  • Max Ridge Height:
  • Comments: ()
  • Primary Pitch: /12
  • Secondary Pitch: /12

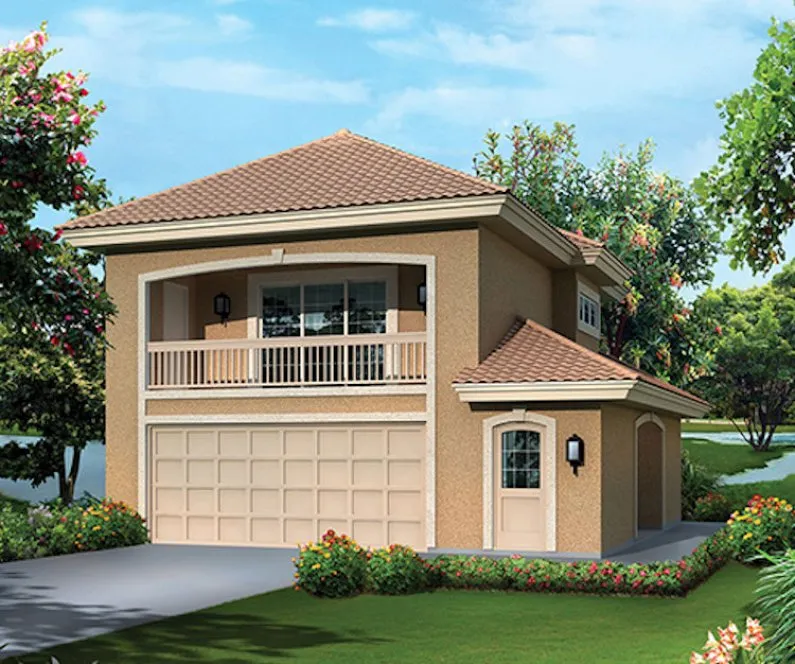

Full Rendering – westhomeplanners.com

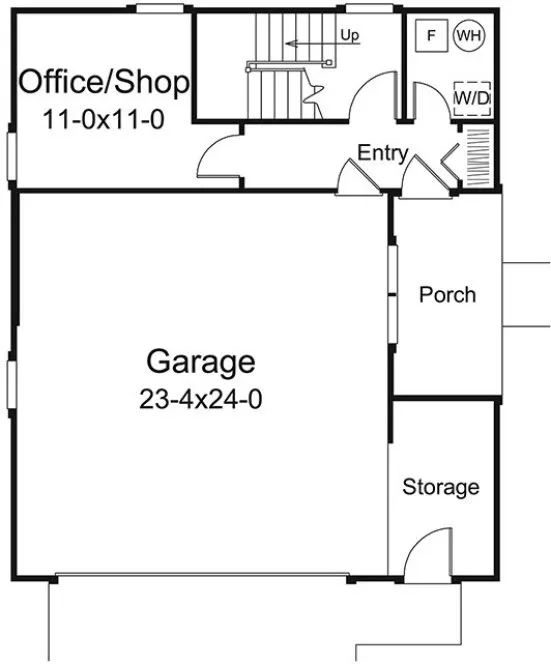

MAIN Plan – westhomeplanners.com

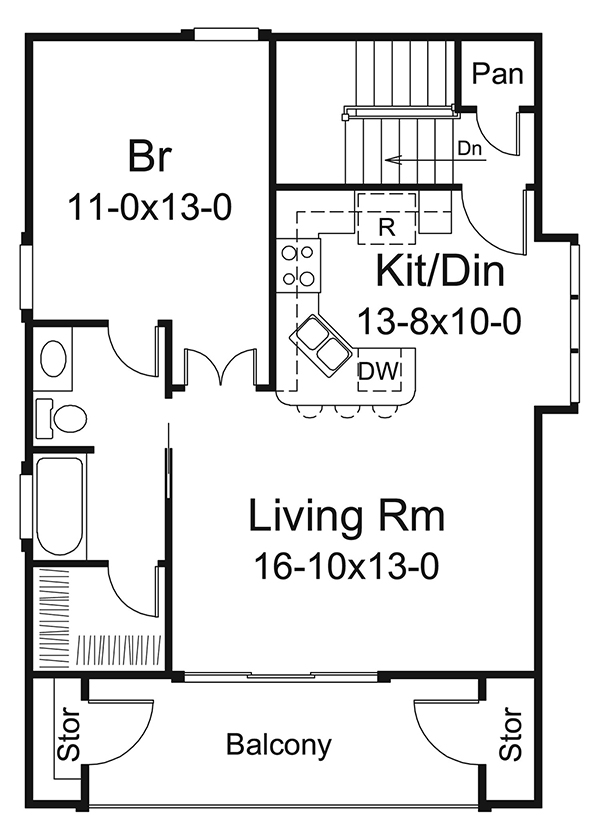

SECOND Plan – westhomeplanners.com

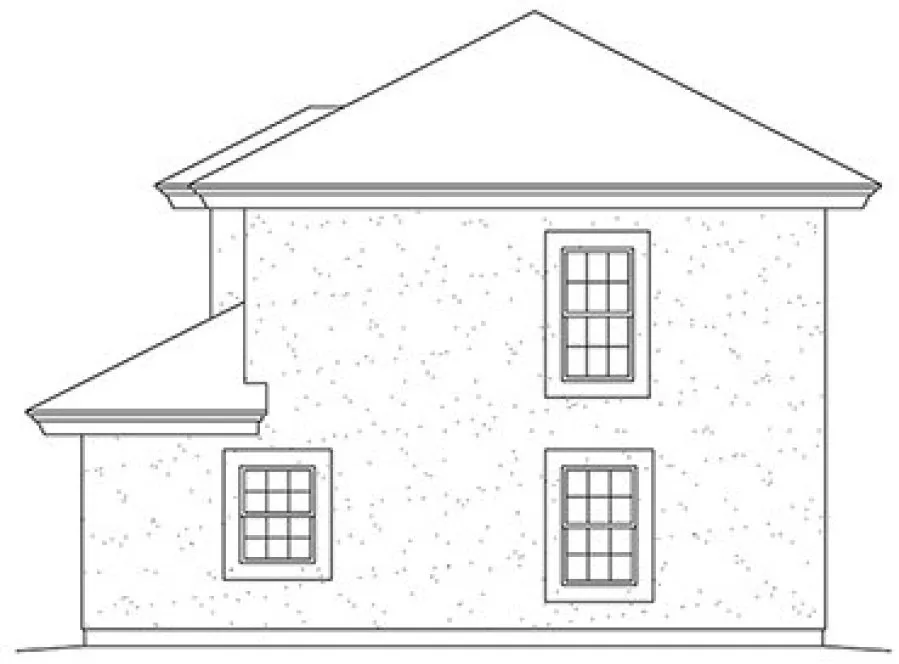

REAR Elevation – westhomeplanners.com

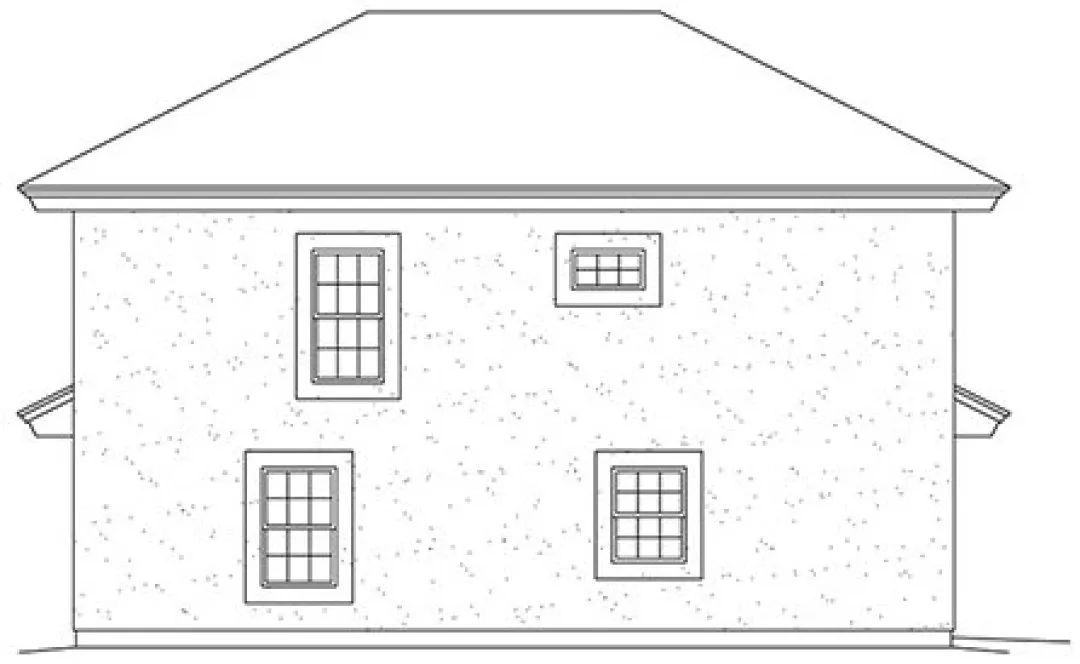

LEFT Elevation – westhomeplanners.com

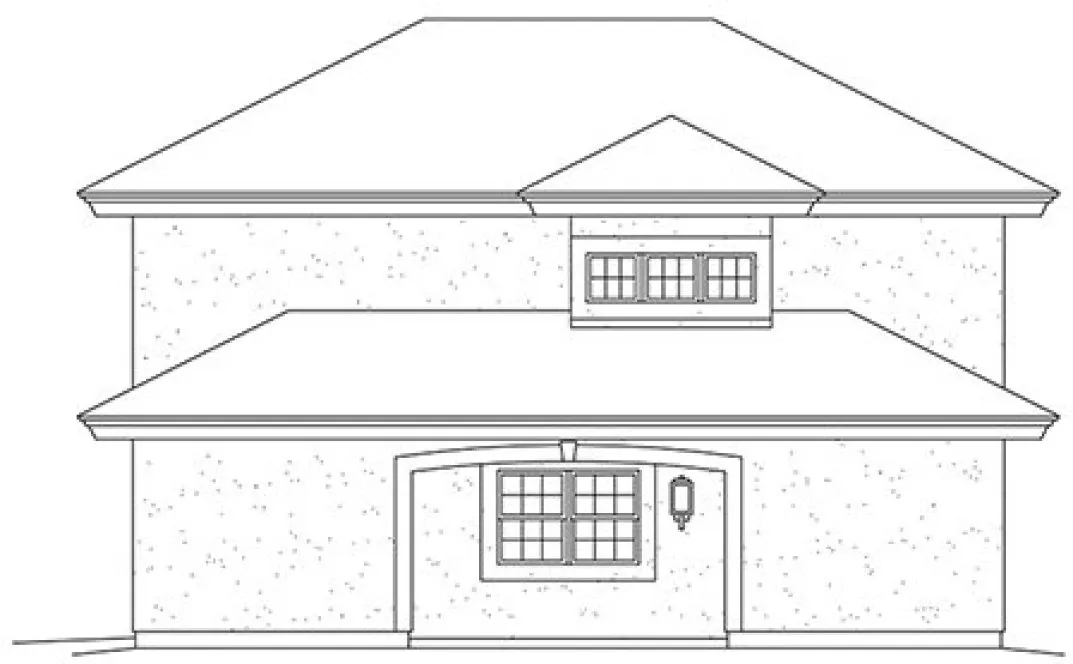

RIGHT Elevation – westhomeplanners.com
