Plan No.636960

Garage With Studio Apartment

This Apartment Garage has 1 bedroom and 1 full bath. This unique two-story structure is attractively disguised as a one-story home. The side entrance leads to an entry that accesses both the garage and the second floor studio. The laundry room on the first floor doubles as a mud room between the garage and the rear entry. The second floor studio apartment includes a kitchenette area, full bath and closet creating the perfect place for children home from college or as a private in-law suite. The Main Floor totals 459 sq. ft., 105 sq. ft. for the apartment and 354 sq. ft. for the Garage & Storage area. the Second Floor of the apartment is 237 sq. ft. The Apartment total for both floors is 342 sq. ft.

Specifications

Total 696 sq ft

  • Main: 459
  • Second: 237
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: singleGarage
  • Width: 17'0
  • Depth: 27'0

Roof

  • Max Ridge Height:
  • Primary Pitch: /12
  • Secondary Pitch: /12

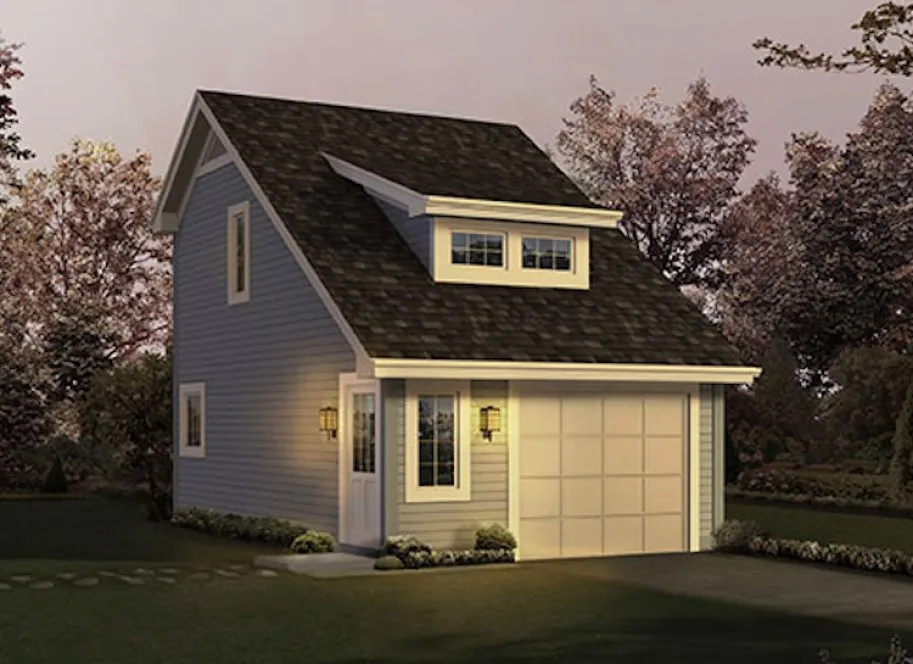

Full Rendering – westhomeplanners.com

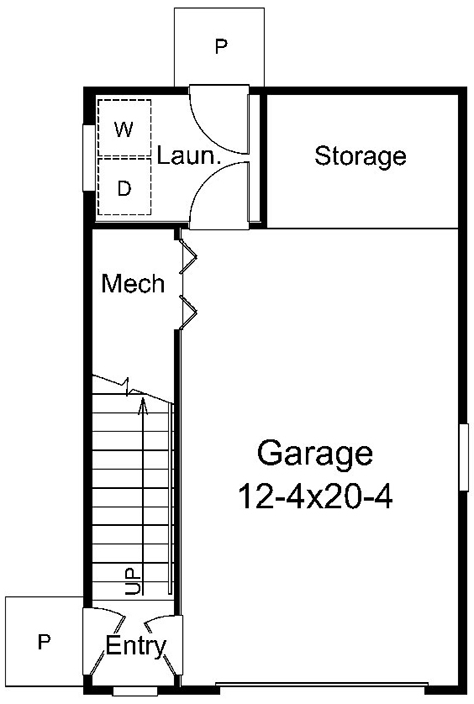

MAIN Plan – westhomeplanners.com

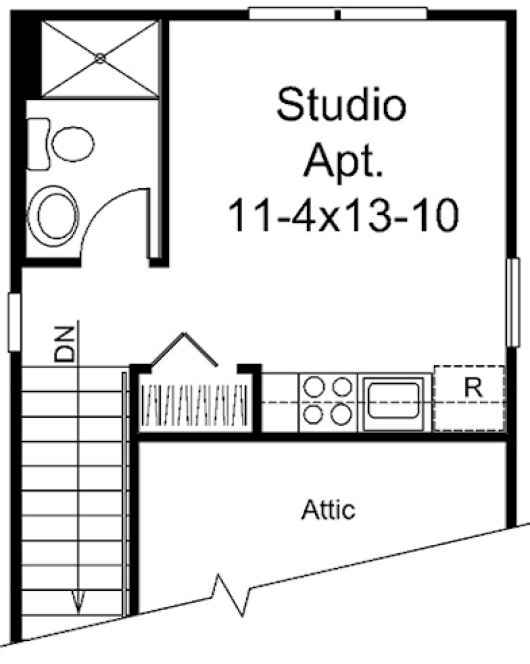

SECOND Plan – westhomeplanners.com

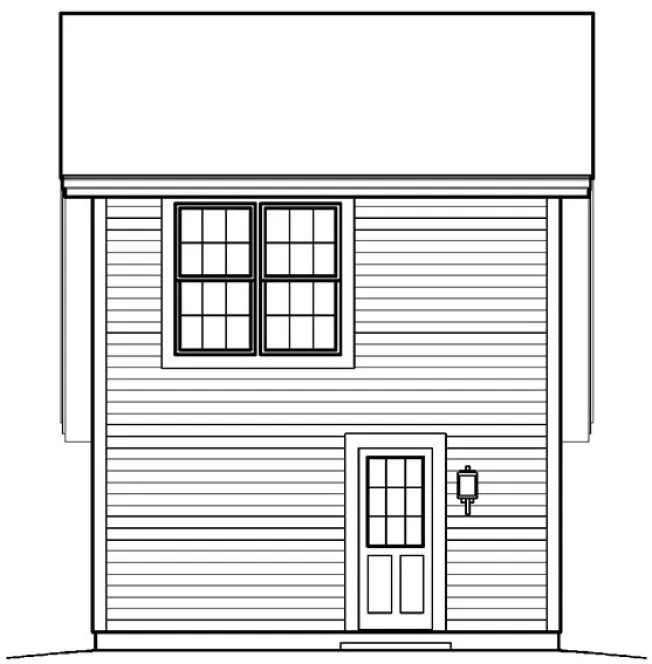

REAR Elevation – westhomeplanners.com

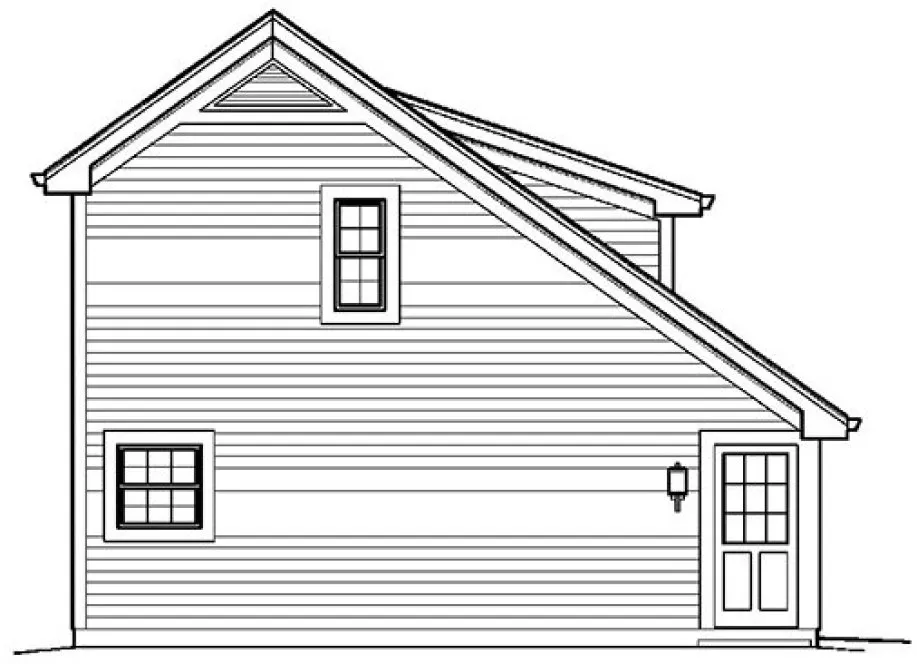

LEFT Elevation – westhomeplanners.com

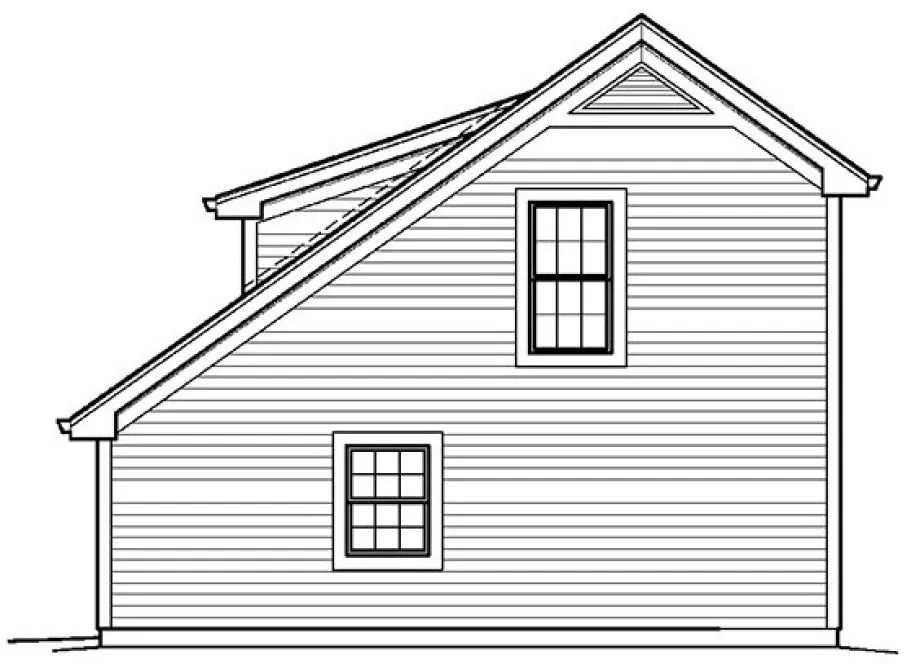

RIGHT Elevation – westhomeplanners.com
