Plan No.154041

Garage Apartment 2-story design is 540 square feet with 1 bedrooms and 1 baths.

Specifications

Total 1404 sq ft

  • Main: 864
  • Second: 540
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 864

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 3 Car Garage
  • Width: 40'0
  • Depth: 24'0

Roof

  • Max Ridge Height: 23'1
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 12/12

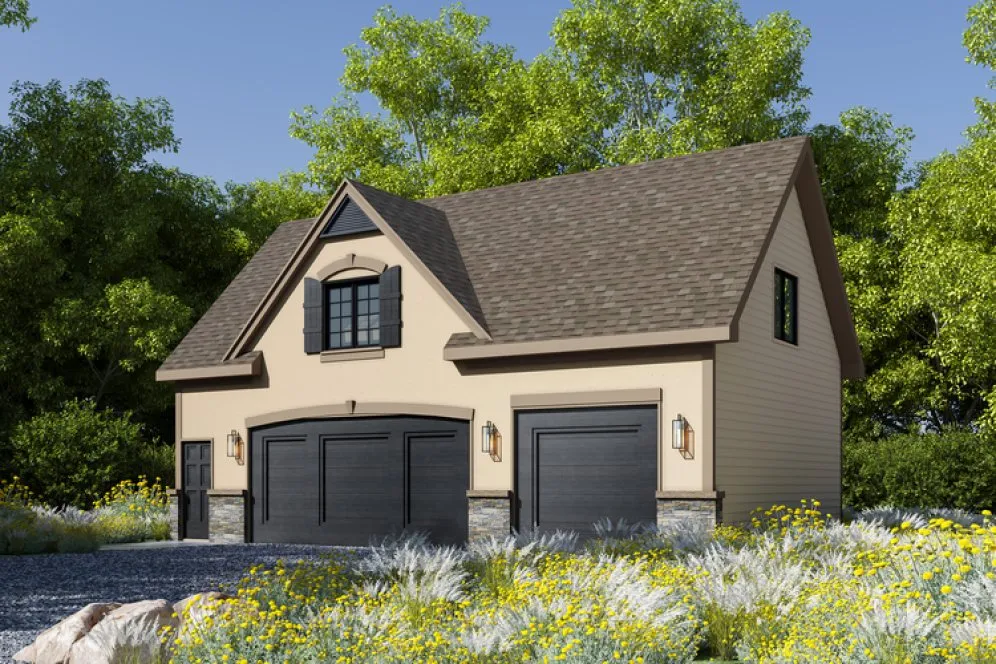

Full Rendering – westhomeplanners.com

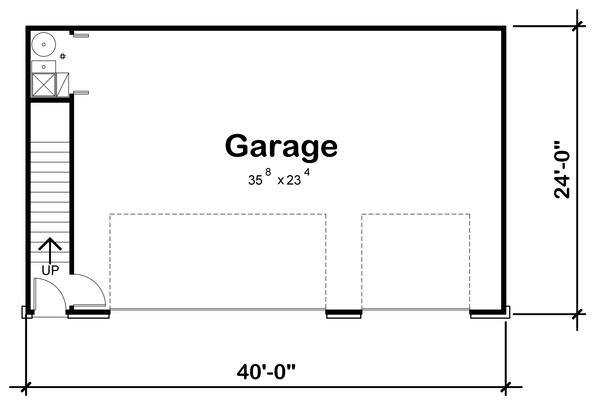

MAIN Plan – westhomeplanners.com

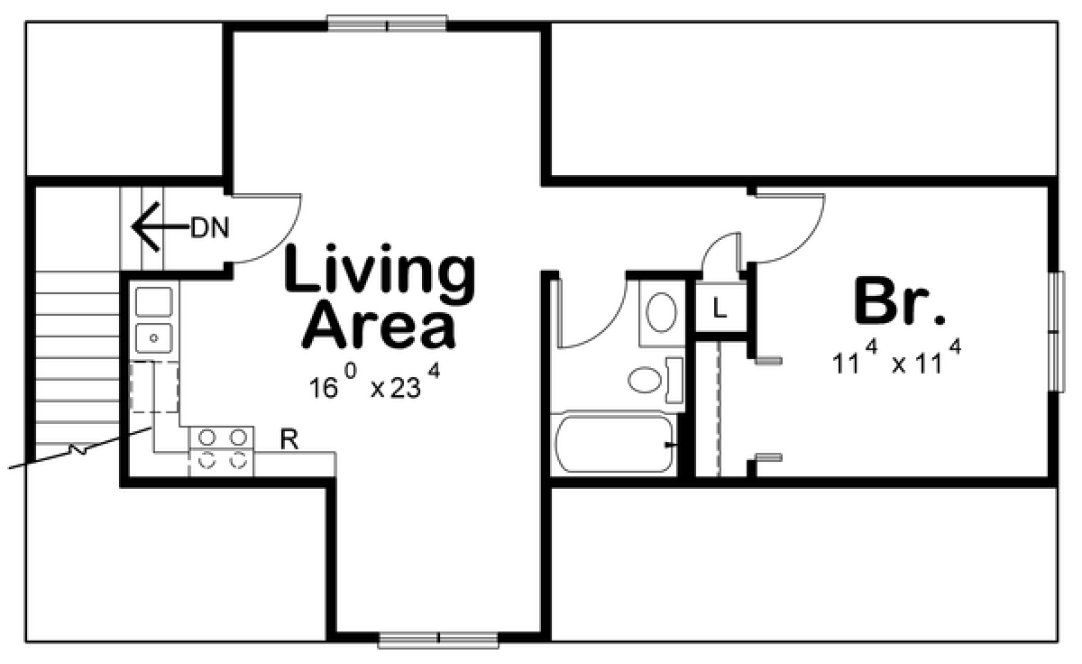

SECOND Plan – westhomeplanners.com

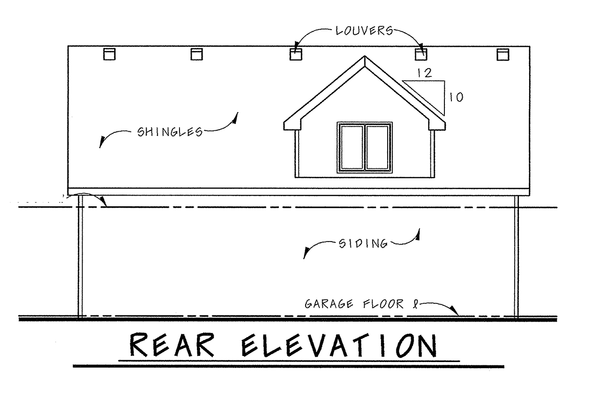

REAR Elevation – westhomeplanners.com

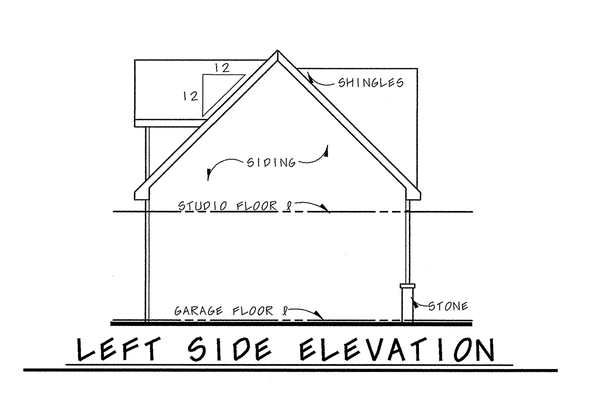

LEFT Elevation – westhomeplanners.com

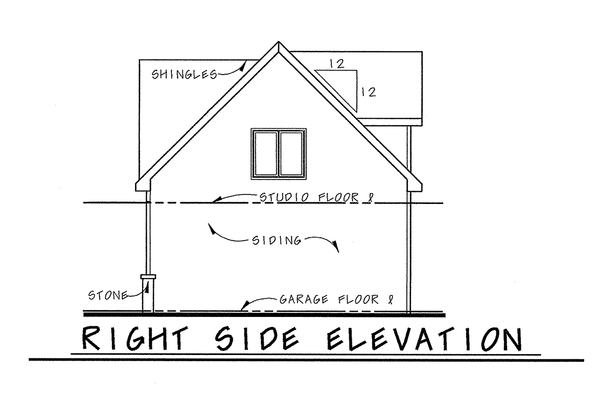

RIGHT Elevation – westhomeplanners.com
