Plan No.765681

Duplex With Basement Suite

Each Unit (all three levels) totals 1865 sq. ft., Main Level is 630 sq. ft., the Second Floor is 609 sq. ft. and the Basement Suite is 626 sq. ft.

Specifications

Total 1865 sq ft

  • Main: 630
  • Second: 609
  • Third:
  • Loft/Bonus:
  • Basement: 626
  • Garage:

Rooms

  • Beds: 5
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 30'0
  • Depth: 48'0

Roof

  • Max Ridge Height: 28'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

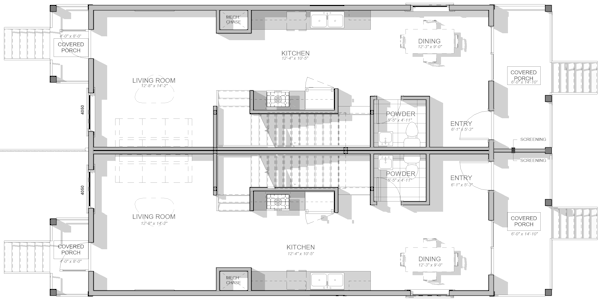

MAIN Plan – westhomeplanners.com

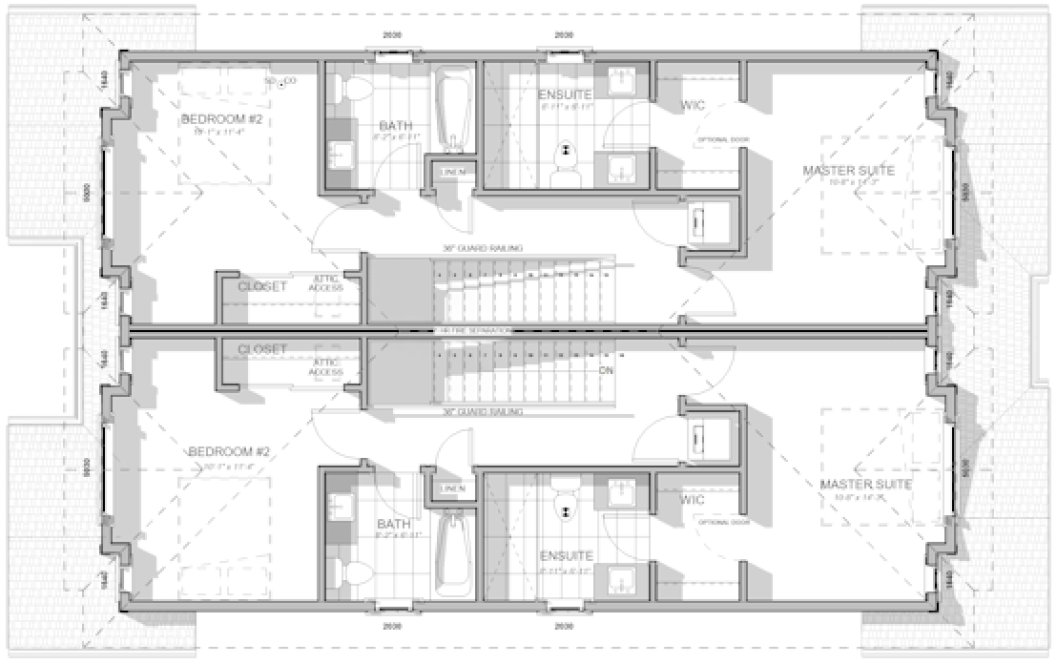

SECOND Plan – westhomeplanners.com

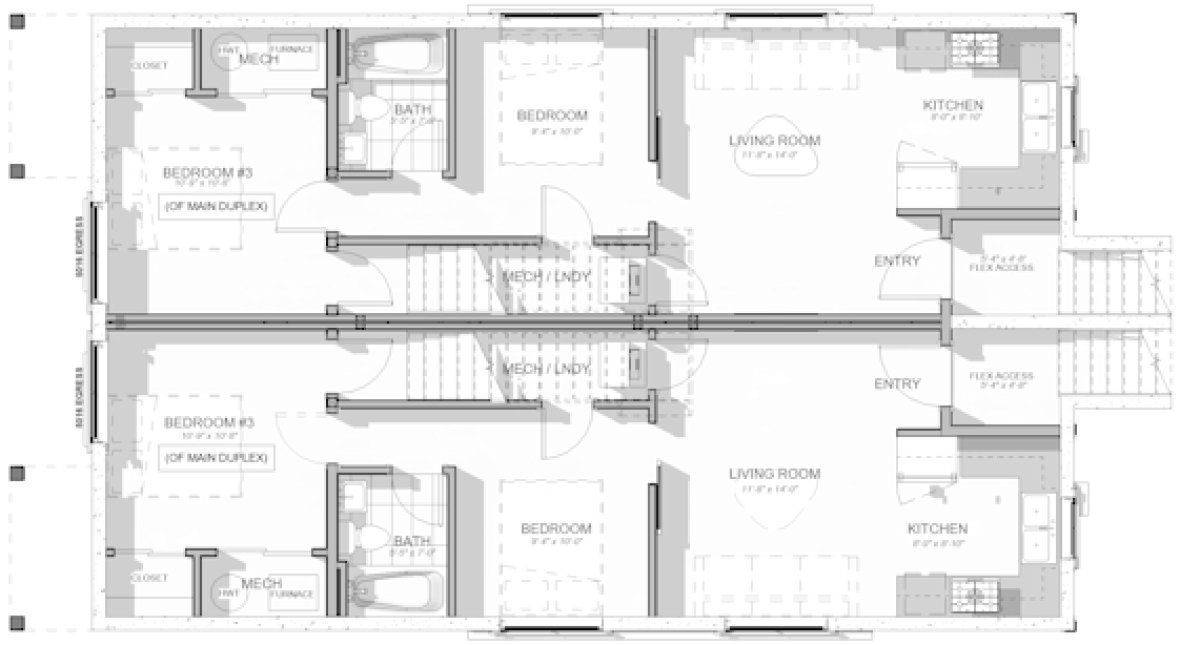

BASEMENT Plan – westhomeplanners.com
Street View – westhomeplanners.com
Entrance to Basement – westhomeplanners.com

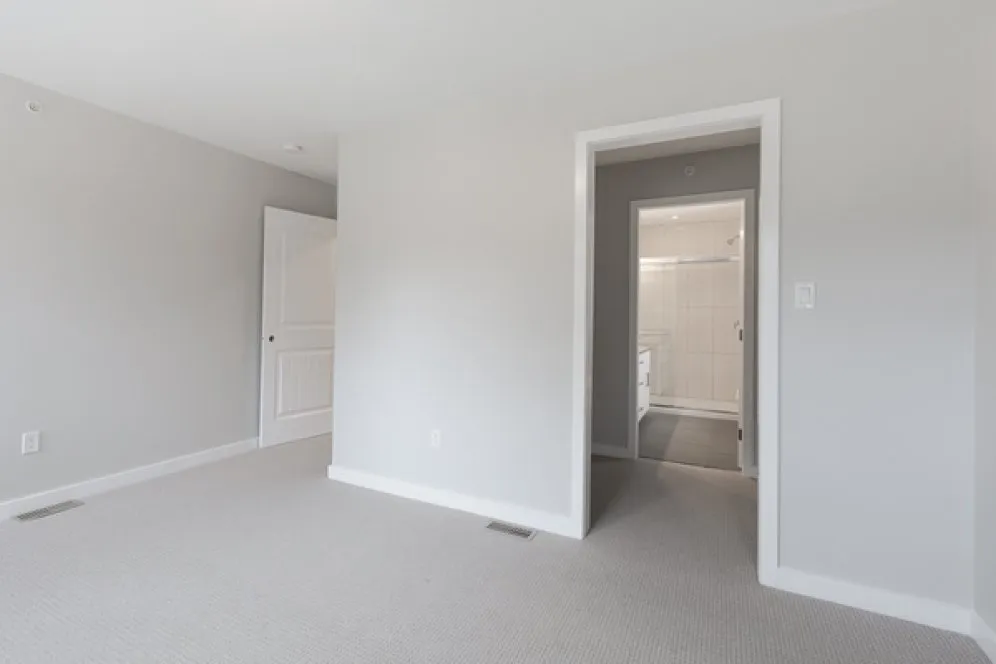

Master Suite to Ensuite – westhomeplanners.com
Dining – westhomeplanners.com

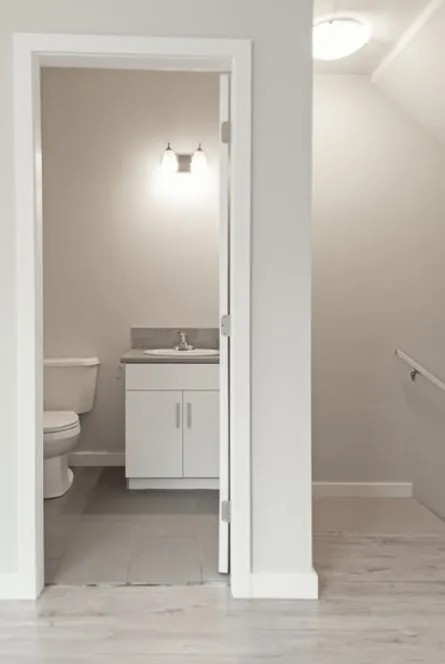

Powder Room – westhomeplanners.com

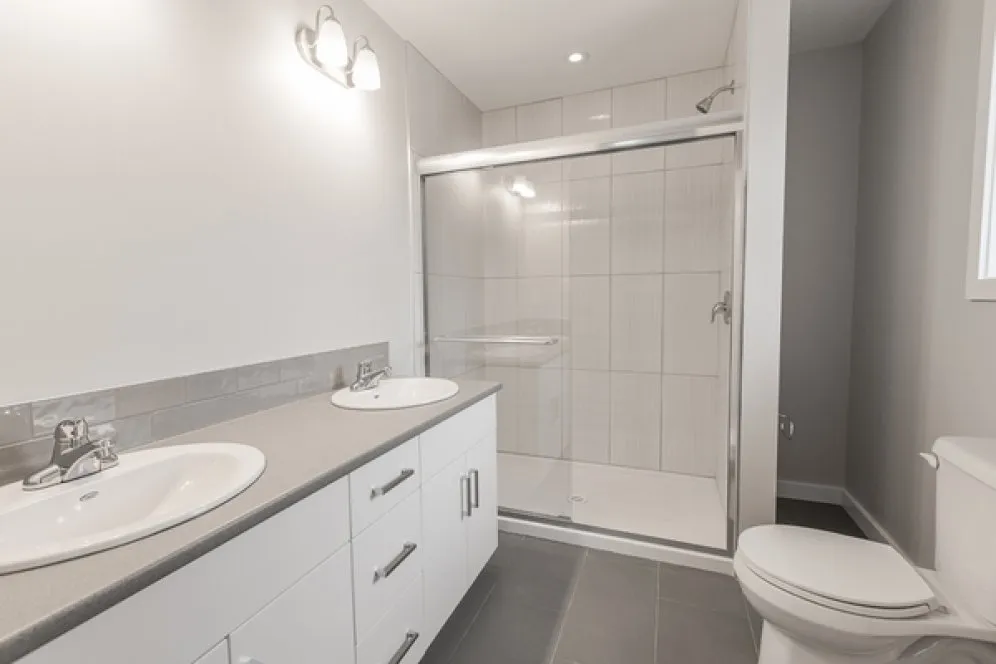

Master Bath – westhomeplanners.com

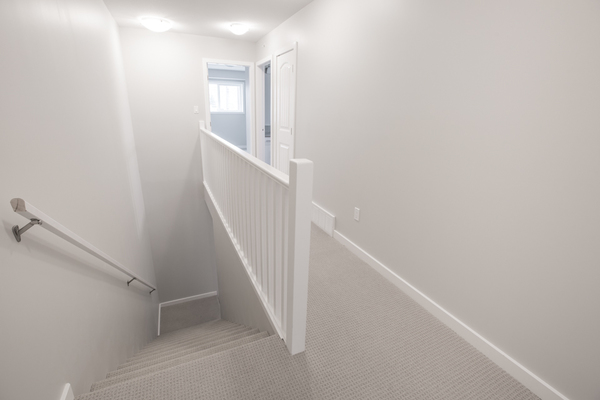

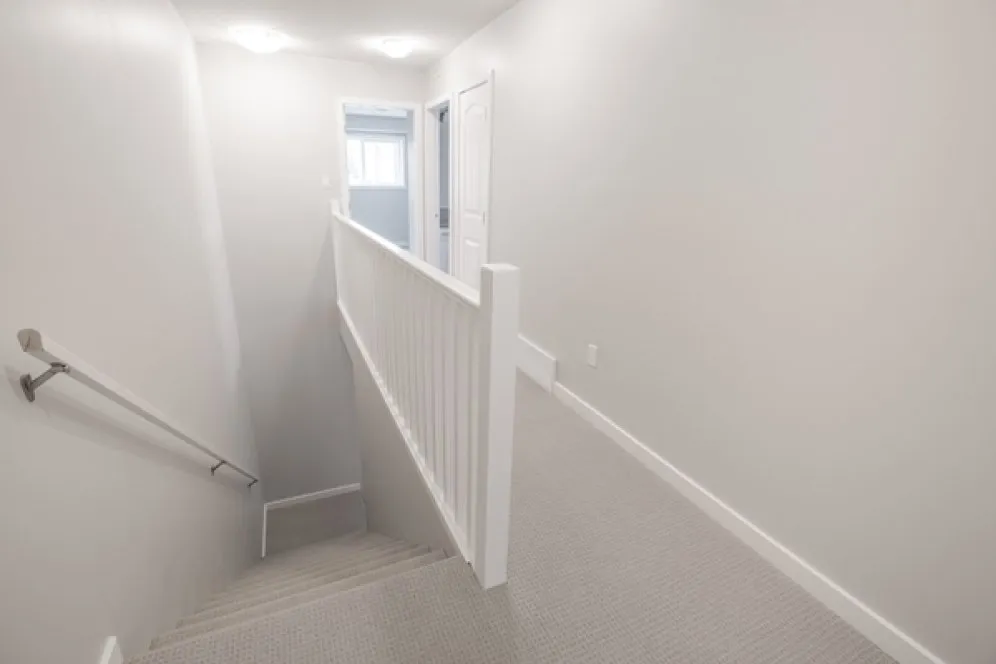

Upper Hall – westhomeplanners.com

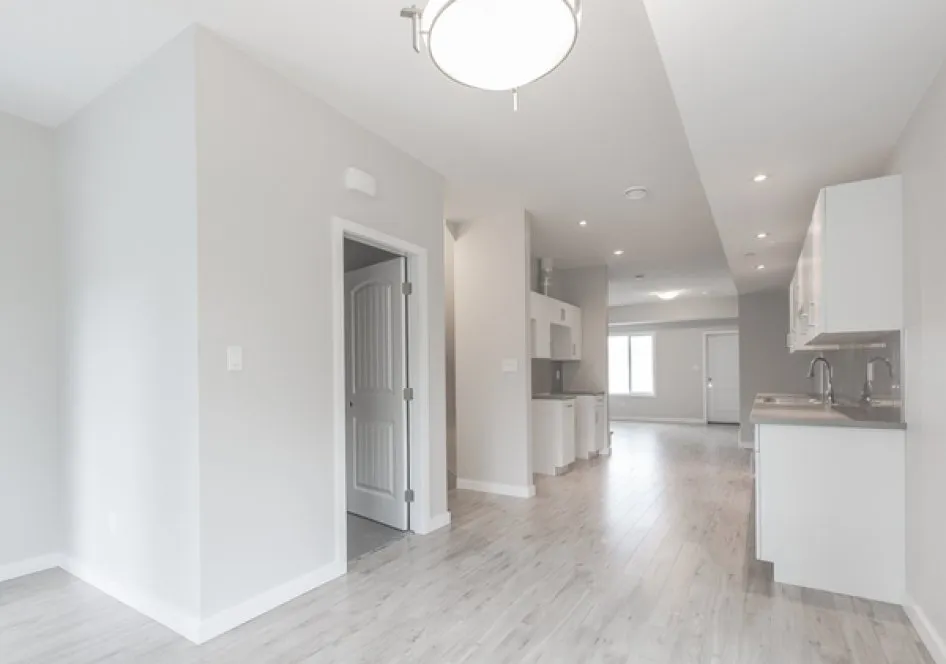

Kitchen – westhomeplanners.com

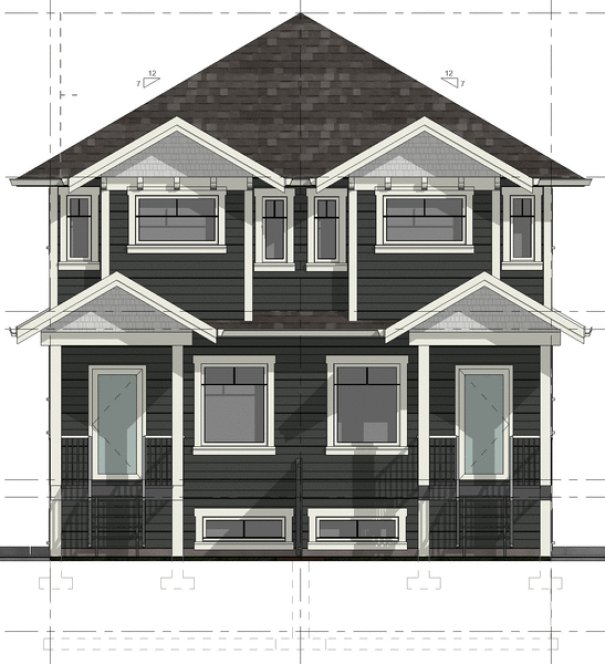

REAR Elevation – westhomeplanners.com

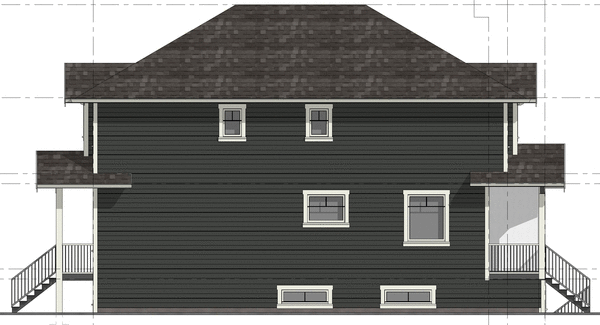

LEFT Elevation – westhomeplanners.com

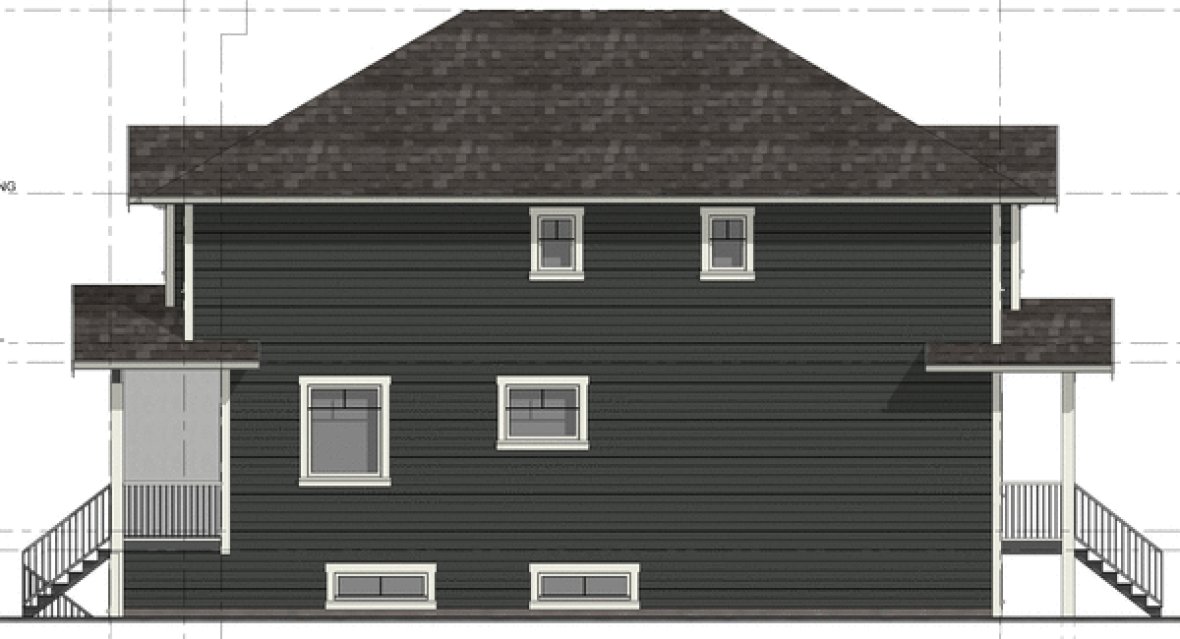

RIGHT Elevation – westhomeplanners.com
