Plan No.773654

2-Storey Mediterranean House Plan

This 2-story house plan features 5 bedrooms, 5 baths and 3 car garage. CEILING TYPES & HEIGHTS Master Bedroom: coffered / 12'13'14' Master Bath: coffered - 10'8"/11'4" Family Room: coffered/vault - 12'/12'8"13'4"/16' Dining Room: coffered - 13'13'4"/14' Dinette: coffered - 12'/13' Kitchen: coffered - 12'/13' Entry: flat - 19'4" Foyer: vault - Peak @ 16' Study: coffered - 12'/13' Bedroom 2: coffered - 12'/13' Bedroom 3: flat - 12' Bedroom 4: flat - 10' Bedroom 5: flat - 10' Baths: flat - 12' Lanai: coffered - 12'/13' Laundry: flat - 12' Garage: flat - 10'. ***Note: Photos may reflect changes made to original house plan design*** BUILDING RESTRICTION: This plan cannot be built in Lee & Collier County, Florida, USA.

Specifications

Total 4563 sq ft

  • Main: 3600
  • Second: 963
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 890

Rooms

  • Beds: 5
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath: 3

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: Block
  • Garage Type: tripleGarage
  • Width: 100'11
  • Depth: 69'7

Roof

  • Max Ridge Height: 29'7
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12

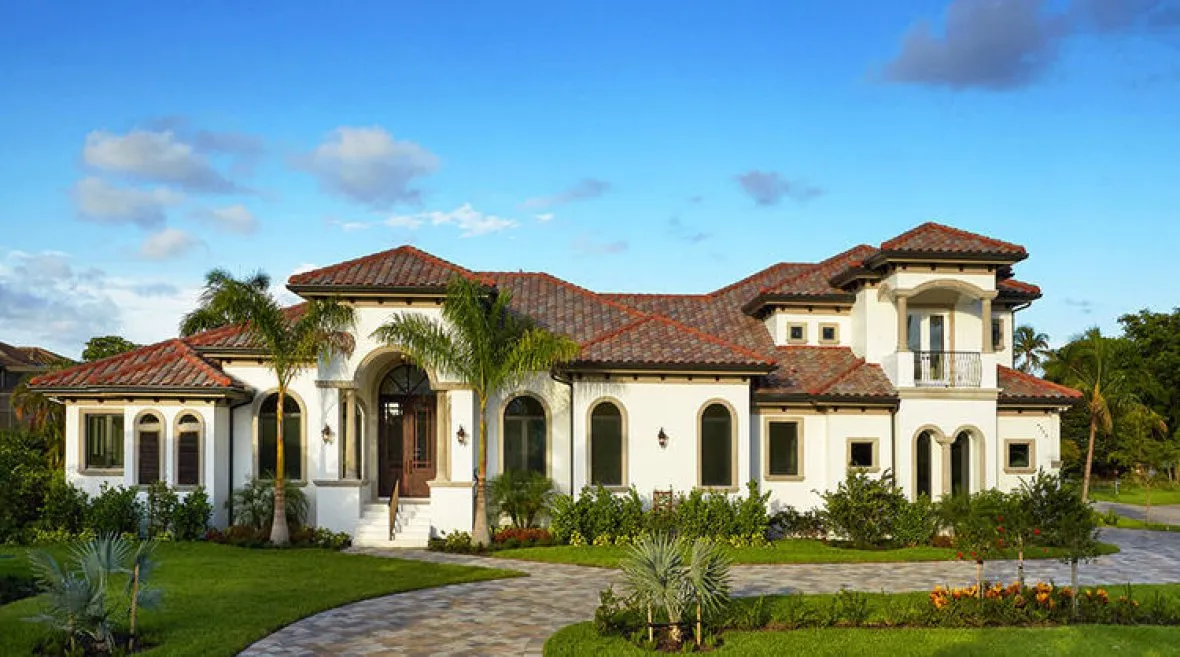

Full Rendering – westhomeplanners.com
 – westhomeplanners.com
Artist's Sketch – westhomeplanners.com

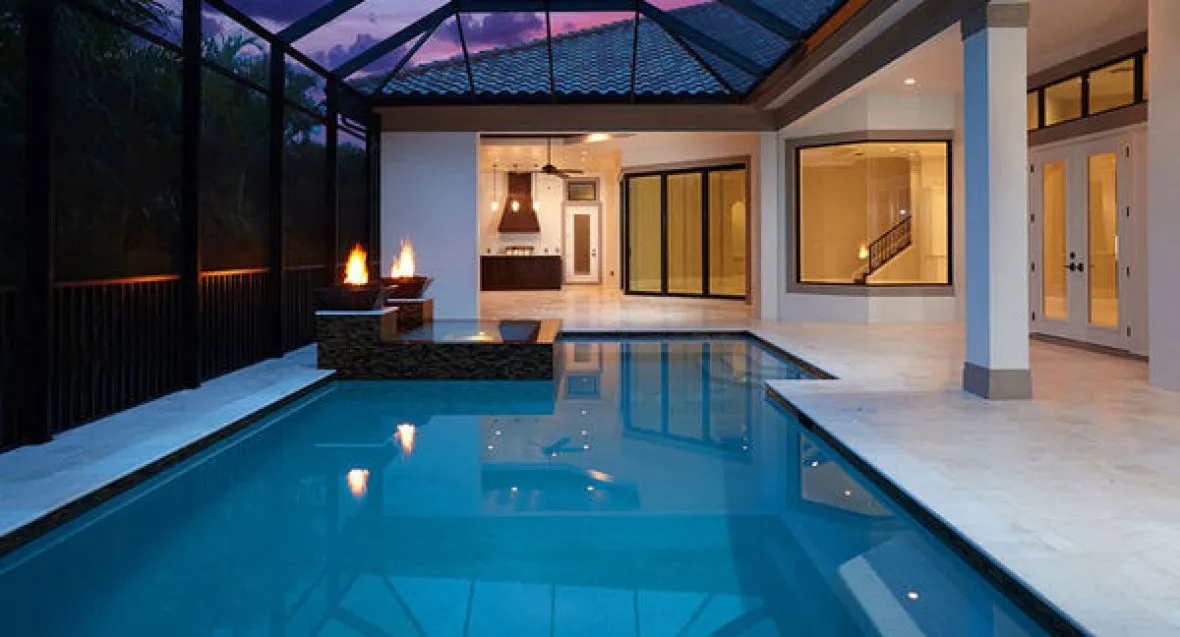

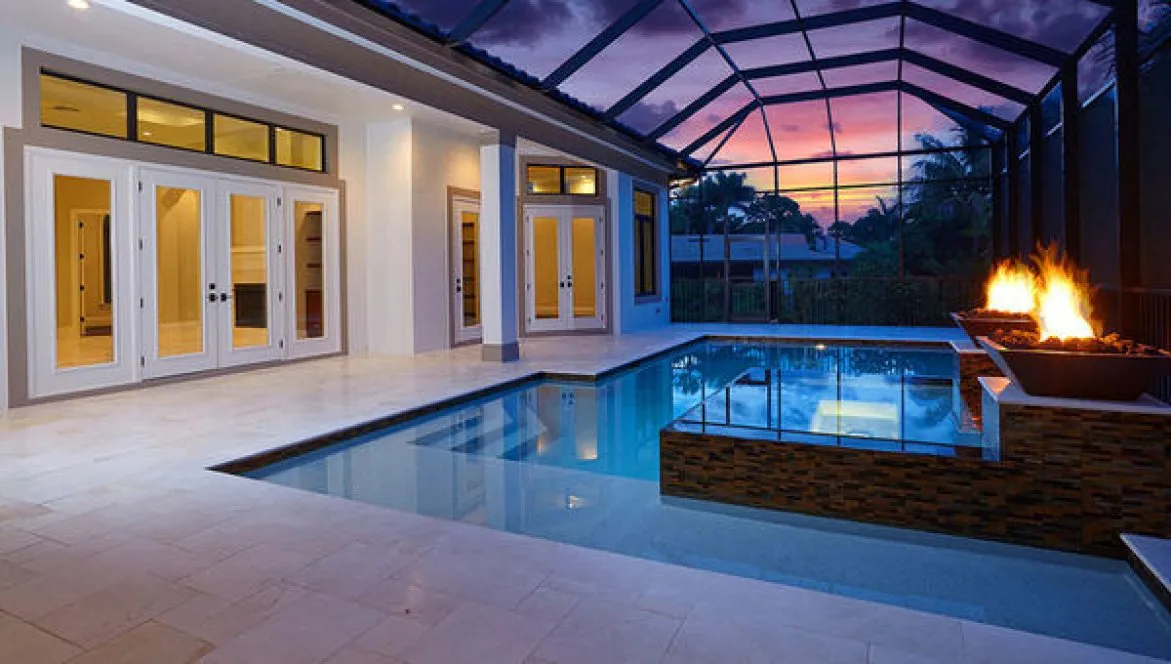

Pool – westhomeplanners.com

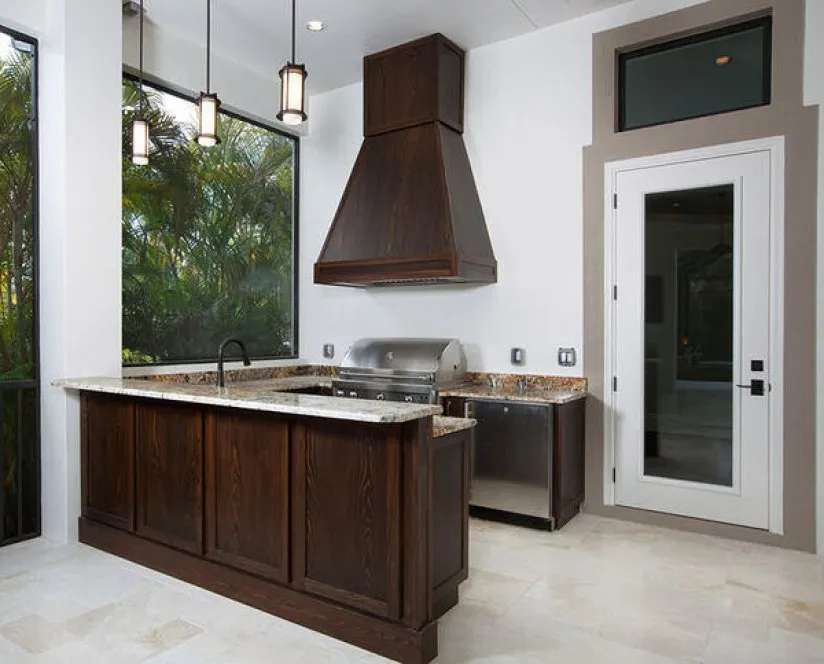

Outdoor Kitchen – westhomeplanners.com
Pool & Spa – westhomeplanners.com

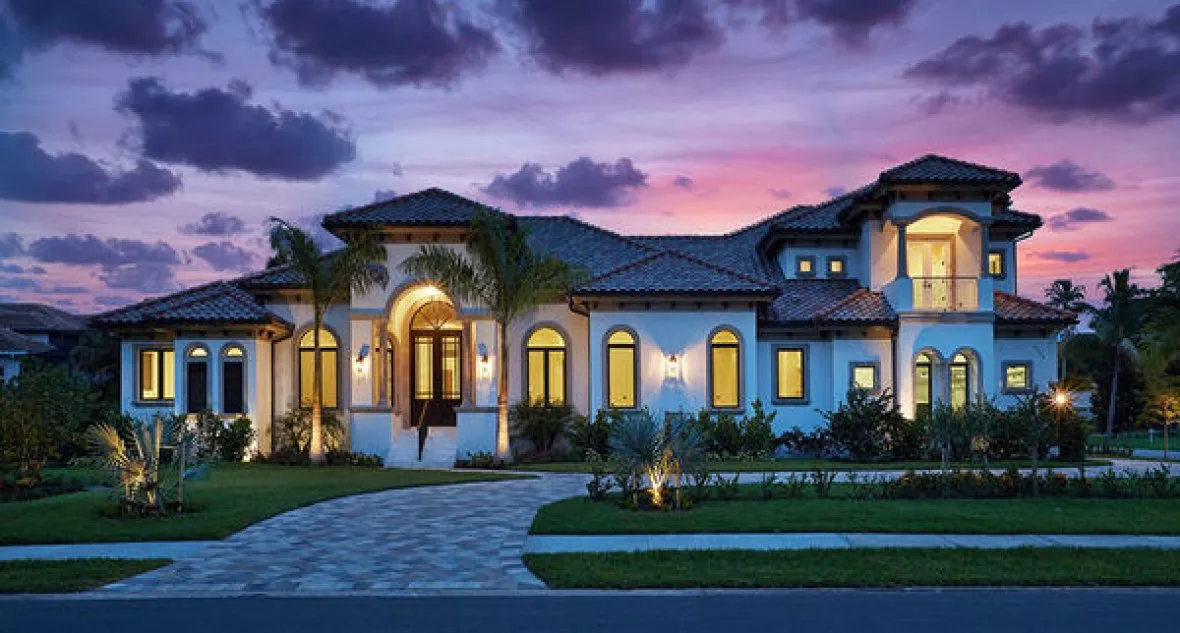

Dusk Rendering – westhomeplanners.com

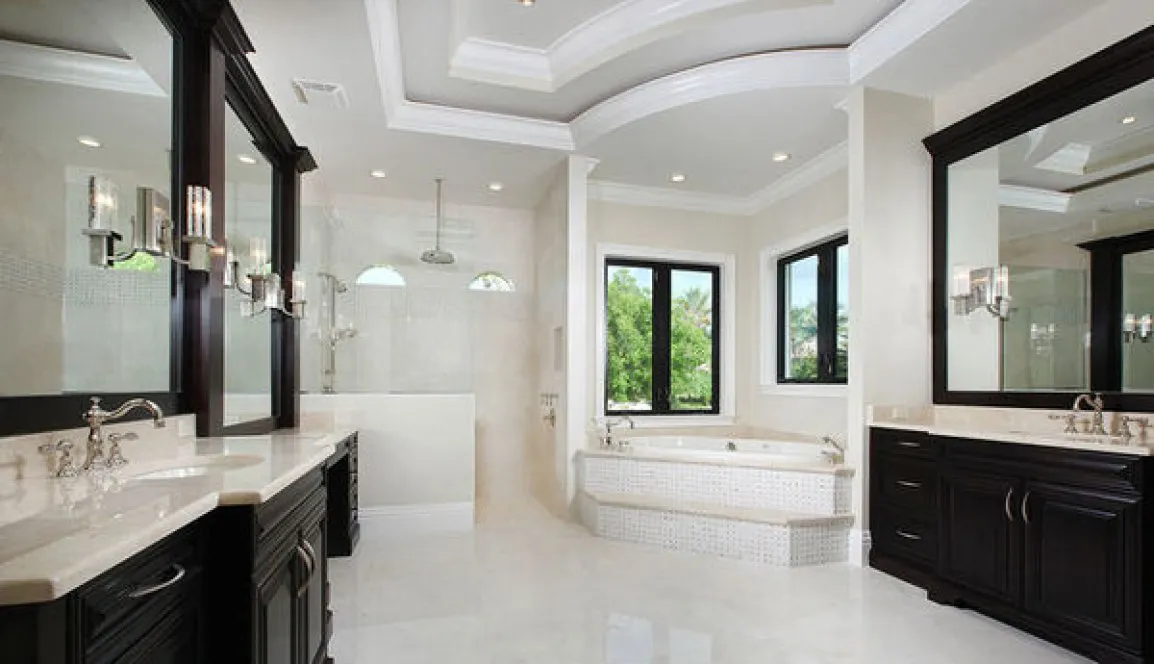

Master Bath – westhomeplanners.com

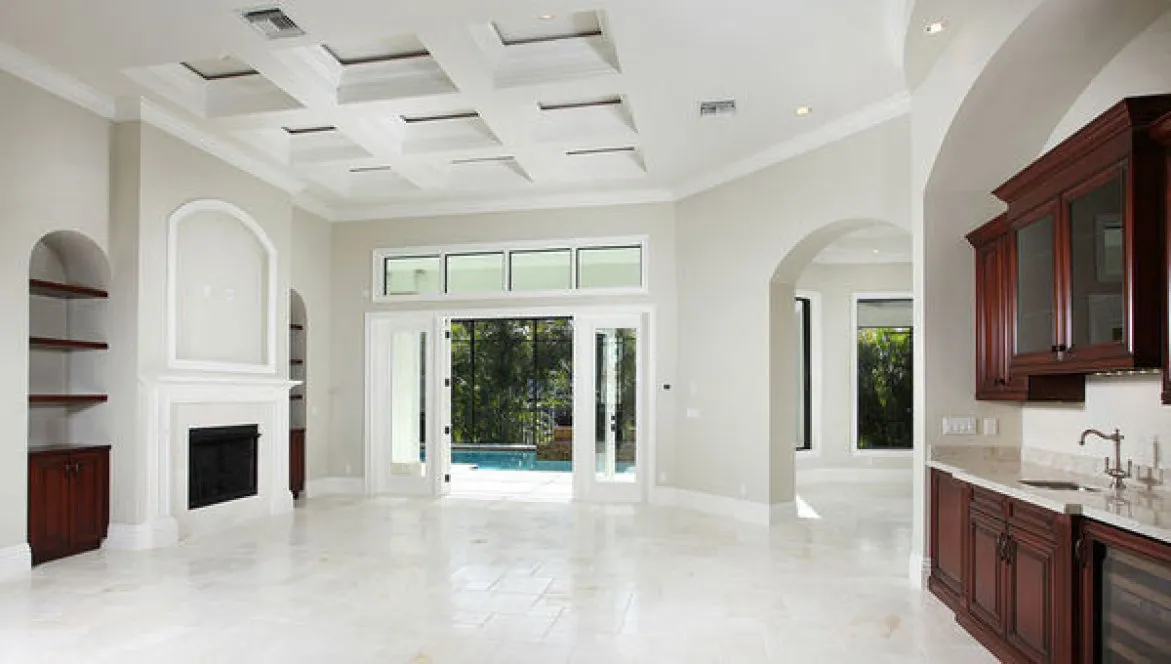

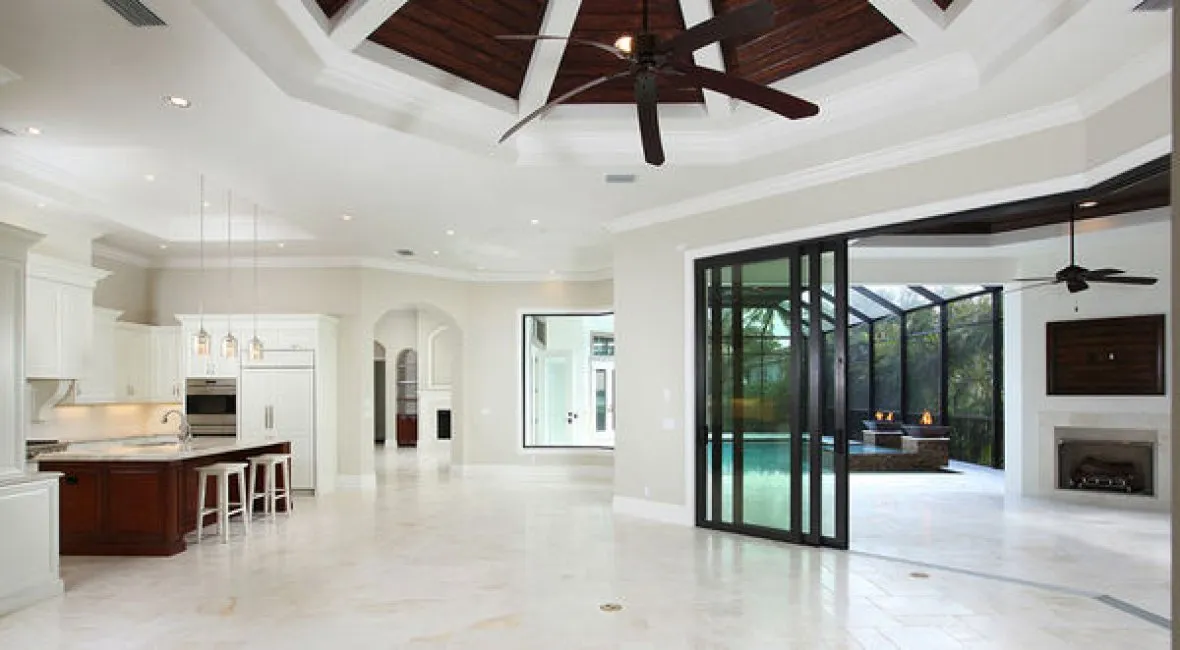

Family Rm to Kitchen – westhomeplanners.com

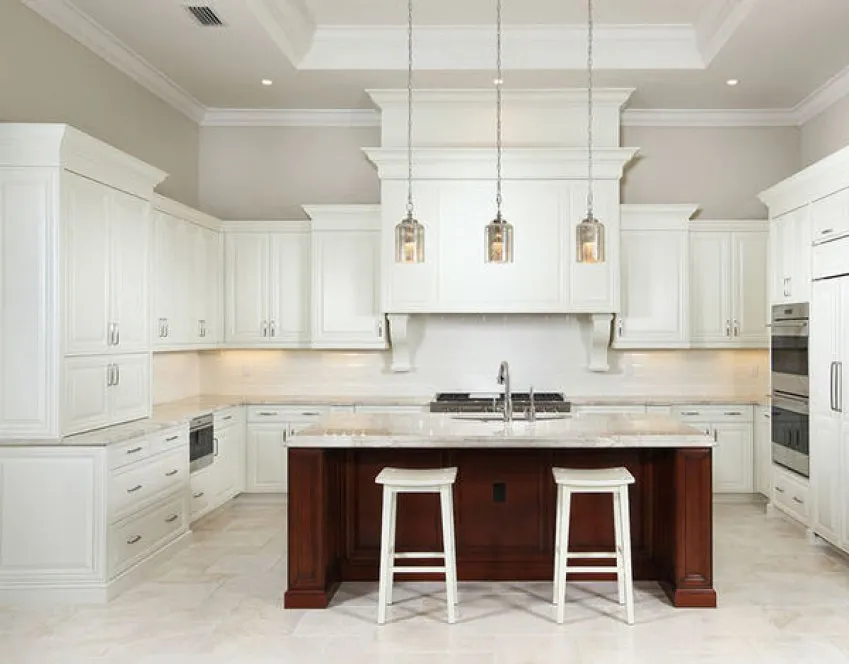

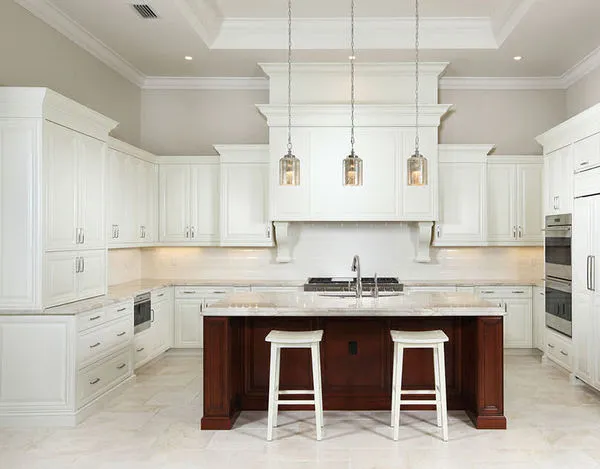

Kitchen – westhomeplanners.com
Livingroom – westhomeplanners.com

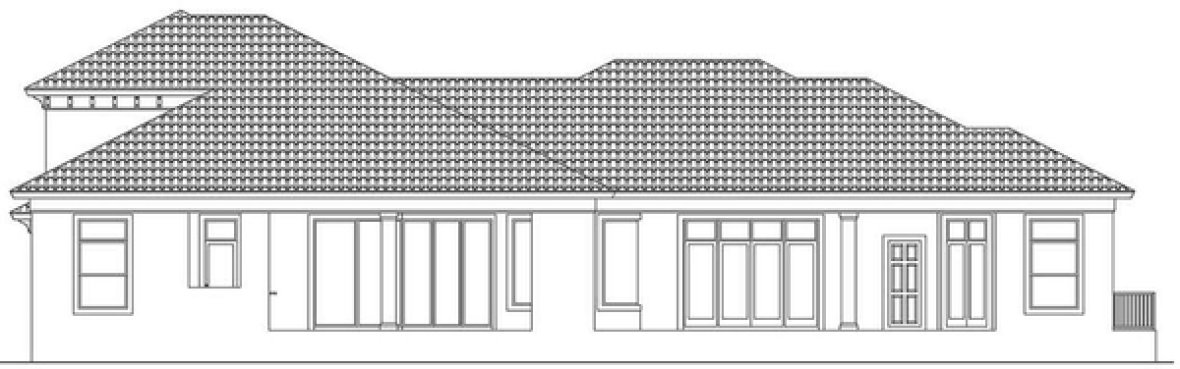

REAR Elevation – westhomeplanners.com
