Plan No.210147

Horse Stables, Tack/Feed Room, Storage & Living Quarters with Loft

This full featured apartment barn design includes a drive through tractor storage, hay storage, tack/feed room, 2 animal stalls, a live-in apartment, and hay loft above. The area of the Main Floor totals 3120 sq. ft., 741 sq. ft. of which is a one bedroom apartment.

Specifications

Total 3120 sq ft

  • Main: 2288
  • Second:
  • Third:
  • Loft/Bonus: 832
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 44'0
  • Depth: 52'0

Roof

  • Max Ridge Height: 27'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 4.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

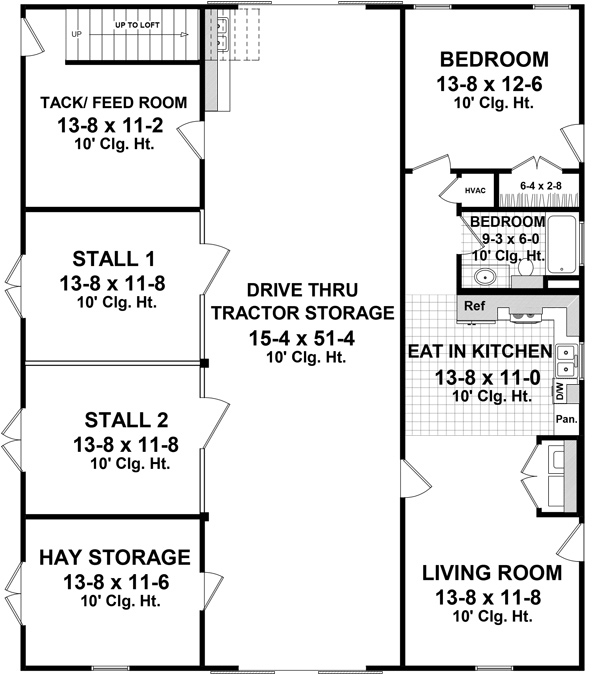

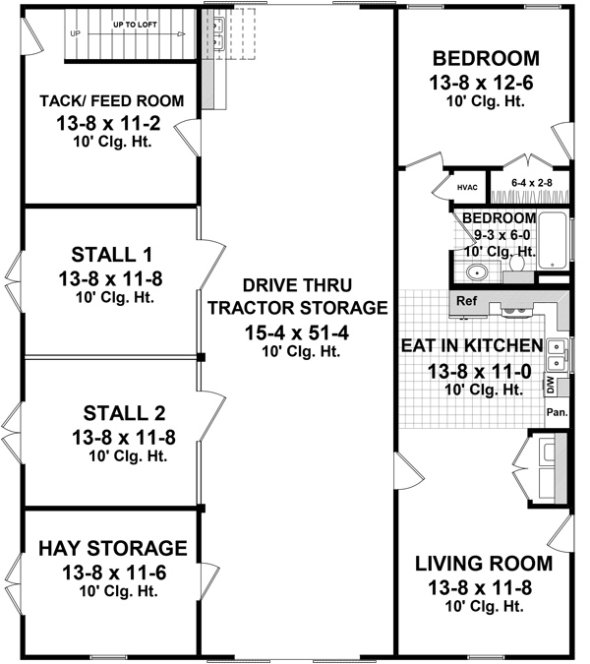

MAIN Plan – westhomeplanners.com

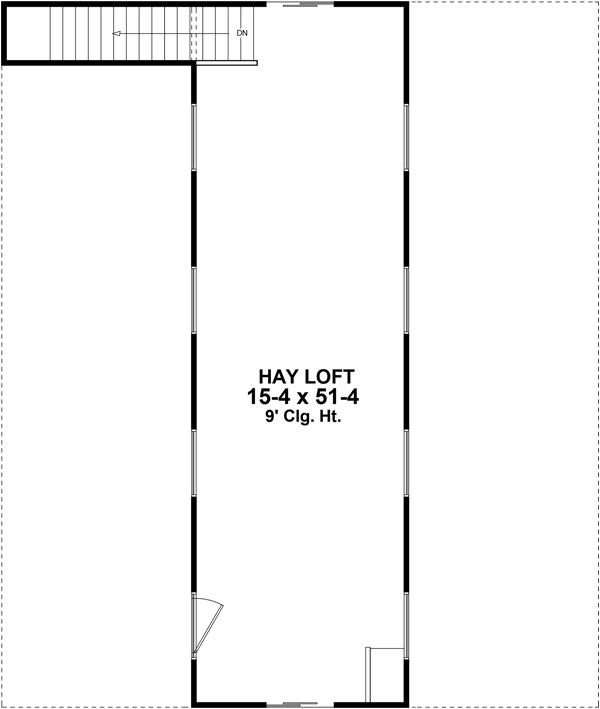

ATTIC Plan – westhomeplanners.com

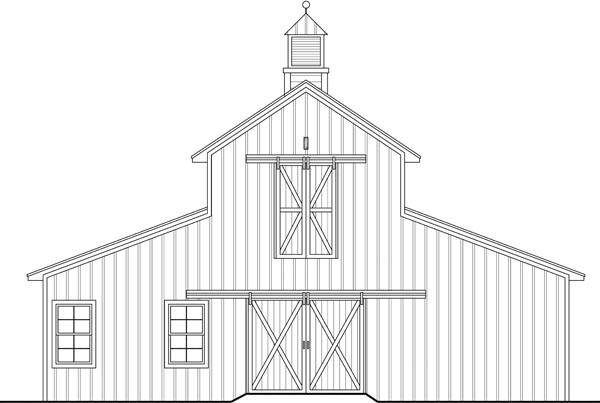

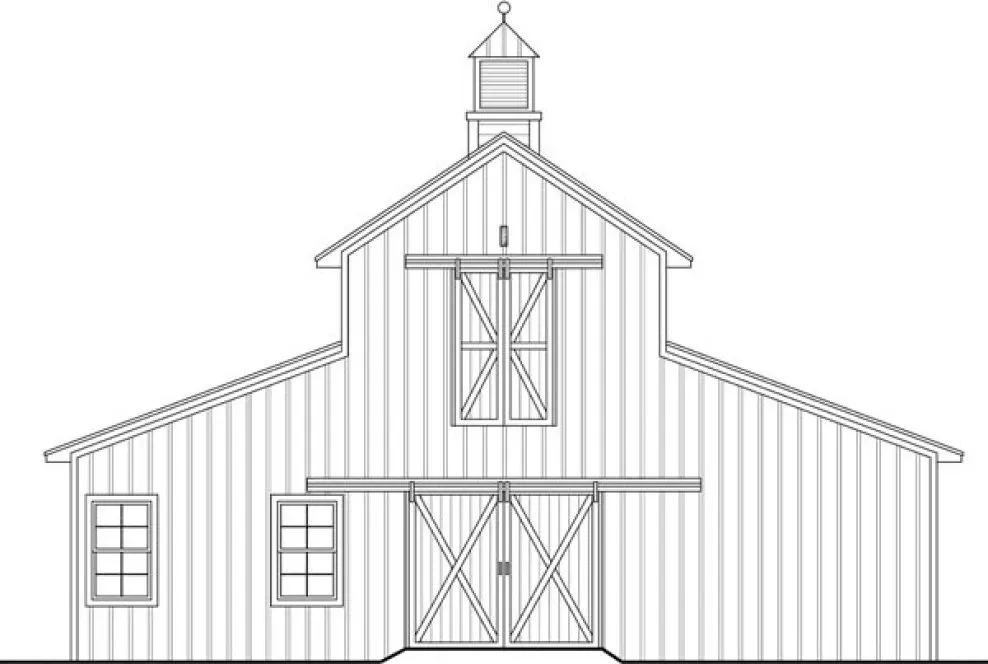

REAR Elevation – westhomeplanners.com
