Plan No.775828

Crowning Jewel

The crowning jewel of our extensive house plan collection. It features 7 bedrooms, 8 bathrooms, 1 half bath and 4 car garage. It is 135’4″ wide, 128’6″ deep and 35’10” high. Its design includes a slab foundation, CMU exterior walls, truss roof framing, stucco finish and flat cement roof tiles. This house plan includes 8,285sf of living area and a total of 12,328sf under roof. It features a welcoming entry, open floor plan and volume ceilings. Main floor amenities include a great room, formal dining room and wet bar and a double island kitchen with breakfast nook. The luxurious master bedroom suite features 2 walk-in closets, dual sinks, 2 water closets, an oversize shower and a freestanding tub. There is also separate home offices for him and her. The 3 secondary bedrooms include ensuite bathrooms. The expansive outdoor living space includes a summer kitchen and fireplace. Upstairs you will find bonus room, 2 bedrooms and a guest suite. Above the 2 car garage is a storage area. The left garage is 881sf and the right garage is 894sf. Please note: This plan cannot be built in Lee & Collier County, Florida.


Total 8285 sq ft

  • Main: 5933
  • Second: 2352
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 1775


  • Beds: 7
  • Baths: 8
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: Block
  • Garage Type: fourGarage
  • Width: 135'4
  • Depth: 128'6


  • Max Ridge Height: 35'10
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: 8.00/12
Full Rendering –

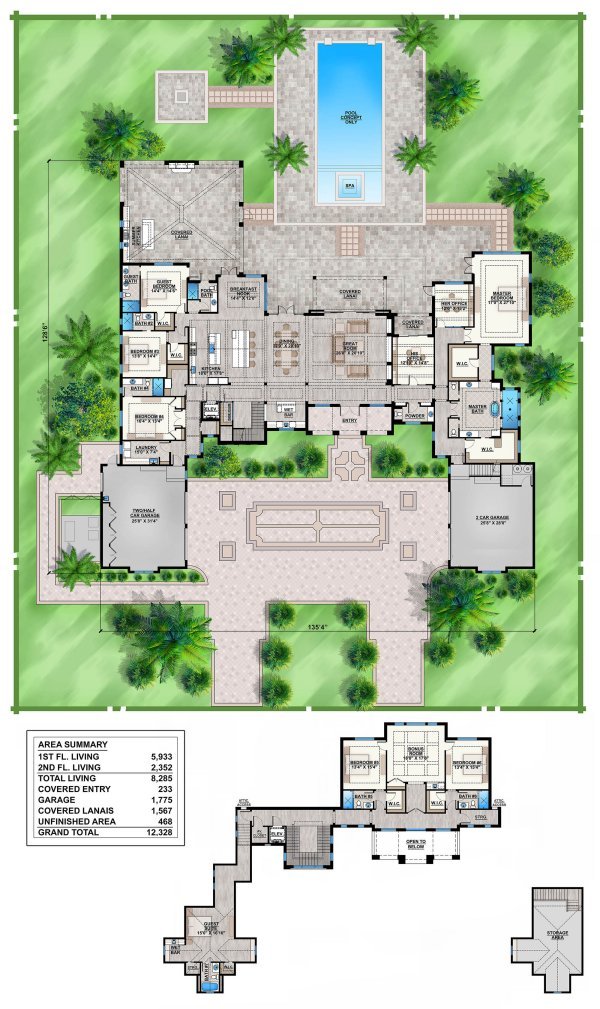

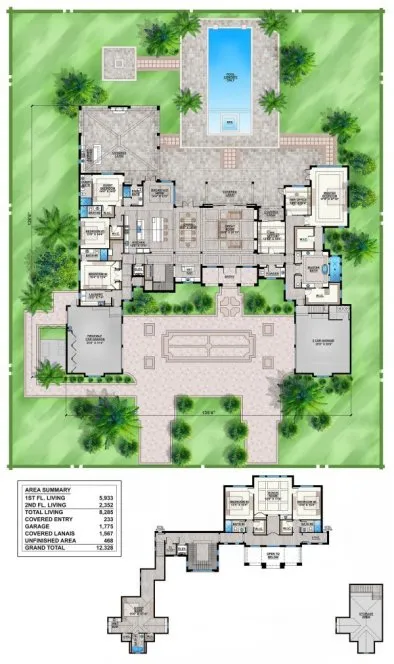

Main & Second Floors –

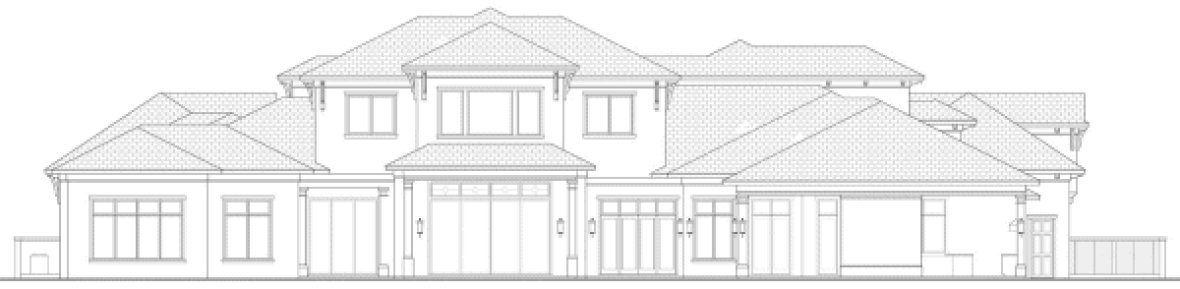

REAR Elevation –
