Plan No.189582

Formal Touches

A tasteful array of gables adorn the exterior of this 1 ½ - story design, while special details formalize the interior. Just off the foyer, a decorative ceiling and a bay window distinguish the formal dining room. Opposite the dining room, French doors open to the library/parlor. The family room is situated to the rear, for privacy, yet opens freely to the skylit breakfast area. A laundry and mud area intercept muddy shoes from the garage. The master bedroom has a decorative ceiling, French doors to the backyard and a sizeable walk-in closet. All secondary bedrooms on the upper level have walk-in closets as well. Additional storage is found in the attic areas.

Specifications

Total 2859 sq ft

  • Main: 1939
  • Second: 920
  • Third:
  • Loft/Bonus:
  • Basement: 1939
  • Garage: 736

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: tripleGarage
  • Width: 62'8
  • Depth: 63'6

Roof

  • Max Ridge Height: 32'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

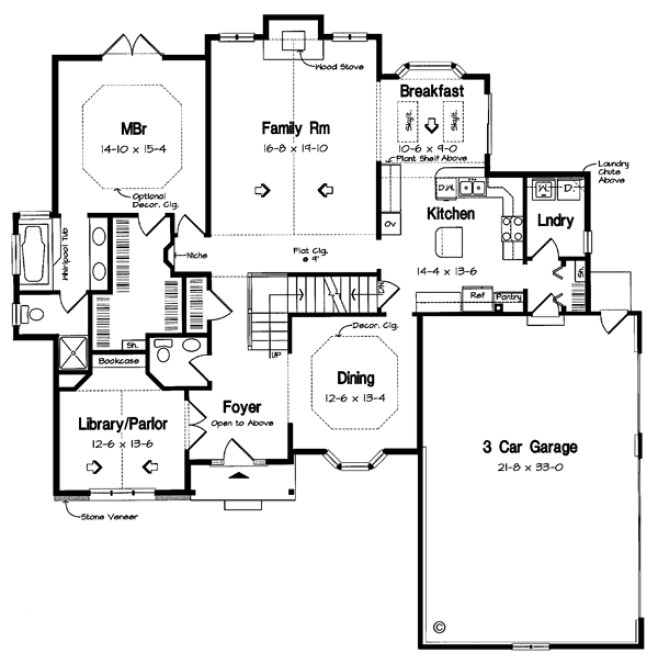

MAIN Plan – westhomeplanners.com

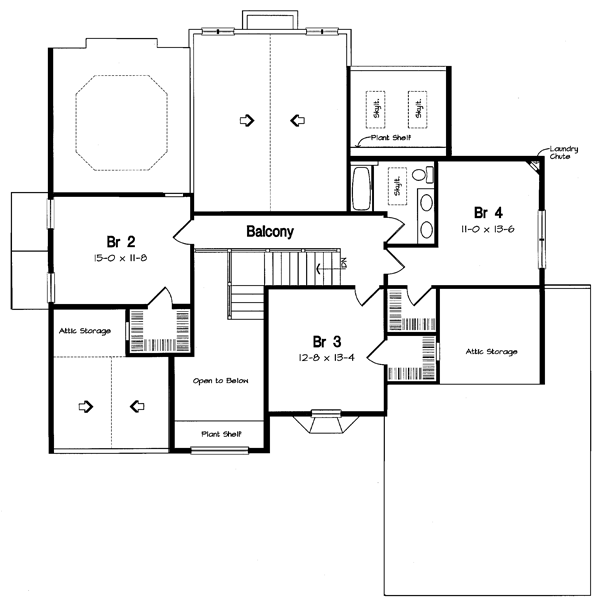

SECOND Plan – westhomeplanners.com

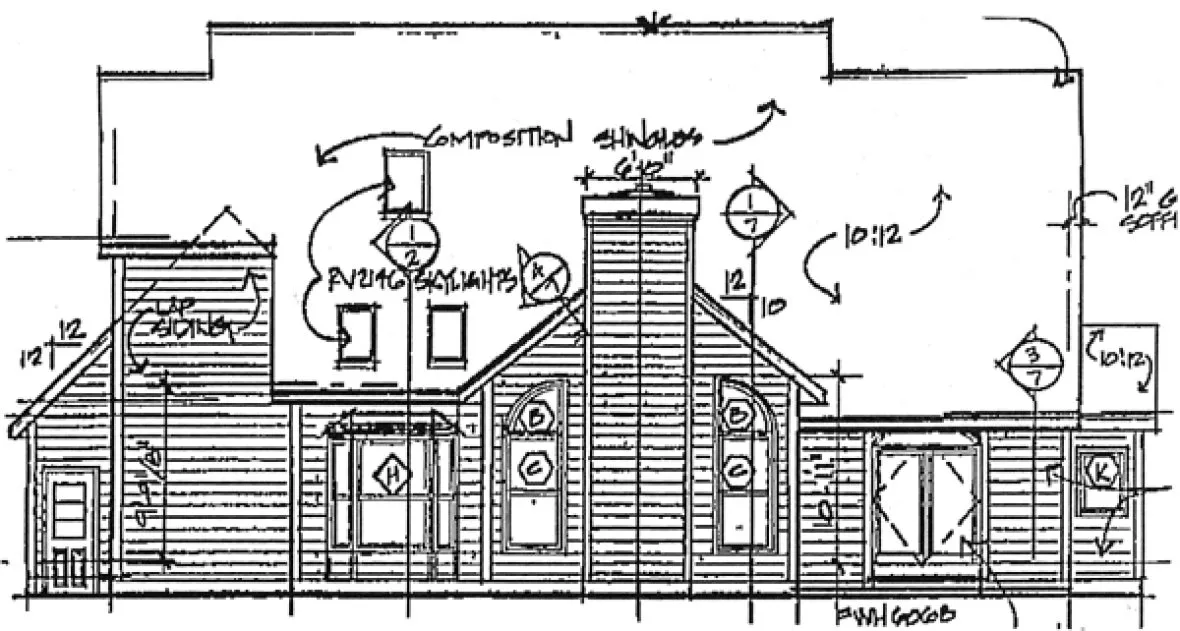

REAR Elevation – westhomeplanners.com
