Plan No.187201

Perfect For The Woods

A cozy, quaint atmosphere has been achieved in this two bedroom home. The living areas of living room, dining room/kitchen have been located at the front of the house. A sloped ceiling adds to the cozy feeling of the home while the built-in entertainment center adds convenience. The L-shaped kitchen includes a double sink and a dining area. A full bath in the hall is easily accessible from both bedrooms. The laundry center is tucked into the hall right next to the side door. A loft with a balcony overlooks the living room and dining area. There is a storage area to either side of the loft.

Specifications

Total 1027 sq ft

  • Main: 763
  • Second: 264
  • Third:
  • Loft/Bonus:
  • Basement: 763
  • Garage:

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 24'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 24'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

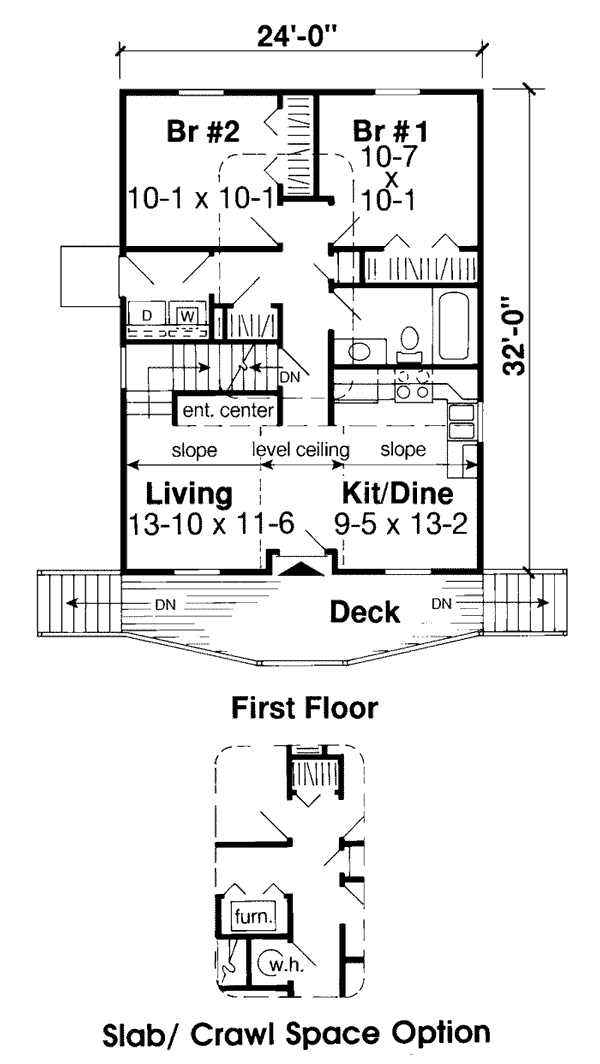

MAIN Plan – westhomeplanners.com

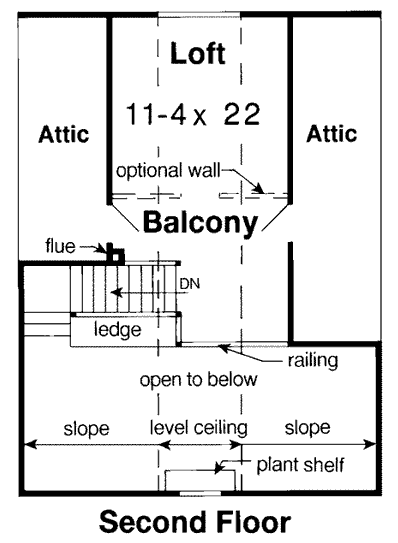

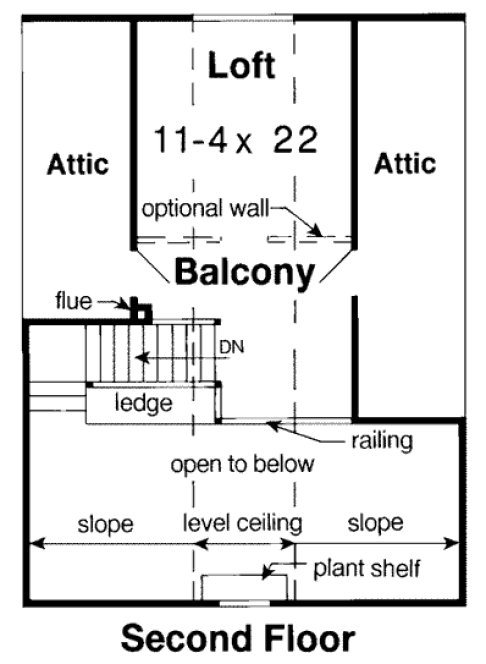

SECOND Plan – westhomeplanners.com

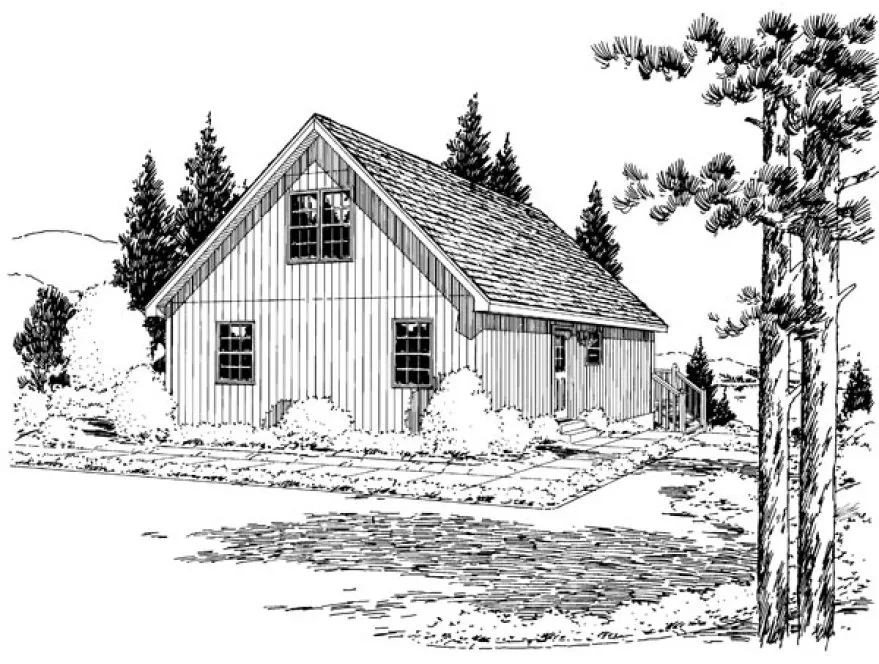

REAR Elevation – westhomeplanners.com
