Plan No.183564

Dignified Family Home

A beautiful elevation with multi-paned windows and an arched, high-windowed entrance, create an eye-catching home. A two story foyer, benefiting from the natural light streaming through the many windows around the door, offers three choices of direction. The formal living room adjoins the formal dining room with columns between the two rooms. The U-shaped kitchen includes a built-in pantry, built-in planning desk and an island. There is room for a breakfast area for informal meals in the kitchen. The large family room flows from the kitchen and is equipped with a bright bay window and focal point fireplace. The second floor master suite includes a decorative ceiling and a lavish, private bath. A common area includes a skylight and access to the bonus room. A convenient second floor laundry is located in the common area. Two additional bedrooms and a full bath complete the second floor. No materials list available for this plan.


Total 2578 sq ft

  • Main: 1245
  • Second: 1333
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 614


  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'4


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 50'0
  • Depth: 46'0


  • Max Ridge Height: 35'0
  • Comments: ()
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
Full Rendering –

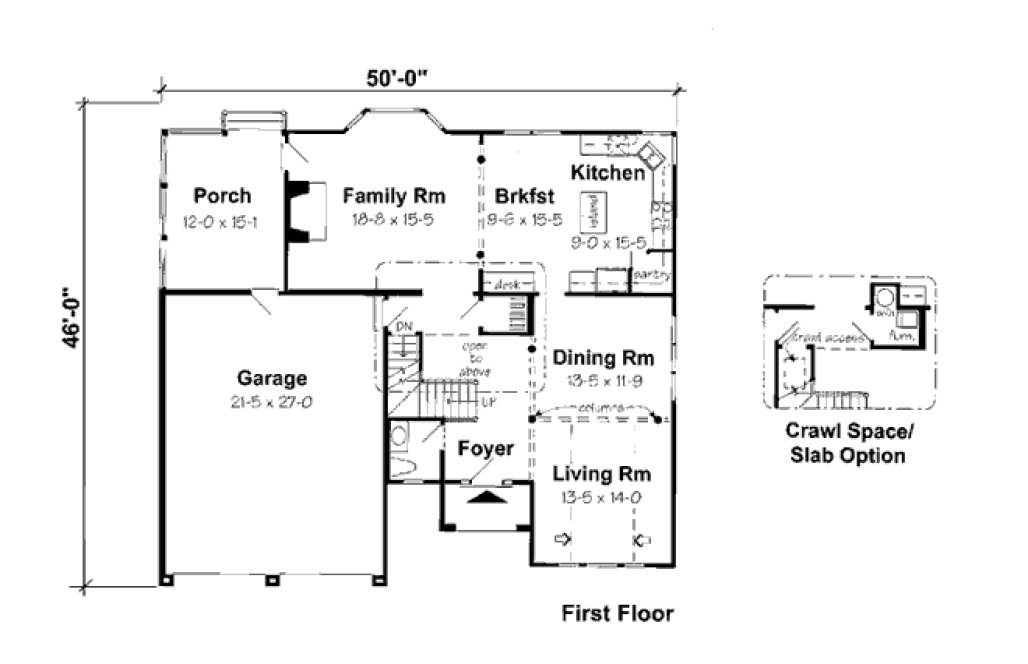

MAIN Plan –

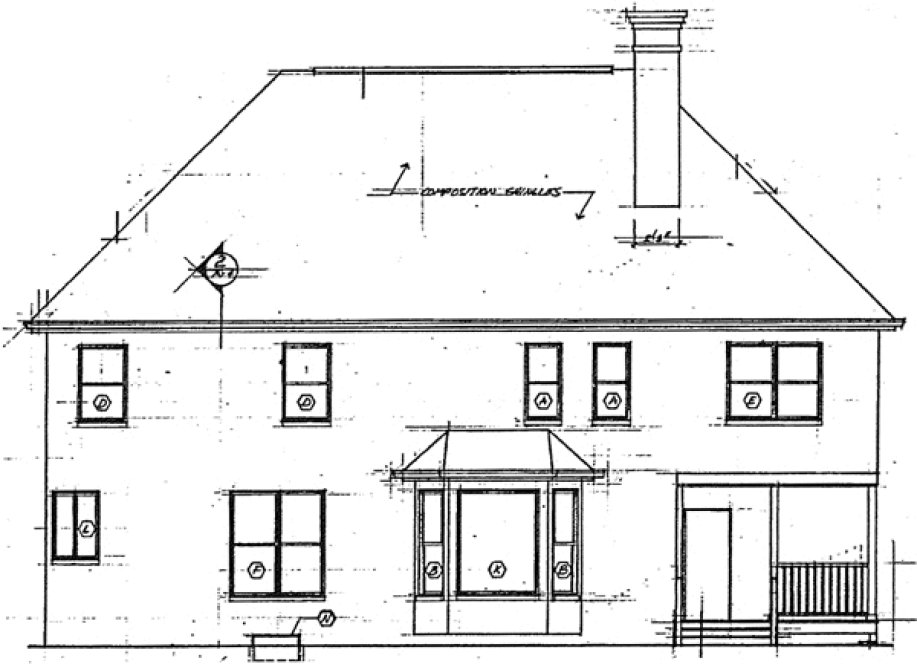

REAR Elevation –
