Plan No.636351

This Compact Multi-Family Duplex Plan Has A Large Living Area

This Multi-Family Duplex has 4 bedrooms and 2 full baths. A handsome fireplace warms the spacious living and dining area. The wonderful kitchen and breakfast room is perfect for casual dining, efficient cooking and enjoys sliding glass door access to the rear patio. The laundry area is tucked into the kitchen keeping it out-of-sight, but convenient for household chores. The master bedroom boasts a private bath and walk-in closet. The area of each unit is 768 sq. ft. for a total area of 1536 sq. ft.

Specifications

Total 1536 sq ft Rooms Ceiling Height Details Footprint
Main: 768   Bedrooms: 2   Main: 8'0   Max. Ridge Height: ()   Width: 64'0
Second:   Baths: 1   Second:   Primary Roof Pitch: 5.00/12   Depth: 24'0
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: /12
Basement:   3/4 Baths:   Basement:   Exterior Wall: 2x4
Loft/Bonus:
  Full Rendering

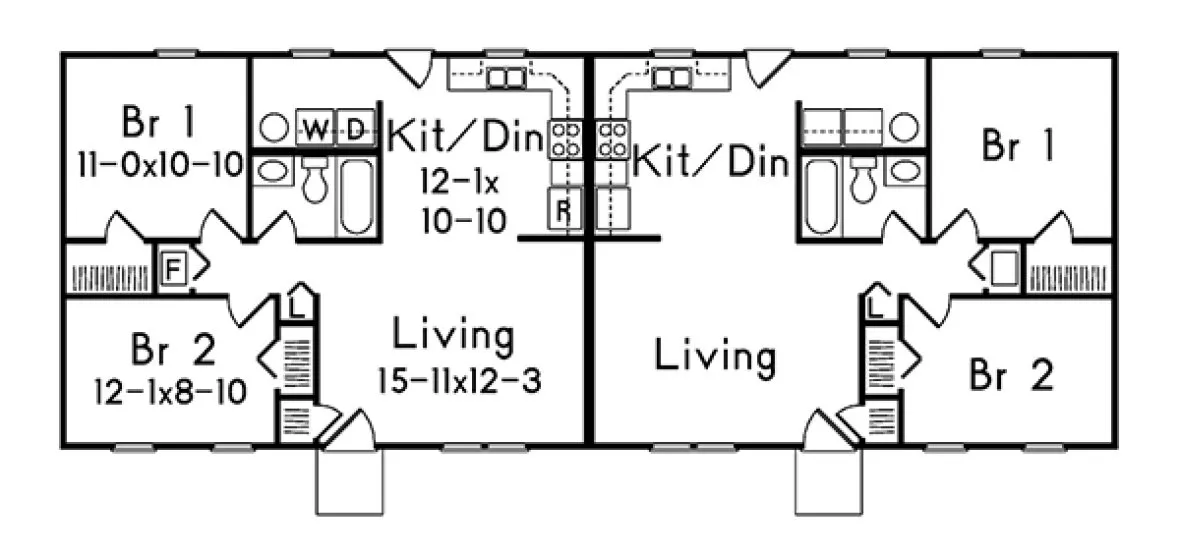

  MAIN Plan

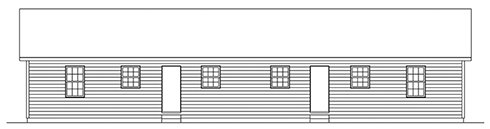

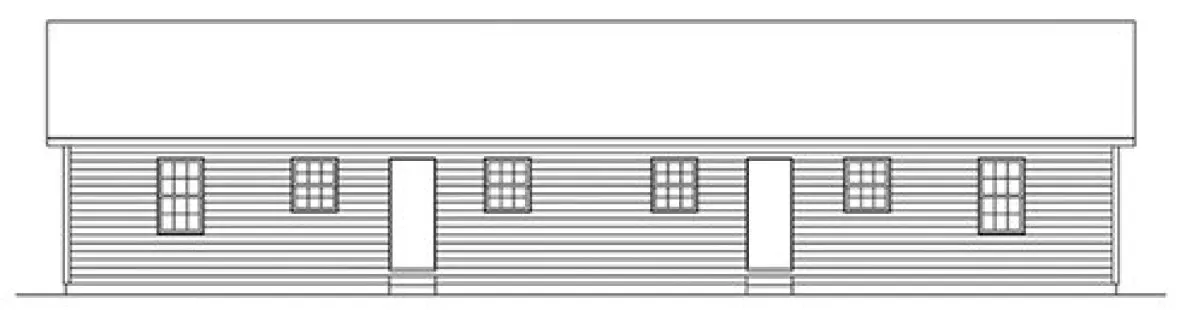

  REAR Elevation

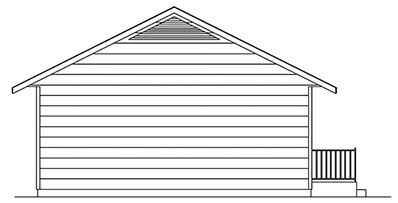

  LEFT Elevation

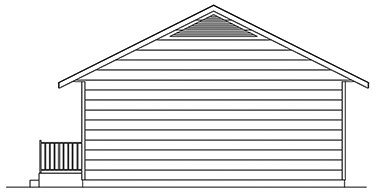

  RIGHT Elevation
