Plan No.184699

The Basement is 7'8 high, the 2nd floor has 4'8 high kneewalls and a 7'6 high ceiling at the center, the sundeck is 30'0 x 12'0 and the carport is 26'6 x 12'0 plus 3'6 deep outdoor storage. The walkway on the right side is 6'0 wide.

Specifications

Total 1956 sq ft

  • Main: 906
  • Second: 456
  • Third:
  • Loft/Bonus:
  • Basement: 864
  • Garage:

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 7'6
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 24'0
  • Depth: 38'4

Roof

  • Max Ridge Height: 29'0
  • Primary Pitch: 10.00/12
  • Secondary Pitch: /12

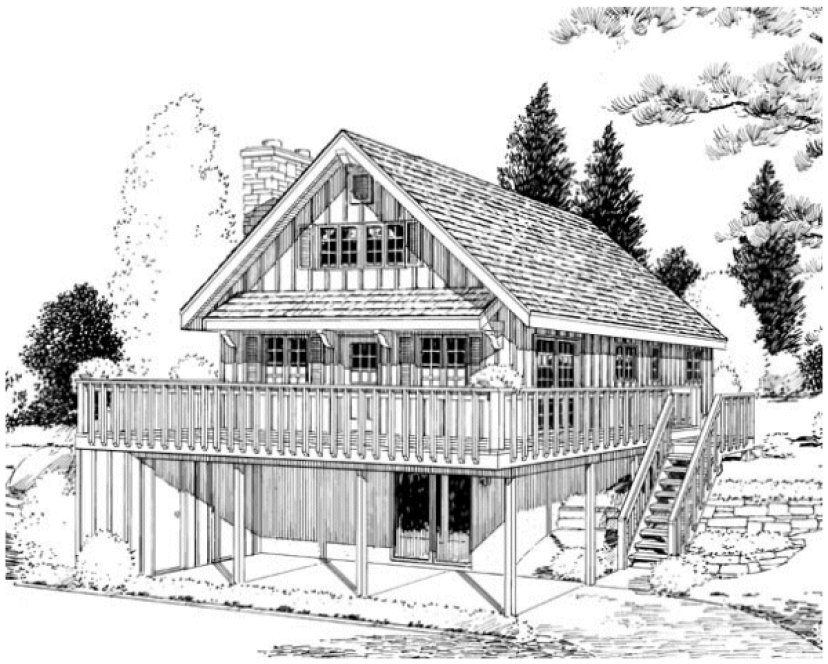

Full Rendering – westhomeplanners.com

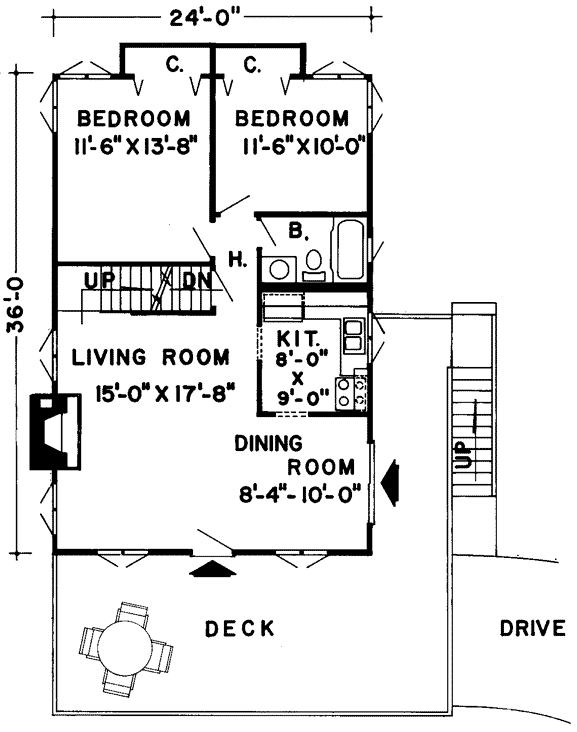

MAIN Plan – westhomeplanners.com

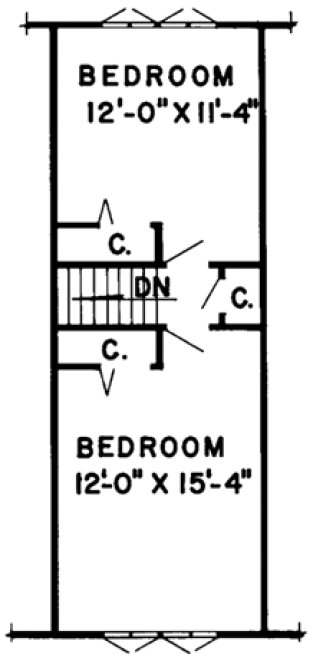

ATTIC Plan – westhomeplanners.com

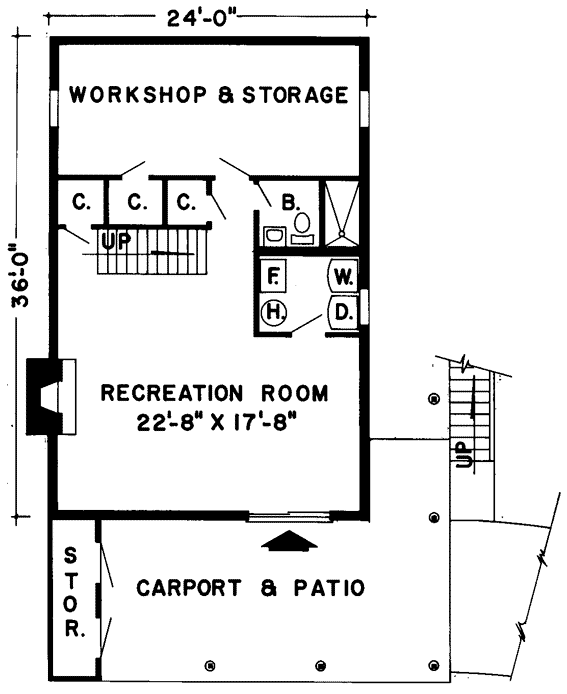

BASEMENT Plan – westhomeplanners.com

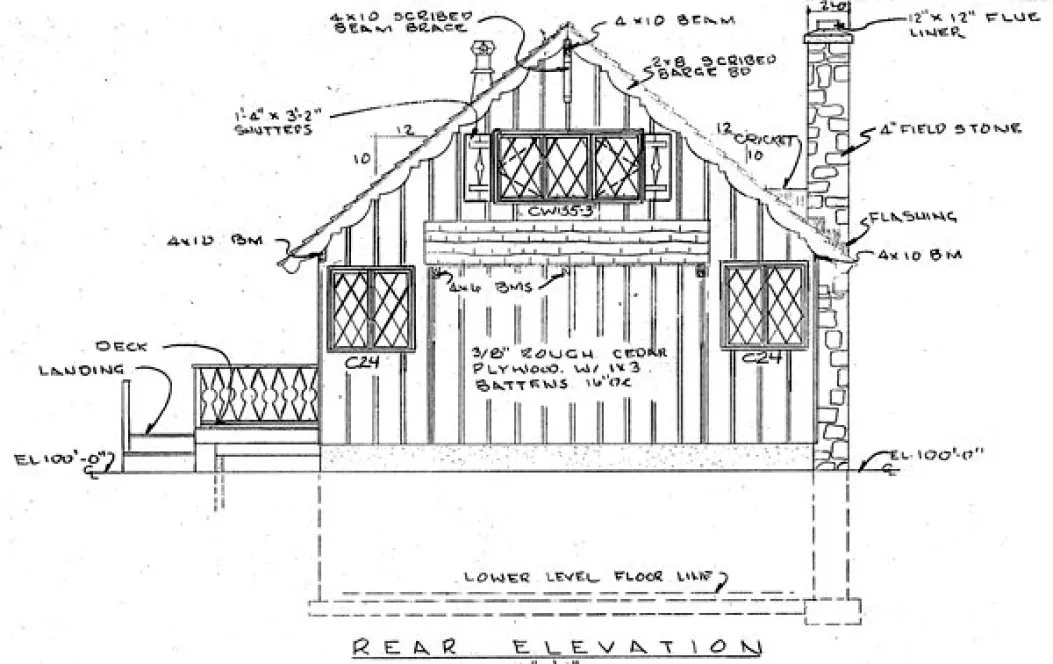

REAR Elevation – westhomeplanners.com
