Plan No.347402

Horse Barn

This 3221 sq. ft. barn design features 9 horse stall and spacious tack room. There is even a stall with a garage door for easy storage for utility vehicles. This barn also has 667 square feet of living space. The bedroom has a walk-in closet and full bathroom, which can also be accessed from the barn. There is also a full kitchen. There is an attic loft area of 1751 sq. ft. Please note that the Attic/Loft area is not included in the Total Finished Area. *Materials list available. Call 1-800-361-7526 for more information.

Specifications

Total 3888 sq ft

  • Main: 3888
  • Second:
  • Third:
  • Loft/Bonus: 1751
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 84'0
  • Depth: 68'0

Roof

  • Max Ridge Height: 27'10
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

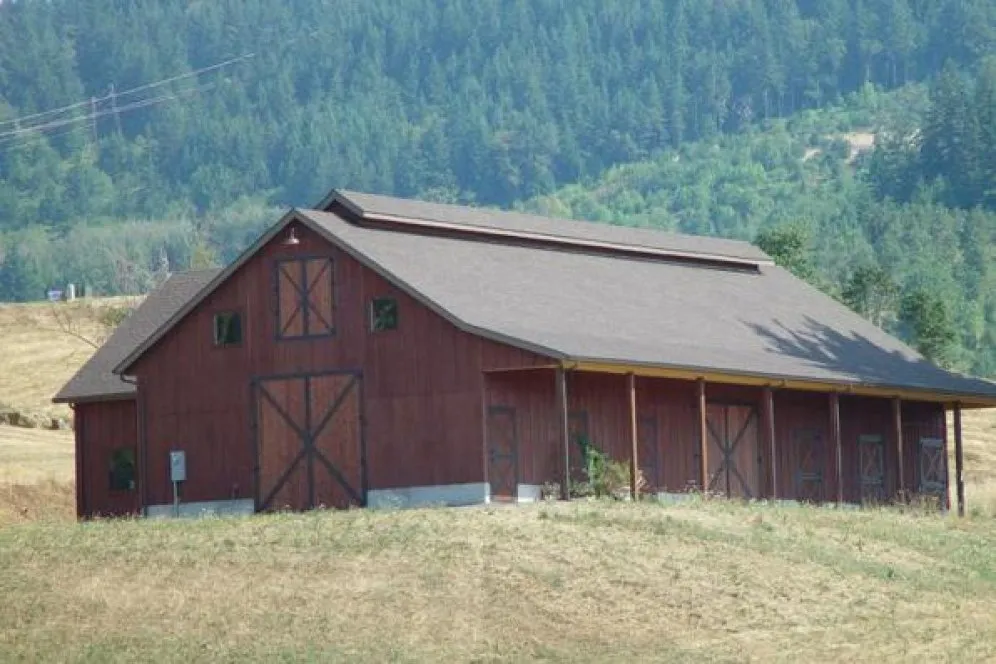

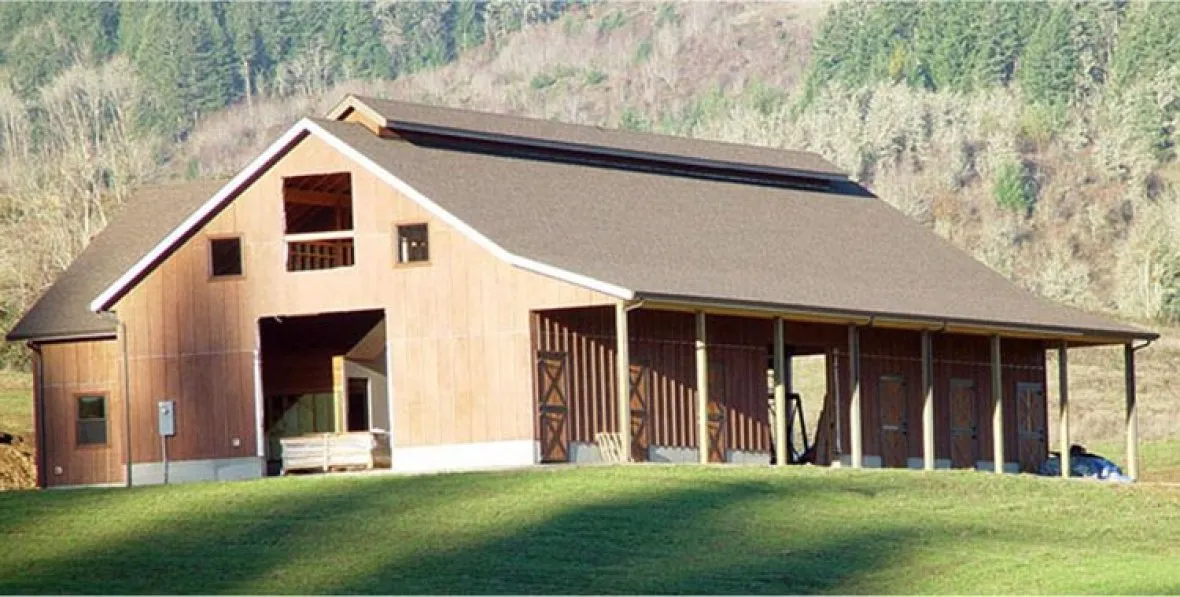

Full Rendering – westhomeplanners.com

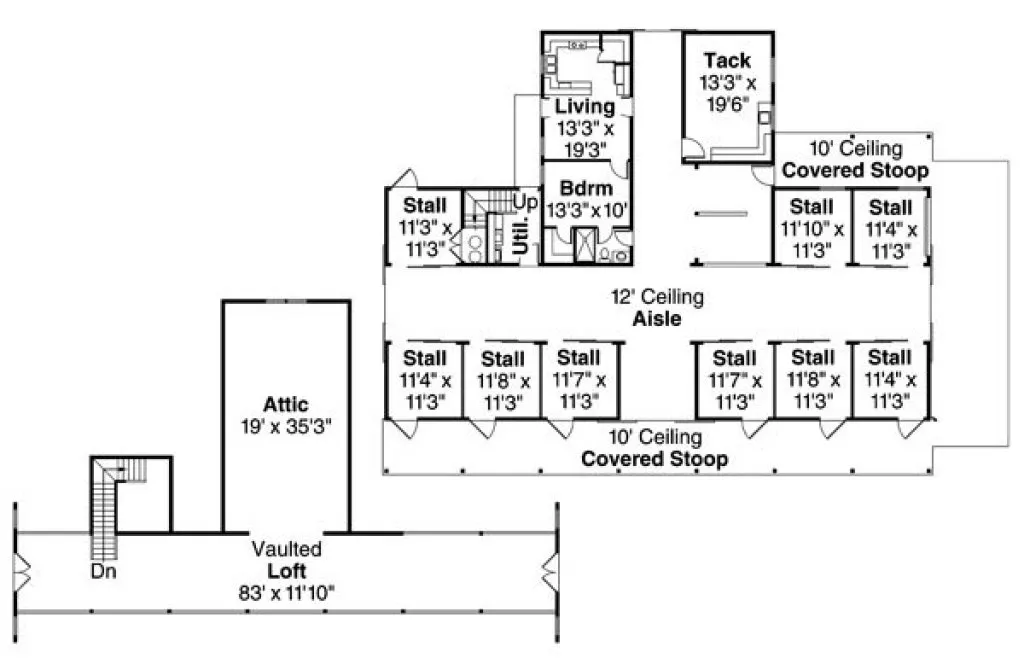

Main & Attic Plans – westhomeplanners.com

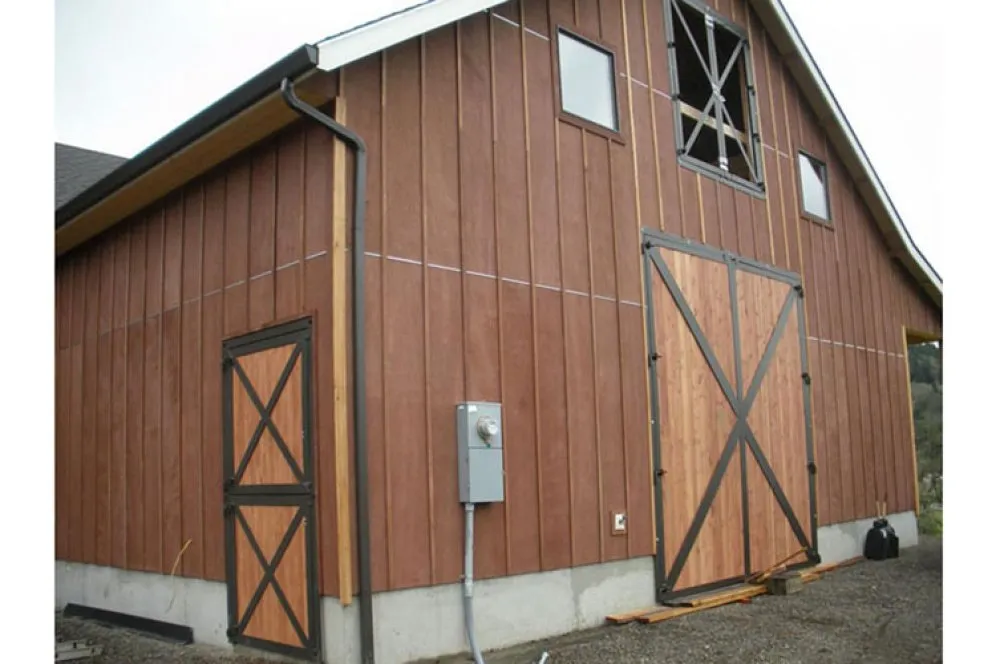

Rear Exterior – westhomeplanners.com
Front & Right Elevn – westhomeplanners.com

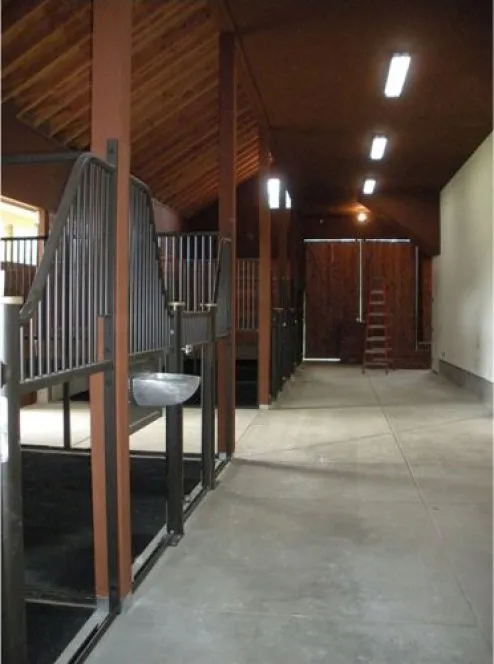

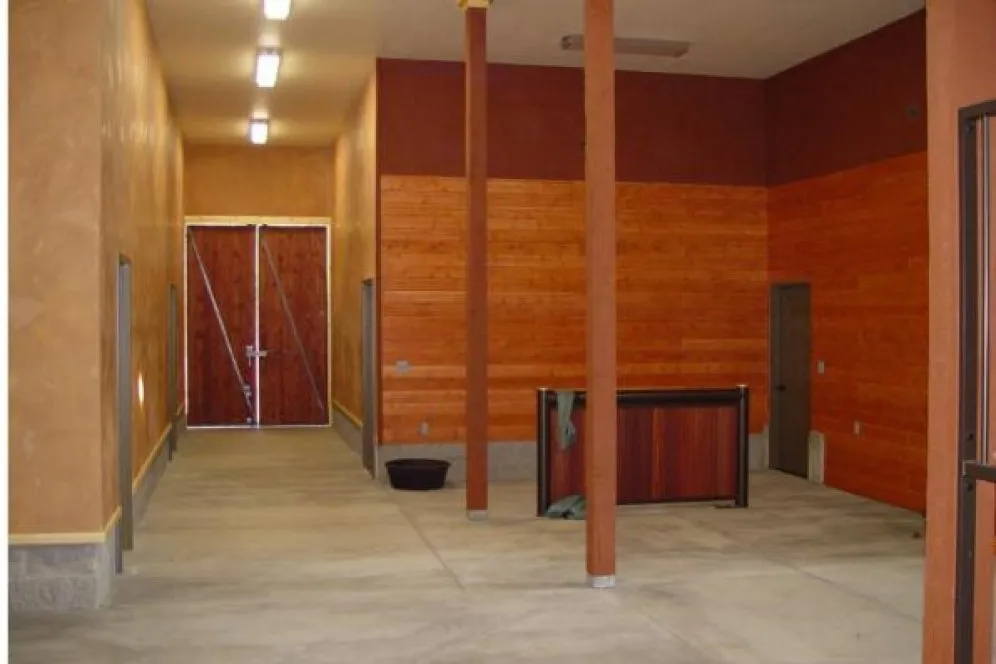

Barn Interior – westhomeplanners.com
Horse Stalls – westhomeplanners.com

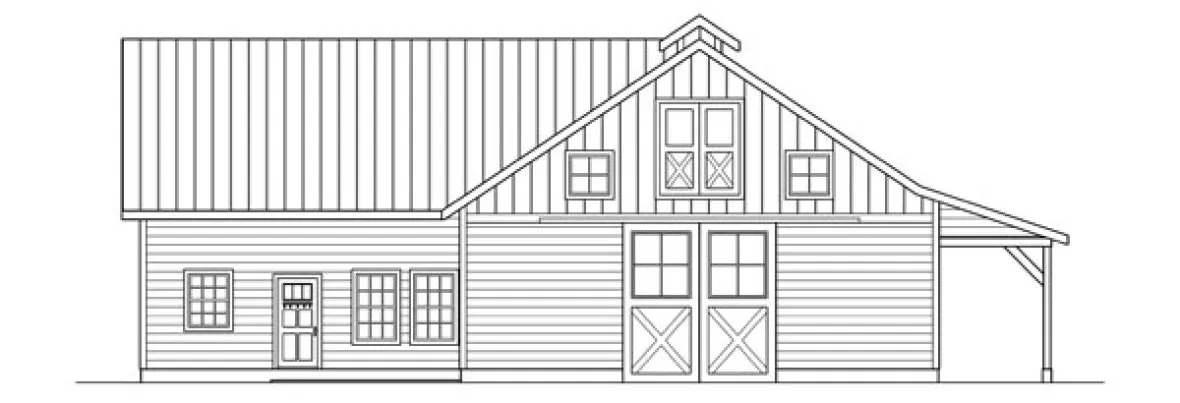

REAR Elevation – westhomeplanners.com

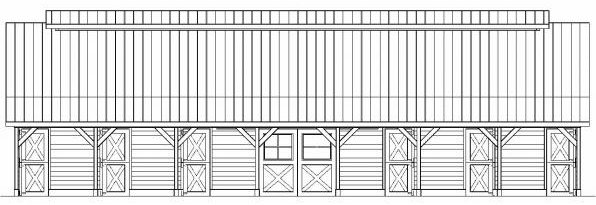

LEFT Elevation – westhomeplanners.com

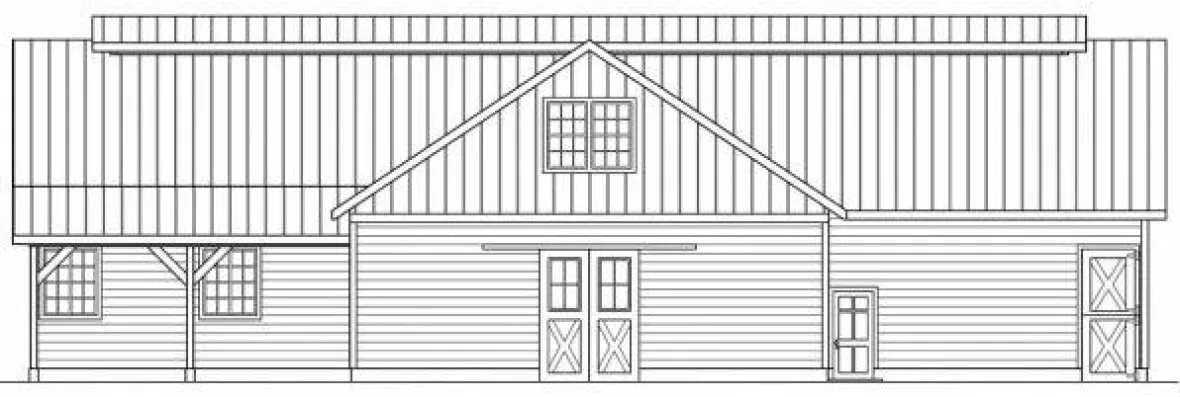

RIGHT Elevation – westhomeplanners.com
