Plan No.341602

Shingle-style Garage Plan

This shingle-style garage plan can park up to two cars. Both doors are the same size at 9' wide and 8' tall. At the back of the garage is a separated shop area with a staircase that leads to the loft above. Upstairs is a loft that has space for a future counter with sink, range and refrigerator. Also upstairs is an office, bathroom and generous sized deck.

Specifications

Total 1826 sq ft

  • Main: 988
  • Second: 838
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 38'0
  • Depth: 38'0

Roof

  • Max Ridge Height: 25'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

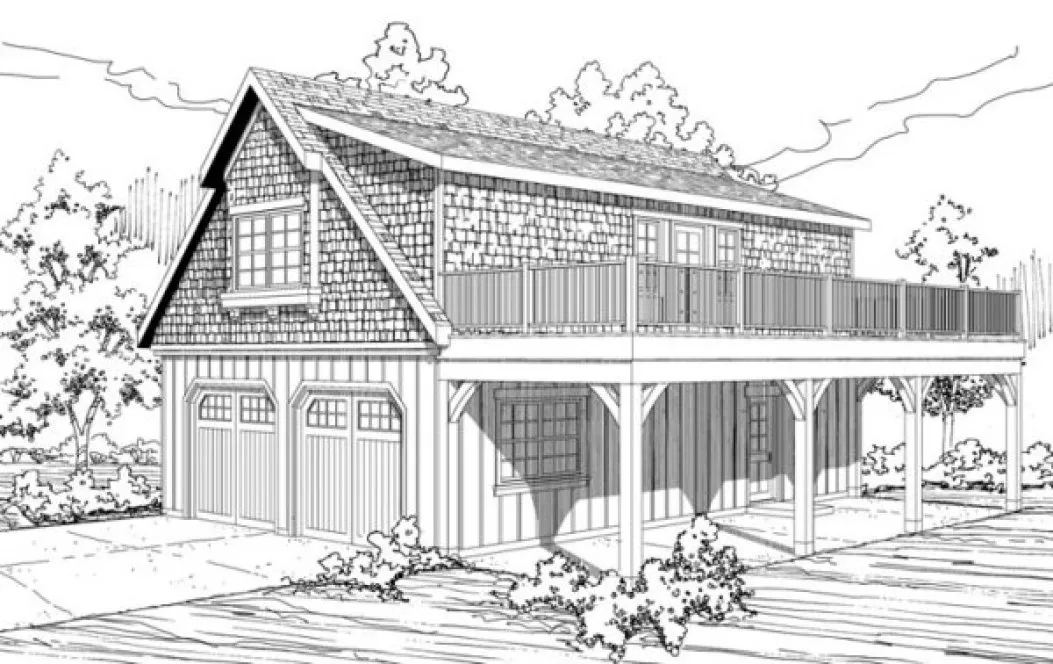

Full Rendering – westhomeplanners.com

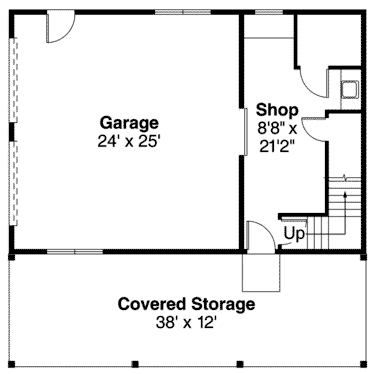

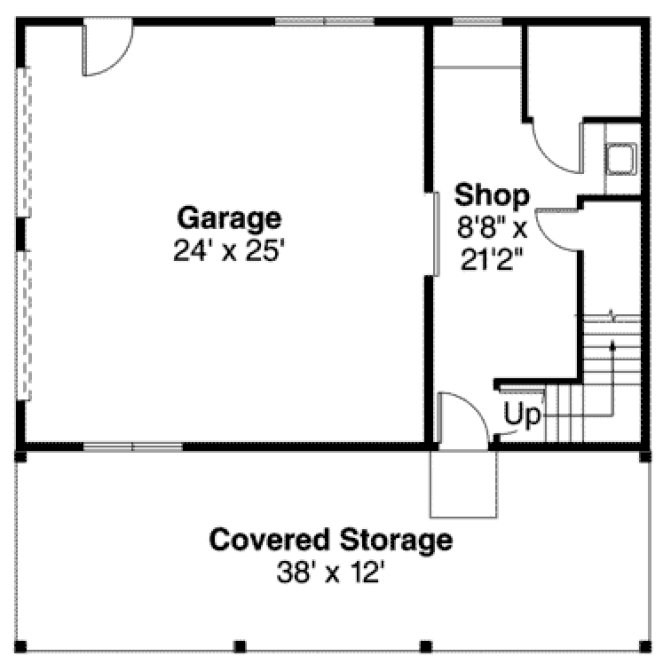

MAIN Plan – westhomeplanners.com

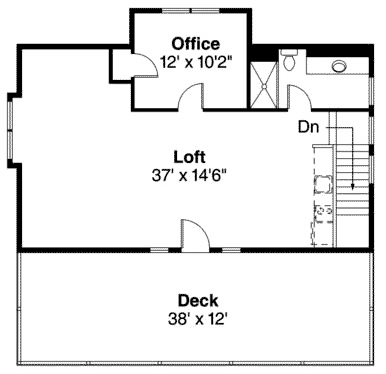

SECOND Plan – westhomeplanners.com

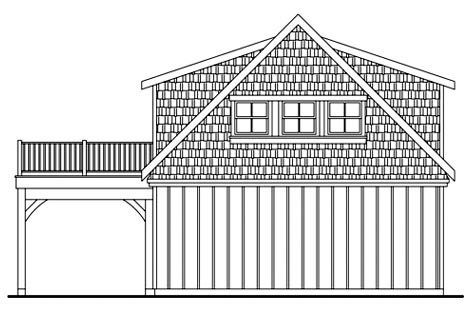

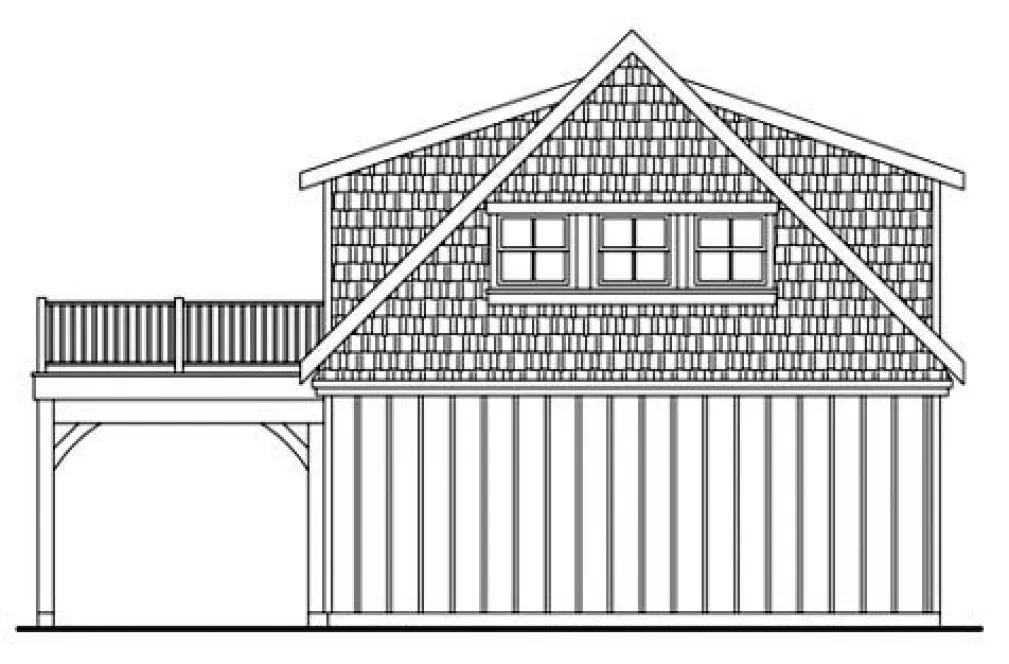

REAR Elevation – westhomeplanners.com

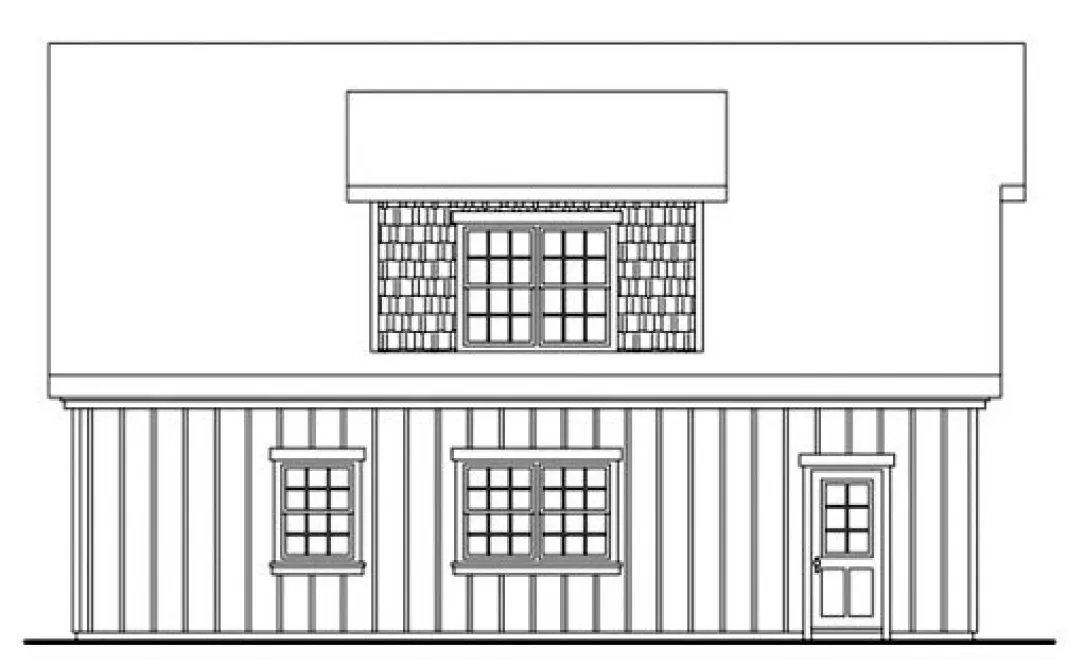

LEFT Elevation – westhomeplanners.com

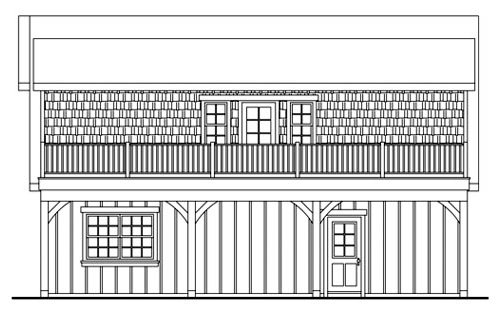

RIGHT Elevation – westhomeplanners.com
