Plan No.142231

Stately & Efficient

A brick facade and matching columns make a statement of permanence and elegance all at the same time. Thanks to an elevated basement, and gable echoed from the main structure to the attached garage, this little home stands tall and proud! An open concept and laundry on the main floor allow for comfortable living. The corner fireplace in the living room softens the interior space and allows for excellent flow. The stairs are ideally placed to allow comfortable passage to the upstairs or basement. Upstairs, two bedrooms benefit from a compartmentalized bathroom, which includes a 76 x 48” shower room allowing for private use of shower and vanity/bath simultaneously. In the main body of the bathroom, the bathing experience is enhanced by a view of the clouds thanks to a skylight!


Total 1322 sq ft

  • Main: 728
  • Second: 594
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 367


  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 46'4
  • Depth: 26'0


  • Max Ridge Height: 30'10
  • Comments: (Top of Fndtn to Peak)
  • Primary Pitch: /12
  • Secondary Pitch: /12

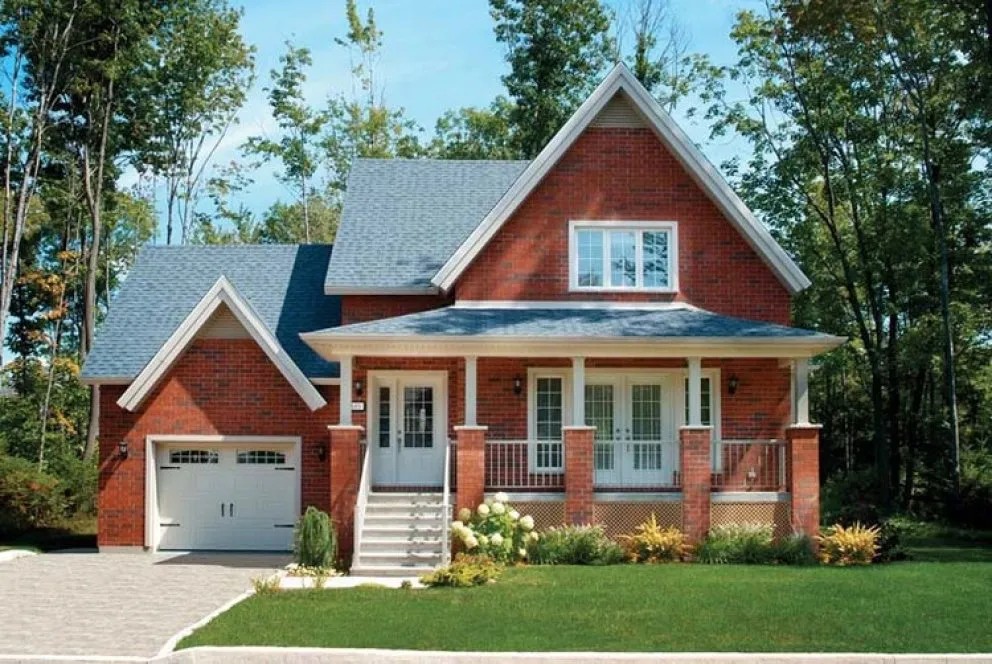

Full Rendering –

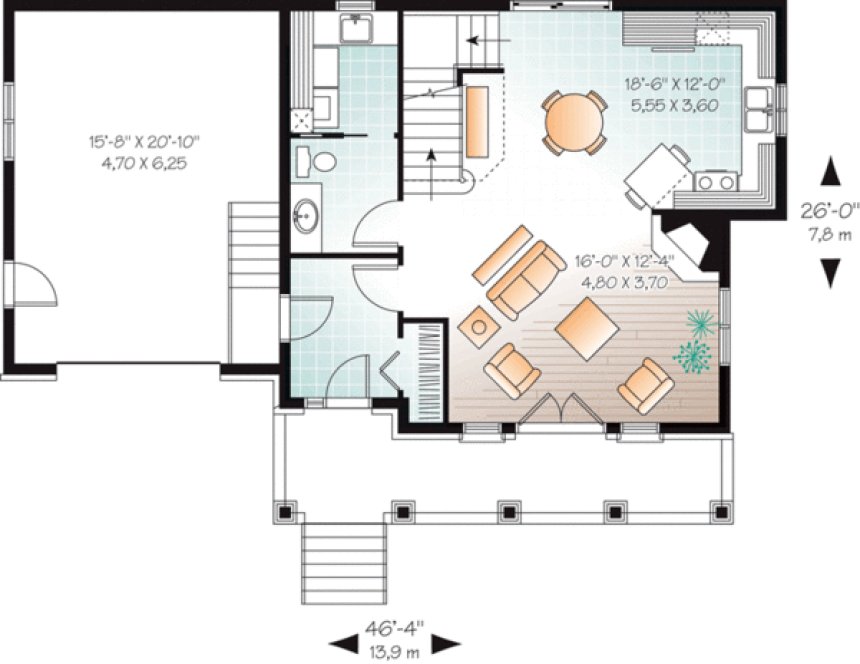

MAIN Plan –

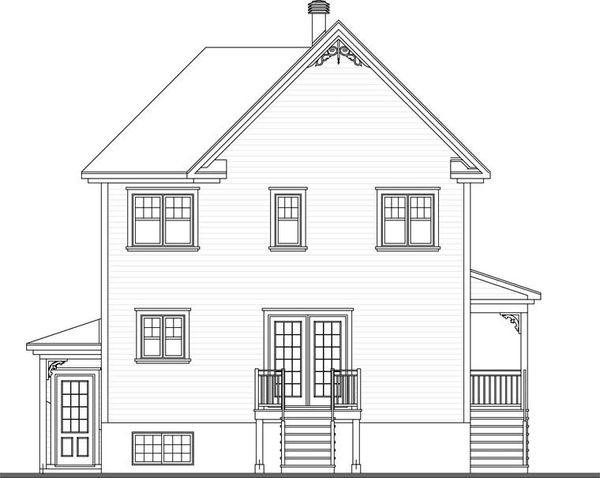

REAR Elevation –
