Plan No.632021

Split Bedroom Cottage Home Plan

This compact cottage has 3 bedrooms and 2 full baths. All the necessary ingredients provided in a simple structure that's affordable to build. The vaulted living room features a fireplace, dining area and access to the rear patio. An angled snack bar is the highlight of this well-planned U-shaped kitchen.

Specifications

Total 1202 sq ft Rooms Ceiling Height Details Footprint
Main: 1202   Bedrooms: 3   Main: 8'0   Max. Ridge Height: 21'0 (Main Floor to Peak)   Width: 40'0
Second:   Baths: 2   Second:   Primary Roof Pitch: 6.00/12   Depth: 47'0
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: /12
Basement:   3/4 Baths:   Basement:   Exterior Wall: 2x4
Loft/Bonus:
  Full Rendering

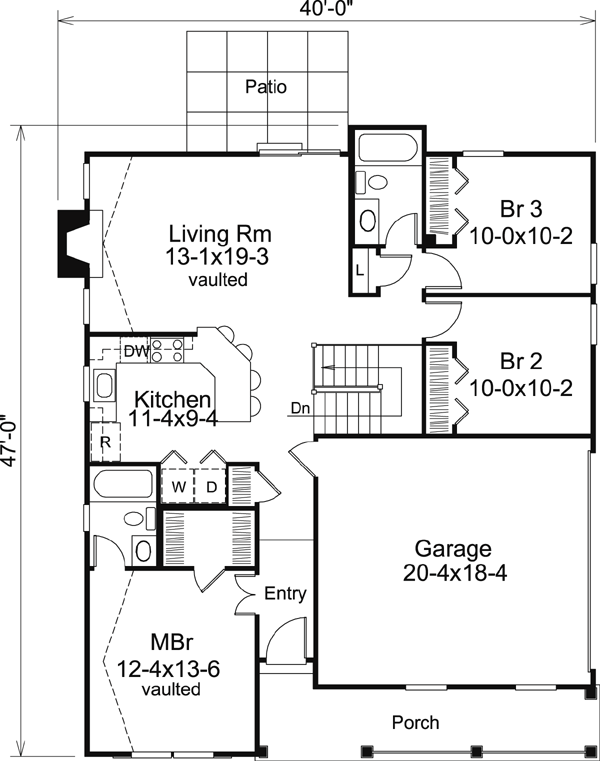

  MAIN Plan

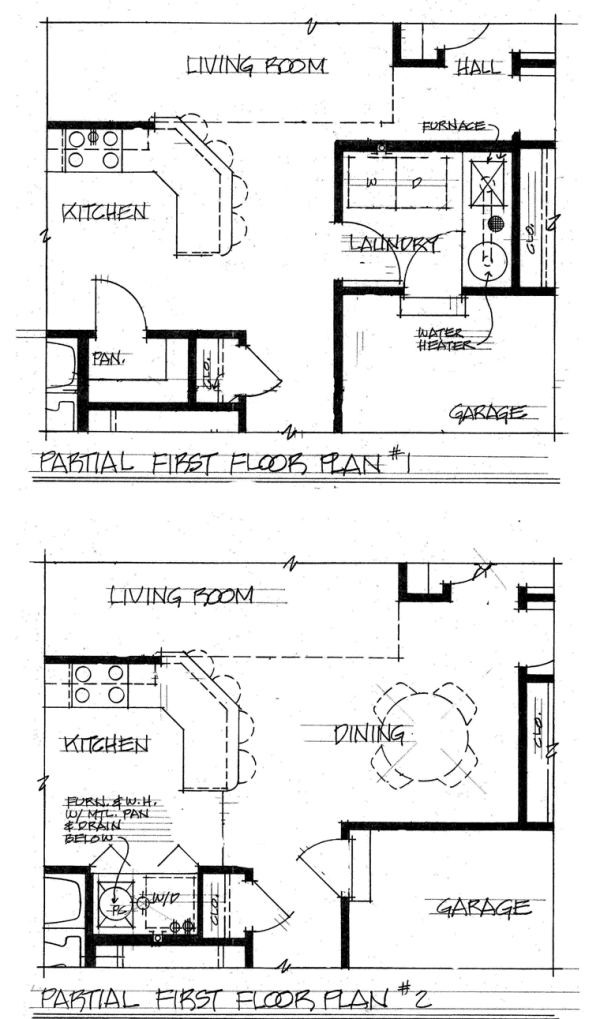

  Alternate Floor Layouts

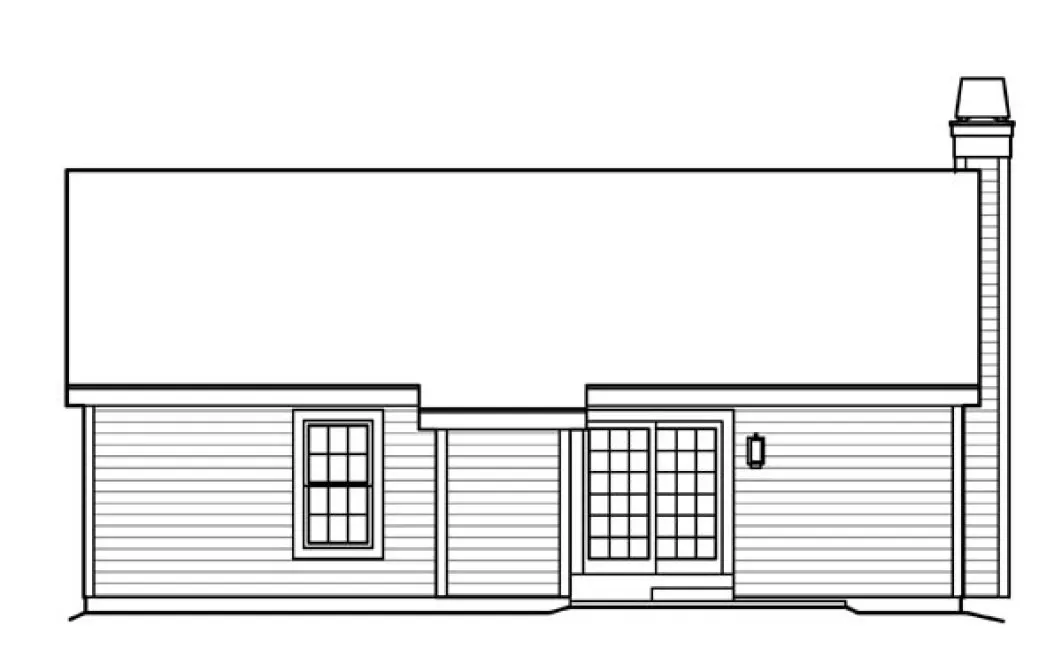

  REAR Elevation

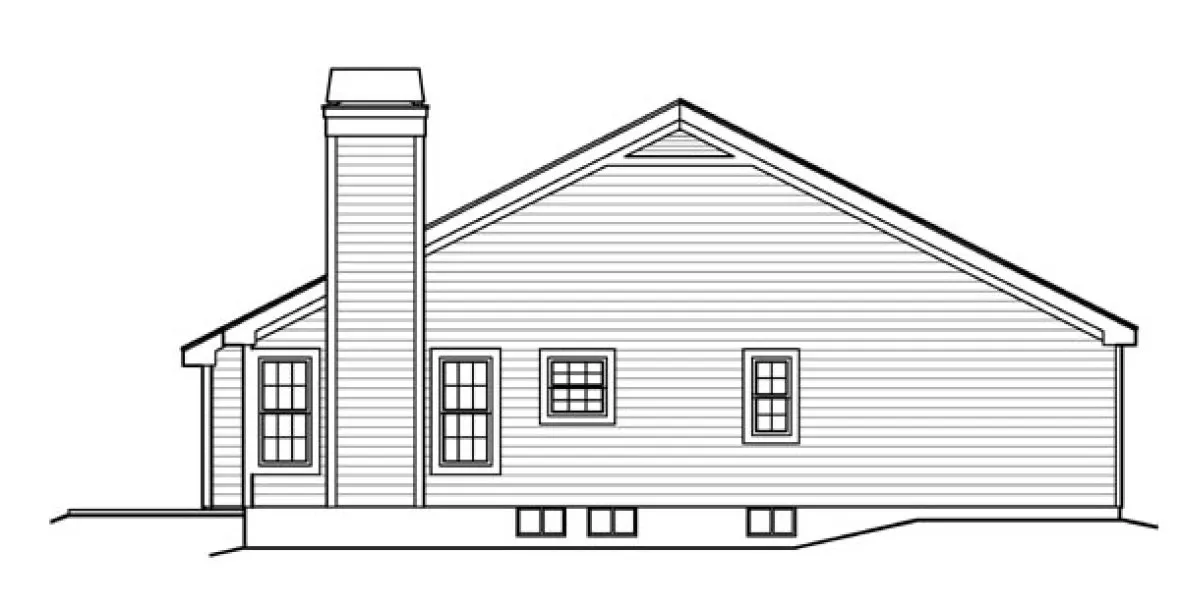

  LEFT Elevation

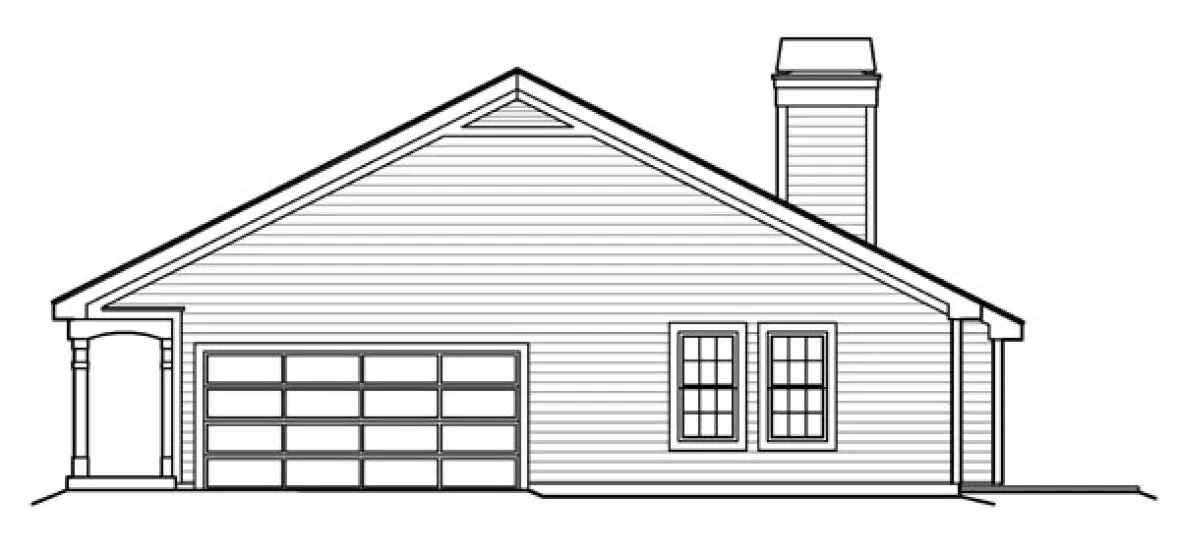

  RIGHT Elevation
