Plan No.606651

Vaulted Family Room

The perfect small family home, this Ranch house plan features an attractive exterior façade composed of brick, horizontal siding and a front covered porch which is highlighted with columned beams and overhead arches. The interior floor plan features approximately 1,566 square feet of living space that contains three bedrooms, two baths and there is additional square footage possibilities in the unfinished basement foundation. Stepping into the home’s interior off the front porch, an enormous vaulted family room is revealed. The room measures in excess of 20’x18’, houses a warming fireplace and amazing entertaining and family space. Beyond the family room is a spacious dining room with rear deck access for friendly cook-outs and outdoor activities. The family friendly kitchen boasts of a separate pantry, double sink window views and an abundance of counter and cabinet space.


Total 1566 sq ft

  • Main: 1566
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 1566
  • Garage: 438


  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 54'0
  • Depth: 48'0


  • Max Ridge Height: 22'4
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

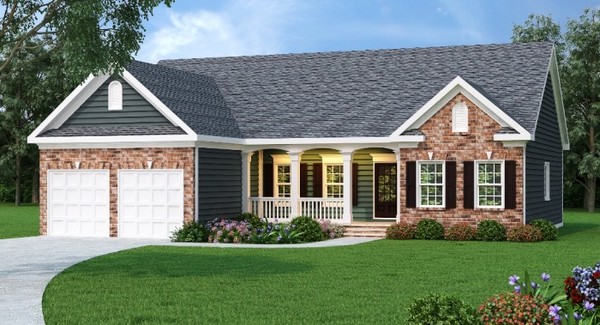

Full Rendering –

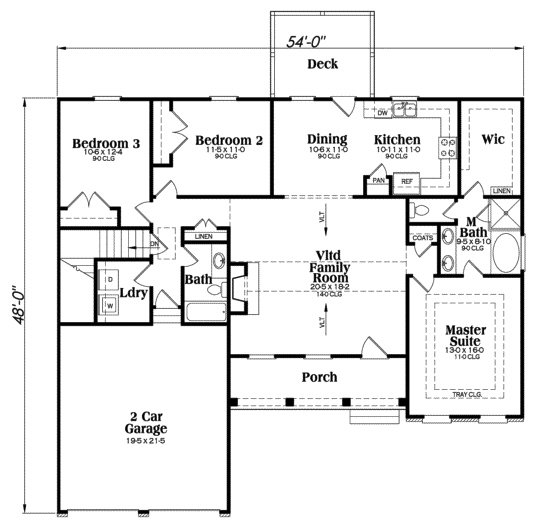

MAIN Plan –

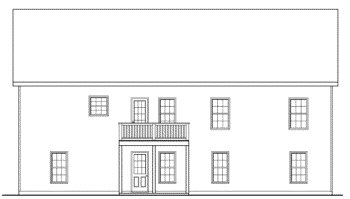

REAR Elevation –
