Plan No.189134

Home With Views

This home is a vacation haven with views from every room whether it is situated on a lake or a mountaintop. The main floor features a living room and dining room split by a fireplace. The kitchen flows into the dining room and is gracefully separated by a bar. There is a bedroom and a full bath on the main floor. The second floor has a bedroom or library loft, with clerestory windows, which opens above the living room. The master bedroom and bath are also on the top floor. The lower floor has a large recreation room with a whirlpool tub and a bar, a laundry room and a garage. This home has large decks and windows on one entire side. Our photo shows an optional Sunroom which has been added off the Livingroom and Bedroom 1 by the owner during construction.

Specifications

Total 1710 sq ft

  • Main: 728
  • Second: 573
  • Third:
  • Loft/Bonus:
  • Basement: 409
  • Garage: 244

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 8'6

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 28'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 33'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

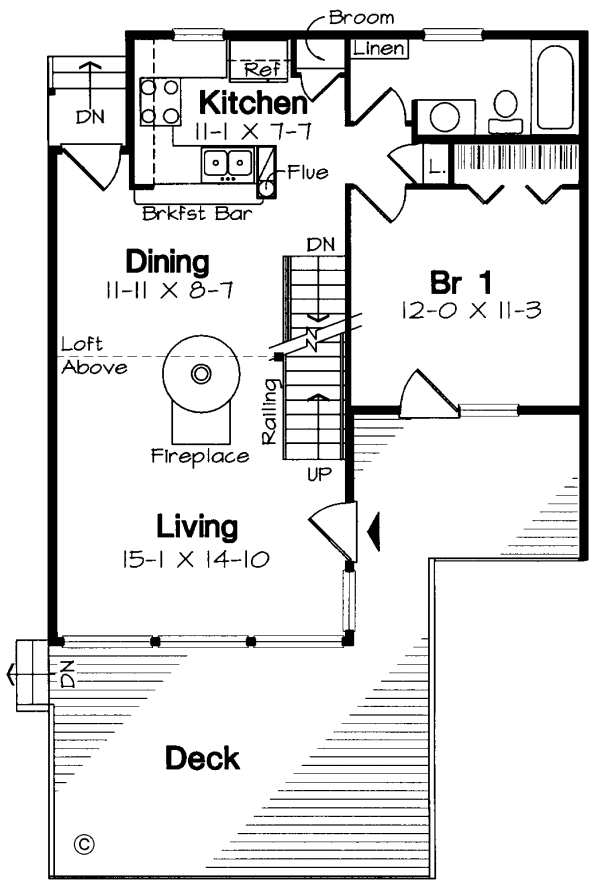

MAIN Plan – westhomeplanners.com

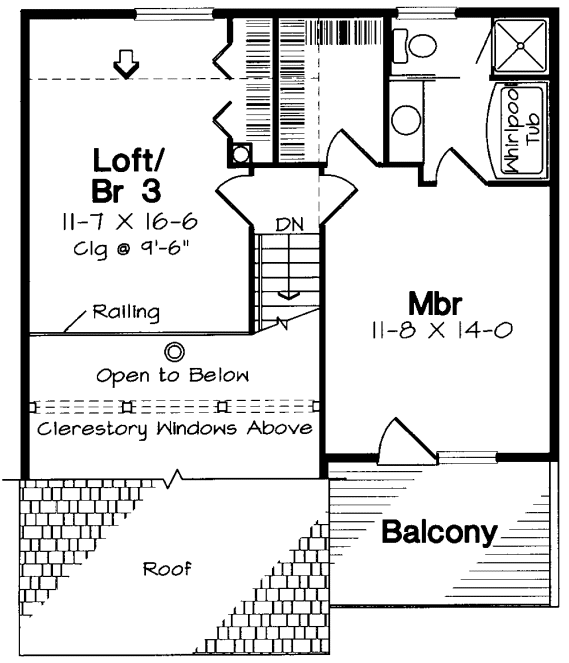

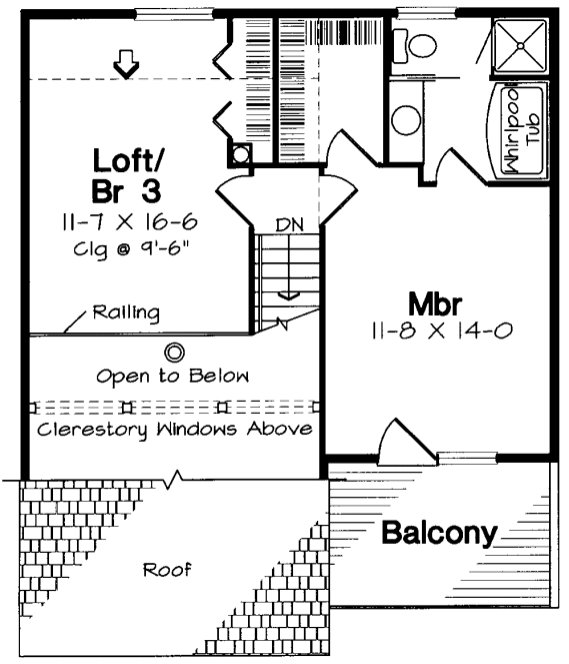

SECOND Plan – westhomeplanners.com

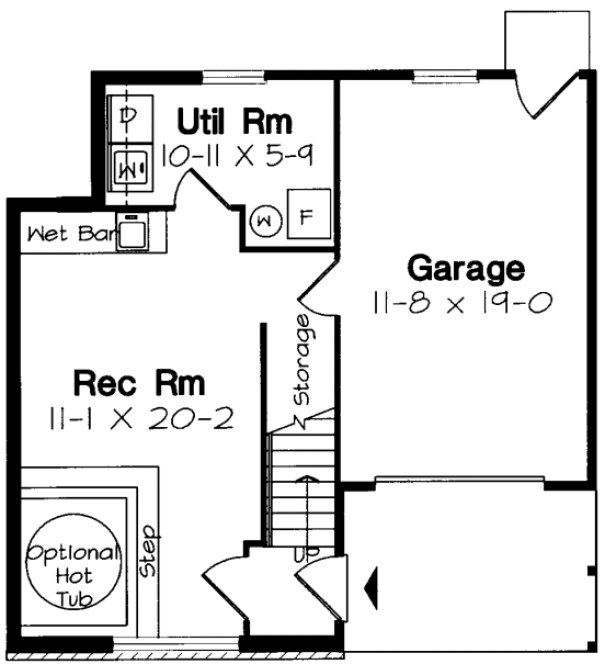

BASEMENT Plan – westhomeplanners.com

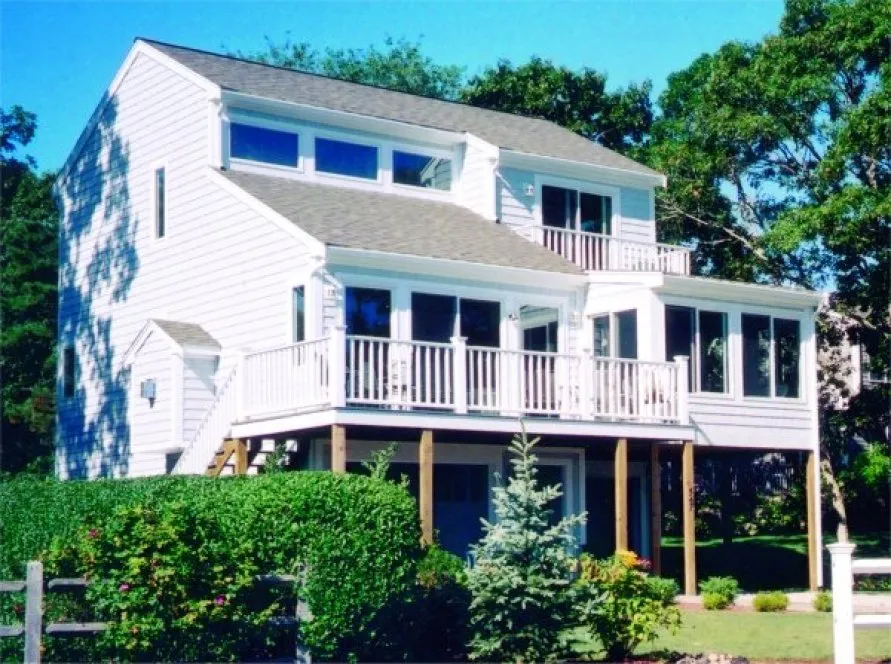

Opt. Sunroom Added – westhomeplanners.com
Alt. Deck Layout – westhomeplanners.com

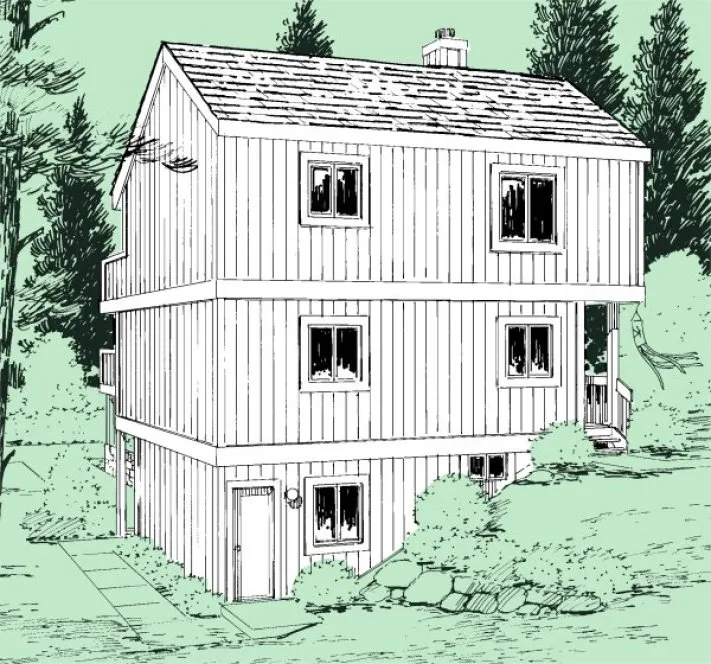

REAR Elevation – westhomeplanners.com
