Plan No.663291

Rooftop Sundeck

A modern home designed around a rear courtyard. Three bedrooms on the first floor lead up to the living spaces on the upper level. The stairwell leads to the rooftop sundeck which provides panoramic views, and a beautiful setting for rooftop living. This plan is designed with a concrete slab on grade. The exterior walls are 2×6 wood framing with r19 spray foam insulation. The second floor system is pre-engineered wood trusses. The roof is a membrane flat roof, and pre-engineered wood trusses. A Spacepak air-conditioner and tankless water heater are located in the downstairs storage closet. The exterior is finished with stucco over a waterproof barrier and wall sheathing. This plan is also available with concrete block or ICF exterior walls, please specify in the comments box when ordering.

Specifications

Total 1923 sq ft

  • Main: 985
  • Second: 938
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second: 10'0 & 12'
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 51'0
  • Depth: 63'0

Roof

  • Max Ridge Height: 28'0
  • Comments: ()
  • Primary Pitch: /12
  • Secondary Pitch: /12

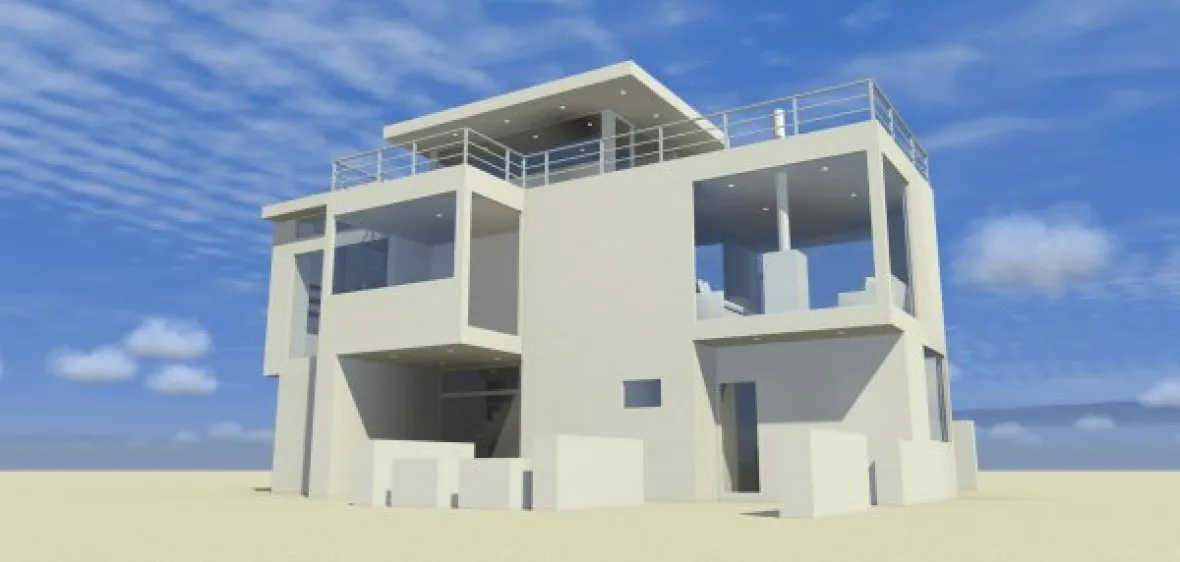

Full Rendering – westhomeplanners.com

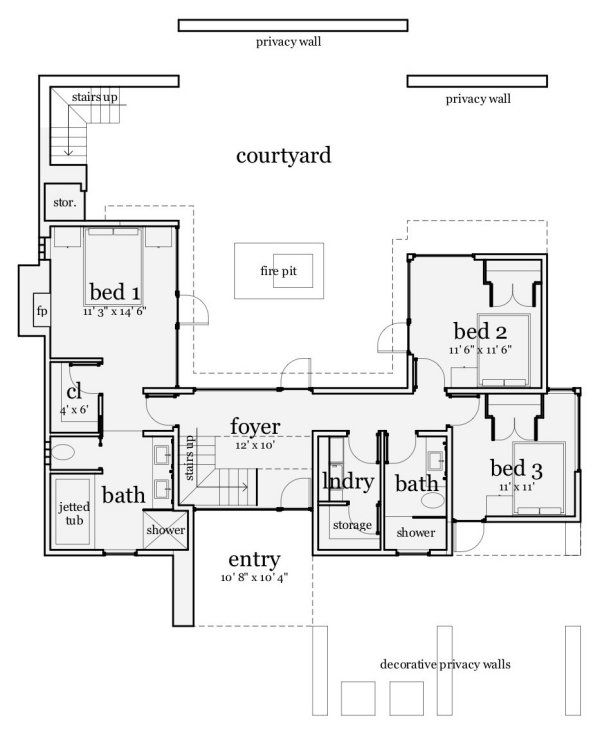

MAIN Plan – westhomeplanners.com

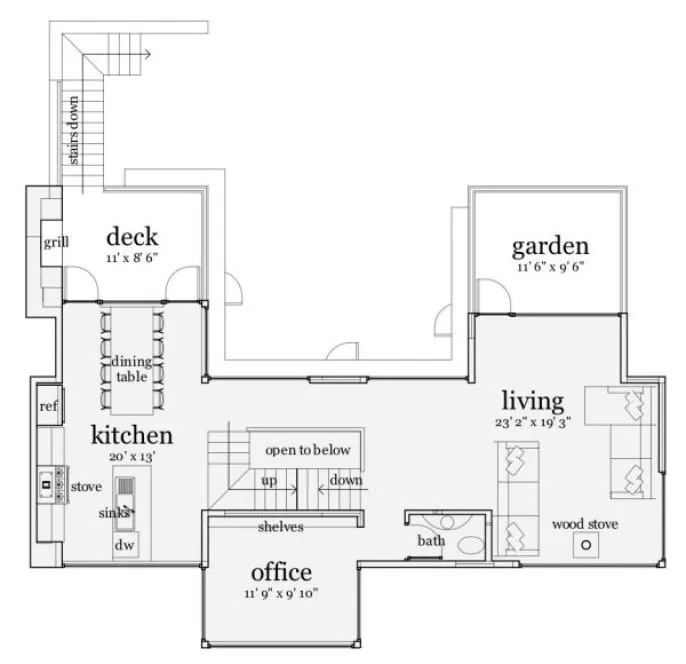

SECOND Plan – westhomeplanners.com

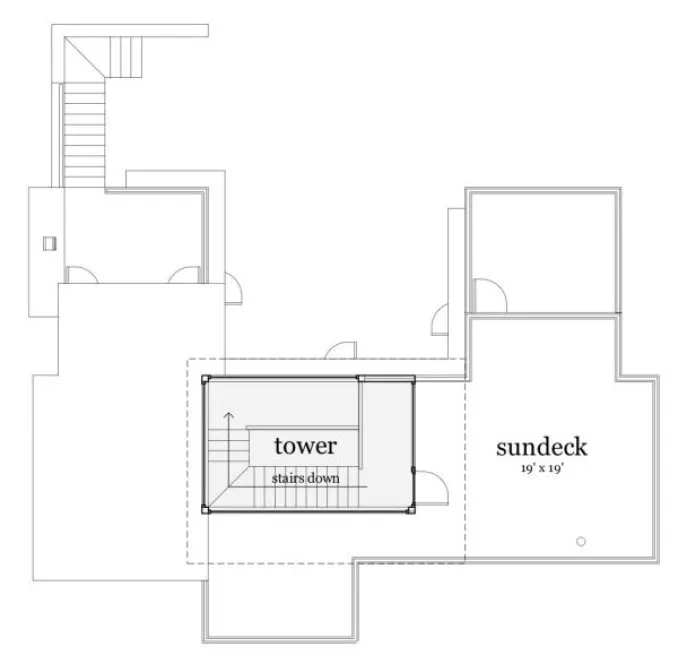

THIRD Plan – westhomeplanners.com

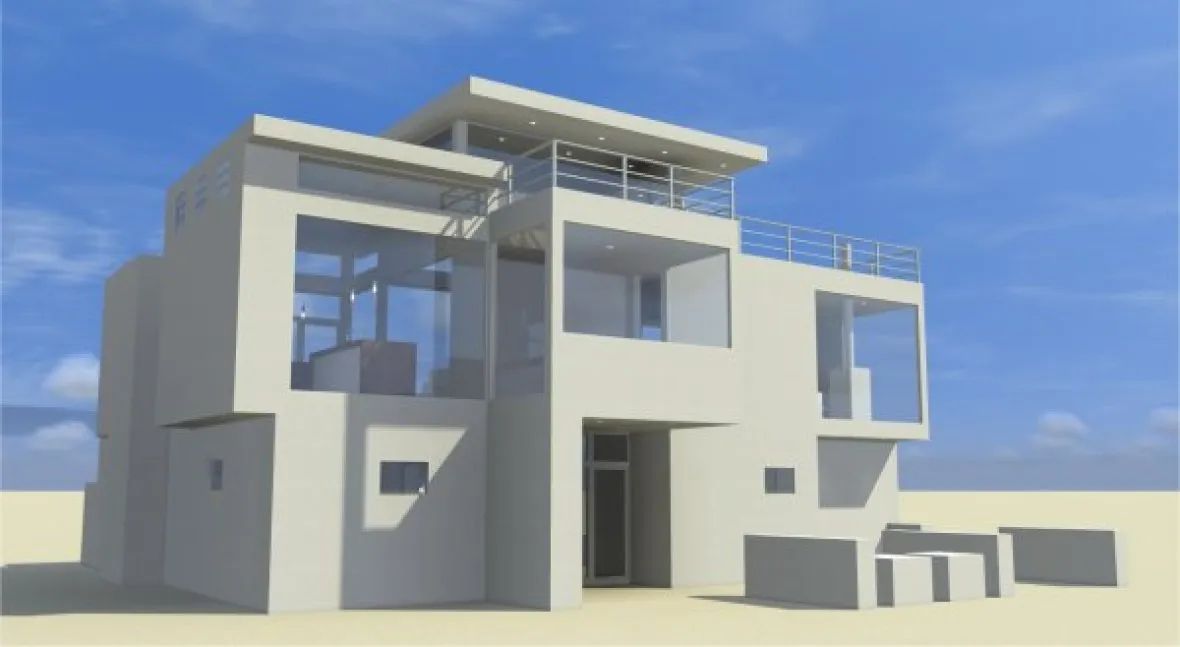

Left & Front – westhomeplanners.com
Stairwell – westhomeplanners.com
Garden – westhomeplanners.com

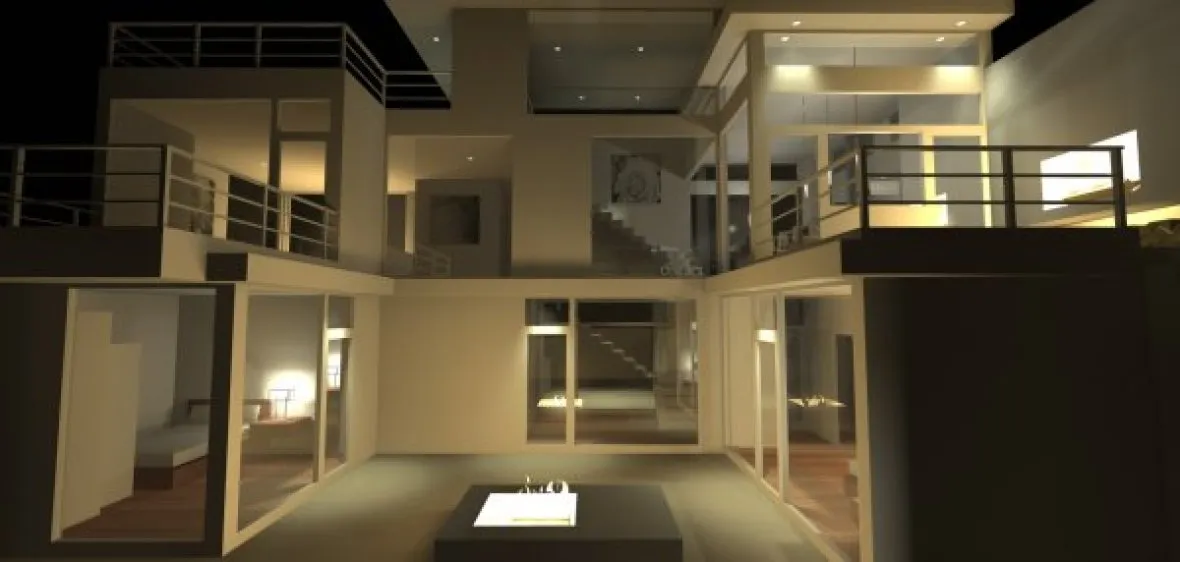

Rear at Night – westhomeplanners.com
Rear – westhomeplanners.com
Front Entry – westhomeplanners.com

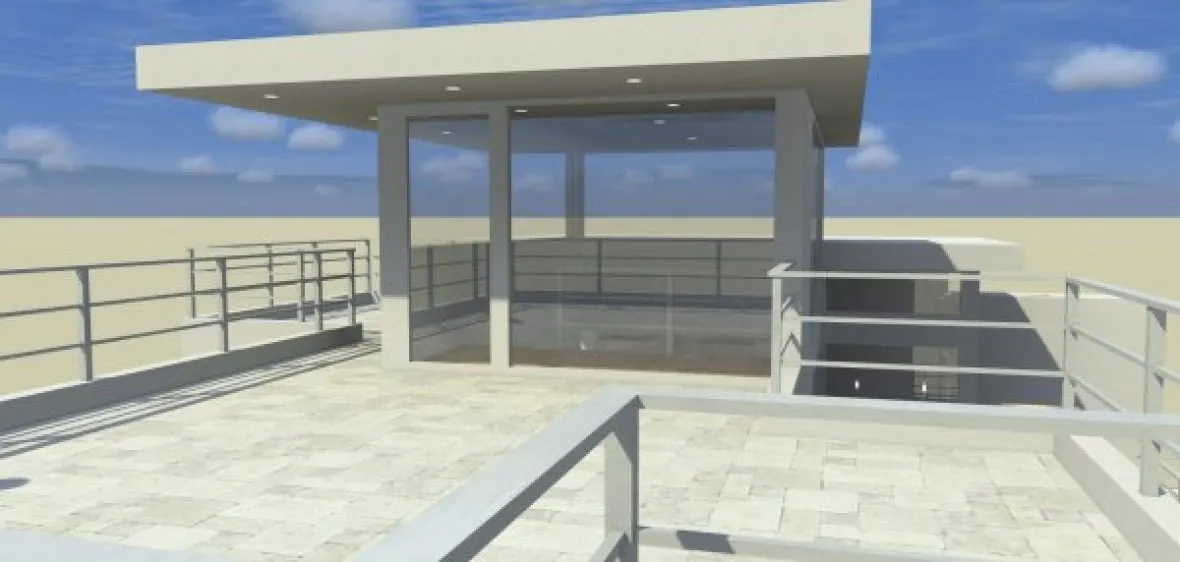

Roof Deck – westhomeplanners.com
Front at Night – westhomeplanners.com

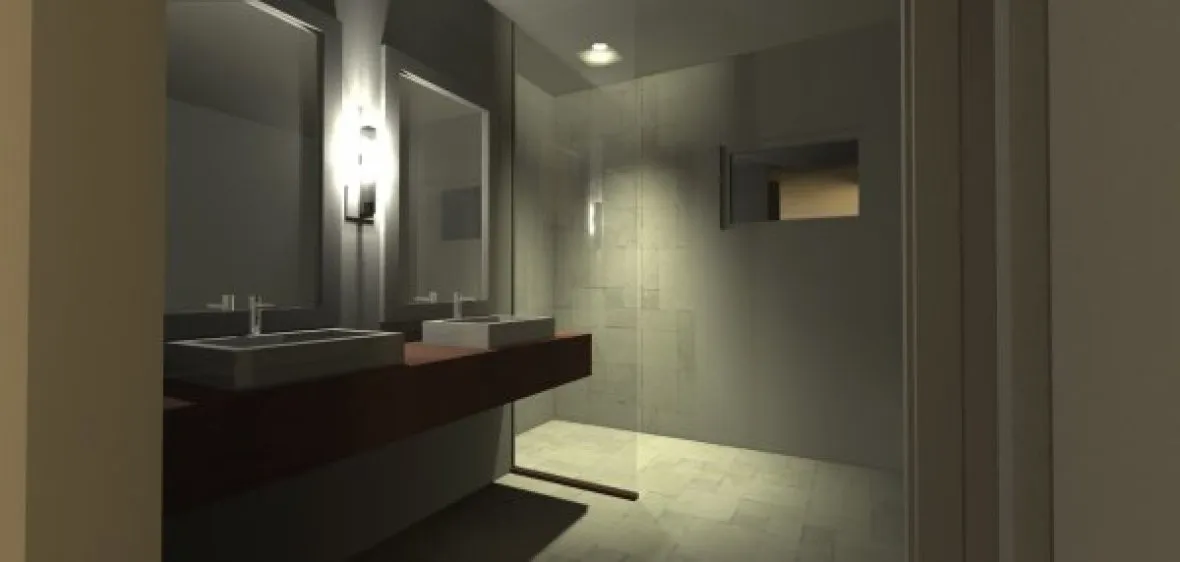

Master Bath – westhomeplanners.com

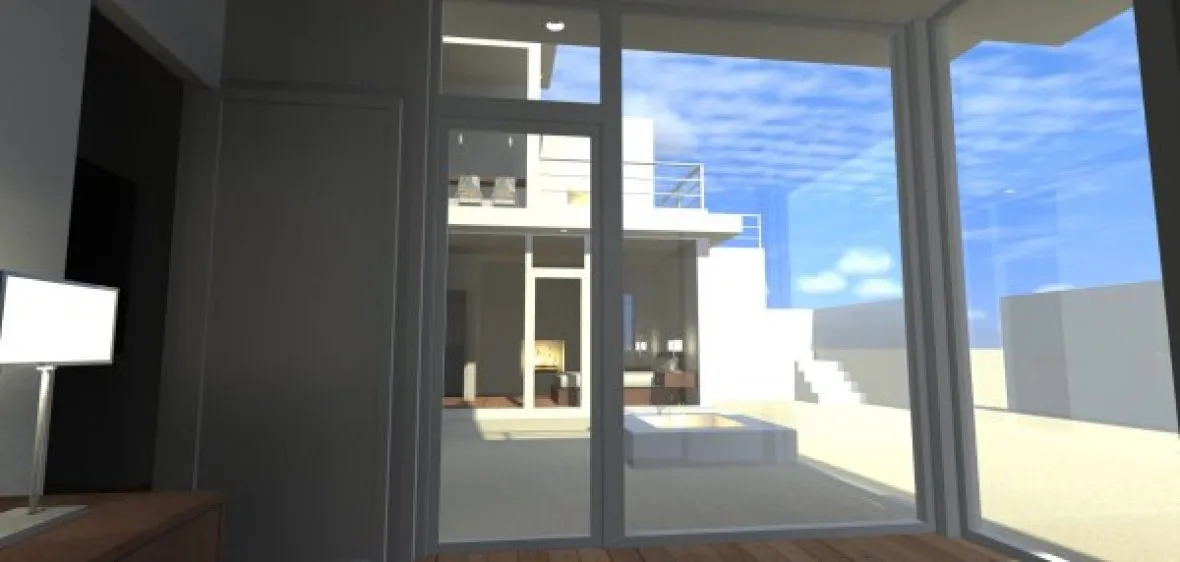

Bedroom – westhomeplanners.com

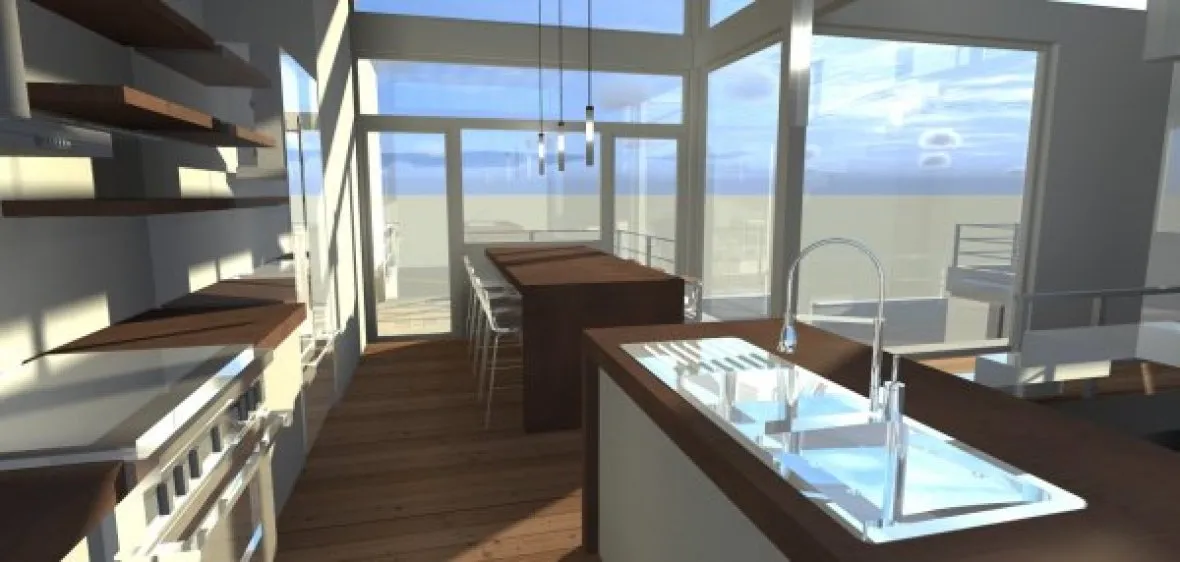

Kitchen – westhomeplanners.com
Living – westhomeplanners.com
