Plan No.243912

Slab foundation, Crawlspace foundation, Basement foundation (unfinished), 2 x 4 stud construction, common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans can also be sent to the customer in PDF or CAD (SoftPlan or DWG).

Specifications

Total 2193 sq ft

  • Main: 2193
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 733

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: tripleGarage
  • Width: 66'0
  • Depth: 58'4

Roof

  • Max Ridge Height: 24'0
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 8.00/12
Full Rendering – westhomeplanners.com

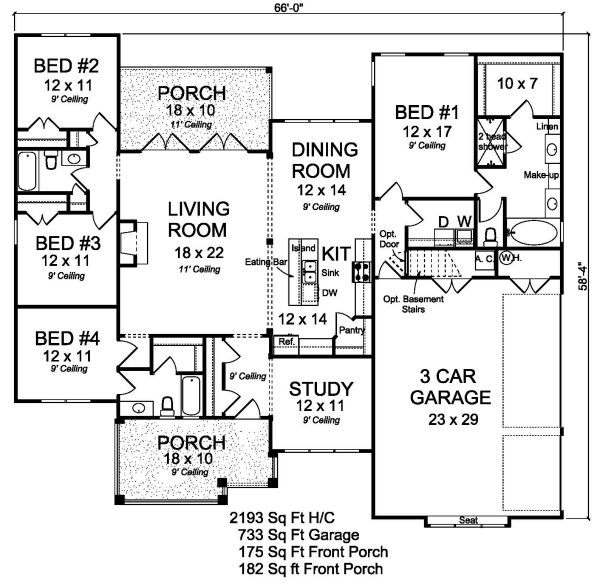

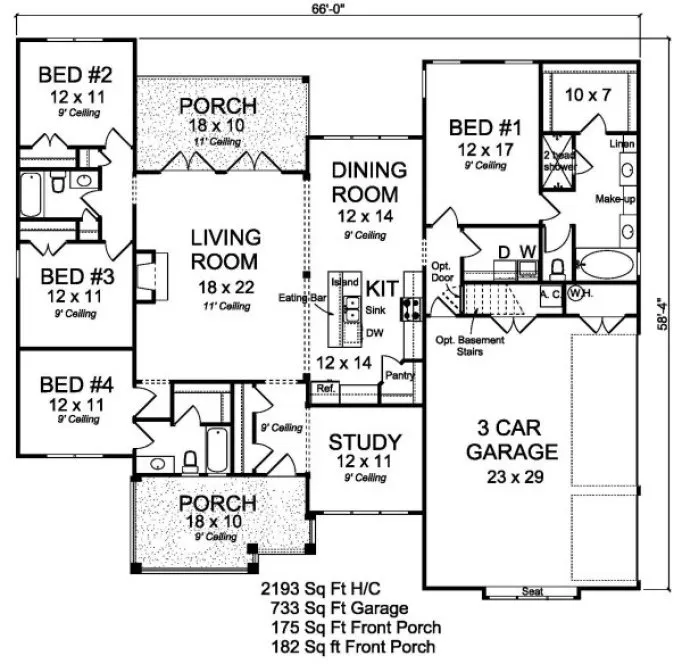

MAIN Plan – westhomeplanners.com

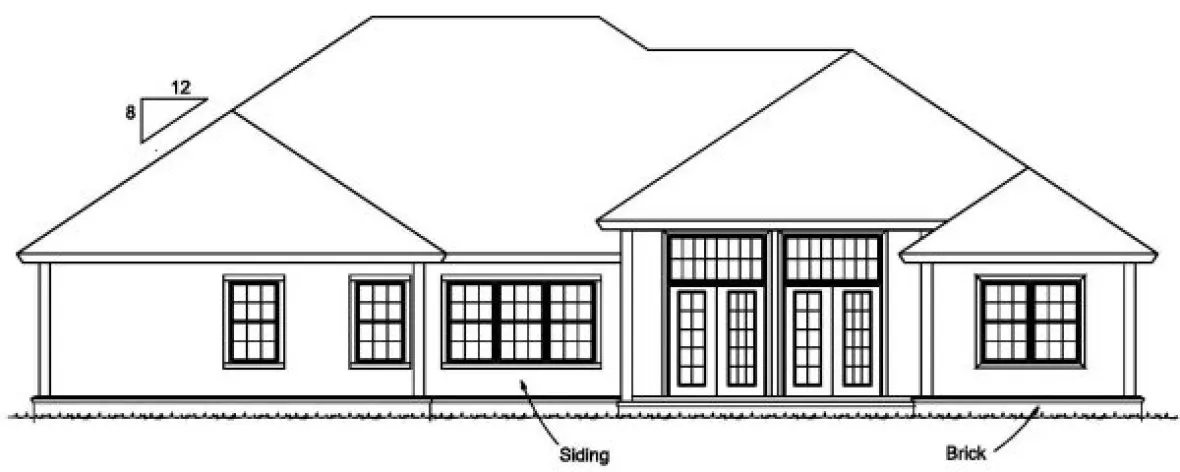

REAR Elevation – westhomeplanners.com
