Plan No.630826

Apartment Garage With Deck & Patio

Add instant charm to your property with this apartment garage. The exterior includes double gables, circle-top windows, a covered porch and patio and a second floor deck. Highlights in the interior include a vaulted living room with fireplace, walk-in closets, and a bath with garden tub. A Materials List is included with this plan at no extra charge.

Specifications

Total 1314 sq ft

  • Main: 686
  • Second: 628
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 28'0
  • Depth: 26'0

Roof

  • Max Ridge Height: 27'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9.00/12
  • Secondary Pitch: /12

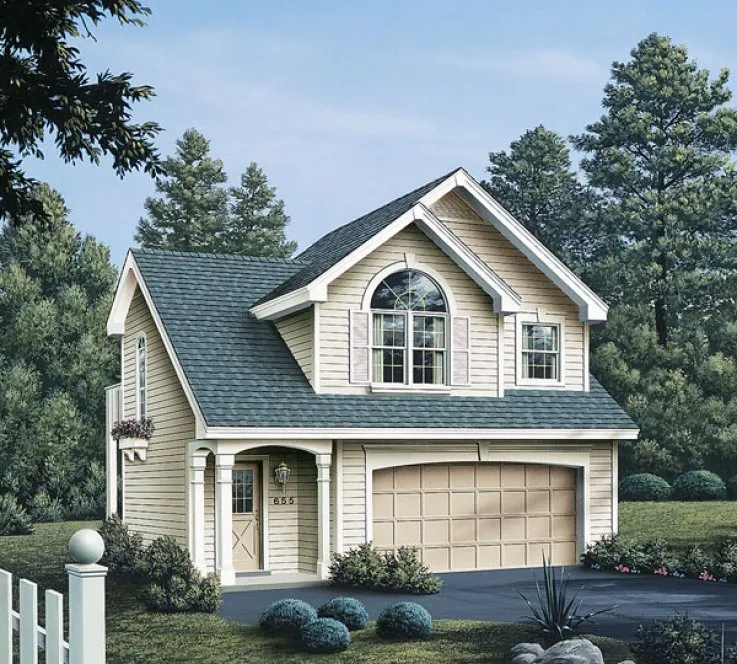

Full Rendering – westhomeplanners.com

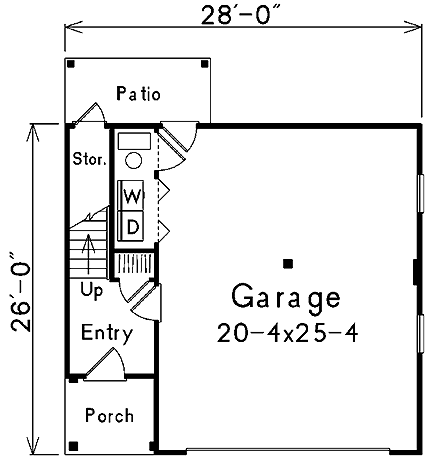

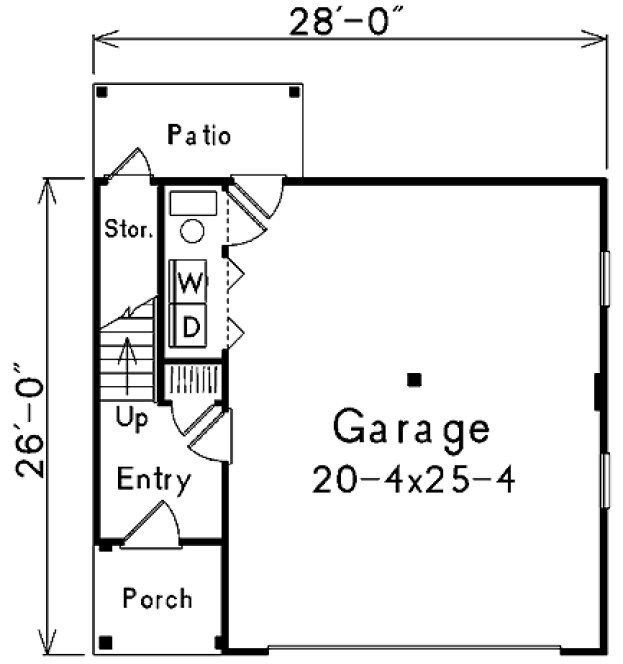

MAIN Plan – westhomeplanners.com

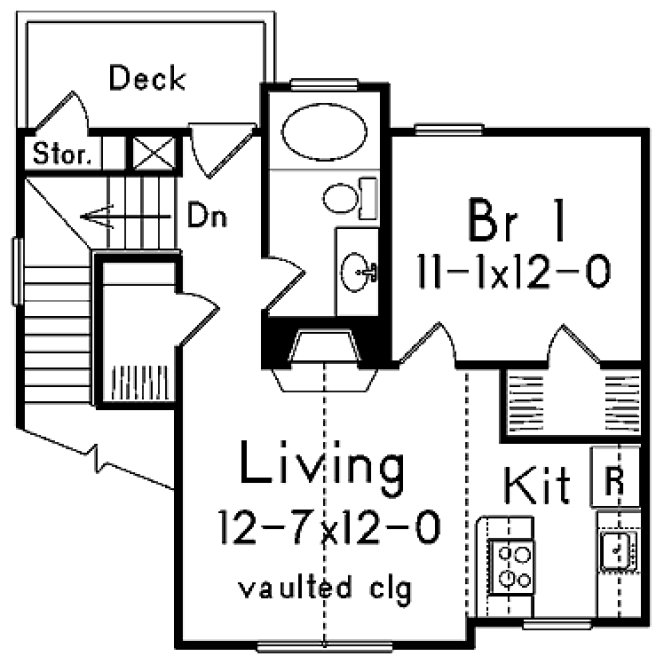

SECOND Plan – westhomeplanners.com
 – westhomeplanners.com

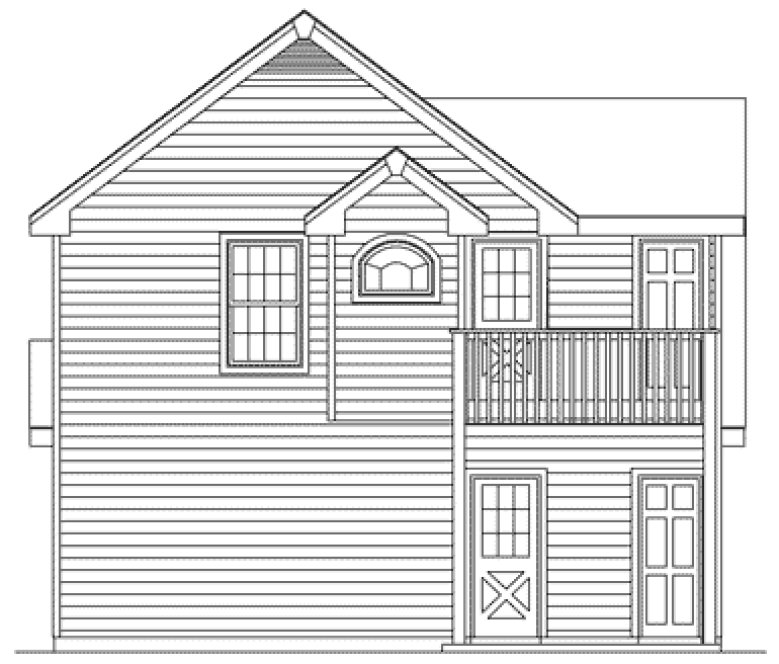

REAR Elevation – westhomeplanners.com

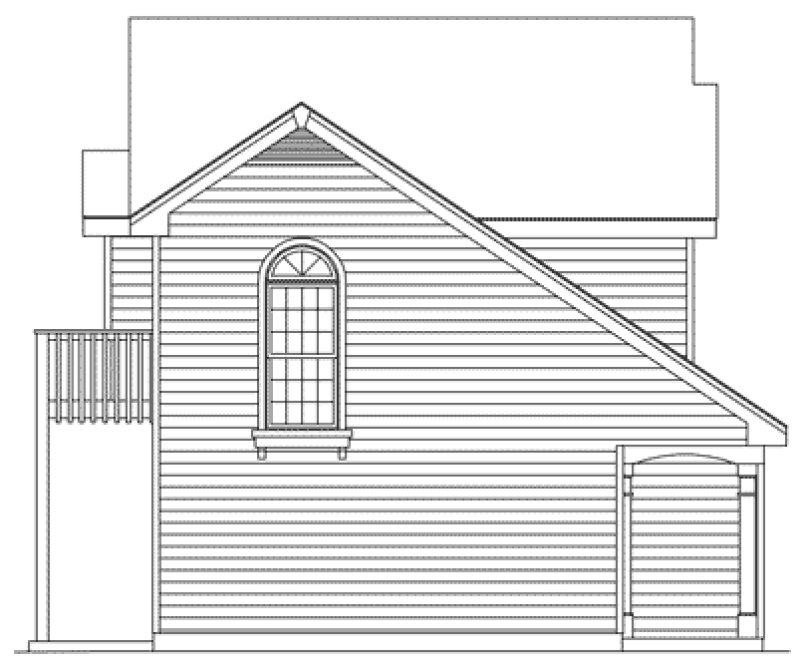

LEFT Elevation – westhomeplanners.com

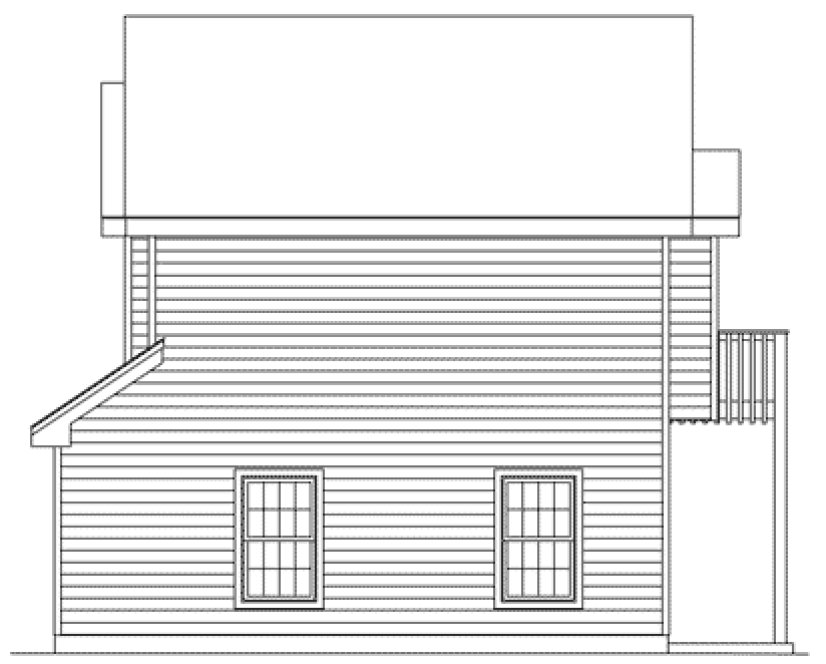

RIGHT Elevation – westhomeplanners.com
