Plan No.211070

Full-Featured Duplex

A full-featured duplex plan that is both simple and cost-effective to build. This plan provides an excellent value in space planning, and includes several key features that help to minimize the overall cost-to-build, including the shape of the building, hip roof, and 8 ft. ceiling heights. Other unique features of this home design include: highly-effective use of space for 701 square feet per unit (2 bedrooms, 1 bath); large master suite with two closets, patio for grilling, covered front porch, and great street appeal. A winner for both builders and owners!

Specifications

Total 1402 sq ft

  • Main: 1402
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 55'0
  • Depth: 43'6

Roof

  • Max Ridge Height: 17'9
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

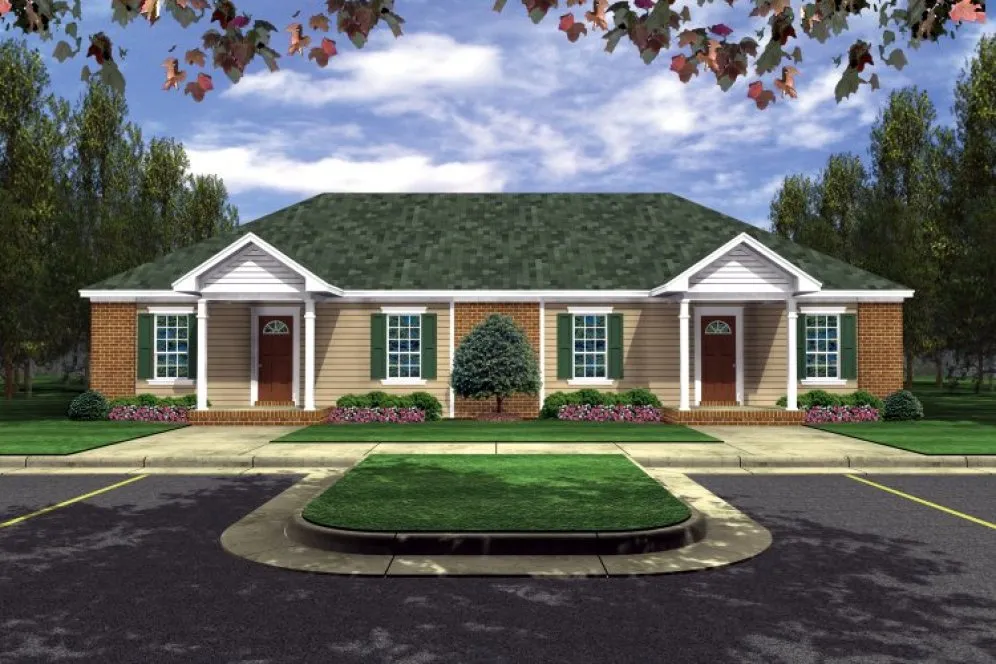

Full Rendering – westhomeplanners.com

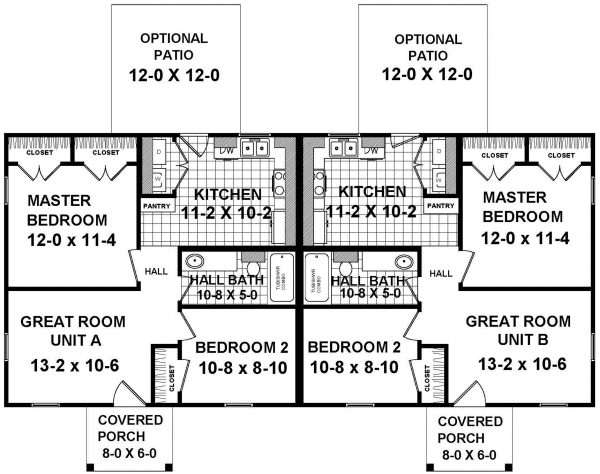

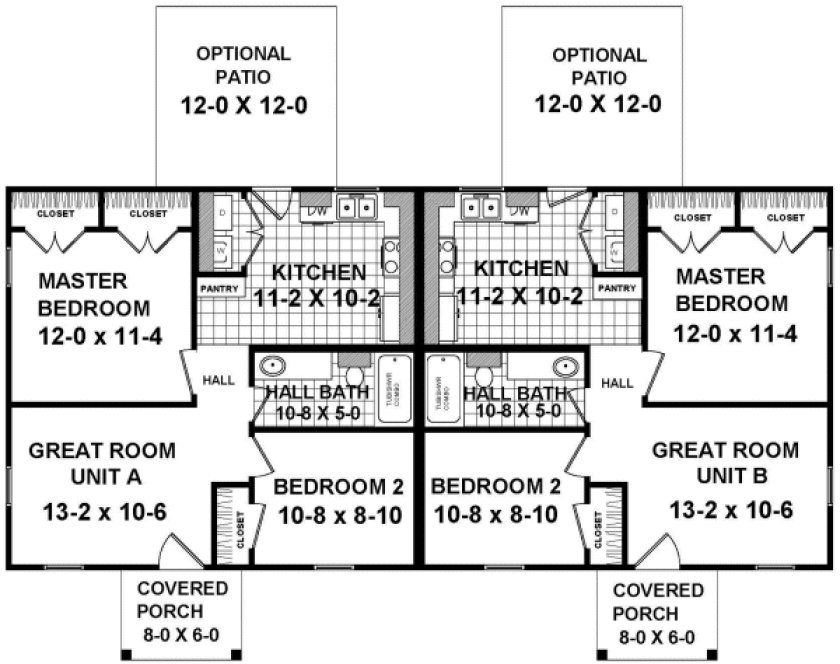

MAIN Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
