Plan No.184424

Perfect Duplex for Family Living

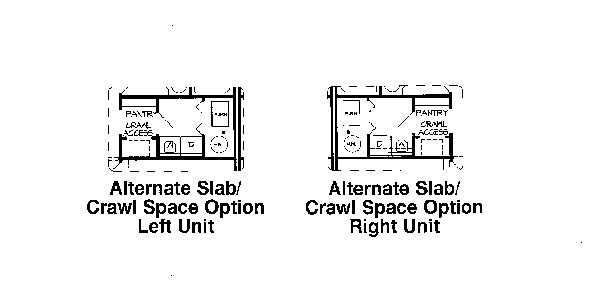

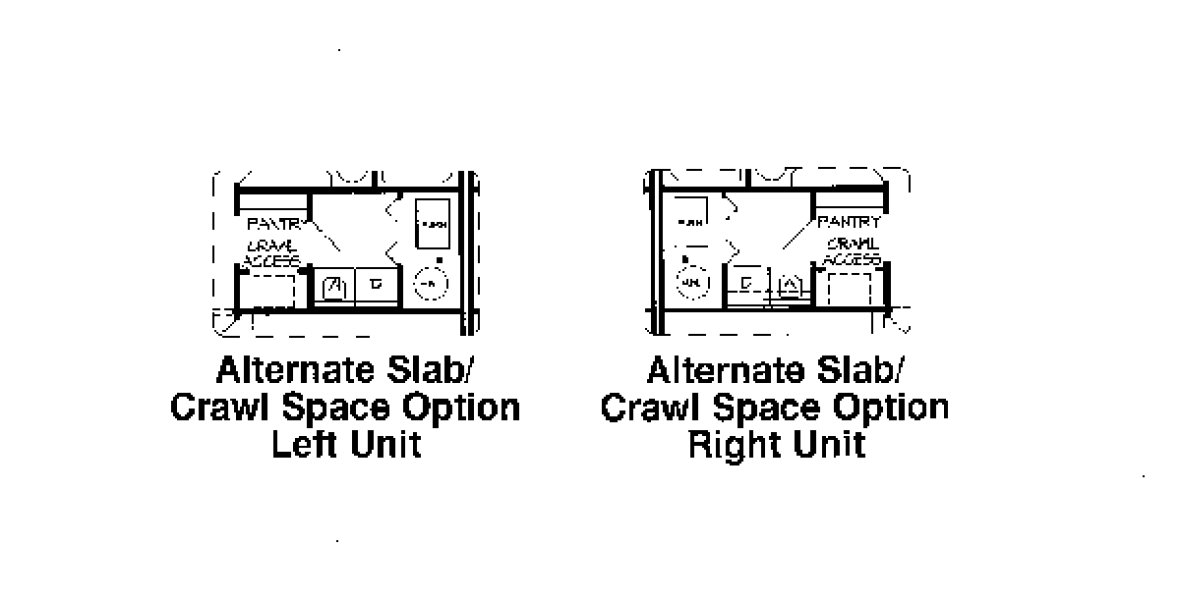

A family can easily spread out in one of these duplex units. There is an efficient U-shape kitchen, which includes a double sink and ample cabinet and closet space. The dining room, with arched entries on three sides, is graced with a large front window. In close proximity to the kitchen and the dining room, the sloped ceiling living room is excellent for entertaining. The bedrooms are located for privacy in the rear of the home. This home is designed with basement, slab, and crawlspace foundation options.

Specifications

Total 1430 sq ft Rooms Ceiling Height Details Footprint
Main: 1430   Bedrooms: 3   Main: 8'0   Max. Ridge Height: 20'6 ()   Width: 84'0
Second:   Baths: 2   Second:   Primary Roof Pitch: 3.50/12   Depth: 56'8
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: /12
Basement:   3/4 Baths:   Basement:   Exterior Wall: 2x4
Loft/Bonus:
  Full Rendering

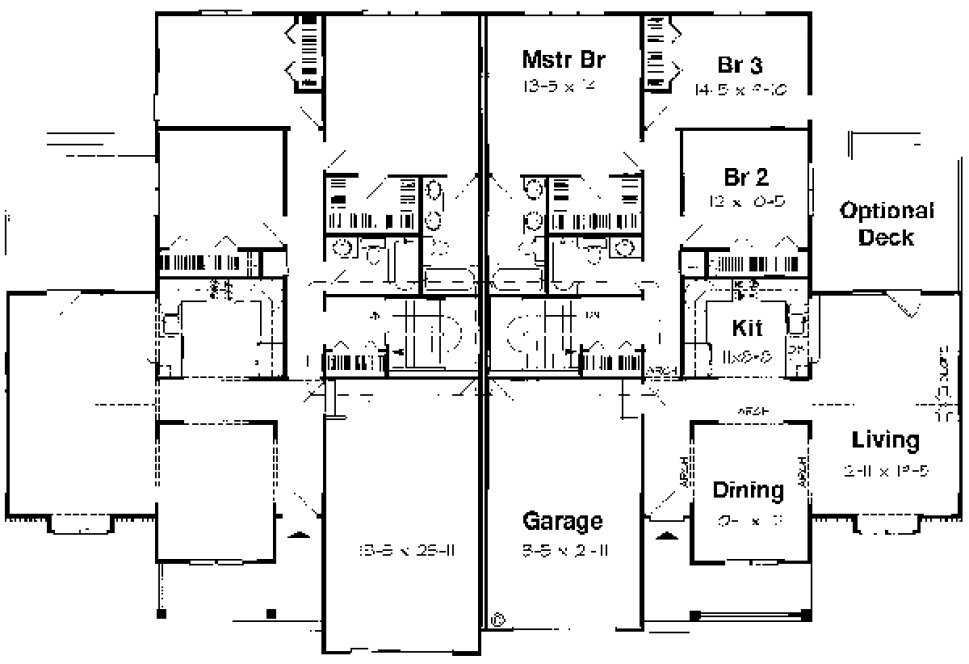

  MAIN Plan

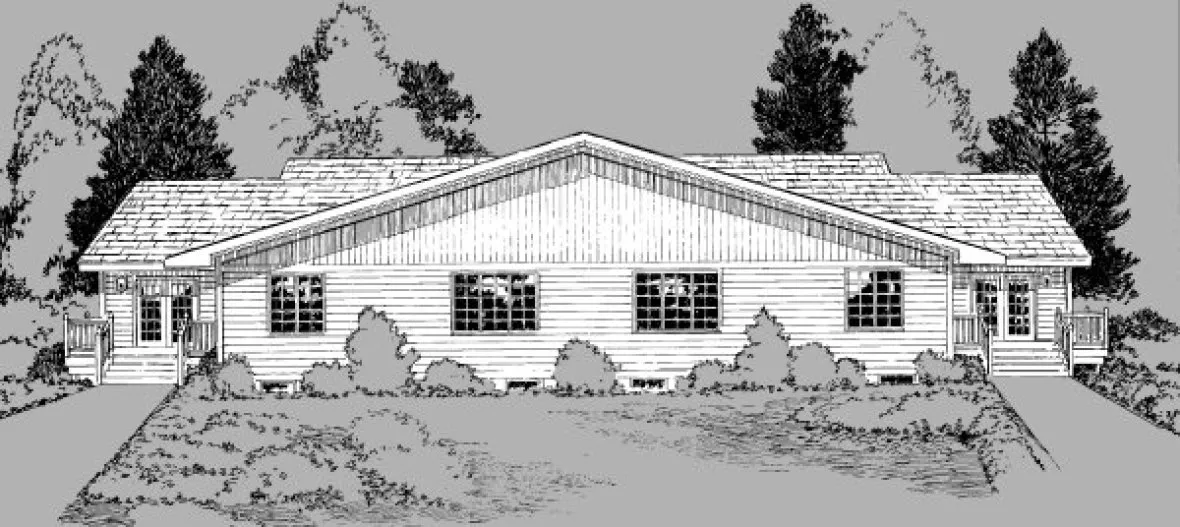

  REAR Elevation
