Plan No.609842

Bonus Room

Here is a craftsman style plan with great curb appeal. The first floor plan offers nine foot ceilings, a large open kitchen, and a two car garage. The master suite upstairs offers a tray ceiling, a grand sitting room with a window seat, and a large walk in closet. Other features upstairs include the laundry room, optional bonus room or bedroom, and walk in closets.

Specifications

Total 2489 sq ft

  • Main: 1204
  • Second: 1285
  • Third:
  • Loft/Bonus: 209
  • Basement: 1204
  • Garage: 479

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 45'0
  • Depth: 45'0

Roof

  • Max Ridge Height: 32'10
  • Comments: ()
  • Primary Pitch: 10.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

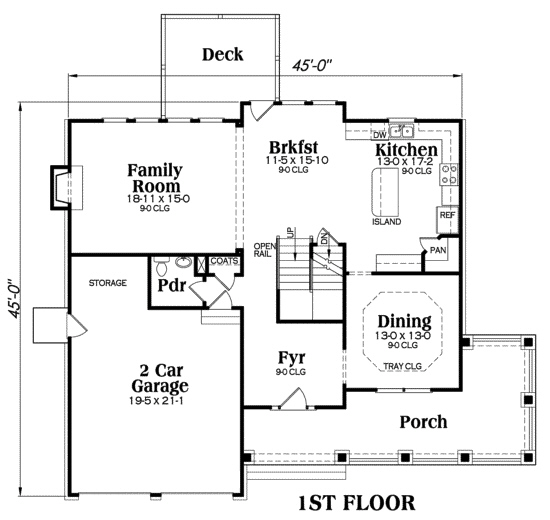

MAIN Plan – westhomeplanners.com

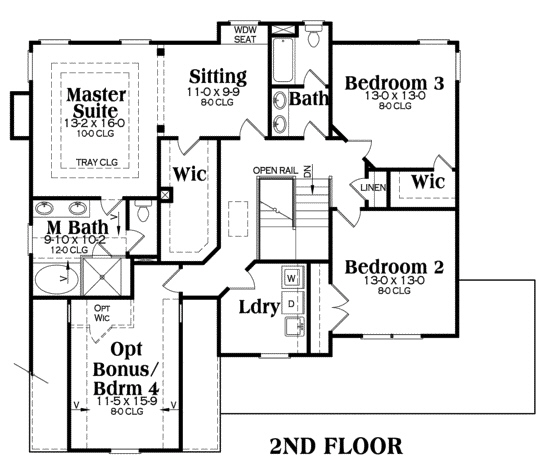

SECOND Plan – westhomeplanners.com

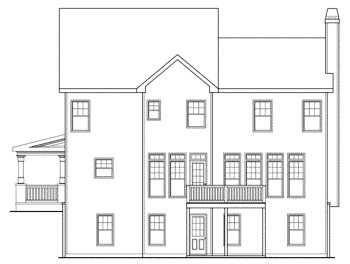

REAR Elevation – westhomeplanners.com
