Plan No.271271

Inviting Craftsman Ranch

This inviting Craftsman ranch includes all the frills. From the welcoming front porch to the screen porch, with skylights, and deck, this home provides dramatic spaces, luxurious appointments, and spacious living areas. Its carefully designed 1700 square feet provide the feel and features of a much larger home. The 1224 sq. ft. optional bonus room/expansion area is accessible from the family room. The 1820 sq. ft. basement opens a whole new world of living space, THE FINISHED BASEMENT OPTION IS AVAILABLE FOR AN ADDITIONAL $125.00. Choosing to finish the basement will offer endless possibilities. A family recreation room, with a fireplace, is the center of activity. For a complete home cinema experience, our home theater features a snack area. An oversized playroom has space for everyone’s toys! A fourth bedroom and an office/bedroom 5 are located off the play room. The office has a private entrance from the lower level terrace. This basement level has 2 three-quarter baths which feature showers. One of these is also accessible from the terrace. This level also has mechanical areas, a spacious storage room and a safe room.


Total 1700 sq ft

  • Main: 1700
  • Second: 0
  • Third: 0
  • Loft/Bonus: 1224

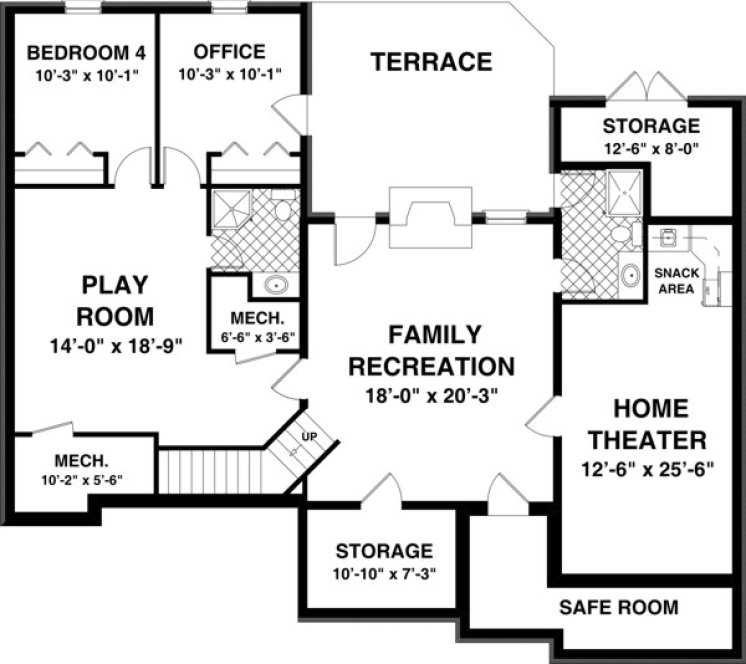

  • Basement: 1820
  • Garage: 437


  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 2

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 53'8
  • Depth: 56'6


  • Max Ridge Height: 21'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12
Full Rendering –

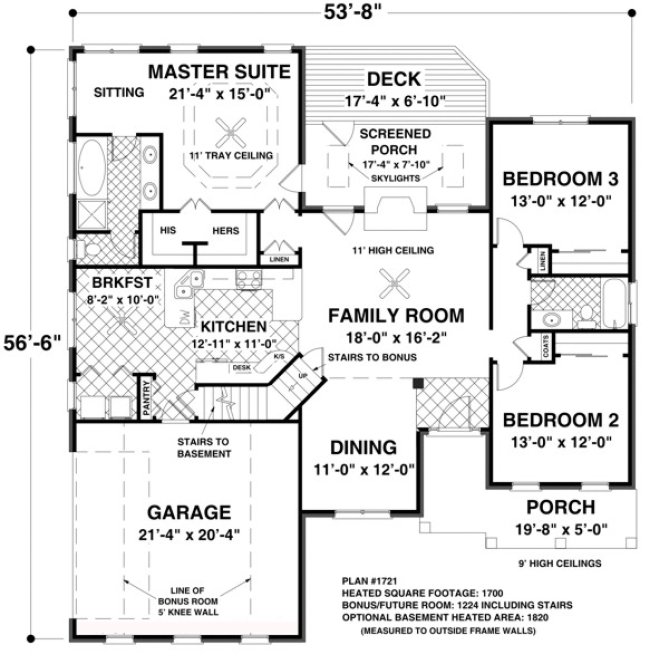

MAIN Plan –

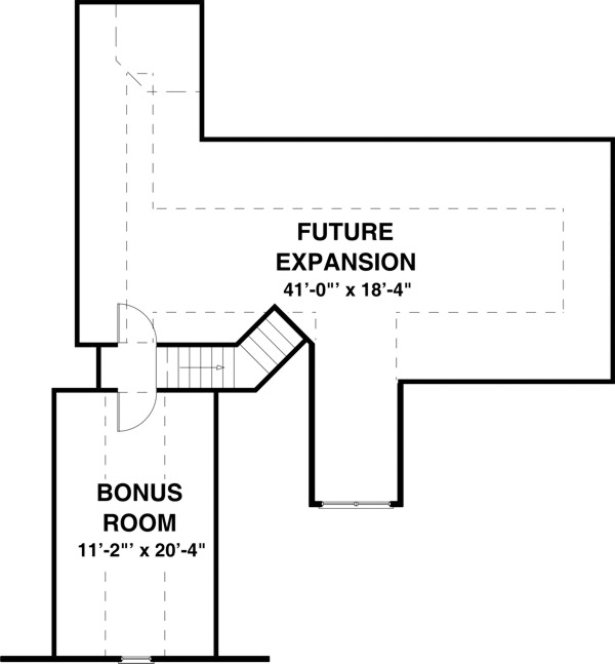

ATTIC Plan –
REAR Elevation –
