Plan No.108421

Twin Dormers

This cabin-style home fits everything you need into an attractive little package. The gabled entry opens into a vaulted living area and allows easy access to the kitchen, bedroom and utility areas. Rear access through a mudroom is also provided. Upstairs, twin dormers open up the loft to create a cozy master suite along with attached three-piece bath and balcony. Please note that the width includes the covered side porch but the depth does not include the 10' deep deck.

Specifications

Total 1172 sq ft

  • Main: 816
  • Second: 356
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 30'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 23'9
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

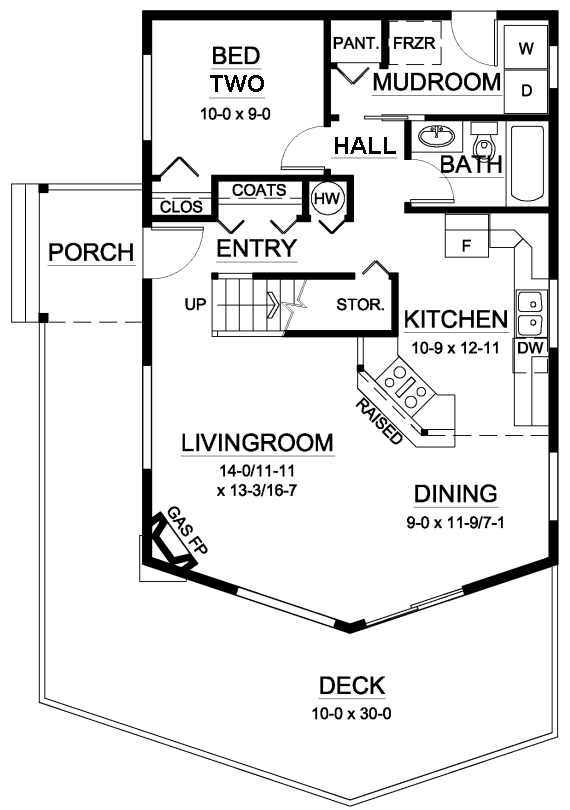

MAIN Plan – westhomeplanners.com

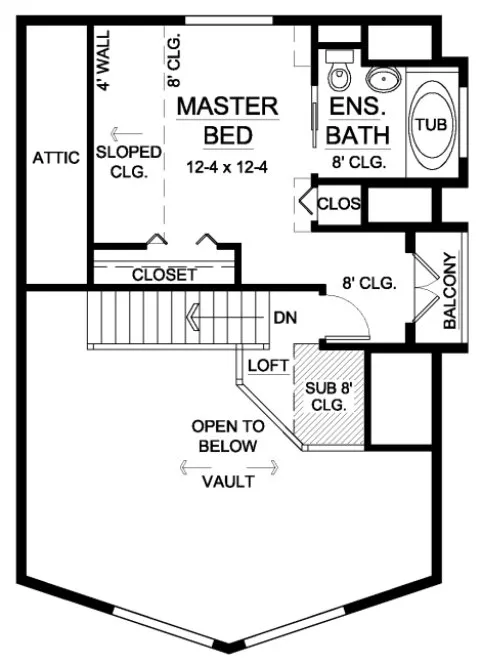

SECOND Plan – westhomeplanners.com

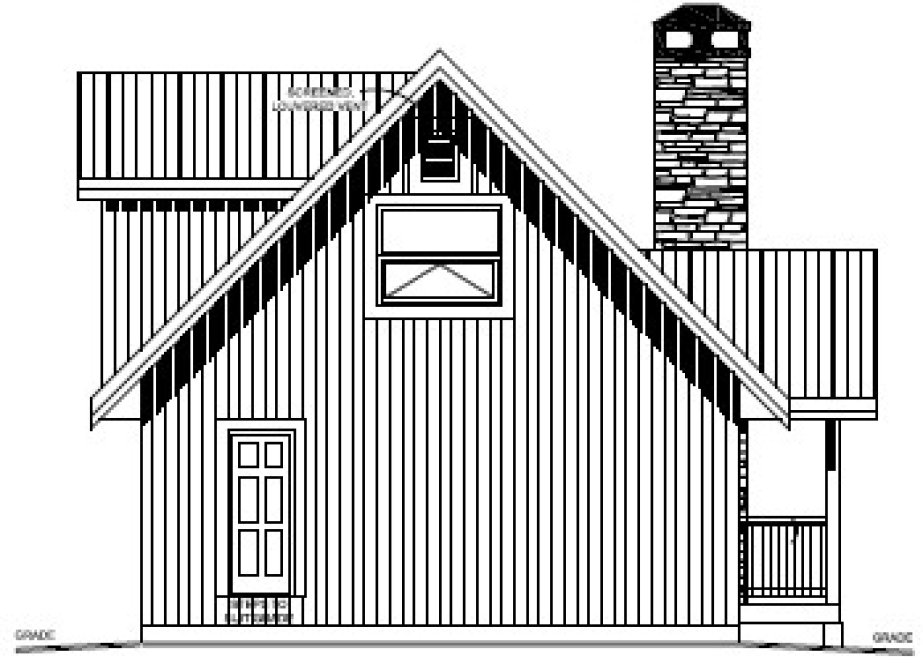

REAR Elevation – westhomeplanners.com
